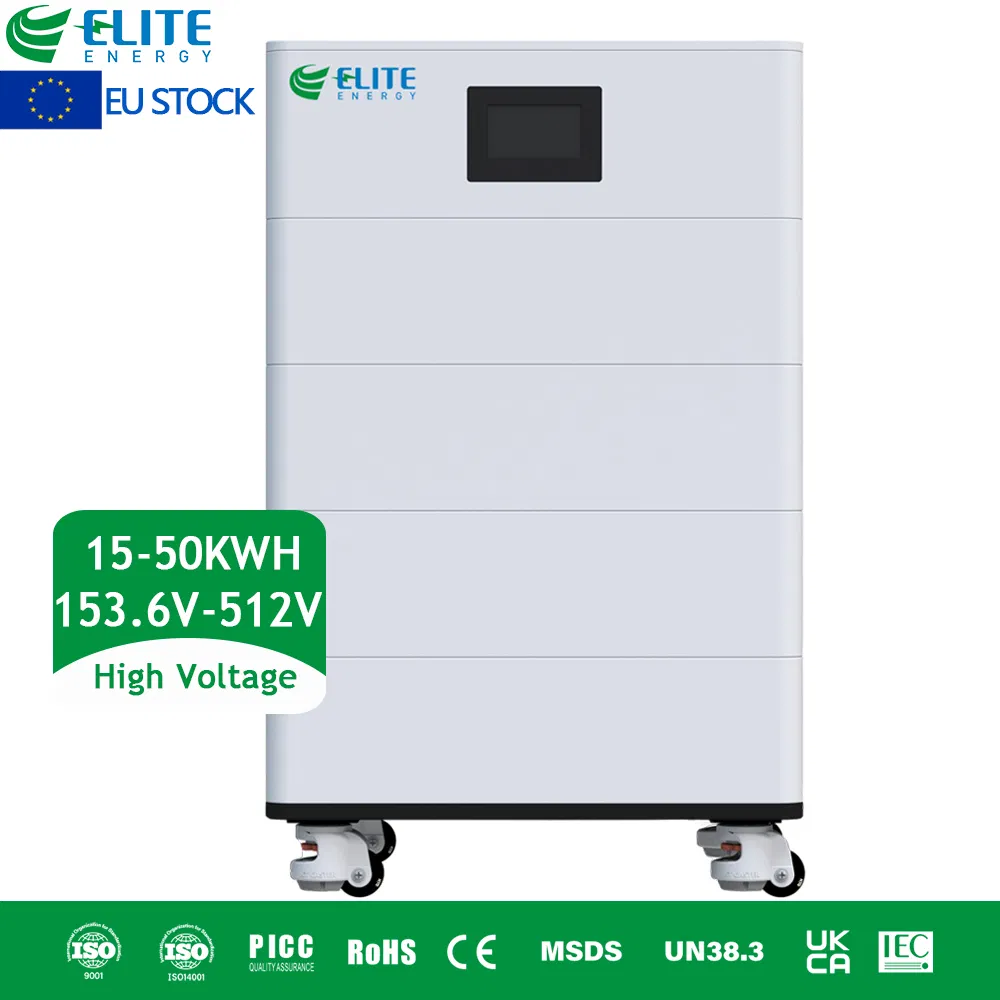

EU Stock 15kwh 20kwh 30kwh High Voltage Stackable Home Energy Storage System LiFePO4 48V 51.2V 100ah Solar Lithium Battery Pack

1 / 5

EU Stock 15kwh 20kwh 30kwh High Voltage Stackable Home Energy Storage System LiFePO4 48V 51.2V 100ah Solar Lithium Battery Pack

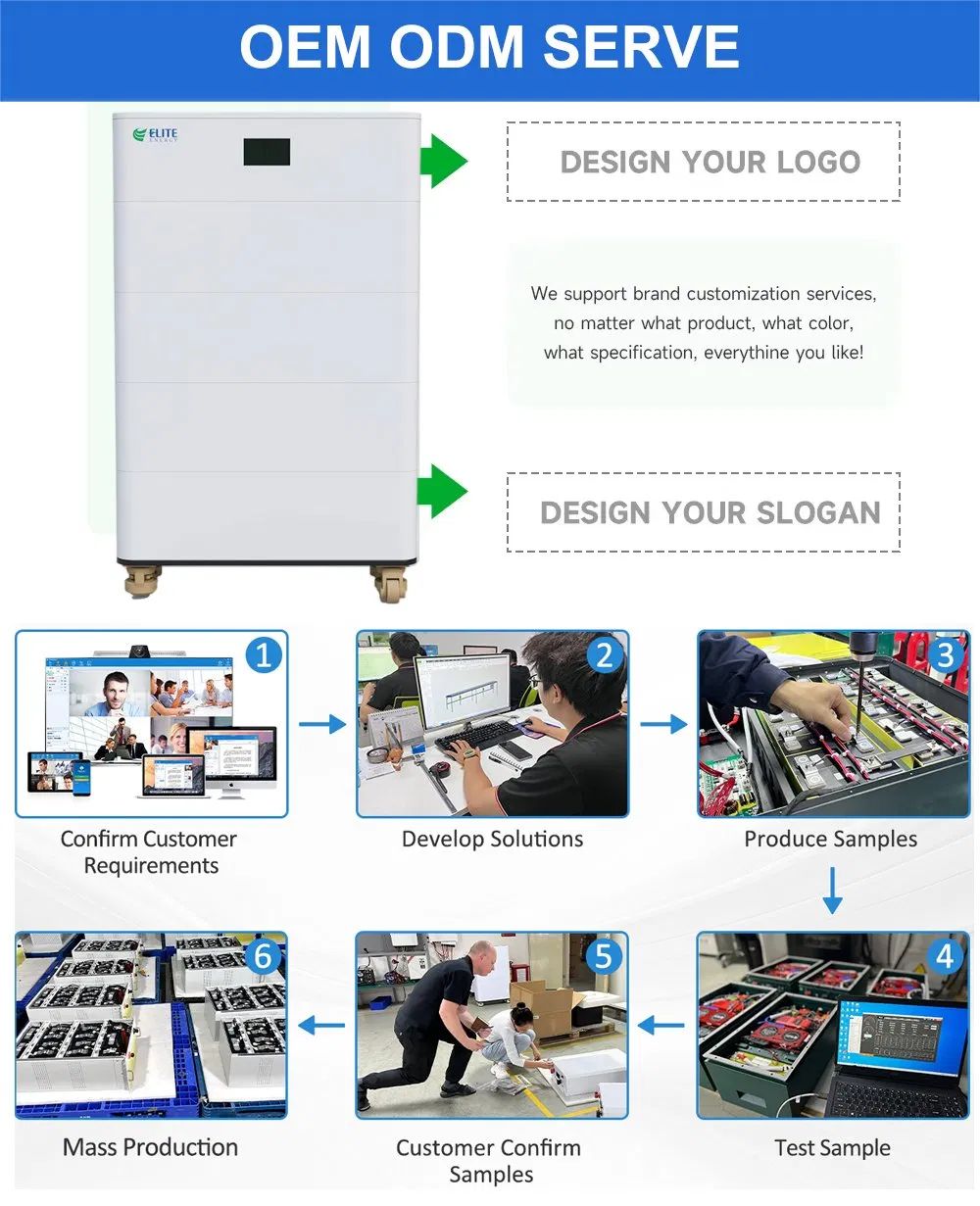

Customization:	Available
Type:	Li-ion Battery
Cathode Material:	LFP

Send Inquiry

Product Description

Basic Info.

Model NO.

ELT512100HV

Rechargeable

Yes

Size

Large

Voltage

153.6V~512V

Nominal Energy

15kwh 20kwh 25kwh 30kwh 35kwh 40kwh 45kwh 50kwh

Display

LCD Screen

Base Type

Removable Base

Certification

CE/RoHS/Un38.3/MSDS

Communication

Can/RS485

Warranty

5 Years

Transport Package

Carton Box

Specification

550*470*972.5mm

Trademark

OEM

Origin

China

HS Code

8507600090

Production Capacity

100000PCS/Month

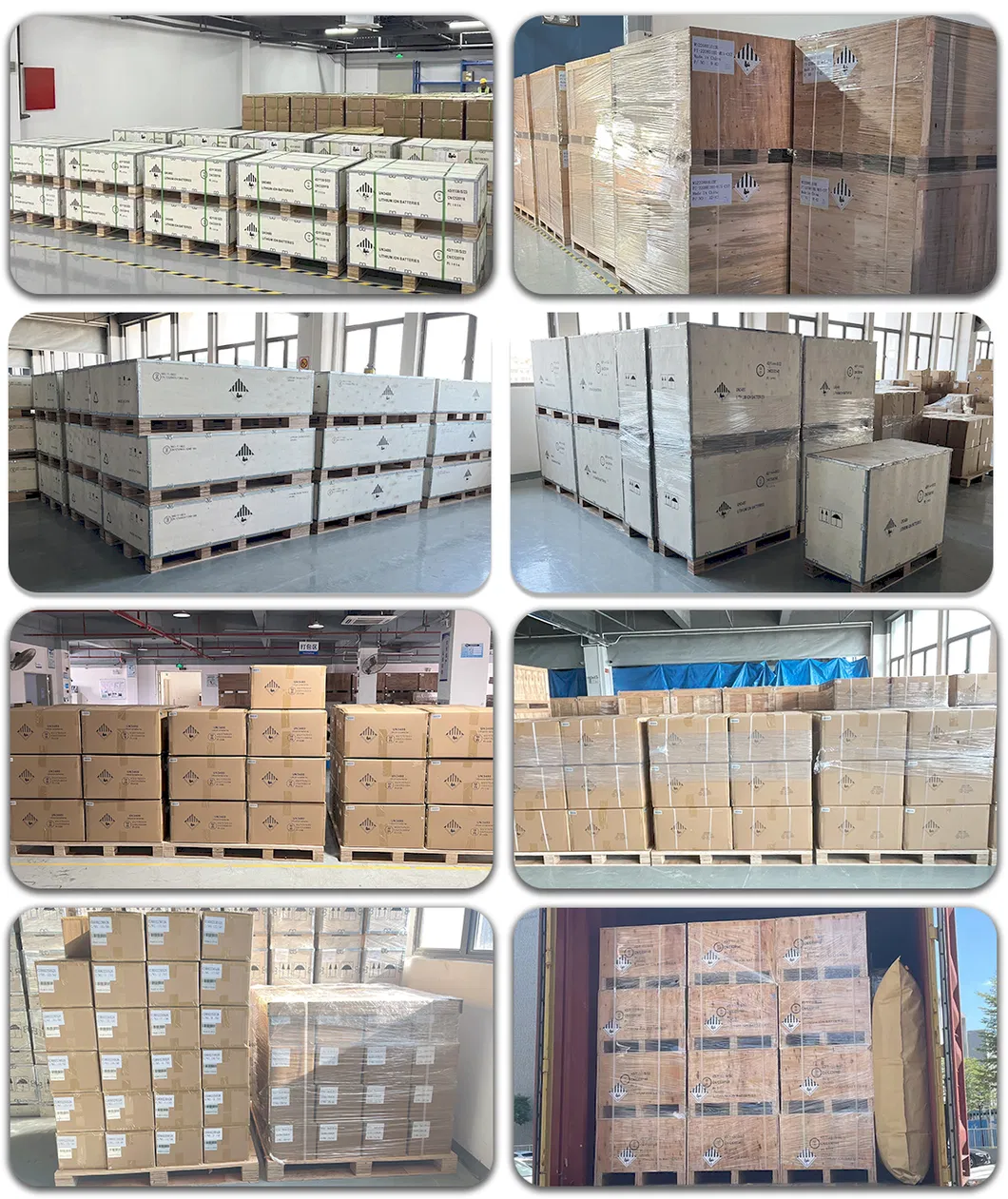

Packaging & Delivery

Package Size

60.00cm * 52.00cm * 132.00cm

Package Gross Weight

320.000kg

Product Description

15Kwh 20Kwh 30Kwh 40Kwh 50Kwh High Voltage Energy Storage Battery System LiFePO4 Solar Lithium Ion Batteries Pack

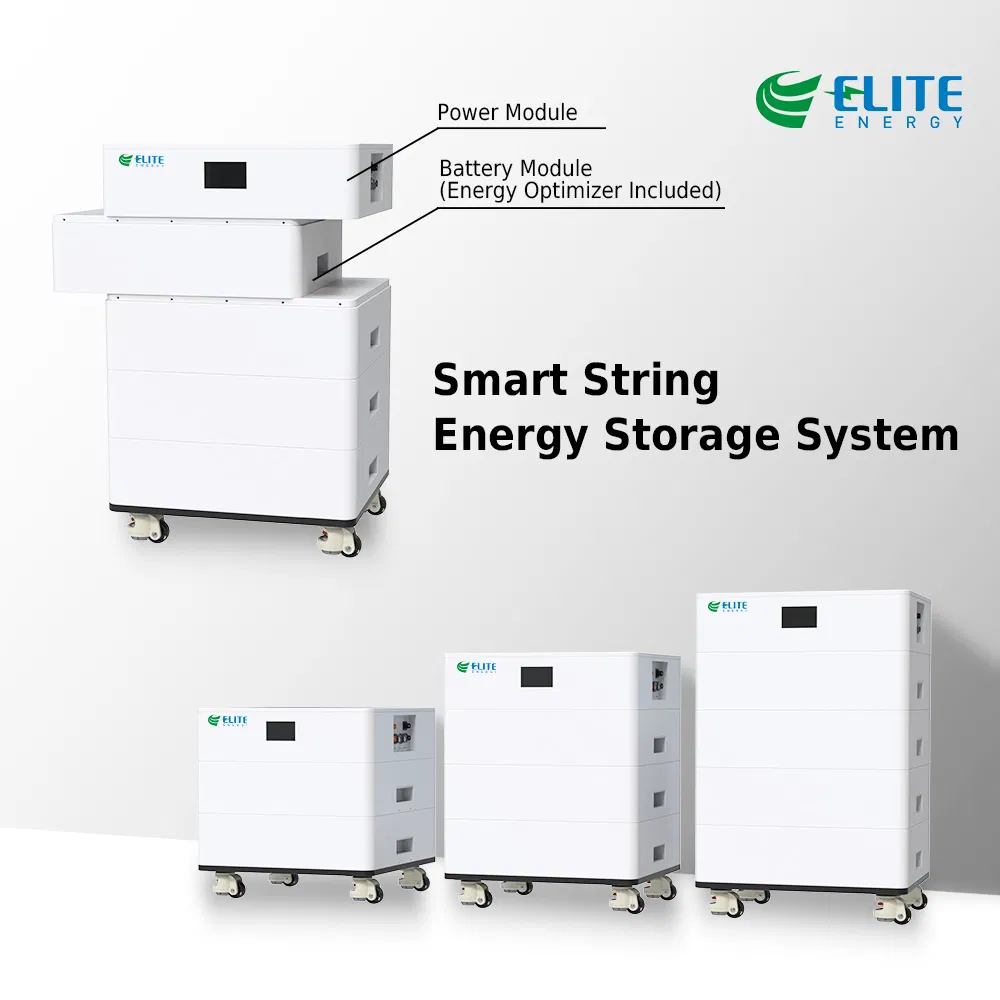

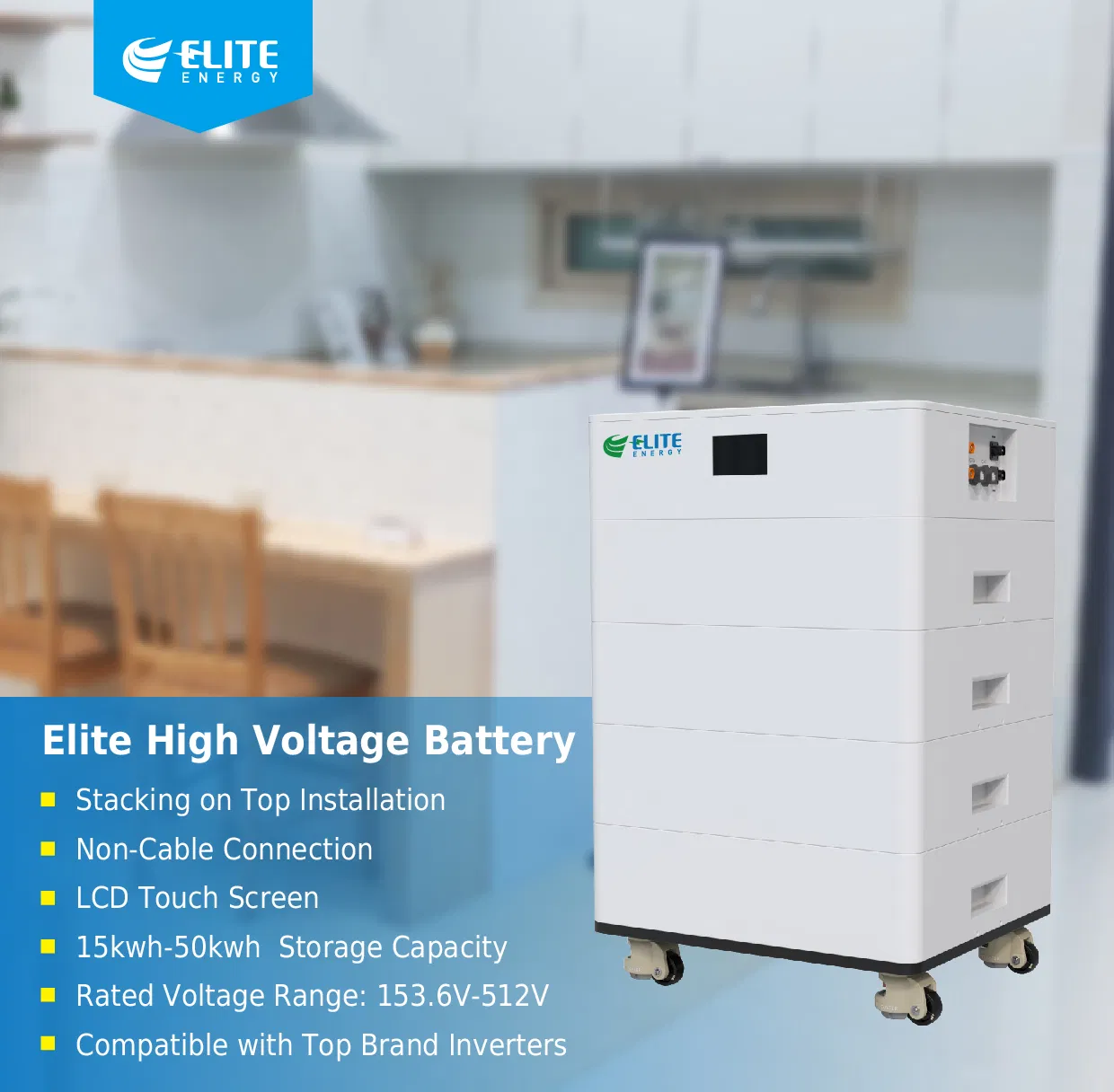

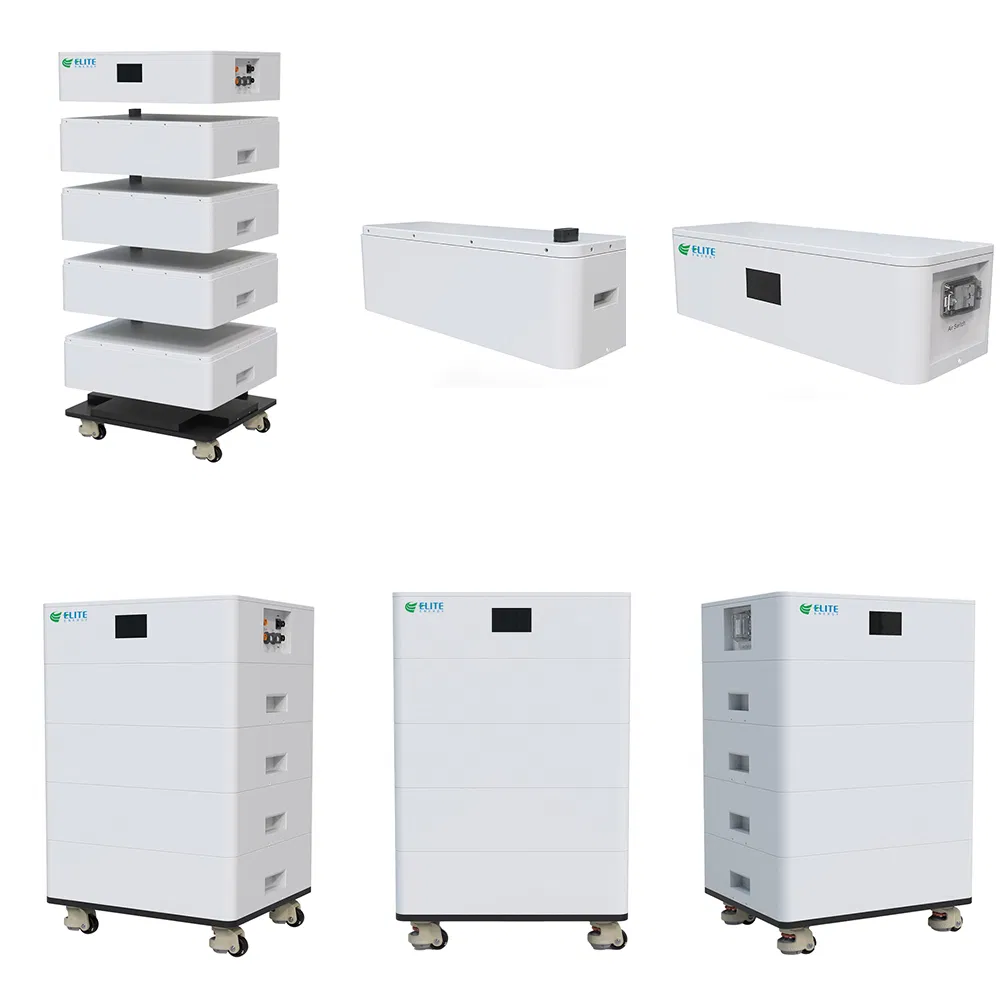

High Voltage Stackable Home Energy Storage System

Adopts green, safe and reliable LiFePO4 battery cells.
Flexible Investment, meet different energy requirements.
Highest energy efficiency.

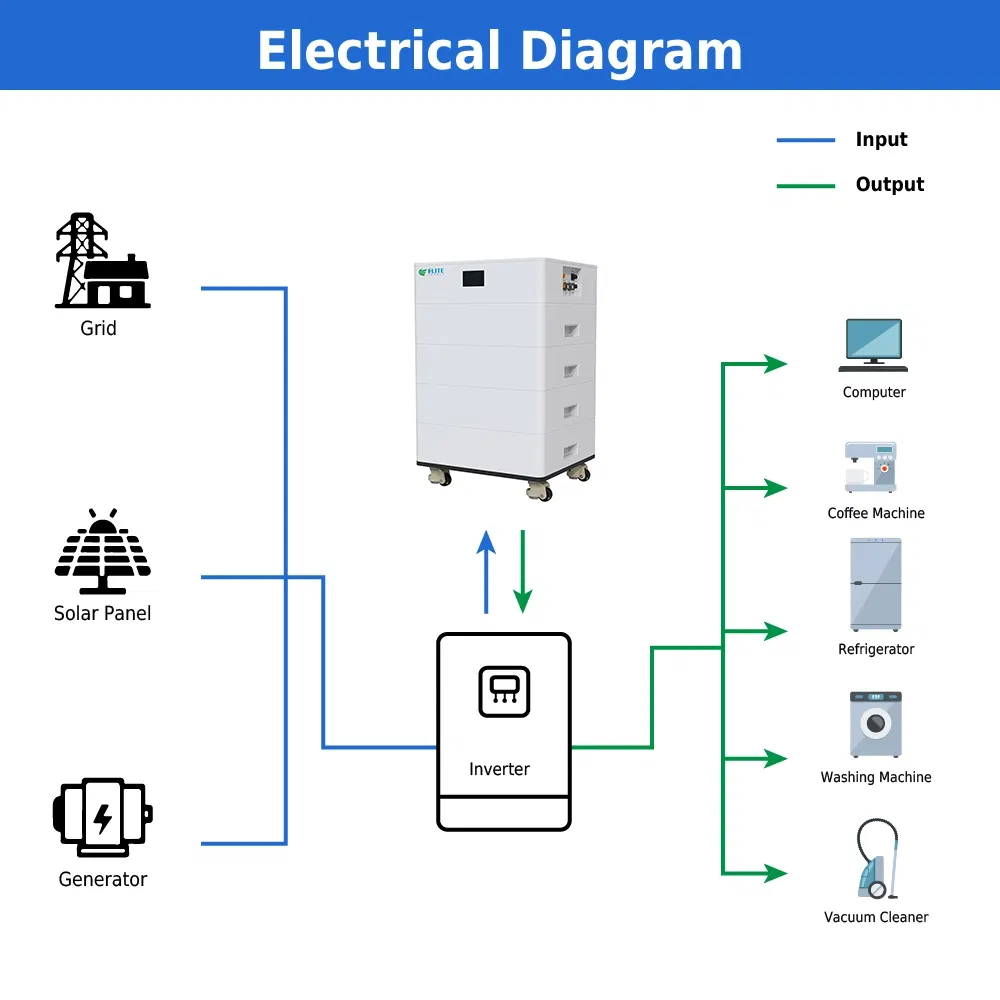

Wide compatible with market main inverter brands.
Five years warranty

Typical Model	ELT15K100H	ELT20K100H	ELT25K100H	ELT30K100H	ELT40K100H
Number of battery Modules	3	4	5	6	8
System Parameters
Battery Type	LiFePO4
Battery Module	5120Wh, 51.2V 100Ah
Nominal Energy	15.36kWh	20.48kWh	25.6kWh	30.72kWh	40.96kWh
Nominal Voltage	153.6V	204.8V	256V	307.2V	409.6V
Operating Voltage	120-175.2V	160-233.6V	200-292V	240-350.4V	320-467.2V
Rated DC Power	15.36kWh	20.48kWh	25.6kWh	30.72kWh	40.96kWh
Max. Continuous Charging/Discharging Current	100A
Max. Peak Charging/Discharging Current	150A (10s)
Depth of Discharge	100%
Communication Interface	CAN/RS485
Protection Function
Over / Under Voltage Protection	Yes
Over Current Protection	Yes
Over / Under Temperature Protection	Yes
DC Breaker	Yes
General Parameters
Dimensions (WHD) (mm)	550470712	550470885	5504701058	550470×1231	550470×1577
Weight (kg)	177	227	277	327	427
Installation Location	Indoor
Mounting Method	Floor stand
Operating Ambient Temperature Range	Charge:0~55ºC / Discharge:-20~65ºC
IP Standard	IP65
Allowable Relative Humidity Range	0% to 95% (non-condensing)
Cooling Method	Natural convection
Warranty	5 years

Frequently Asked Questions

Q Do you have a Minimum Order Quantity (MOQ) Limit?

No, there is no MOQ limit. A 1-piece sample order or small quantity is available.

Q What is the lead time for standard and customized products?

Standard product lead time: Samples: 3-5 days; Bulk order: 3-4 weeks. Customized product lead time: 3-4 weeks for both sample or bulk orders. Ready-to-ship products from US & EU warehouses can ship out once your payment is confirmed.

Q How do you ship the goods and how long does it take?

We support several shipping methods:
- By air door to door (6-12 days): FEDEX, UPS or DHL, suitable for urgent small orders.
- By sea door to door (25-50 days): suitable for bulk orders.
- By sea to delivery port (20-35 days): suitable for bulk orders.
- By Air to airport (3-5 days): suitable for urgent, heavy packages.

Q Does the BMS have low-temperature charging disconnect?

Yes, our BMS features a low-temperature protection cut-off function to protect the battery from low-temperature damage and extend its lifespan. Low temp cut off protection (Charge): 0ºC ± 4ºC (32°F ± 39.2°F). Low temp cut off protection (Discharge): -20ºC ± 4ºC (-4°F ± 39.2°F).

Q What is a BMS (Battery Management System) and what does it do?

A Battery Management System (BMS) is responsible for protecting the Li-ion cells and the user from unsafe operating conditions, such as low or high voltage, low or high temperatures, and system shorts. It shuts off the battery to prevent damage. The BMS also ensures cell balance during each charge cycle by regulating the charging rate of individual cells to maintain overall pack efficiency and lifespan.

Q How long do LiFePO4 batteries last?

Our LiFePO4 lithium iron batteries provide 4000+ cycles, compared to 300-500 cycles in lead-acid batteries. The service life of LiFePO4 batteries is 8 to 10 times longer than standard lead-acid batteries.
