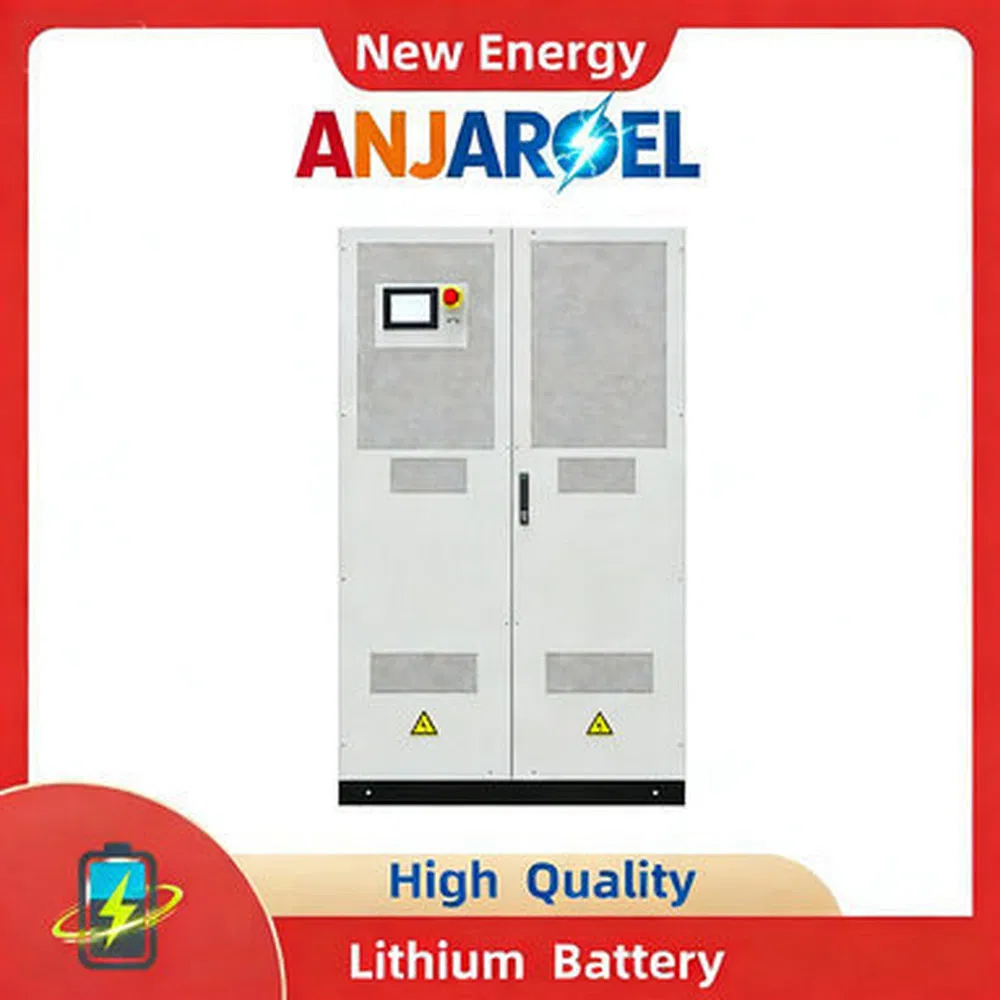

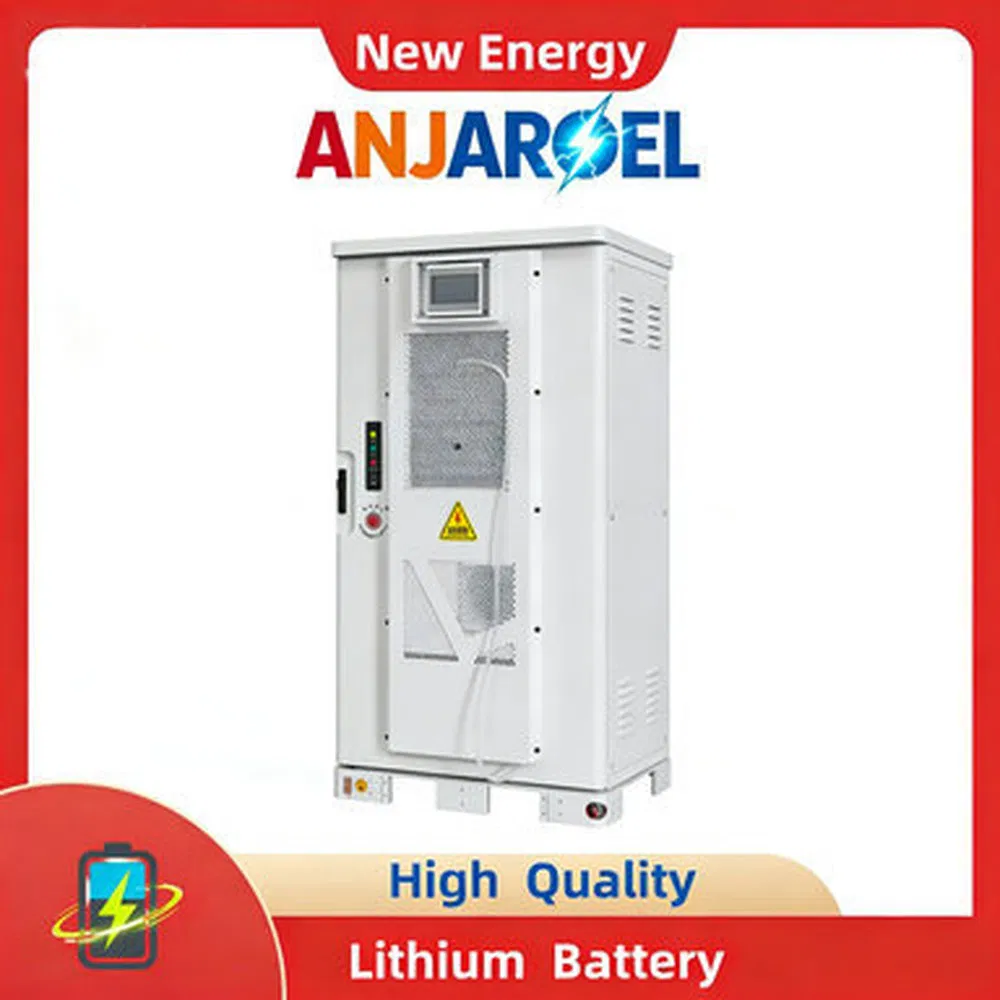

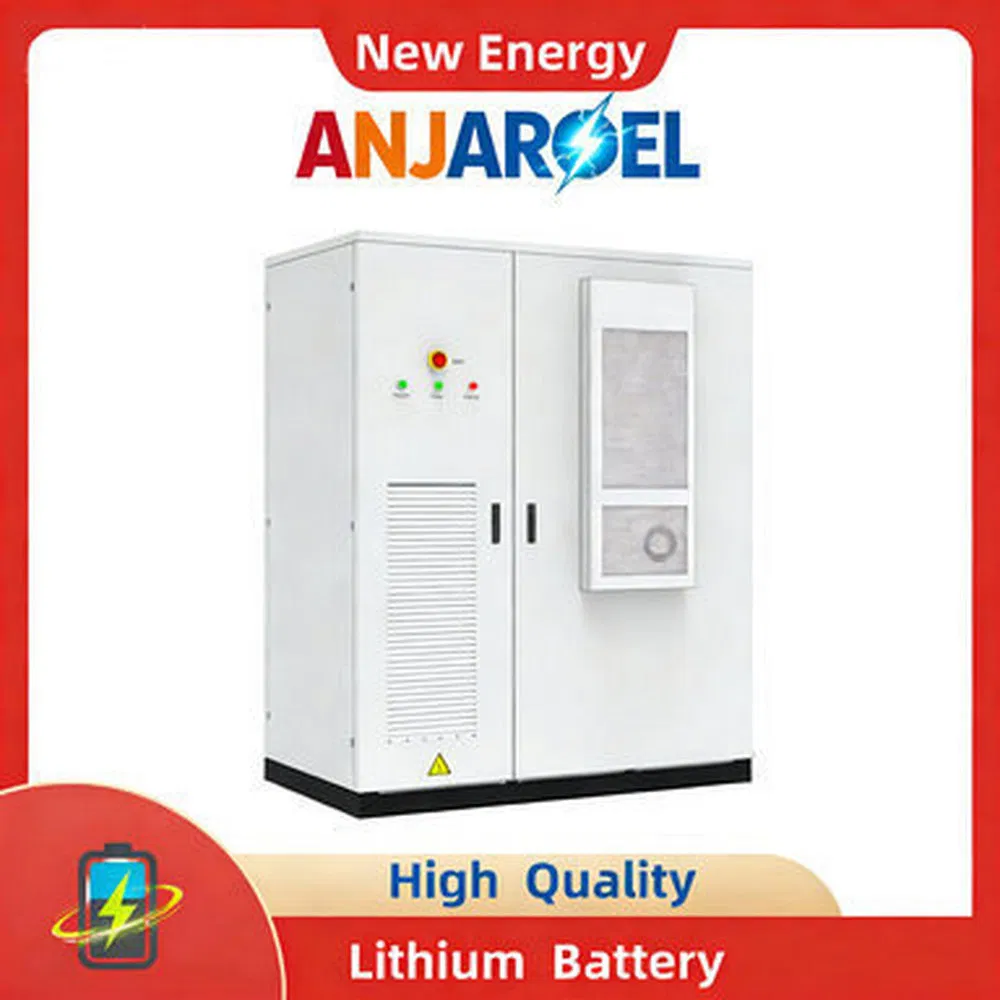

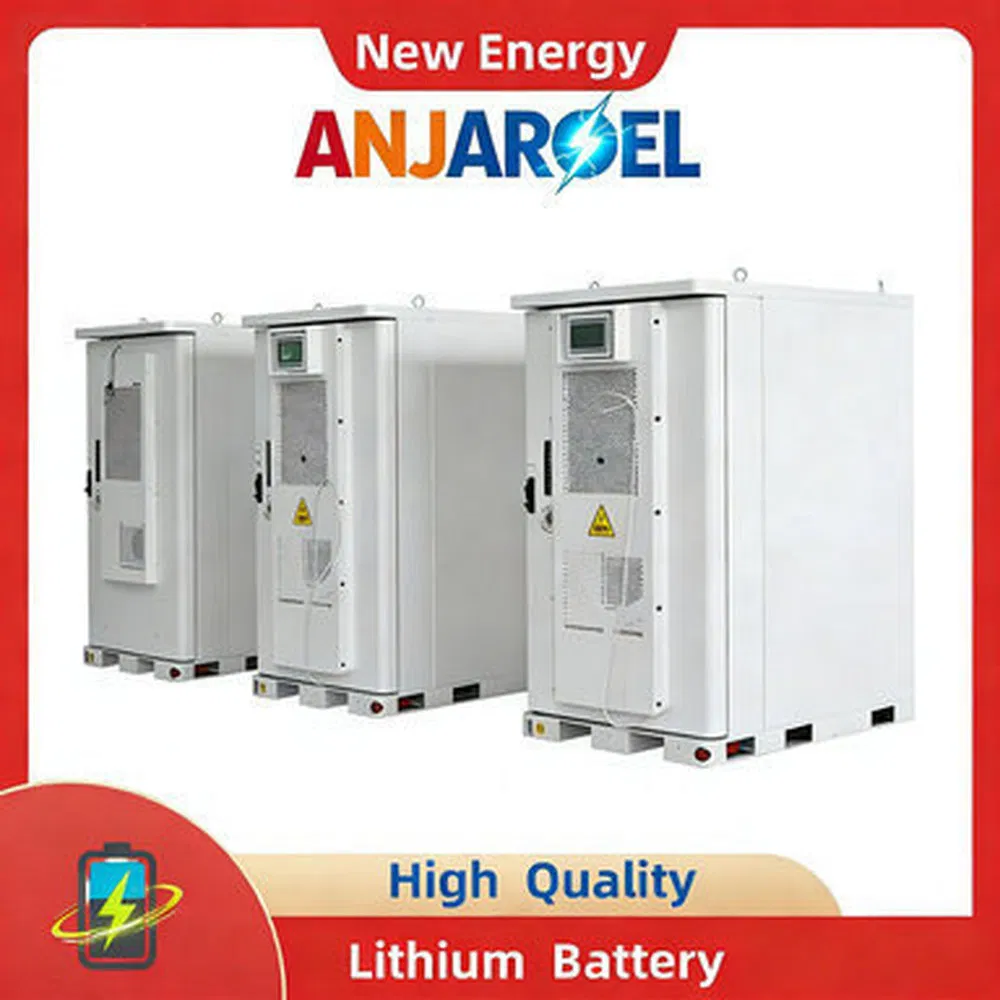

A turnkey energy storage solution designed for industrial and commercial facilities seeking reliable power management.
Combining 215 kWh capacity with 100 kW output, this system delivers robust performance through premium LiFePO4 chemistry, intelligent thermal management, and comprehensive safety features.
Perfect for backup power, demand charge reduction, peak shaving, and seamless renewable energy integration.
| Technical Parameters | |
|---|---|
| Product Name | 215KWh Energy Storage System |
| Keywords | All-In-One ESS |
| Nominal Capacity | 215 KWh |
| Nominal Output Power | 100 KW |
| Nominal Current | 145 A |
| Nominal Voltage | 400 V |
| DC Full-Load Voltage Range | 200 – 950 V |
| DC Maximum Current | 192 A |
| Nominal Frequency | 50 / 60 Hz ±2.5 Hz |
| Power Factor | -0.99 To +0.99 |
| Stabilized Voltage Accuracy | ±2% |
| Stabilized Current Accuracy | ±5% |
| Battery Type | LiFePO4 (LFP) |
| Cell Specification | 3.2 V / 280 Ah |
| Battery Pack Configuration | 1P × 20S × 12S |
| Cycle Life | >6000 Cycles |
| Protection Level | IP55 |
| Cooling Method | Air Cooling |
| Fire Protection | Aerosol / FM200 |
| Operating Temperature | -20°C To 60°C |

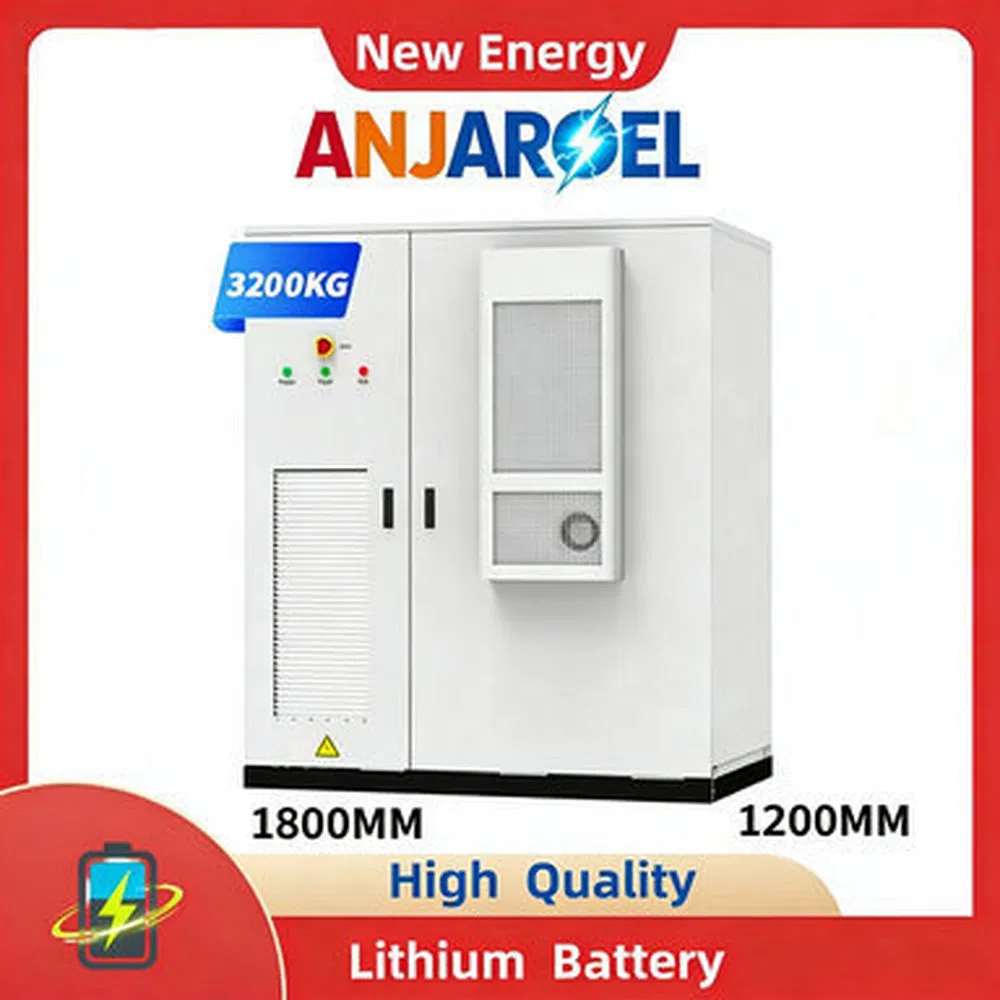

| Dimensions | 1800 × 1200 × 2300 mm |
| Weight | 3000 kg |
| Management System | BMS and high-voltage box |
| Certifications | EN50549-1, UN38.3, IEC62619, CE |
Strategic peak demand management and time-of-use optimization significantly reduce utility expenditure while delivering compelling return on investment through intelligent load shifting.
Advanced energy arbitrage algorithms capitalize on tariff differentials and demand charge structures, transforming your facility's energy consumption profile from reactive cost center to proactive revenue opportunity while simultaneously enhancing grid resilience and operational efficiency.
Future-proof modular architecture supports seamless capacity expansion aligned with load growth projections, eliminating premature over-investment in unused capacity.
Hot-swappable battery packs and parallel system integration enable incremental scaling from 215 kWh to multi-megawatt installations without operational disruption, protecting your initial capital deployment while maintaining upgrade flexibility as business requirements evolve.
Sub-20 millisecond transfer time ensures uninterrupted power delivery during grid disturbances, safeguarding precision manufacturing, data center operations, and process-critical equipment from voltage sags, frequency deviations, and complete outages.
Intelligent islanding capability maintains facility operations during extended grid failures, eliminating costly downtime, preventing production losses, and ensuring business continuity for revenue-sensitive operations.
