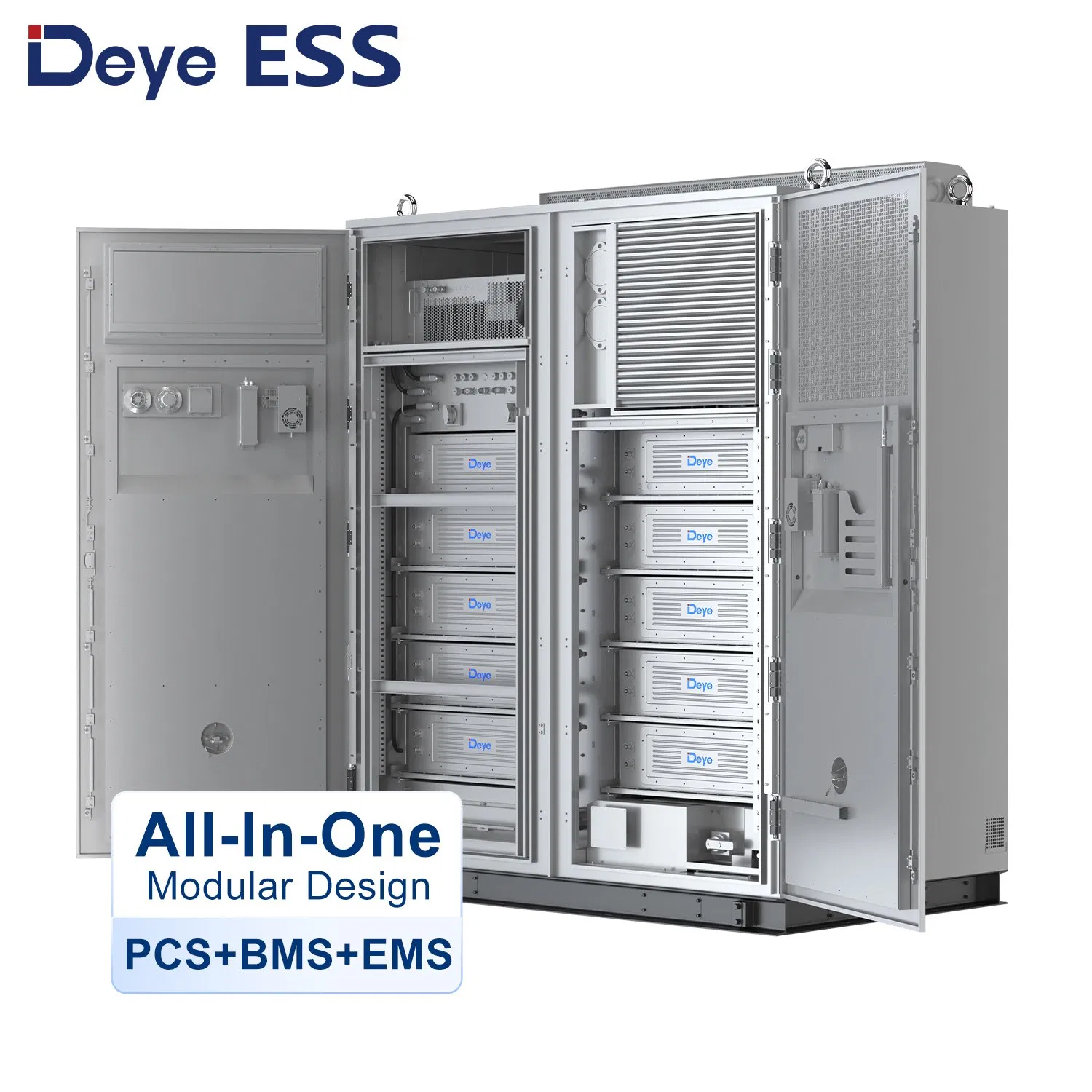

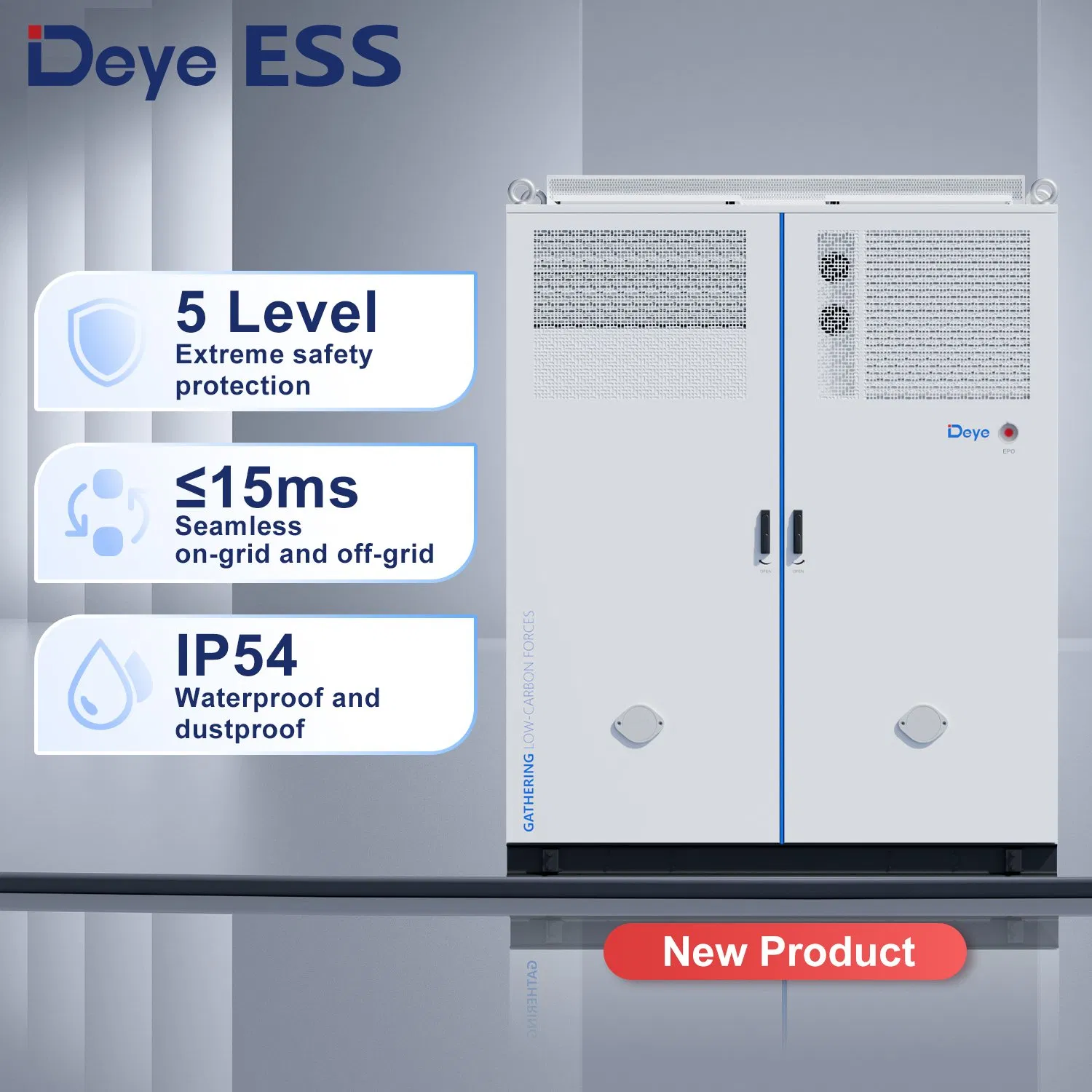

Deye Ess Mc-L430-2h2 Liquid Cooling 200kwh Solar Lithium Battery Commercial and Industrial Energy Storage System

Customization: Available
Type: Li-ion Battery
Cathode Material: LFP

Product Description

Basic Info
Model NO.
MC-L430-2H2
Size
Large
Battery
LiFePO4
Type of Cooling
Liquid Cooling
Fire Suppression
Aerosol, Water
Ingress Protection
IP 54
Altitude
≤2000m
Weight
≤4600kg
Nominal Capacity
280ah
Nominal Energy
430.08kwh
Nominal DC Voltage
768vd.C.
Charge & Discharge Rate
0.5p
Specification
2000*1300*2480mm
Origin
China
HS Code
8507802000
Production Capacity
300000/Years
Product Description
Liquid Cooling Solar Lithium Battery Commercial and Industrial Energy Storage System

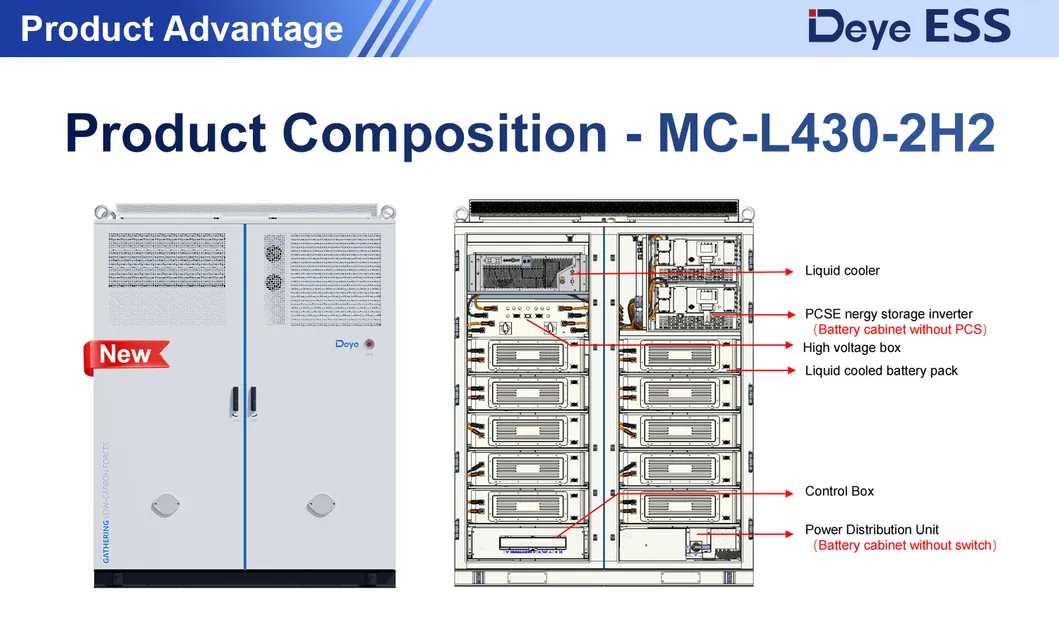

Commercial and Industrial Energy Storage System details Energy Storage System specifications Energy Storage System features
System Parameters
Operating Temperature -25ºC-+55ºC
Storage Temperature -30ºC-+60ºC
Humidity 0-95%(No condensation)
Type of cooling Liquid cooling
Fire Suppression Aerosol,Water
Ingress Protection IP54
Anticorrosion grade ≥C4
Altitude ≤2000m
Communication RS485,Modbus TCP,DIDO
Weight ≤4600kg

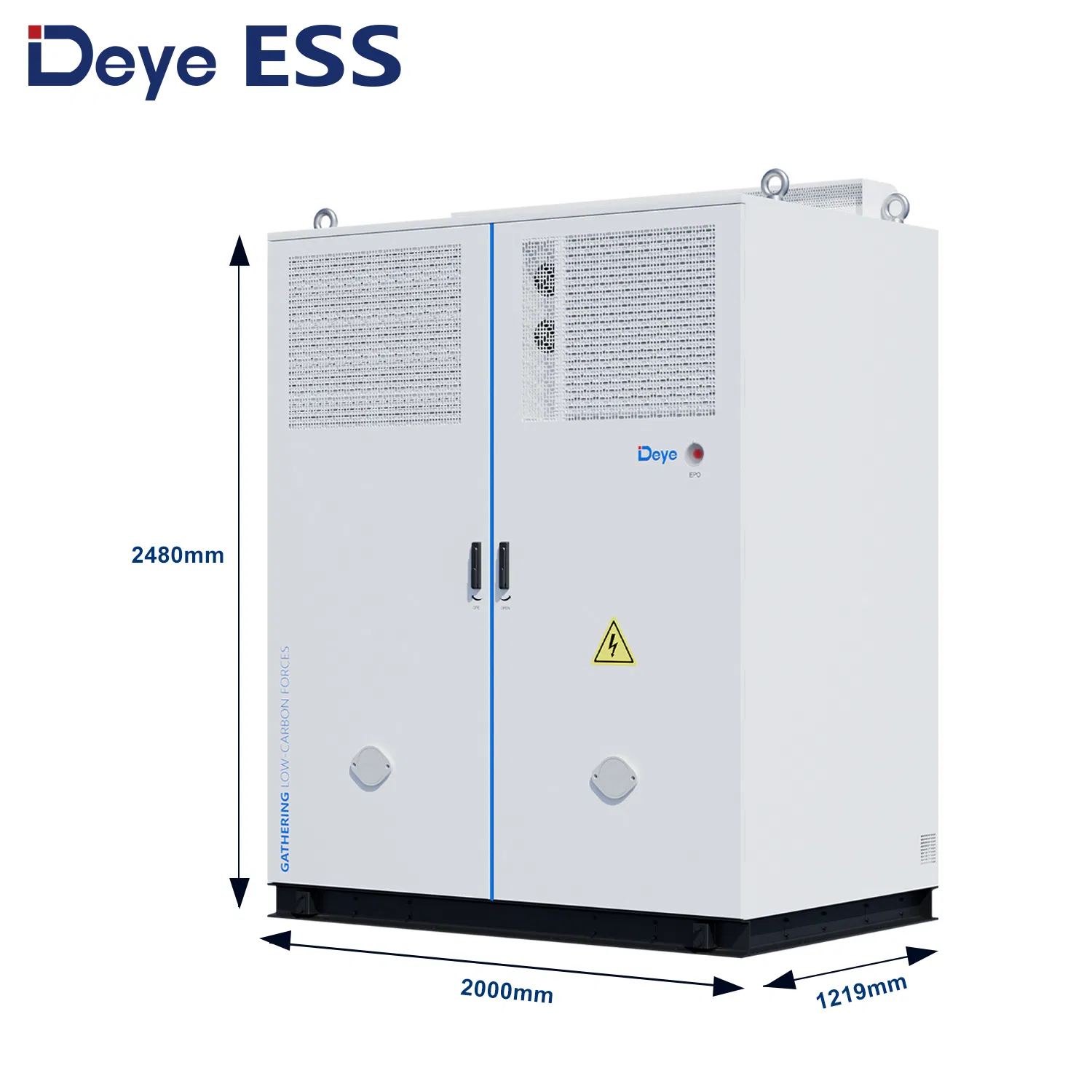

Dimensions(W×D×H) 2000×1300×2480mm
Active Balancing Function No
DC Data
Battery LiFePO4
Nominal Capacity 280Ah
Nominal Energy 430.08kWh
Nominal DC Voltage 768Vd.c.
DC Voltage Range 636Vd.c-876Vd.c.
Charge and discharge rate 0.5P

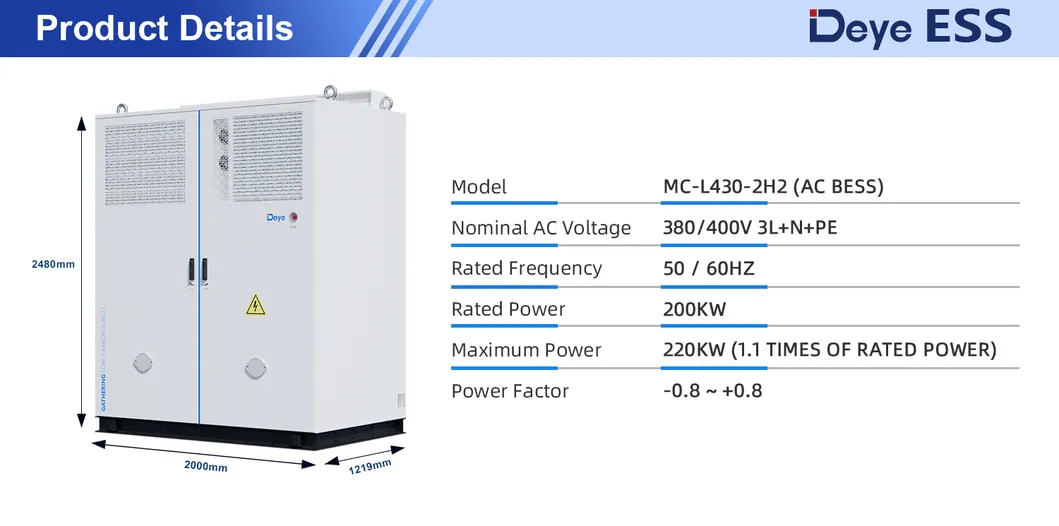

AC Data
Nominal AC Voltage 380/400V 3L+N+PE
Rated Frequency 50/60Hz
Rated Power 200kW
Maximum Power 220kW(1.1 times of rated power)
Power Factor -0.8-+0.8

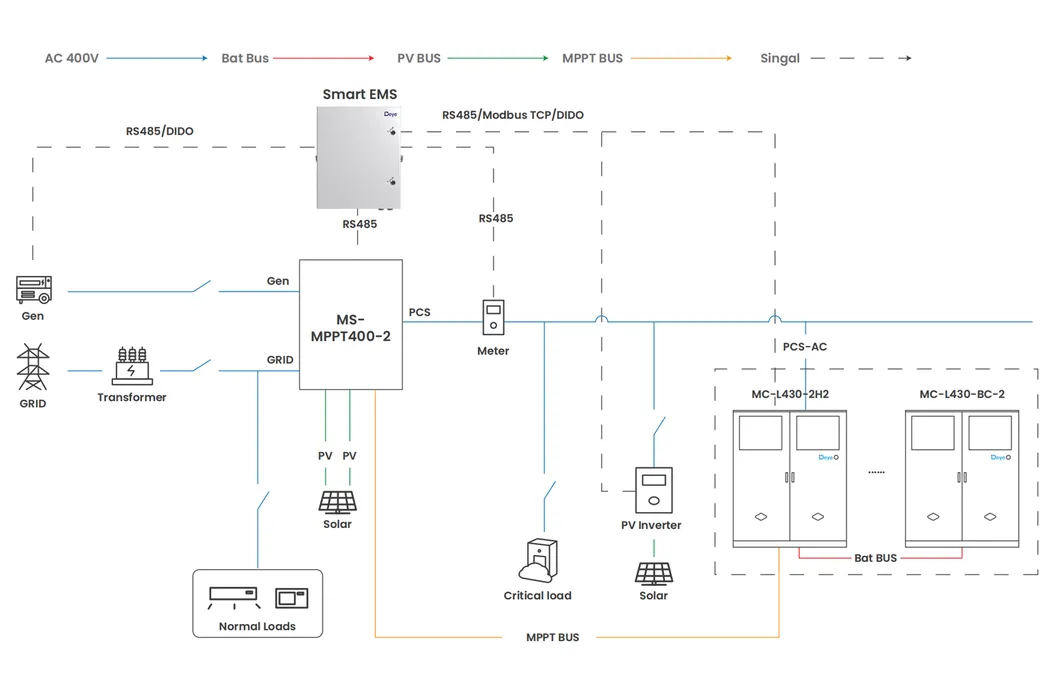

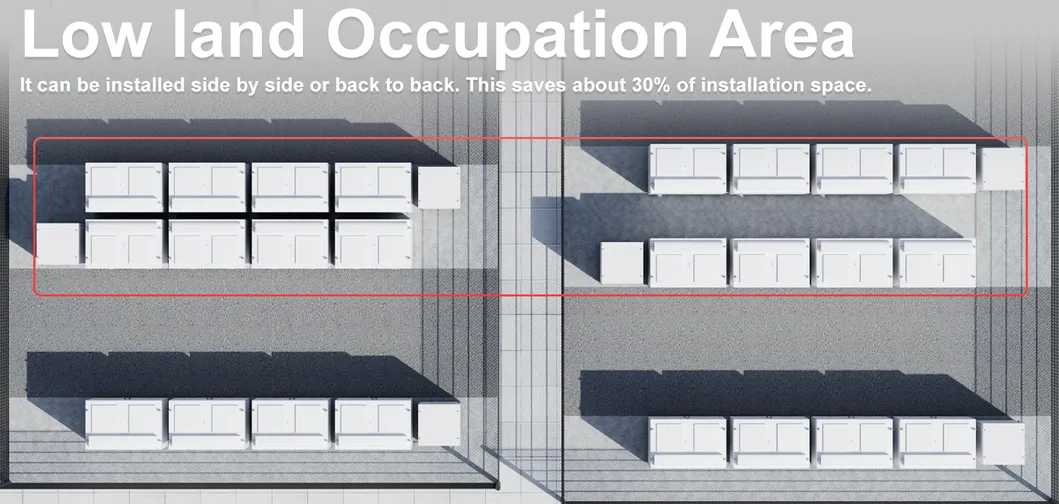

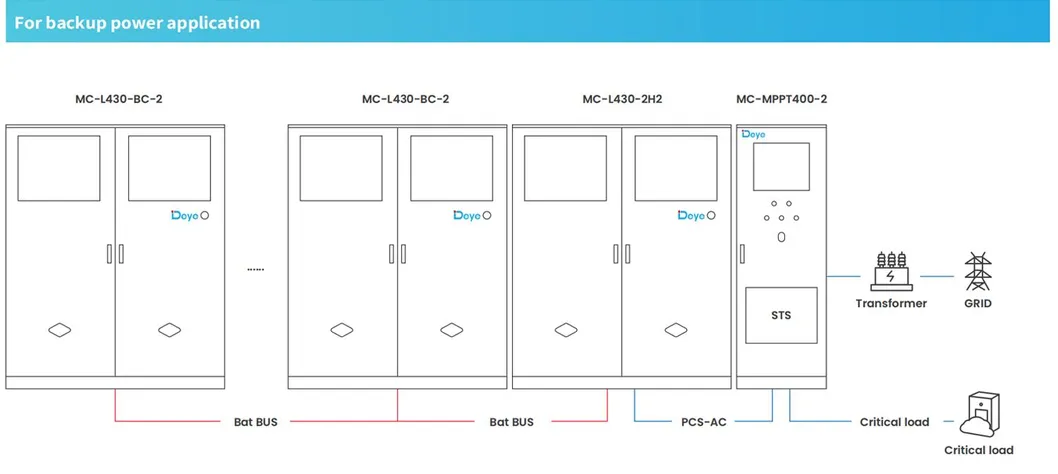

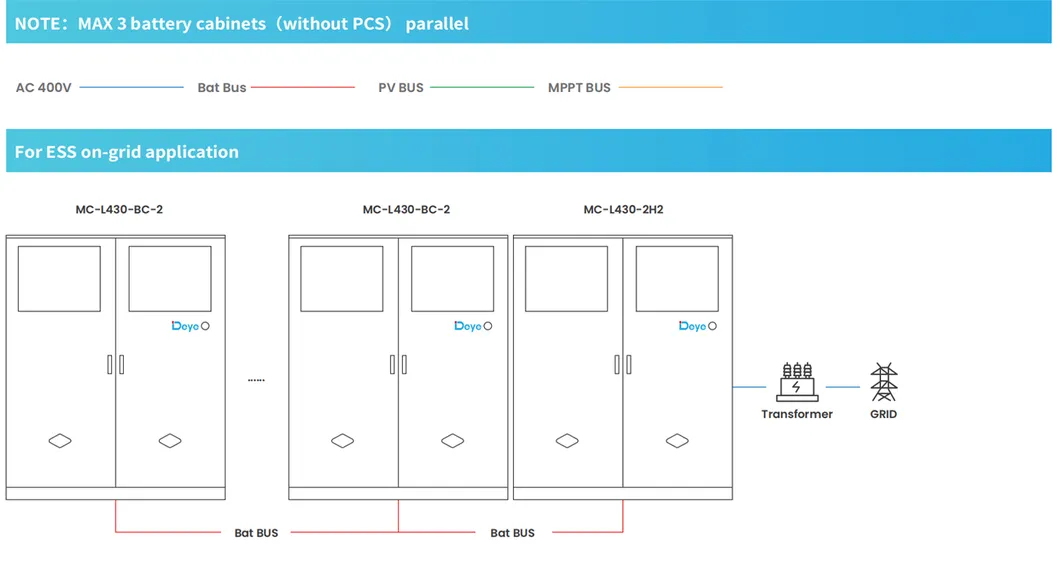

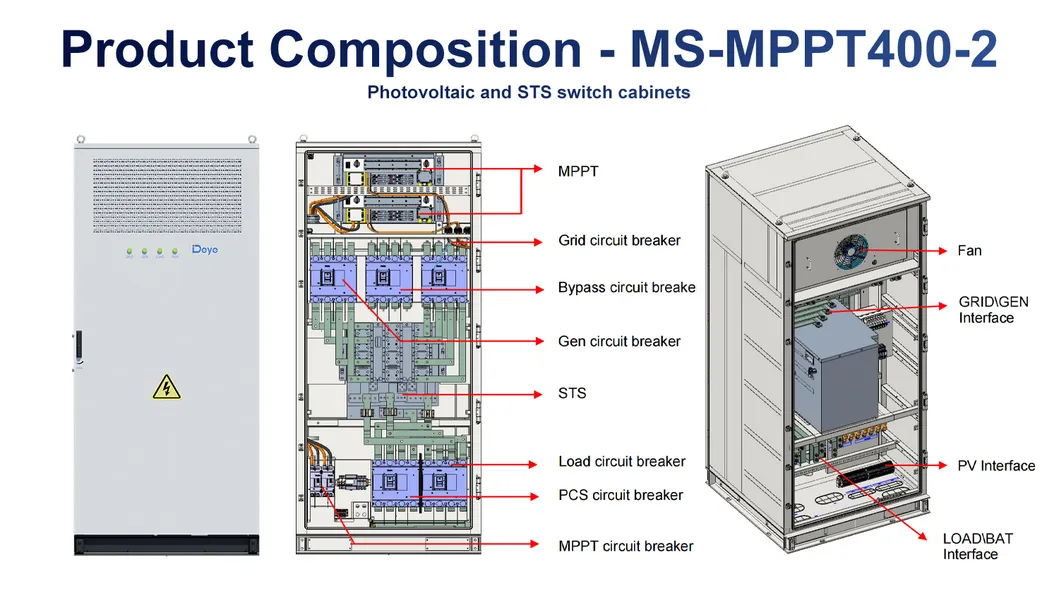

Energy storage installation view Energy storage battery structure Energy storage panel connection Energy storage internal diagram Energy storage liquid cooling pipe Energy storage system protection Energy storage system details view Energy storage dynamic performance Energy storage layout drawing Energy storage modular design
Technology Profile

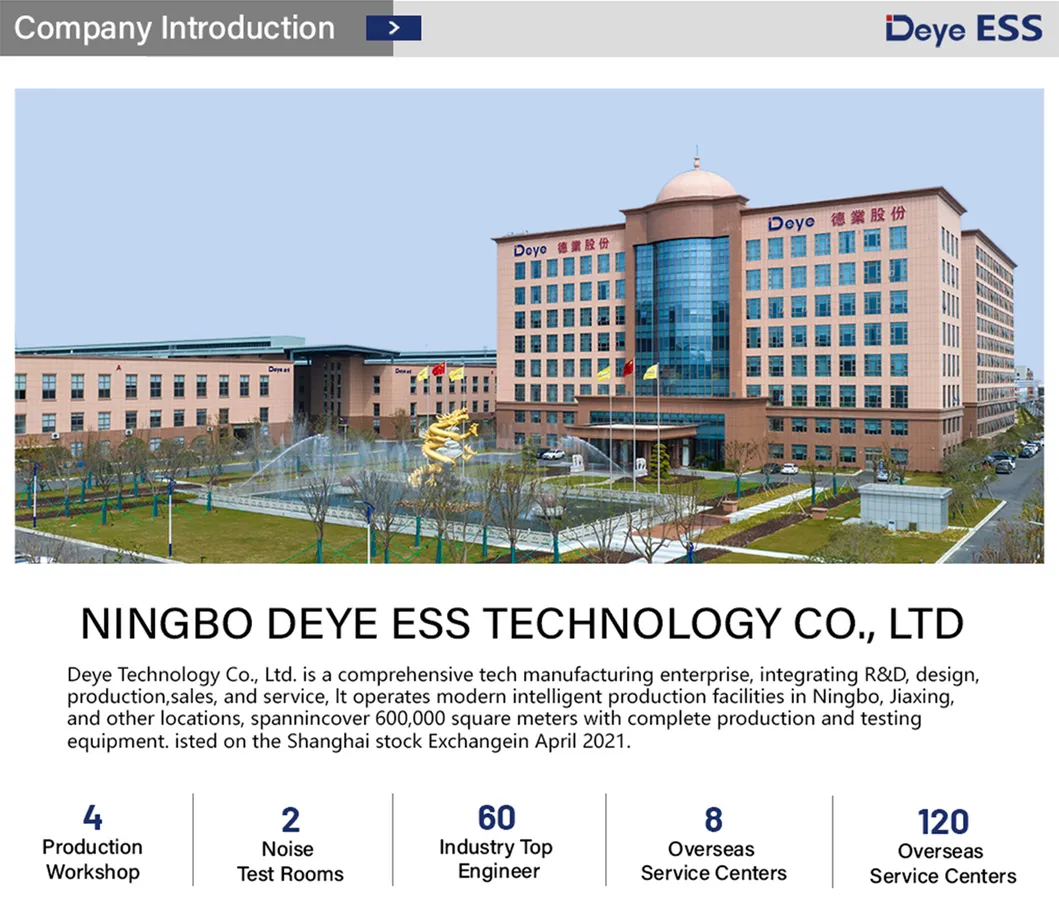

Energy storage production technology
Seasonal changes, so rhythmic, often bring inspirations and sometimes pleasant surprises, so tuneful, tell the magic of energy and mastery moves of energy conversion. Our Energy Storage Systems, with its mastery of energy storage technologies, brings high quality energy storage solutions to the world.

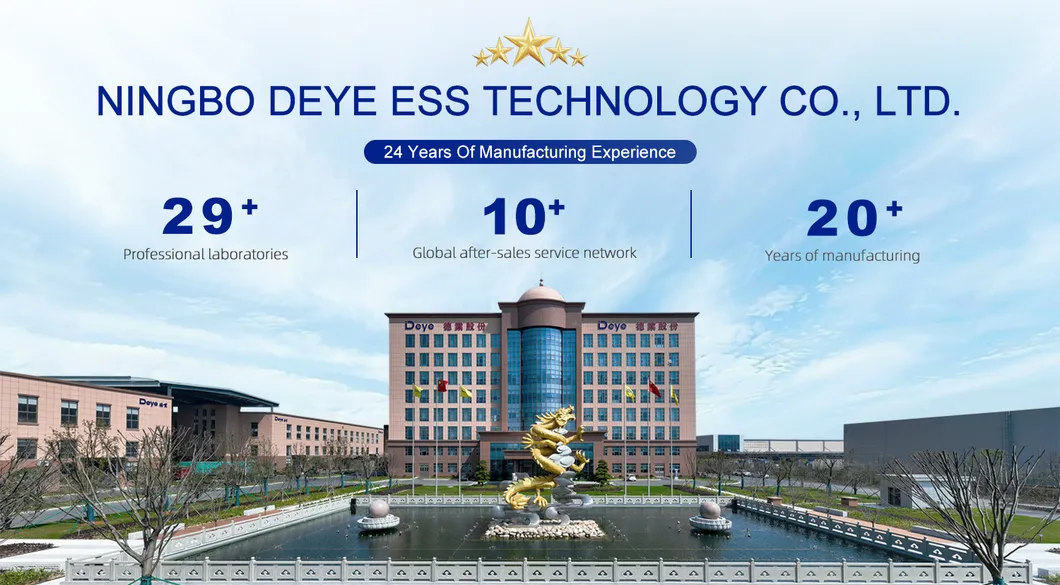

After decades of development, the manufacturer turns itself to be a large-scale Sci-Tech enterprise, listed on the main board of the Stock Exchange, possessing a full range of inverter & energy storage products. Standing on the current basis, equipped with the mode of development-driven-by-innovation, the enterprise has become a High-Tech energy storage product manufacturer, an all-in-one entity integrating R & D, production, sales and service.

Our world class engineering team continues to develop safe, durable and environmental friendly energy storage products, as well as system solutions for renewable energy applications. Our systems make our planet more sustainable.

Our intelligent manufacturing base produces world class energy storage systems, intelligent Battery Management Systems, and energy IOT products and services for global customers, where sustainability and efficiency are continually focused.

Our major product lines are represented by four seasons, SPRING Series representing low-voltage household energy storage products, SUMMER Series representing high-voltage household energy storage products, Autumn Series representing portable power products and Winter Series representing utility energy storage. With 24 product lines to be launched, we aim to be a one-stop ESS solution provider with comprehensive coverage for ESS applications.

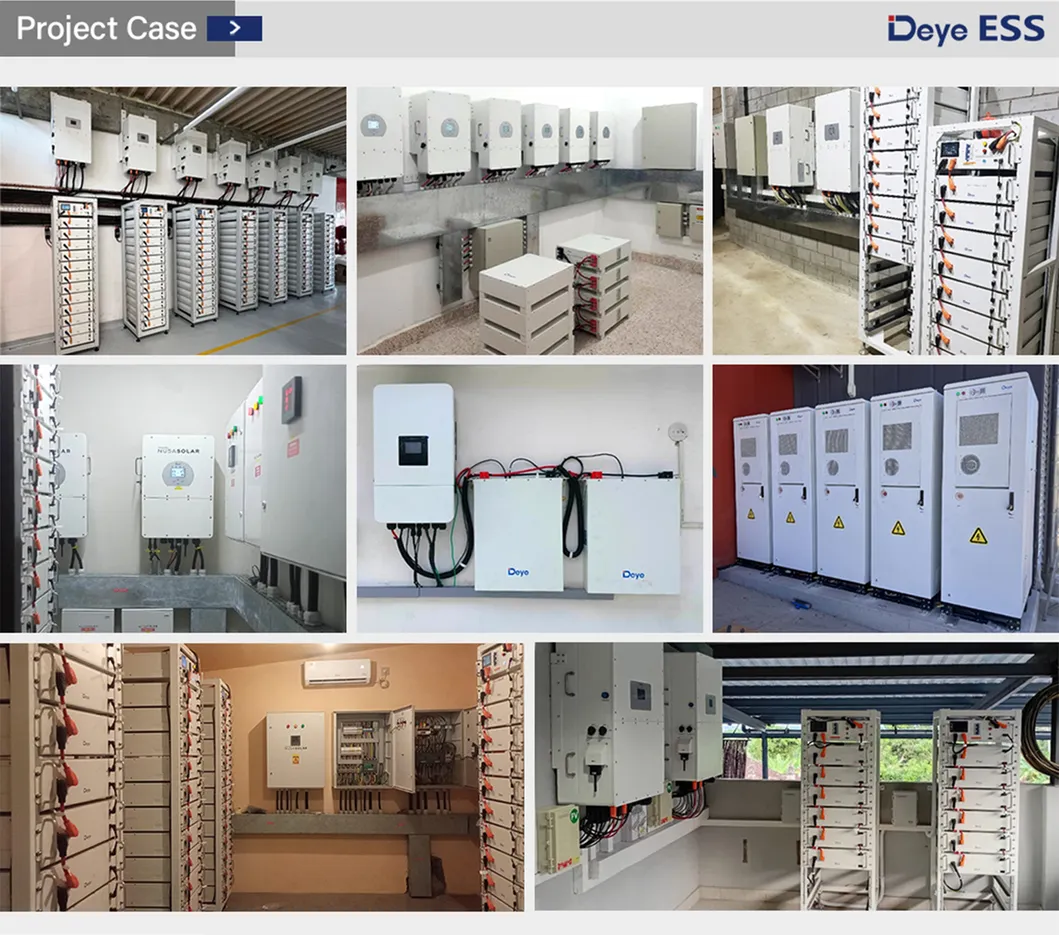

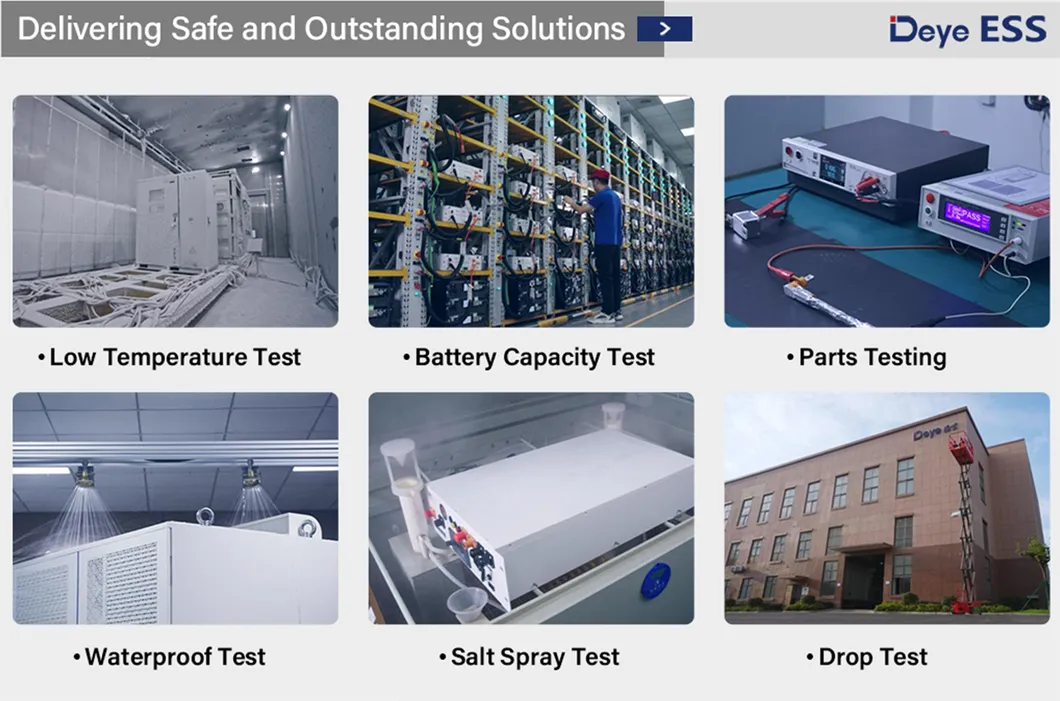

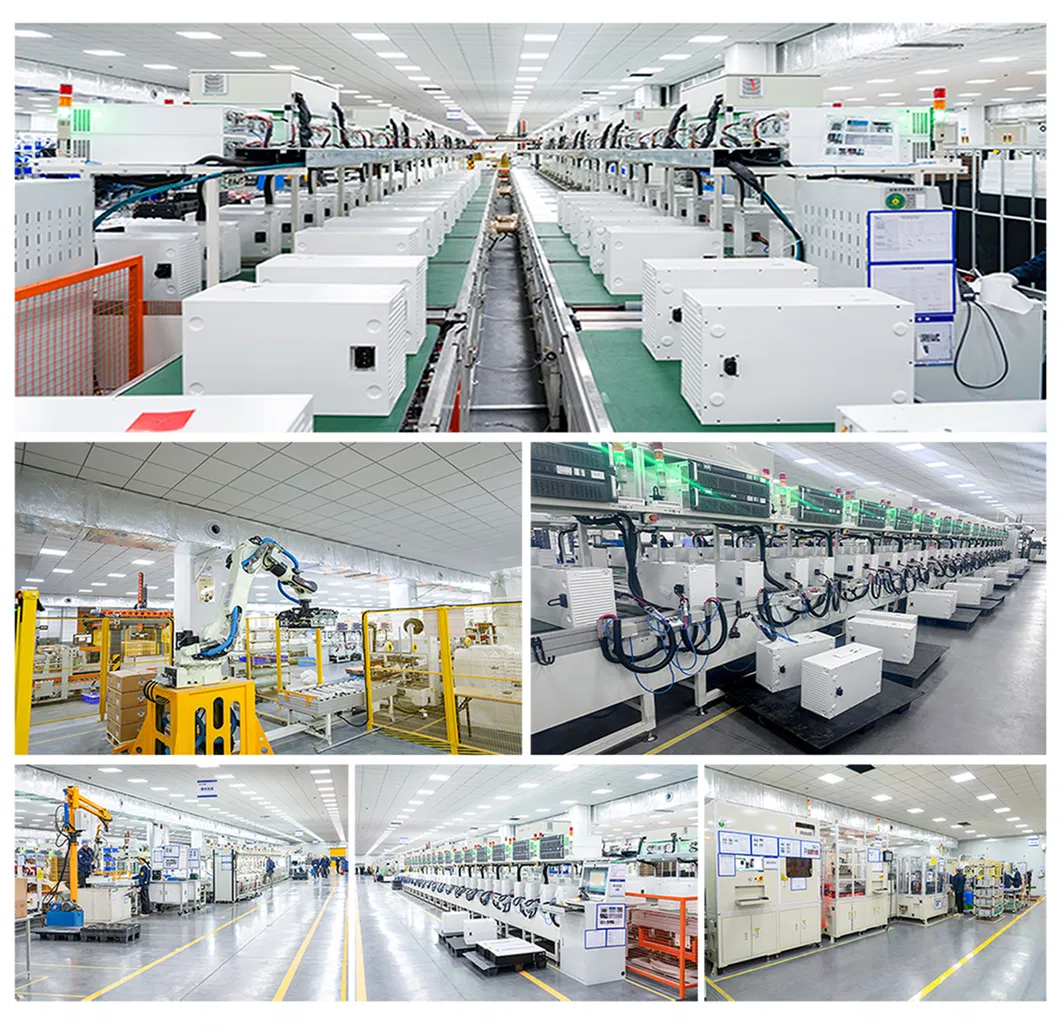

Manufacturing floor storage units Automation process production line Energy management system checking Testing laboratory facility Finished products warehouse Quality verification check Logistics delivery preparation
Frequently Asked Questions
What is the capacity and nominal energy of this energy storage system?
The system features a nominal capacity of 280Ah and provides a nominal energy output of 430.08kWh.
What battery chemistry does the system use?
It utilizes Lithium Iron Phosphate (LiFePO4) battery technology, which is highly regarded for its thermal stability, safety, and long lifecycle.
How is the system kept cool during operation?
The system features advanced active liquid cooling, which maintains consistent cell temperatures and extends the overall life of the battery units.

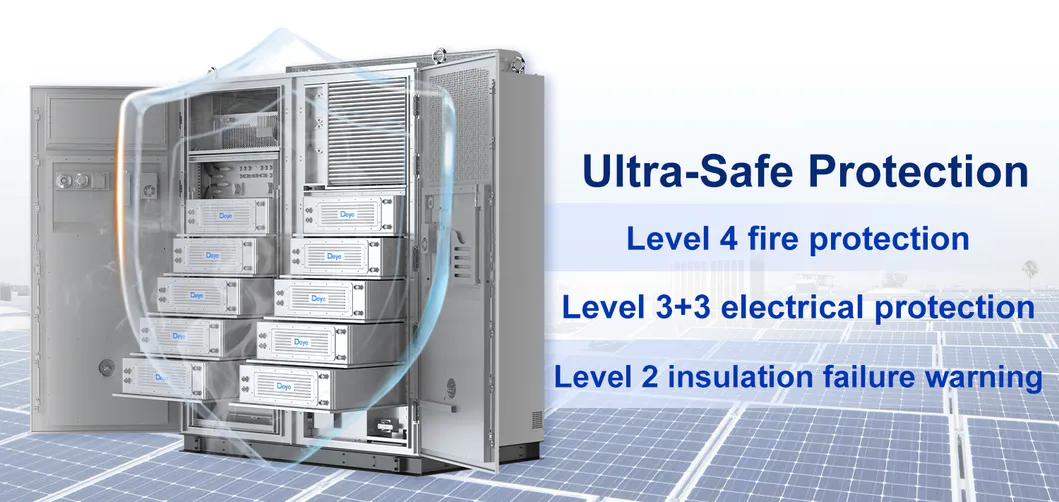

What safety and fire suppression features are integrated?
For maximum safety, the unit is equipped with a dual fire suppression system utilizing both Aerosol and Water mechanisms.
Is this system suitable for harsh outdoor environments?

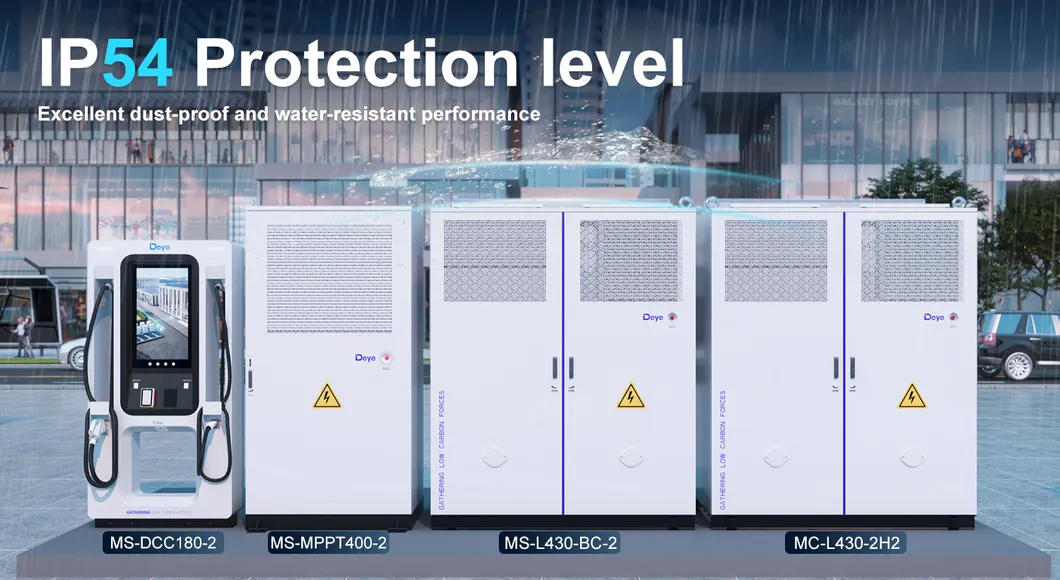

Yes, it has an Ingress Protection rating of IP54 and an anticorrosion grade of ≥C4, making it highly durable for outdoor commercial and industrial installations.
What communication protocols are supported for system monitoring?
The system supports RS485, Modbus TCP, and DIDO protocols, allowing for seamless integration into existing energy management systems.
