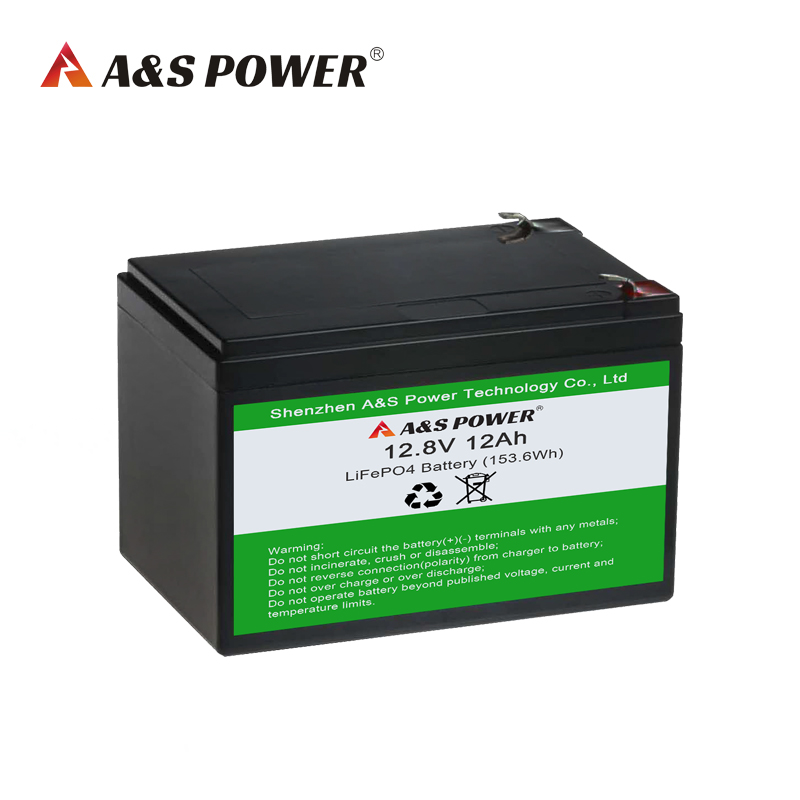

| No. | Item | Parameters | Remarks |
|---|---|---|---|
| 1 | Norminal Capacity | 12Ah | Discharge: 0.2CmA (1200mA) cut off Voltage: 9V for cell |
| 2 | Norminal Voltage | 12.8V | Discharge: 0.2CmA (1200mA) cut off Voltage: 9V for cell |
| 3 | Charge type | CC/CV | / |
| 4 | Discharge cut-off voltage | 10.0V | / |
| 5 | Charge Current | 2.4A | Standard Charge |
| 6 | Charge Voltage | 14.6V | / |
| 7 | Max. Charge Current | 6A | / |
| 8 | Max. Discharge Current | 12A | 1.0CmA |
| 9 | Weight | Approx 1.55kg | / |
| 10 | AC Impedance Resistance | ≤70mΩ | / |
| 11 | Dimension (T*W*H) | 151*98*101mm | / |
| 12 | Working temperature | Charging: 0~45 °C; Discharging: -20~60°C |
/ |
| 13 | Storage temperature | 1 month: -20~60°C; 3 months: -20~45°C; 6 months: -20~25°C |
Recommended storage temperature: 20°C, at the shipment state |
