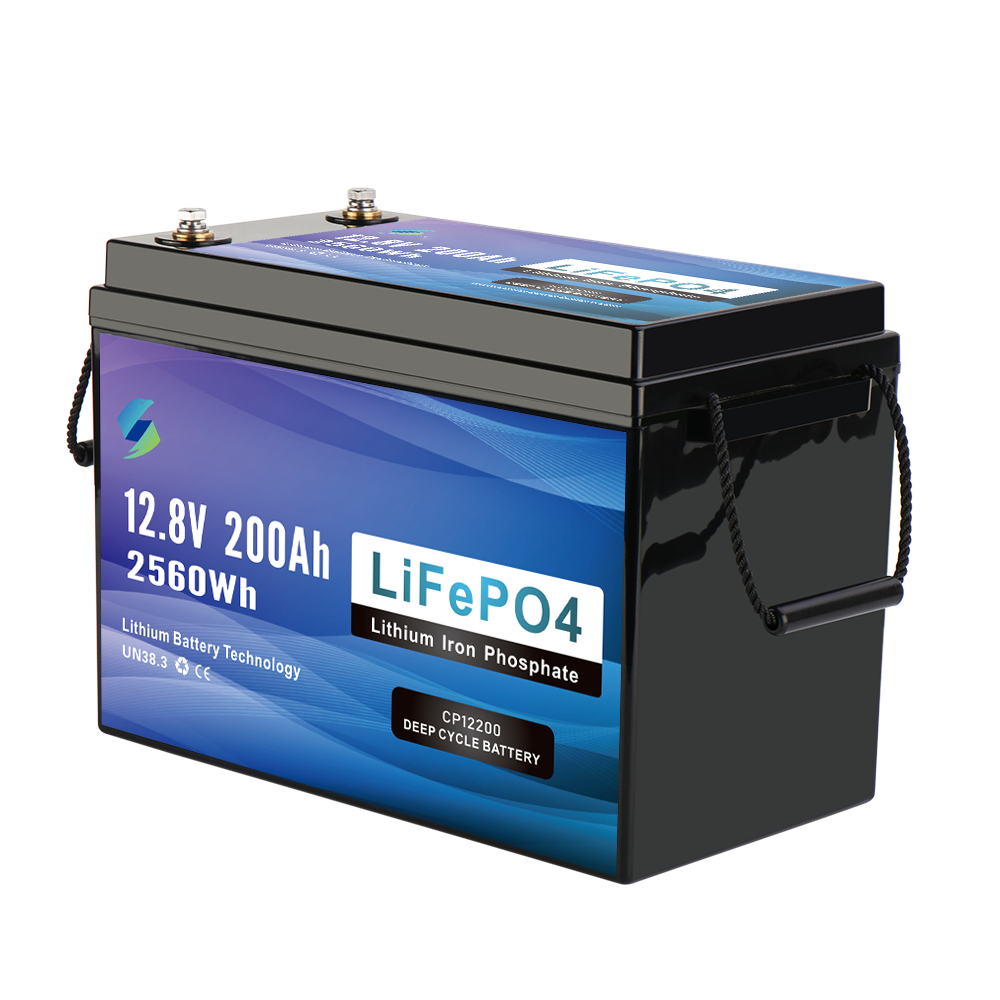

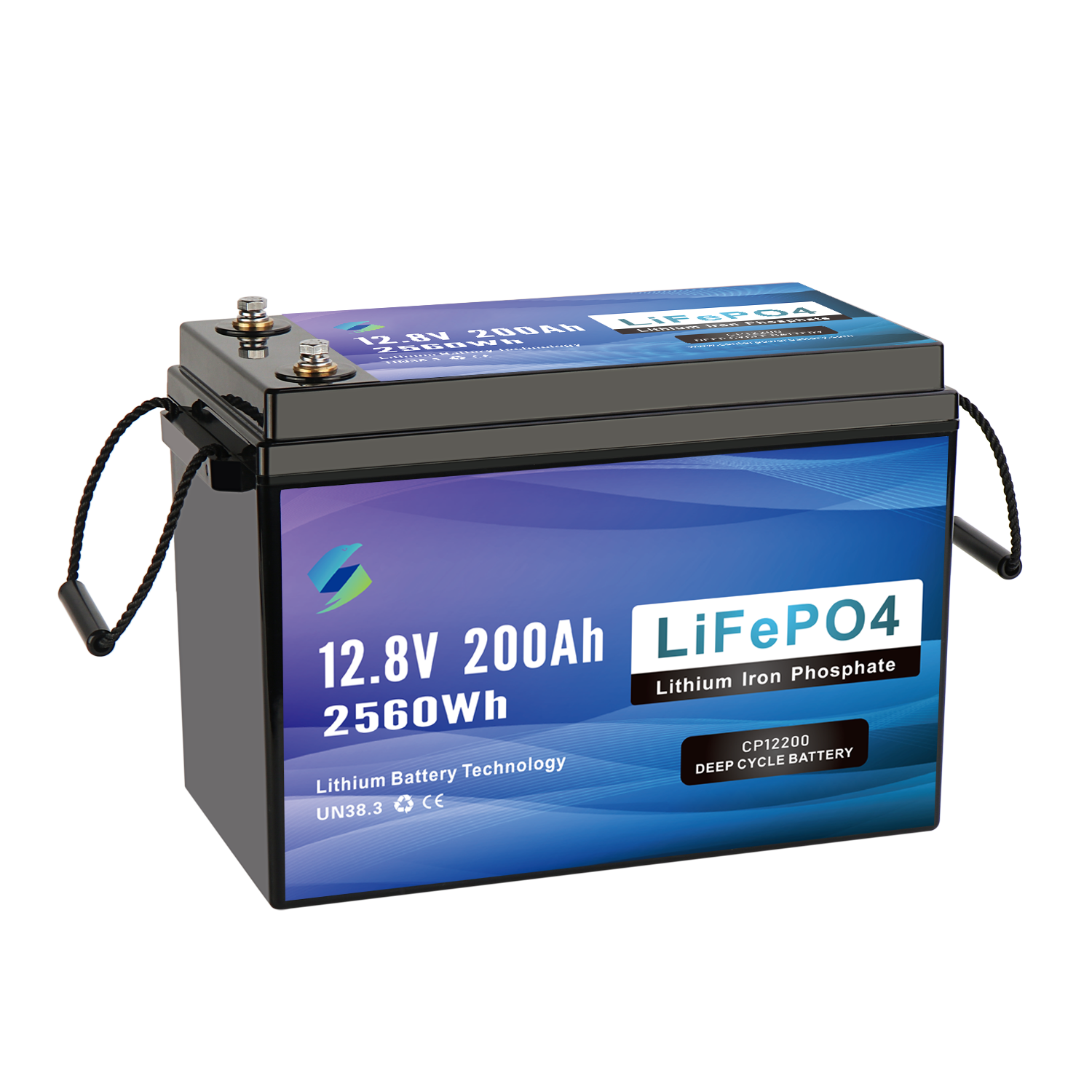

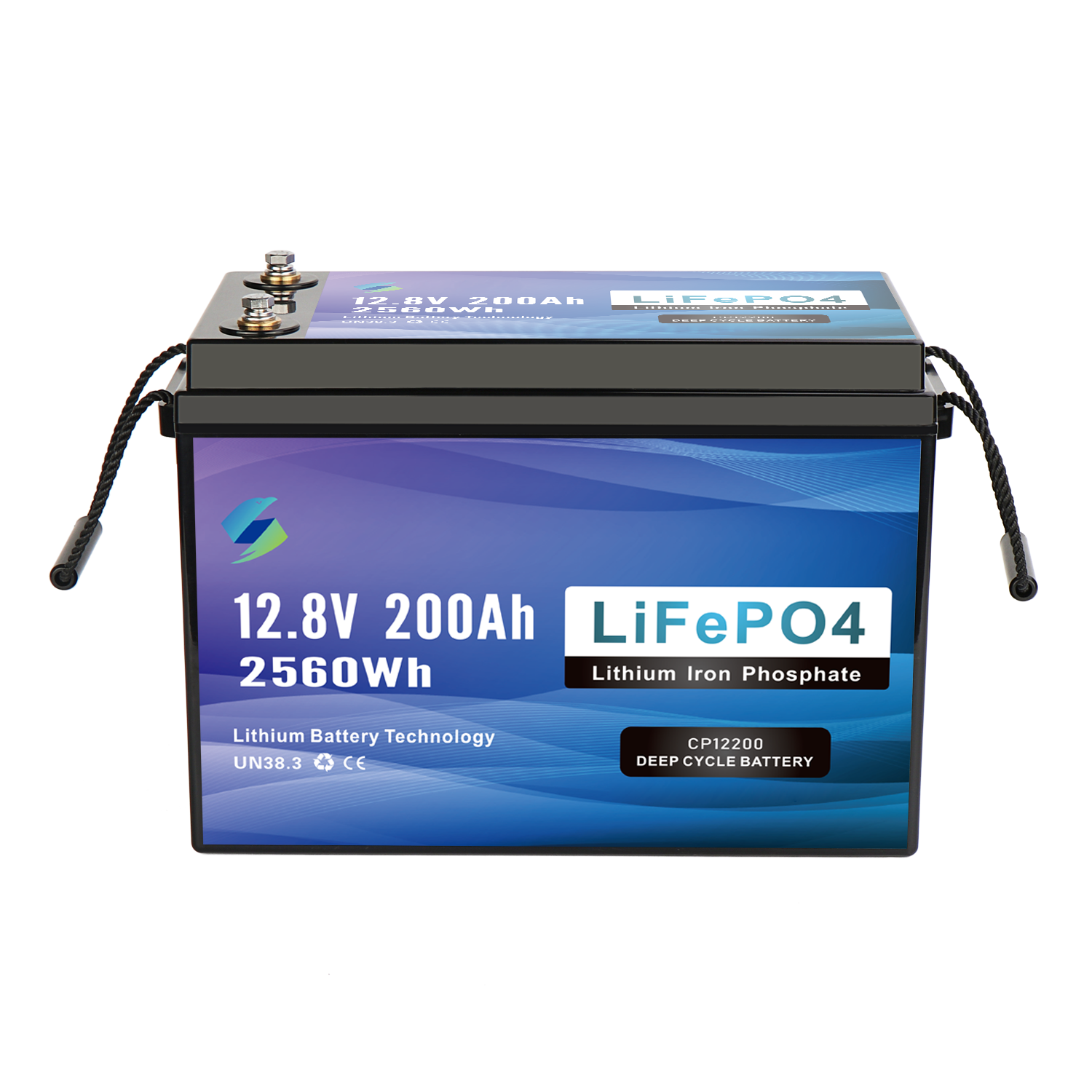

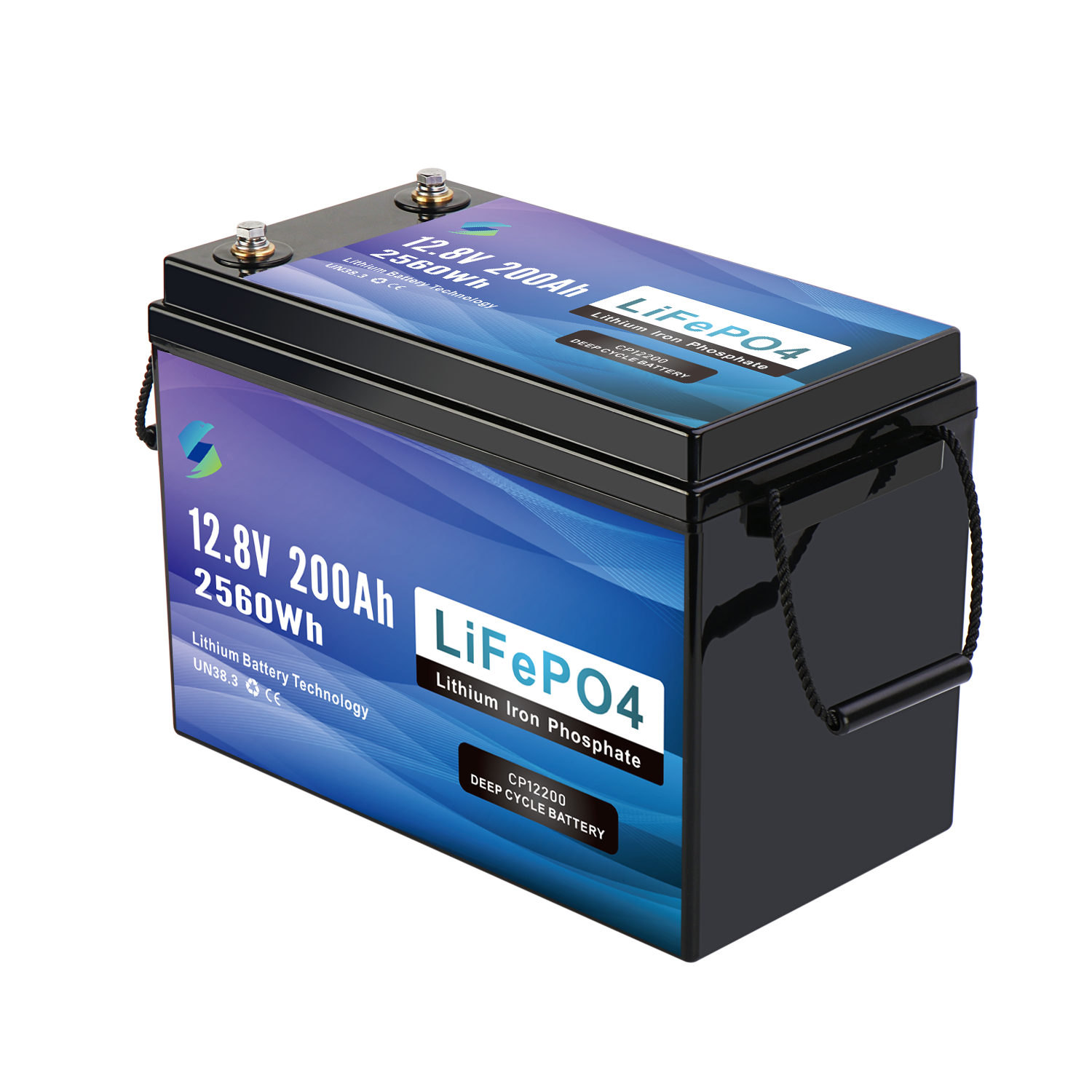

Basic Parameter
| Nominal Voltage | 12.8V |
| Rated Capacity | 200Ah |
| Energy | 2560Wh |
Operation Parameter
| Charge Voltage | 14.6V |
| Cut-off Voltage | 10V |
| Constant charge Current | 100A |
| Discharge Current | 100A |
| Peak discharge current | 200A |
| Working Temperature | -20~65℃ (-4~149℉) |
Physical Specification
| Dimension | 345*190*245mm (13.58''*7.48''*9.65'') |
| Weight | 20.6kg (45.41lb) |
Products Advantages
Other hot selling models for RV/Marine
Application
Certifications
Frequently Asked Questions
1. What is the nominal voltage of this battery?
The nominal voltage for this model is 12.8V.
2. How much energy can this battery hold?
This battery has a capacity of 200Ah, providing a total energy of 2560Wh.
3. What is the recommended charge voltage for this unit?
The recommended charge voltage is 14.6V.
4. Is this battery suitable for high discharge applications?
Yes, it supports a constant discharge current of 100A and a peak discharge current of 200A.
5. What is the operating temperature range?
The battery operates efficiently within the range of -20°C to 65°C (-4°F to 149°F).
6. How much does this battery weigh?
The weight of the battery is 20.6kg (45.41lb).
