Battery Power Station 100kwh 120kwh 150kwh Lithium Power Battery Bank 51.2V 280ah battery pack
Battery Power Station 100kwh 120kwh 150kwh Lithium Power Battery Bank 51.2V 280ah battery pack
Battery Power Station 100kwh 120kwh 150kwh Lithium Power Battery Bank 51.2V 280ah battery pack
Battery Power Station 100kwh 120kwh 150kwh Lithium Power Battery Bank 51.2V 280ah battery pack
Battery Power Station 100kwh 120kwh 150kwh Lithium Power Battery Bank 51.2V 280ah battery pack
1 / 5
Battery Power Station 100kwh 120kwh 150kwh Lithium Power Battery Bank 51.2V 280ah battery pack
Battery Power Station 100kwh 120kwh 150kwh Lithium Power Battery Bank 51.2V 280ah battery pack
Battery Power Station 100kwh 120kwh 150kwh Lithium Power Battery Bank 51.2V 280ah battery pack
Battery Power Station 100kwh 120kwh 150kwh Lithium Power Battery Bank 51.2V 280ah battery pack
Battery Power Station 100kwh 120kwh 150kwh Lithium Power Battery Bank 51.2V 280ah battery pack

Battery Power Station 100kwh 120kwh 150kwh Lithium Power Battery Bank 51.2V 280ah battery pack

Send Inquiry

Product Description

Product Description
Product Description
Specification
Related Voltage 307.2V 358.4V 409.6V 512V 563.2V 614.4V 665.6V 716.8V 768V
Combination Method 96S1P 112S1P 128S1P 160S1P 176S1P 192S1P 208S1P 224S1P 240S1P
Rated capacity(Ah) 280Ah
System Energy(Kwh) 86 100 115 143.36 158 172.03 186.4 200.7 215
Max charge/discharge current(A) 140A
Working temperature Charge: 0°C~55°C ; Discharge: -20°C~55°C
Communication port CAN2.0/RS485
Weight(Approx)(KG) 980 1130 1255 1400 1525 1670 1795 1922 2077
System Size(L/W/H)(mm) 780*550*1940 780*1100*1175 780*1100*1430 780*1100*1685 780*1100*1940 780*1650*1430 780*1650*1685
IP Grade IP21
Protection BMS&Breakers
Storage Temperature(RC) 0°C~35°C
Recommend depth of discharge 90%
Key Features
Cabinet lithium battery bank technology features:
  • Multiple communication interfaces RS232, RS485, CAN
  • IP21 protection, indoor application
  • Supporting up to 4 strings parallel configuration
  • Standard of 19-inch embedded designed module is comfortable for installation and maintenance
  • Multiple protection Lifepo4 material, BMS and breaker, safe and long life
  • Compatible with DEYE, Luxpower, Goodwe, Growatt, SMA, Solis, Voltronic etc.
  • With Bluetooth, Active balancing, Includes current limiting module
Key Features Module
Details Images
Detail Image 1 Detail Image 2 Detail Image 3 Detail Image 4 Detail Image 5 Detail Image 6 Detail Image 7

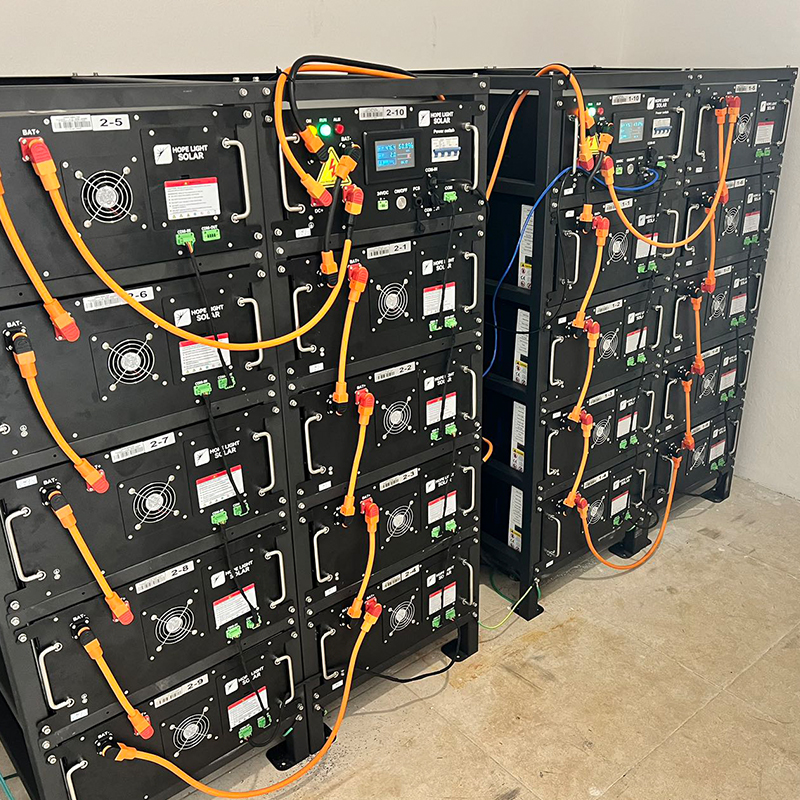

Project Case
Project Case 1 Project Case 2 Project Case 3 Project Case 4 Project Case 5 Project Case 6 Project Case 7 Project Case 8
Packing & Shipping
Packing 1 Packing 2 Packing 3
Frequently Asked Questions
What communication interfaces does this lithium battery bank system support?
The system supports multiple communication interfaces, including RS232, RS485, and CAN, ensuring reliable connectivity with external control systems.
Is this system suitable for outdoor environments?
The system features an IP21 protection rating, which makes it ideal for indoor installations and applications.
Which inverter brands are compatible with this battery bank?
It is designed to be highly compatible with major inverter brands, including DEYE, Luxpower, Goodwe, Growatt, SMA, Solis, and Voltronic, among others.
What is the recommended depth of discharge (DoD) for this system?
The recommended depth of discharge (DoD) is 90% to ensure optimal lifespan and performance efficiency.
What built-in safety protections are included in this battery bank?
The battery bank includes multiple protections such as premium LiFePO4 chemistry, an integrated Battery Management System (BMS), active balancing, built-in circuit breakers, a current limiting module, and Bluetooth connectivity for real-time monitoring.
What are the charge and discharge temperature limits for this system?
The operating temperature ranges are 0°C to 55°C for charging and -20°C to 55°C for discharging. The recommended storage temperature is between 0°C and 35°C.
