200kwh Outdoor High Voltage Lithium Battery IP55 CE (Hybrid On Off Grid)

Product Description

Product Presentation

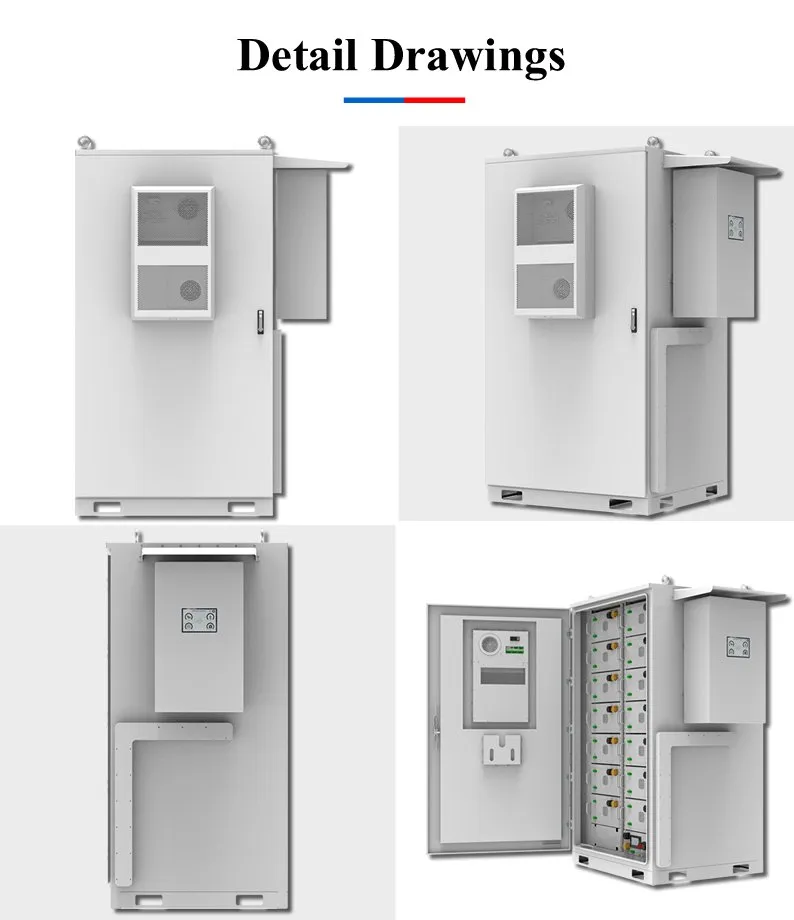

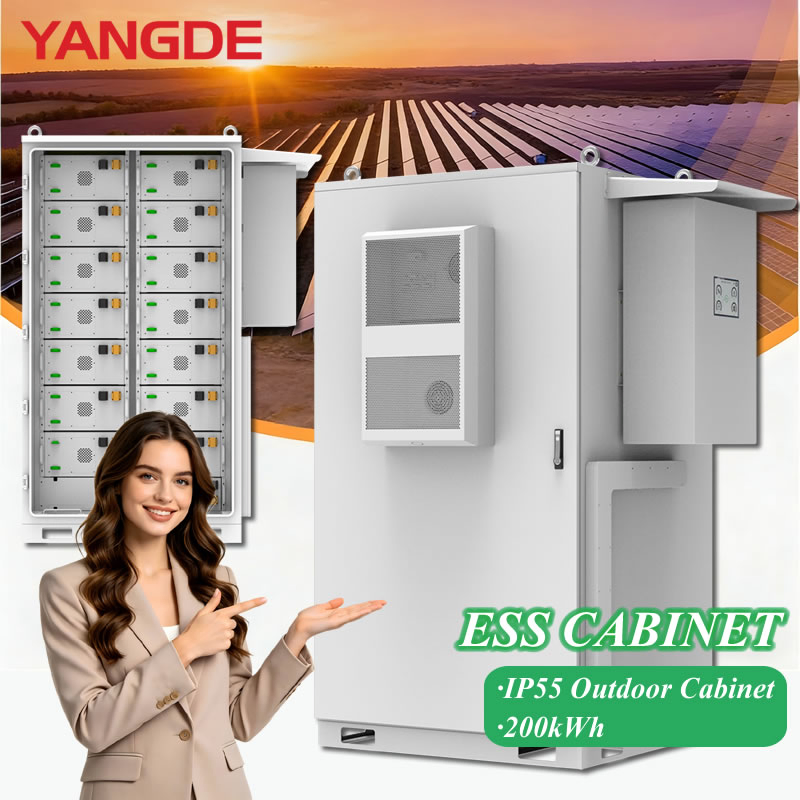

200kwh Outdoor High Voltage Lithium Battery IP55 CE (Hybrid On Off Grid)

Technical Specifications (Model YD-200K)

Parameter Specification
MODEL YD-200K
Product HV200K
Nominal Voltage 716.8V
Nominal Capacity 280AH
Cabinet Size (mm) 1626*1245*2175
Weight (kg) 2200KG
Max. Charge/Discharge Power 140A
Protection Class IP55
Type of Firefighting Aerosol
Battery Specifications
Battery Types 51.2V-280AH
Nominal Energy (kWh) 200kWh
Recommended Charge/Discharge Current 100A
Max. Charge/Discharge Current 140A
Communication RS485/CAN
Working Temperature 0ºC~50ºC (Charge); -10ºC~50ºC (Discharge)
Design Life 10 years+
Cycle Life >6000 cycles (0.5C/0.5C, 80% DOD)
Cooling Method Air-cooled
Certification UN38.3 / MSDS / ROHS
AC Specifications
Rated Power 125kW
Overload Capacity 110%
Rated AC Voltage 400V
Rated Frequency 50/60Hz
Communication Ethernet / Modbus / TCP/IP
Inverter Type Deye / Solis / Megarevo / Other

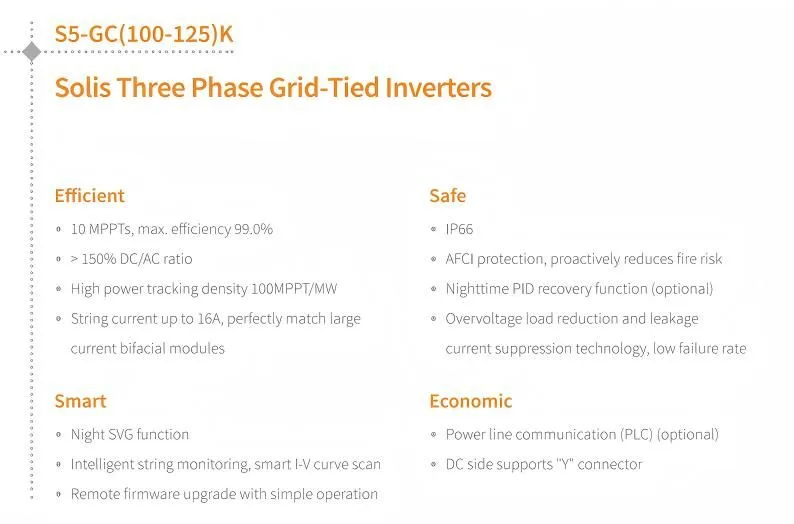

System Configurations & Models

Models 100K 110K 125K-HV
Input DC
Max. input voltage 1100V
Rated voltage 600 V 600 V 720 V
Start-up voltage 195 V
MPPT voltage range 180 - 1000 V
Max. input current 10 × 32 A
Max. short circuit current 10 × 40 A
MPPT number / Max. input strings number 10/20
Output AC
Rated output power 100 kW 110 kW 125 kW
Max. apparent output power 110 kVA 121 kVA 137.5 kVA
Max. output power 110 kW 121 kW 137.5 kW
Rated grid voltage 3/N/PE, 220 V / 380 V, 230 V / 400 V 3/PE, 480 V
Rated grid frequency 50 Hz / 60 Hz
Rated grid output current 152.0 A / 144.3 A 167.1 A / 158.8 A 150.4 A
Max. output current 167.1 A 183.8 A 165.4 A
Power factor > 0.99 (0.8 leading - 0.8 lagging)
THDi < 3%
Efficiency
Max. efficiency 98.70% 98.70% 99.00%
EU efficiency 98.30% 98.30% 98.60%
Protection
DC reverse-polarity protection Yes
Short circuit protection Yes
Output over current protection Yes
Surge protection DC Type II / AC Type II (AC Type I optional)
Grid monitoring Yes
Anti-islanding protection Yes
Temperature protection Yes
Strings monitoring Yes
I/V Curve scanning Yes
Integrated AFCI 2.0 Optional
Integrated PID recovery Optional
Integrated DC switch Yes
Integrated AC switch Optional
General Data
Dimensions (W × H × D) 1065 × 567 × 344.5 mm
Weight 91 kg
Topology Transformerless
Self-consumption (night) < 2 W
Operating ambient temperature range -30 ~ +60ºC
Relative humidity 0 - 100%
Ingress protection IP66
Cooling concept Intelligent fan-cooling
Max. operation altitude 4000 m
Grid connection standard VDE-AR-N 4105, VDE-AR-N 4110, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, RD 1699, TOR, UNE 206006, UNE 206007-1, CEI 0-21, IEC61727, DEWA
Safety / EMC standard IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Features
DC connection MC4 connector
AC connection OT terminal (max. 185 mm²)
Display LCD
Communication RS485, Optional: Wi-Fi, GPRS, PLC

Why Choose Us

Fully Integrated In-House Supply

We provide complete solutions for PV power plants and energy storage systems, covering solar PV modules, storage batteries, power conversion systems (PCS), battery management systems (BMS), energy management systems (EMS), and all related electrical equipment. We design and supply virtually all core components ourselves, eliminating the complexity of coordinating multiple vendors.

System Integrator & Original Manufacturer

We are not only a professional system integrator for PV and storage solutions - crucially, we also manufacture most core components in-house. This means our customers enjoy both one-stop system-level service and the cost advantages and quality assurance that come from working directly with the original factory.

Vertically Integrated Manufacturing

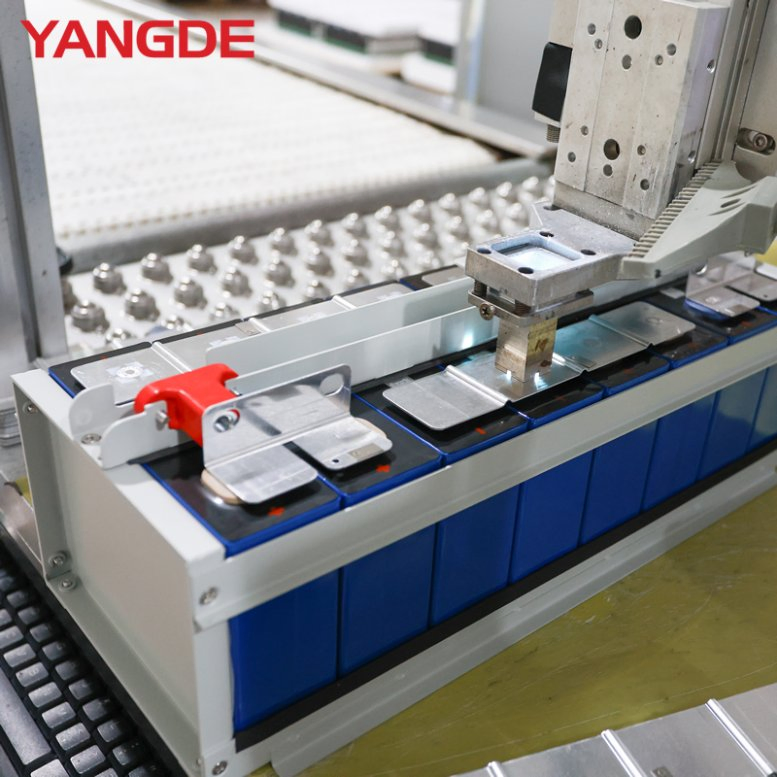

From battery cells (or battery packs), BMS, and PCS to mounting structures and distribution cabinets, we insist on in-house production of core components. This vertical integration allows us to control product consistency and reliability from the source, while passing cost optimizations directly to our customers.

Over a Decade of Technical Expertise

Since 2012, we have accumulated extensive experience in power electronics, battery pack engineering, and system integration. Unlike vendors who perform simple assembly, we possess proven expertise and a large portfolio of real-world projects in core areas such as battery thermal management, system protection strategies, and energy scheduling algorithms.

Professional R&D Team

Our R&D team of over 60 engineers collaborates closely with leading research institutes and world-class manufacturing partners, continuously advancing key technologies in energy storage systems, PV inverters, and intelligent control. We hold more than 20 national patents and operate under our own brand.

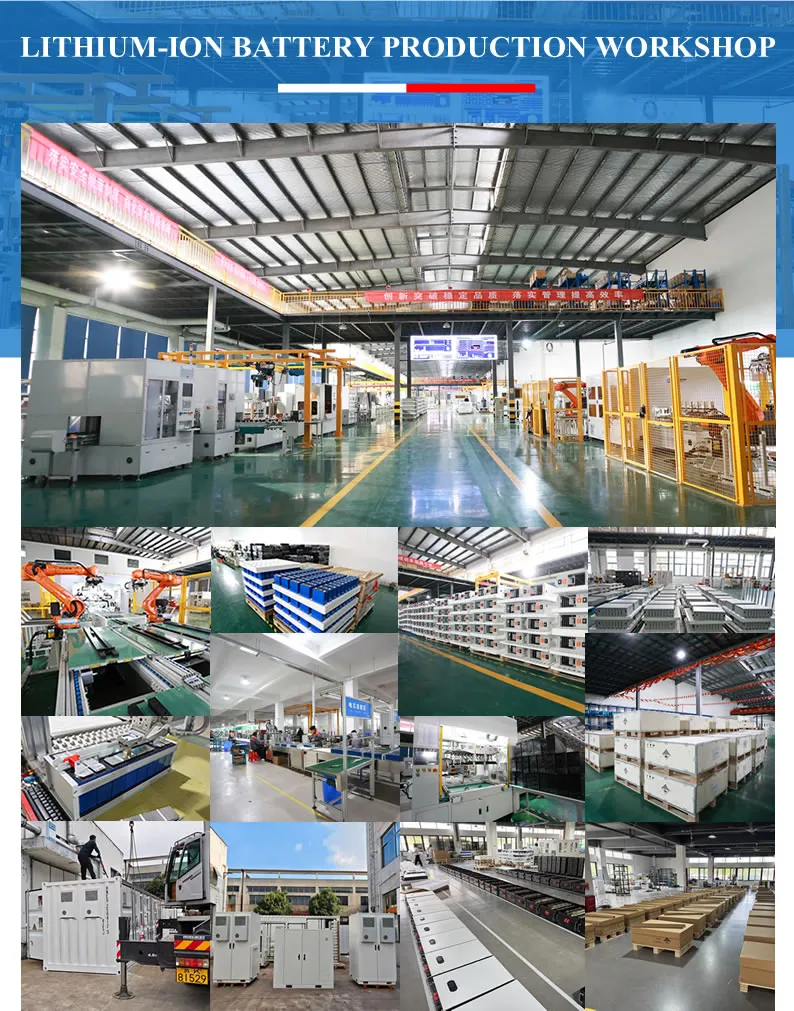

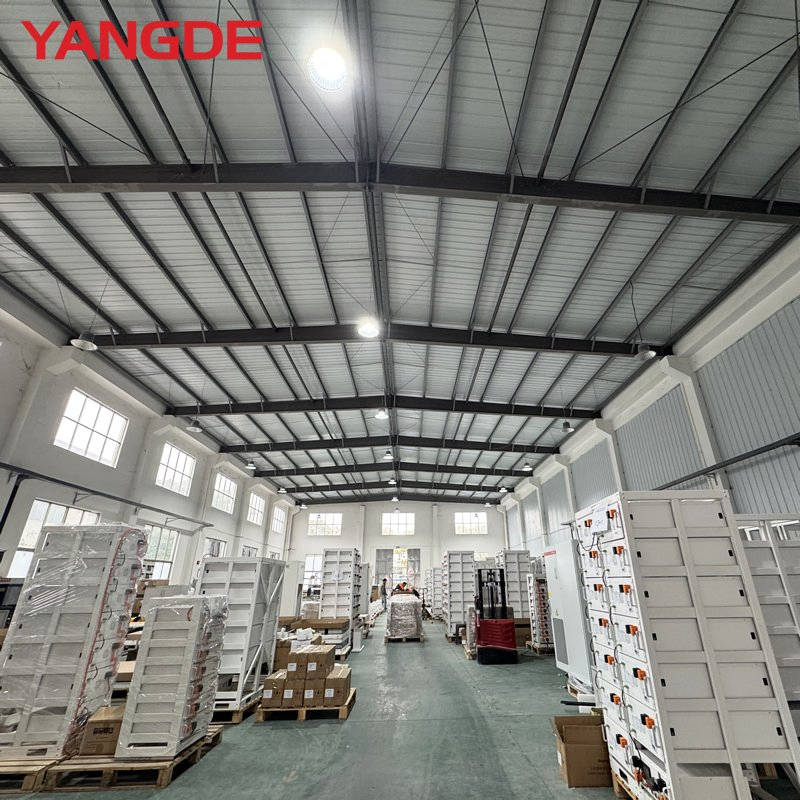

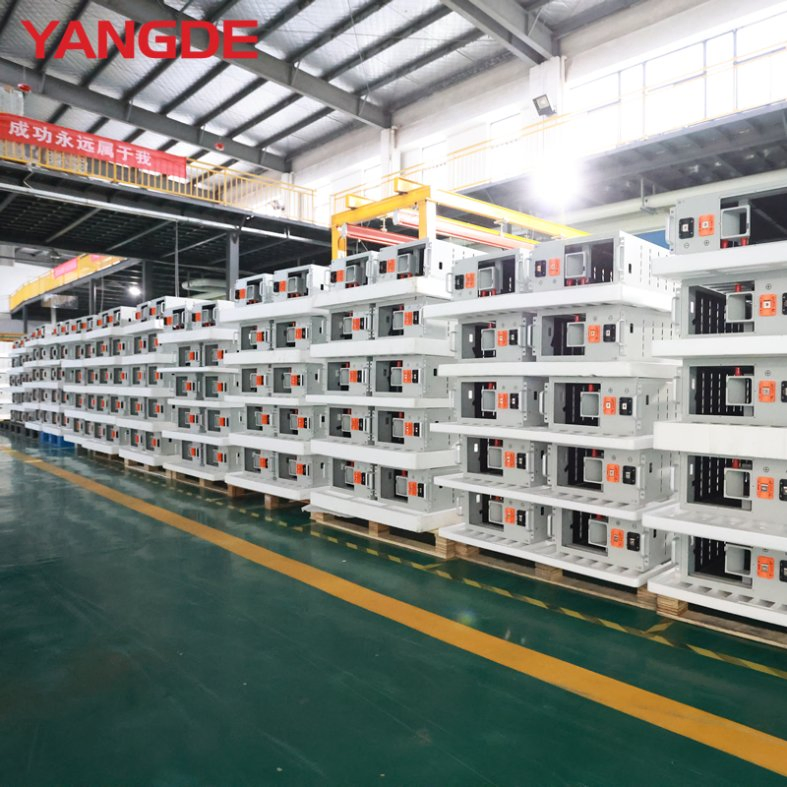

Large Production Facility

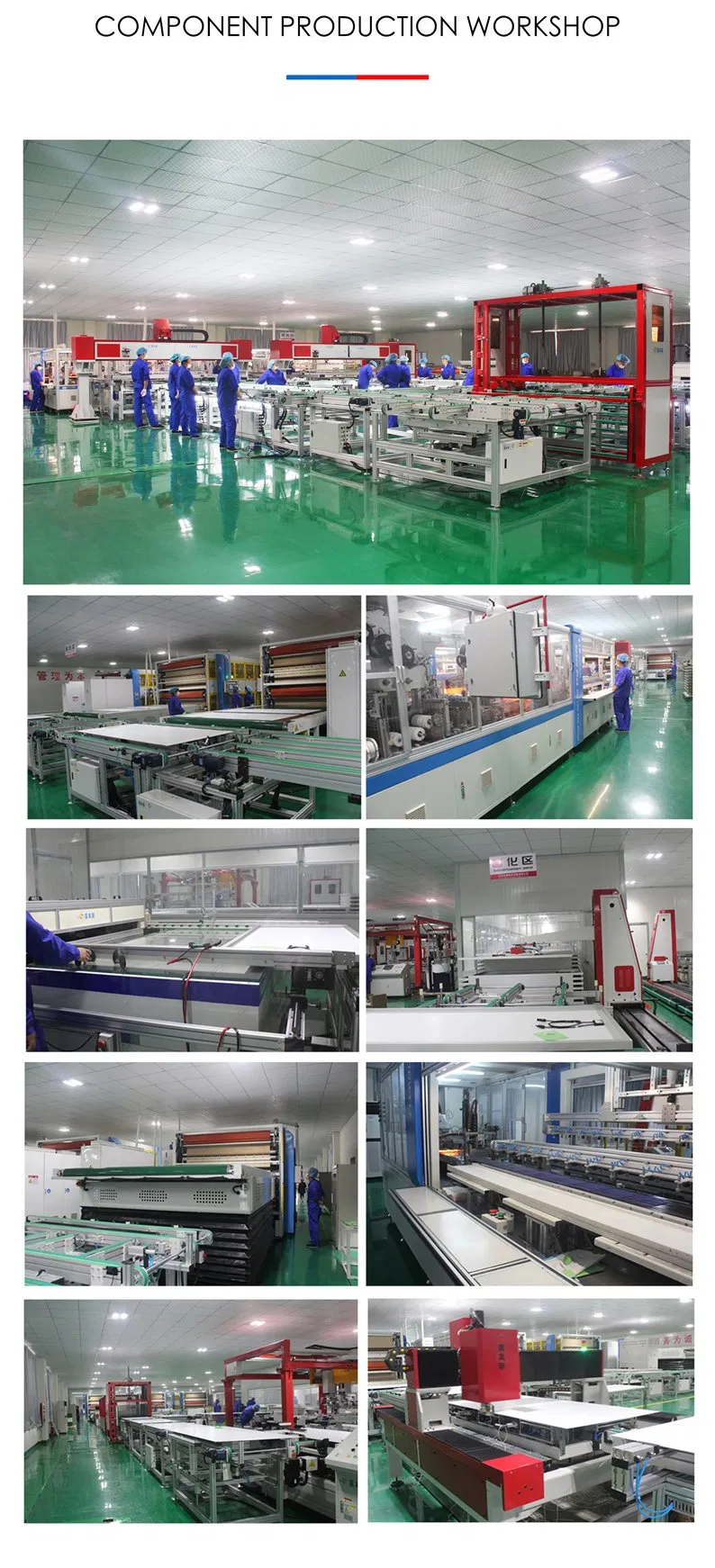

Our 6,000㎡ facility is staffed by a team of 400. We are equipped with battery pack assembly lines, PCS test benches, aging test systems, charge/discharge testers, insulation withstand voltage testers, and more. From cell sorting to final system assembly, every step is performed and rigorously tested in-house.

Transparent Cost

By manufacturing core components in-house and optimizing overall costs through scale and system-level integration, we offer competitive pricing without compromising quality. As an original manufacturer, we sell directly to customers with no middleman markups. Additionally, our system integration capability further reduces customers' total cost of ownership (TCO).

One-Stop Multi-Scale Solutions

We offer a complete product matrix for PV and energy storage, covering:
1. Residential Storage: All-in-one PV storage systems for homes and small commercial applications.
2. Commercial & Industrial (C&I) Storage: Modular energy storage systems for factories, industrial parks, shopping malls, and other commercial sites.
3. Utility-Scale Storage: Containerized energy storage systems for grid-side, generation-side, and large-scale projects.

Our Services

Clear Warranty

We guarantee that our PV modules, storage batteries, and energy storage systems will be free from defects in materials and workmanship for a period of two (2) years from the date of purchase. We provide clear repair or replacement policies. For storage batteries, we can also offer additional warranty terms based on cycle life.

System Design & Integration

Based on each customer's actual electricity demand, solar irradiation conditions, and application scenario (residential / C&I / utility-scale), we provide customized PV storage system designs. From capacity planning, equipment selection, to system integration, every step is handled by our professional engineering team to ensure optimal system efficiency and safety.

Installation Guidance

We provide detailed installation instructions, electrical wiring diagrams, and commissioning videos. For commercial & industrial and utility-scale storage projects, our technical team can provide on-site installation guidance, system commissioning, and grid connection support free of charge to ensure smooth project deployment.

Spare Parts Included

Based on the transaction amount, we provide 0.5% to 1% of key spare parts (including battery modules, BMS boards, PCS modules, control units, etc.) free of charge. This helps customers establish an initial spare parts inventory, avoiding maintenance delays.

After-Sales & Lifetime Service

We provide lifetime technical support and repair services for our PV storage systems. Any questions or issues raised by customers will be responded to within 24 working hours. Additionally, we can provide remote monitoring and maintenance support (requires compatible EMS system) to help customers monitor system performance in real time.

Recommended Maintenance Plan

We recommend the following routine maintenance to extend system life:
1. Monthly: Check system operating data via the monitoring platform, paying attention to key parameters such as battery voltage, temperature, and SOC.
2. Quarterly: Inspect battery connection terminals for looseness, clean dust, and ensure proper ventilation.
3. Semi-Annually: Perform battery balancing maintenance and check the operating status of the PCS.
4. Every 3 to 5 Years: Evaluate whether additional or replacement battery modules are needed based on degradation.

ODM & OEM Customization

We have complete in-house capabilities from battery cell packaging, BMS development, PCS design, to full system integration. We provide ODM and OEM services for PV storage products. We help customers create truly differentiated, cost-effective energy storage products with solutions built from the ground up.

Frequently Asked Questions (FAQ)

What is the design and cycle life of the YD-200K energy storage battery?

The battery system is engineered for long-term reliability, offering a design life of over 10 years and a cycle life of more than 6,000 cycles (measured at 0.5C/0.5C charge/discharge, 80% Depth of Discharge).

What components are included in your fully integrated energy storage systems?

Our vertically integrated solution covers all core components in-house, including PV modules, high-voltage lithium storage batteries, Power Conversion Systems (PCS), Battery Management Systems (BMS), Energy Management Systems (EMS), and all matching distribution/electrical cabinets.

What protective safety features are built into the cabinet systems?

The systems include comprehensive safety standards such as DC reverse-polarity protection, short circuit protection, output overcurrent protection, DC/AC Type II surge protection, temperature monitoring, grid monitoring, anti-islanding, and an integrated Aerosol firefighting system.

Do you provide customized ODM and OEM services?

Yes. Because we control the full development chain from cell packaging and BMS programming to PCS design and final assembly, we provide fully customized, ground-up OEM and ODM solutions to create differentiated products for your market.

What is the standard warranty and after-sales policy?

We offer a standard two (2) year warranty on our PV modules, storage batteries, and energy storage systems from the date of purchase. Additionally, we provide 0.5% to 1% key spare parts free of charge with the transaction, alongside lifetime technical support with responses within 24 working hours.
