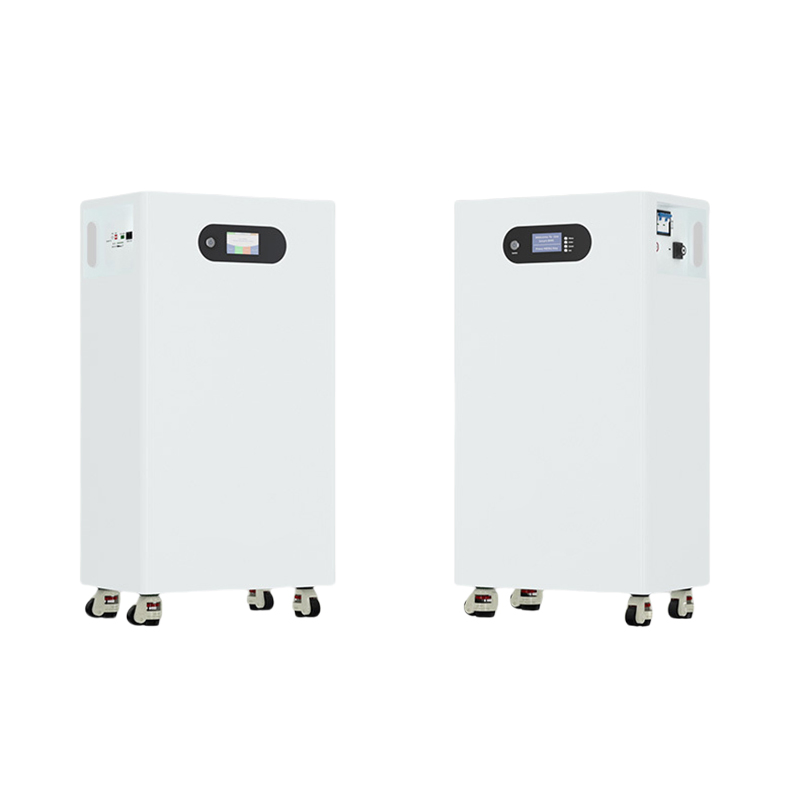

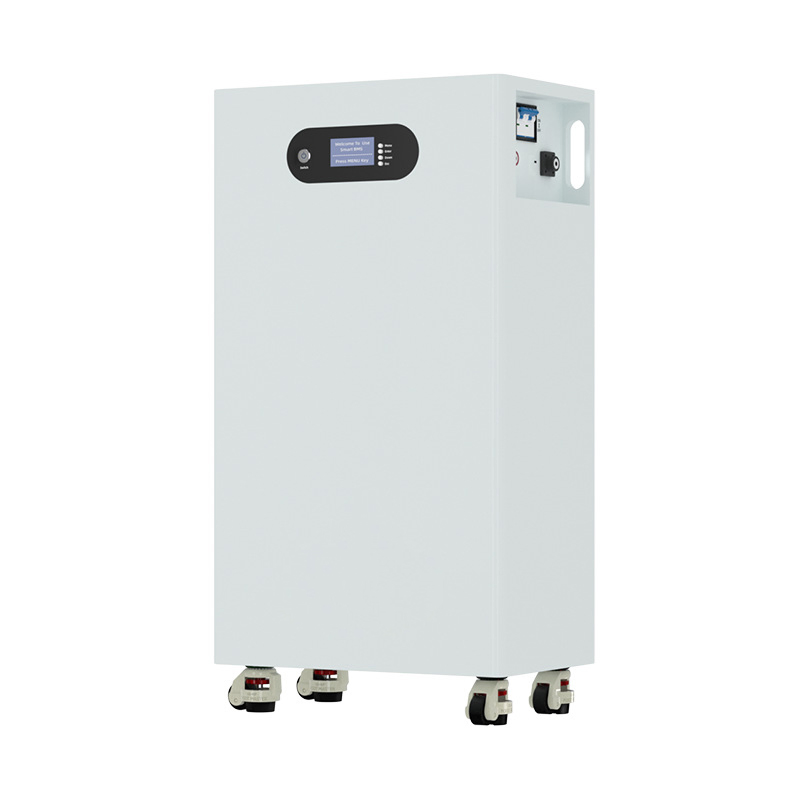

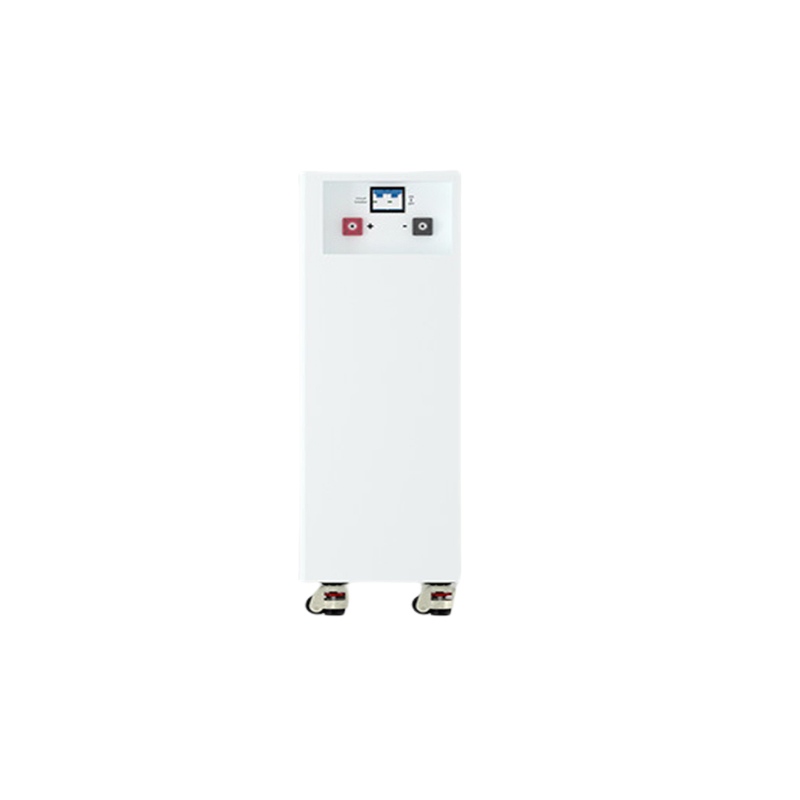

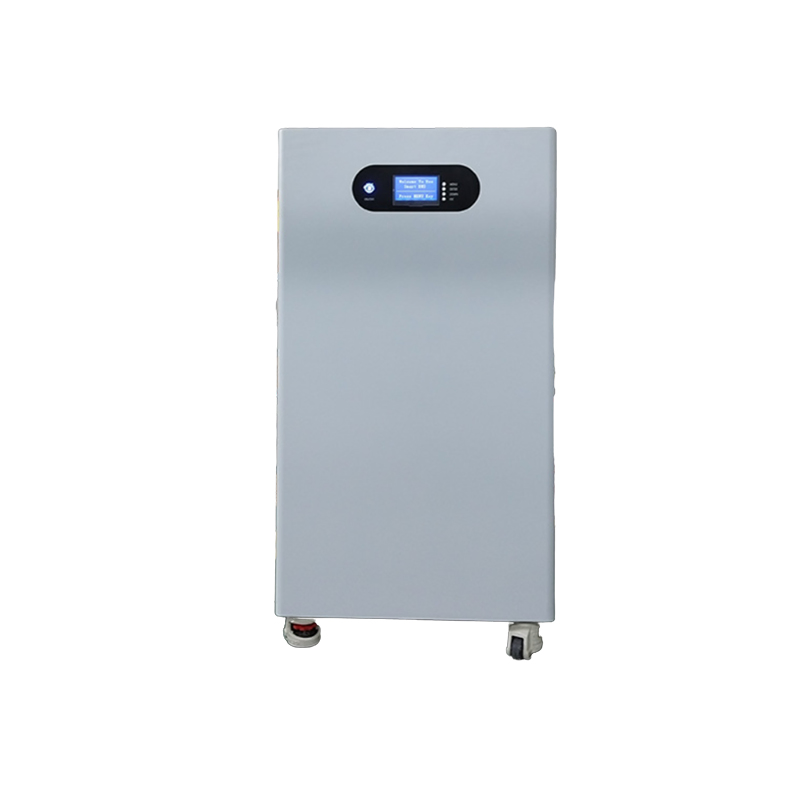

15kwh 280AH 300Ah 48V 51.2V Optional Lithium Iron Phosphate LiFePO4 Lithium-Ion Home Storage ESS solar battery with 5.5KW Inverter has the characteristics of safety and reliability, multiple protection of software and hardware, long service life, convenient capacity increase, beautiful appearance, simple installation, etc. Supporting off-grid inverters and hybrid inverters, widely used in the energy storage field.
| Model | Nominal Voltage | Nominal Capacity | Composition Method | Battery Cell Type | Cycle | Charging Voltage | Discharge Voltage | Charging Current | Discharge Current | Weight (Kg) | Size (mm) | Warranty |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51.2V280Ah | 51.2V | 280Ah | 16S1P | A Grade New Aluminum Shell Prismatic lithium iron phosphate Battery | 6000 | 40V-58.4V | 58.4V-40V | 100A | 200A | 120 | 485*290*840 | 5 years |
| 51.2V300Ah | 51.2V | 300Ah | 16S1P | 6000 | 40V-58.4V | 58.4V-40V | 100A | 200A | 121 | 485*290*840 | 5 years | |
| 51.2V314Ah | 51.2V | 314Ah | 16S1P | 6000 | 40V-58.4V | 58.4V-40V | 100A | 200A | 122 | 485*290*840 | 5 years | |
| 51.2V560Ah | 51.2V | 560Ah | 16S2P | 6000 | 40V-58.4V | 58.4V-40V | 100A | 200A | 247 | 485*290*840 | 5 years |
As the energy storage battery in the energy storage system, this product can be adapted to all hybrid and off-grid inverter brands in the world. Please connect the line between the battery and the inverter correctly when installing. Please do not mistakenly connect the positive and negative terminals.
