GAF Energy
GAF Energy

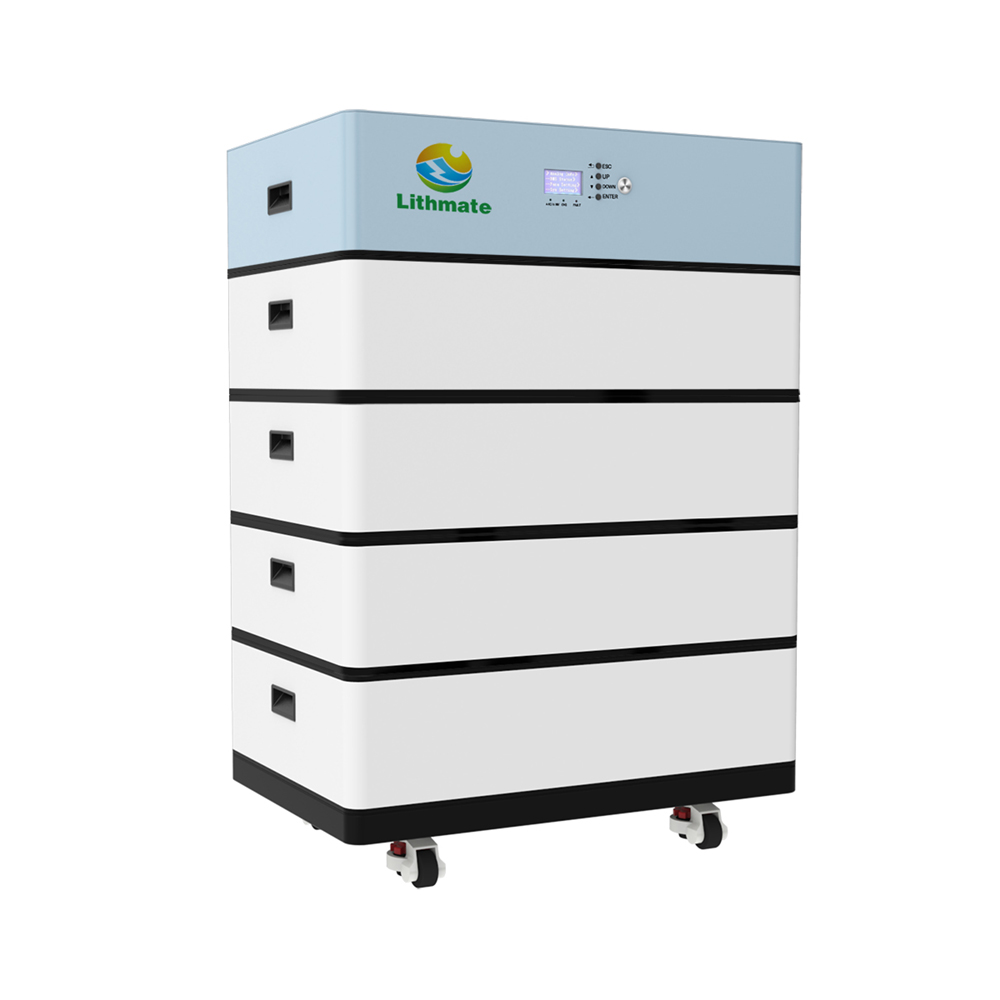

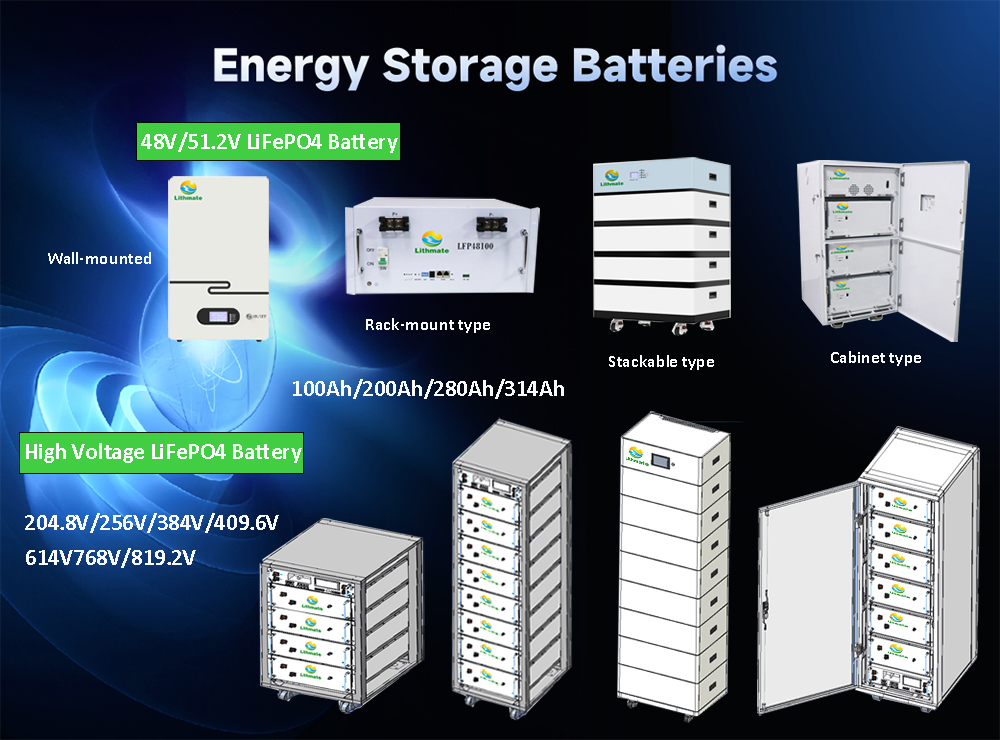

We specialize in advanced energy storage systems designed for residential, commercial, and industrial applications. Our product lineup includes wall-mounted, stackable, cabinet-style, and rack-mounted battery types, available in both low-voltage and high-voltage configurations.

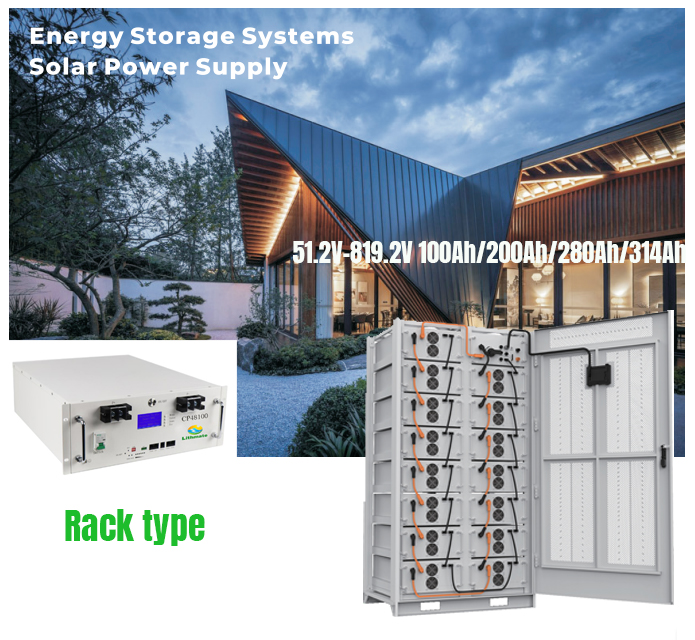

Energy Storage Batteries Range from 48V/51.2V to 819.2V, Capacity range from 50Ah to 314Ah.

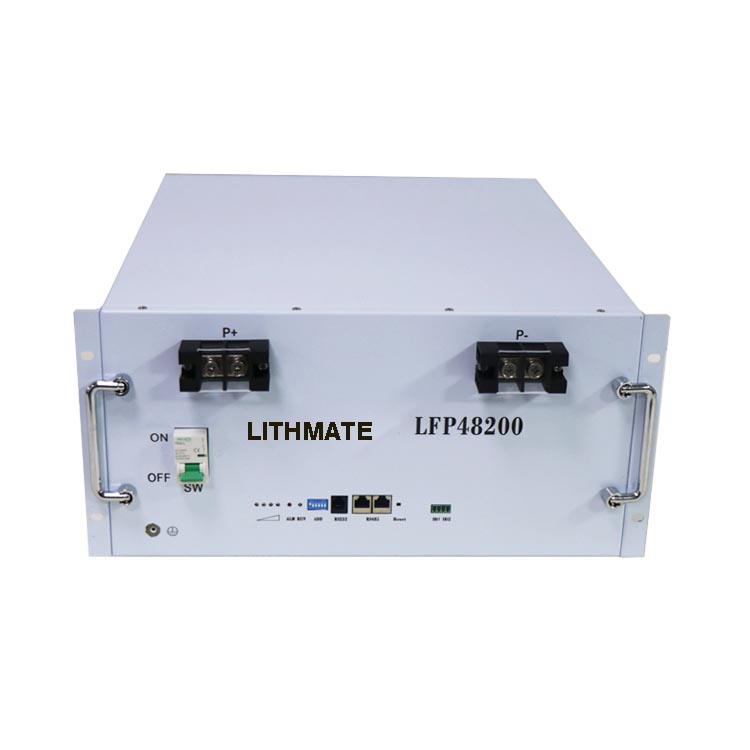

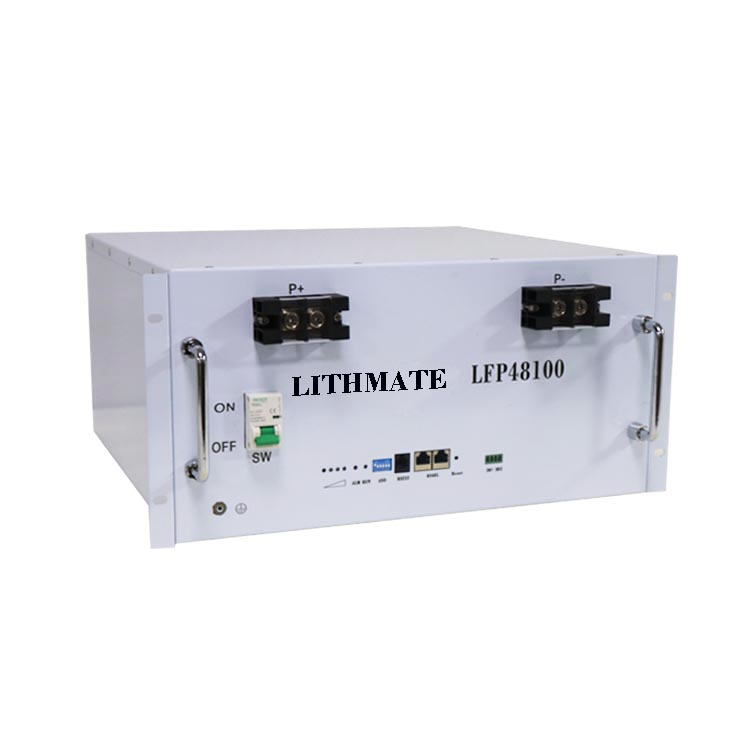

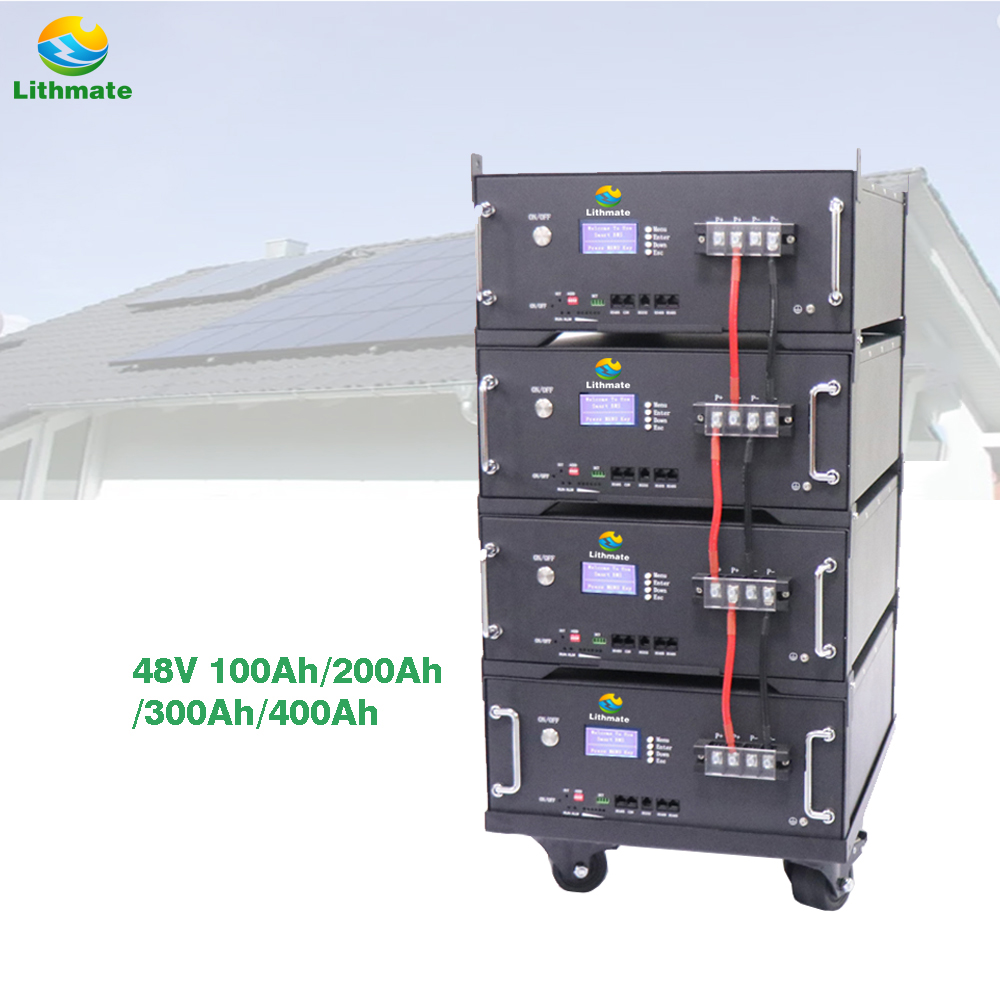

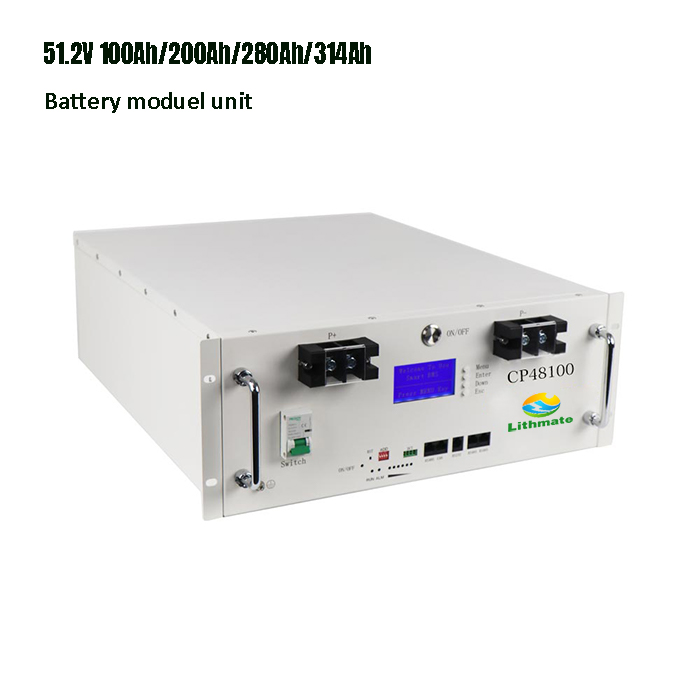

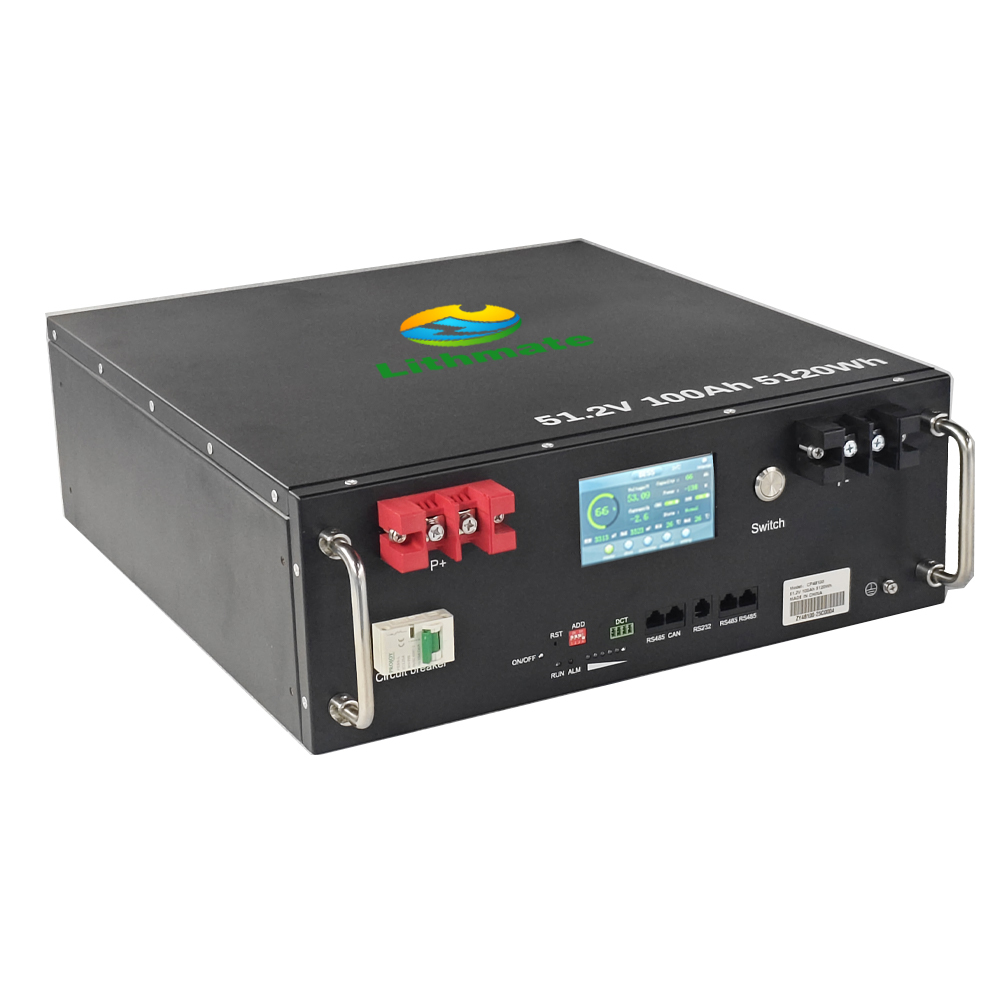

Hot selling models: 48V/51.2V 100Ah 200Ah Rack/Wall mounted type

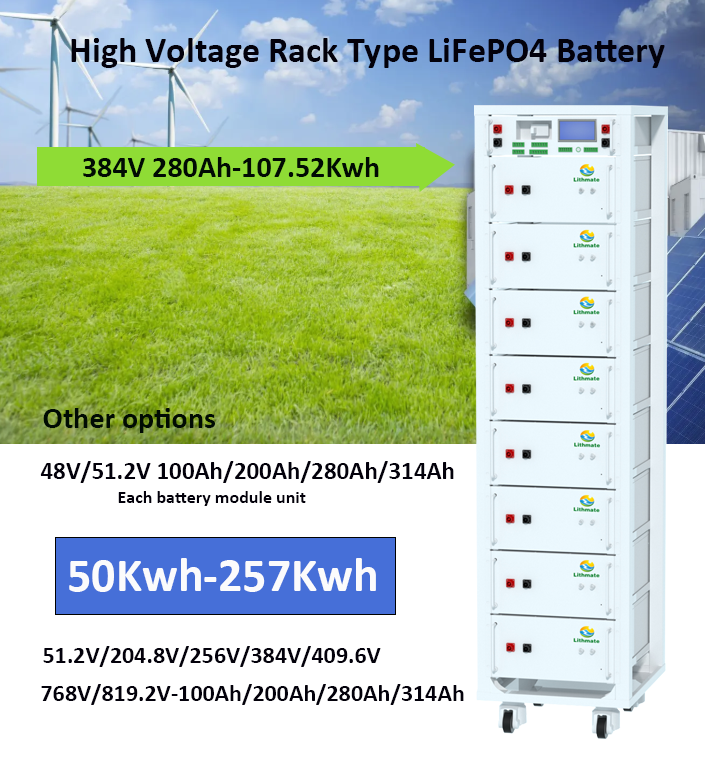

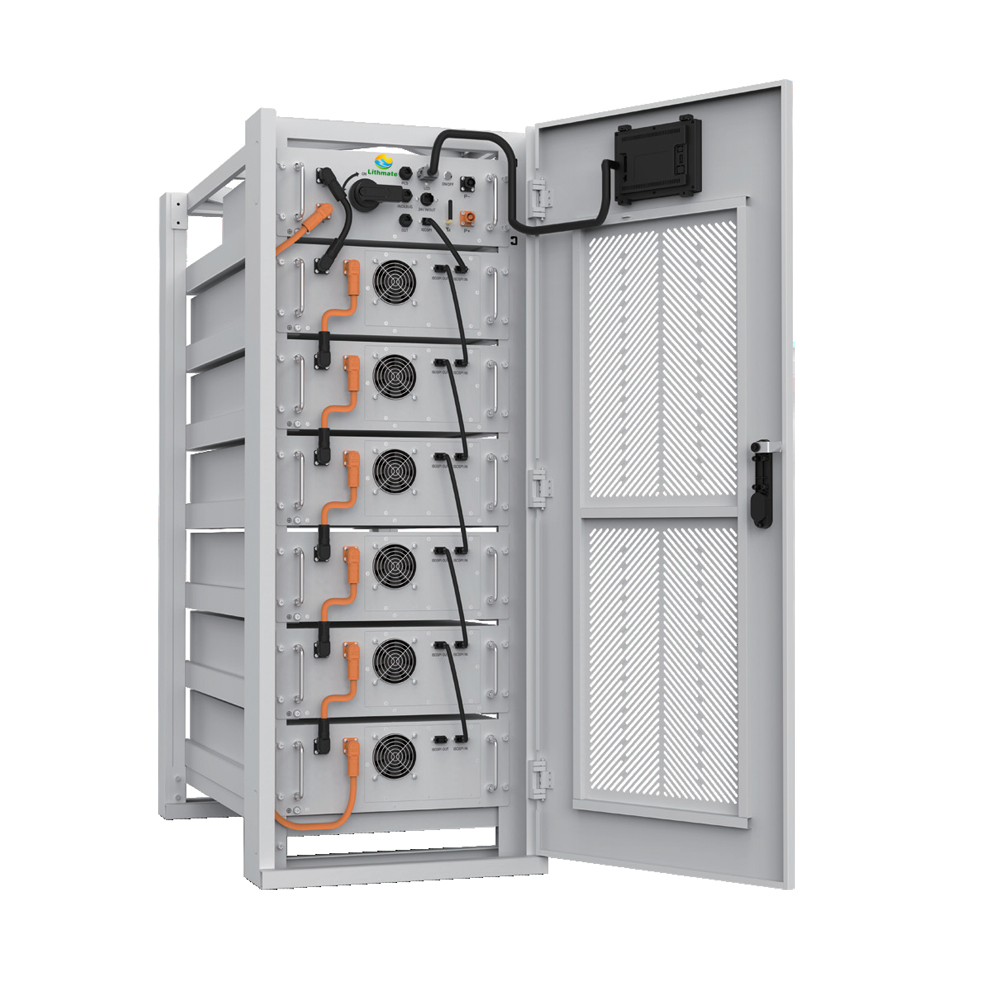

204.8V 256V 384V 409.6V 614V 768V 819.2V 100Ah 280Ah 314Ah
Engineered for performance and durability, our batteries deliver scalable, future-proof power—safely and efficiently.

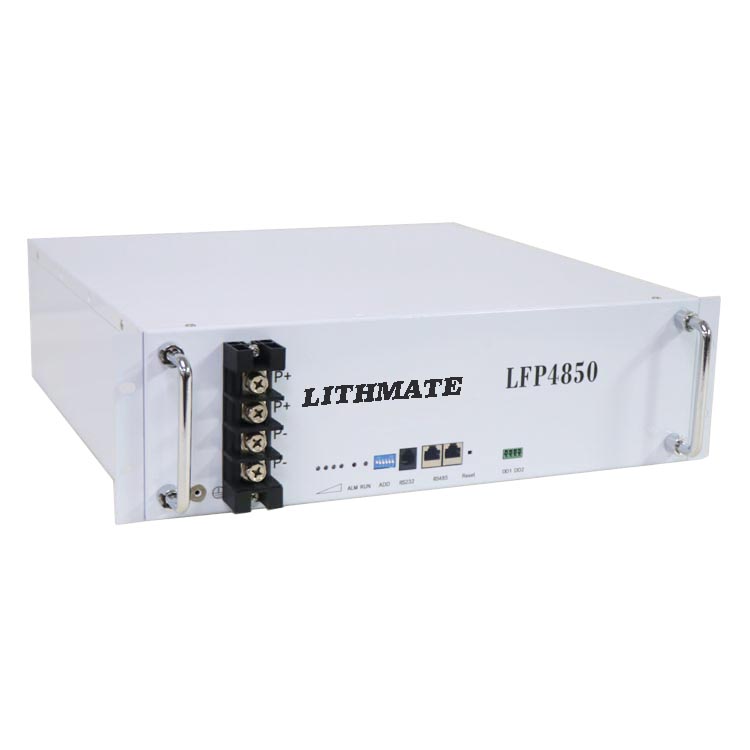

| Specification | 50Ah Model | 100Ah Model | 200Ah Model | 280Ah Model | 314Ah Model |
|---|---|---|---|---|---|
| Rated Voltage | 51.2V | ||||
| Energy | 2.56kWh | 5.12kWh | 10.24kWh | 14.33kWh | 16.07kWh |
| Discharge Current | 50A | 100A | 150A | 150A | 150A |
| Size | 482.6*430.2*132.5mm | 482.6*555.2*177mm | 482.6*600.2*225mm | 482.6*610*221.5mm | 482.6*610*221.5mm |
| Weight | 40KG | 46.72KG | 85KG | ~135KG | 135KG |
| Standard Specifications | |
|---|---|
| Rated Voltage | 51.2V |
| Rated Capacity | 100Ah / 200Ah / 280Ah / 304Ah / 400Ah |
| Energy Options | 5kWh / 10kWh / 14.3kWh / 15.5kWh / 20kWh optional |
| Continuous Discharge Current | 100A / 150A |
