| Item | Value |
|---|---|
| System Voltage | 51.2 V |
| Output Power Range | 5~10 kWh |
| Grid connection | Hybrid grid |
| Battery Type | LiFePO4 |
| System Type | Rack-mounted |
| Brand Name | KINGKONG BATTERY |
| Place of Origin | China |
| Dimension (L*W*H) | 488*578*177.8mm |
| Weight | 47kg |
| Type | SPLIT |
| Communication Port | CAN, RS232, RS485 |
| Protection Class | IP43 |

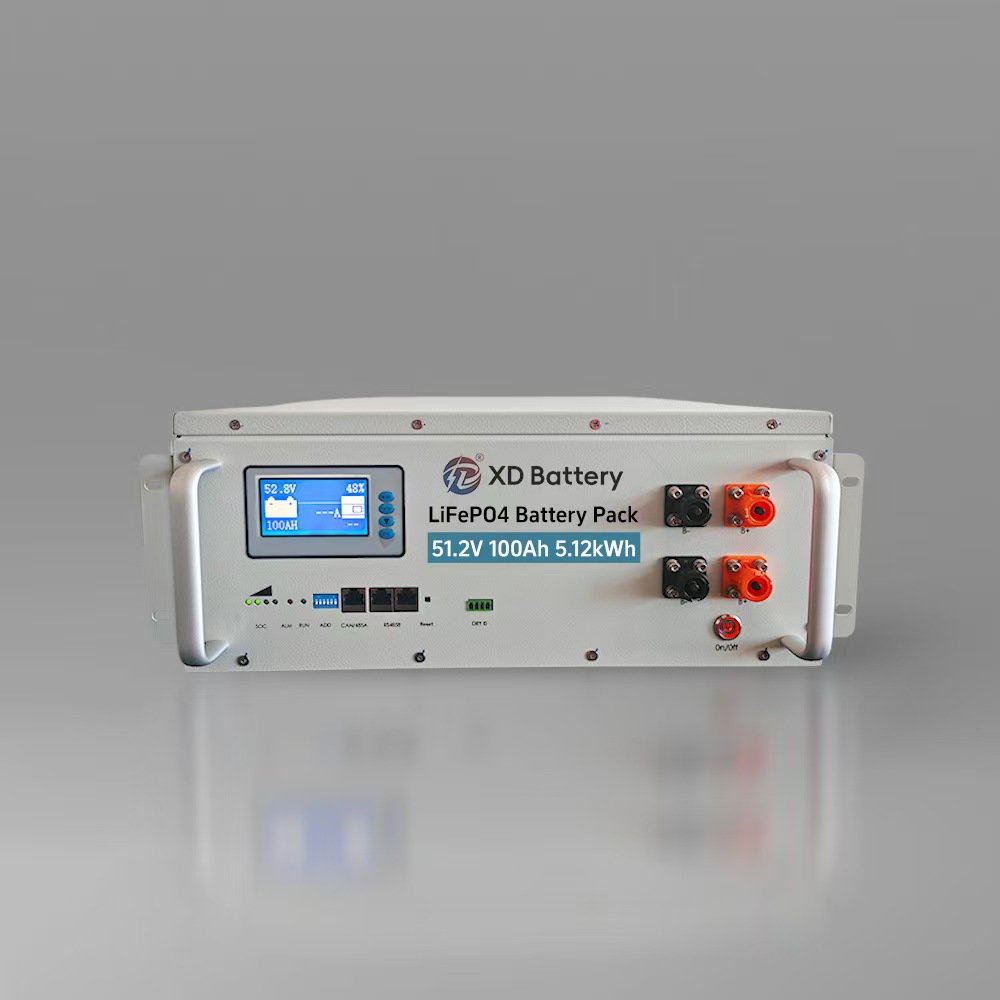

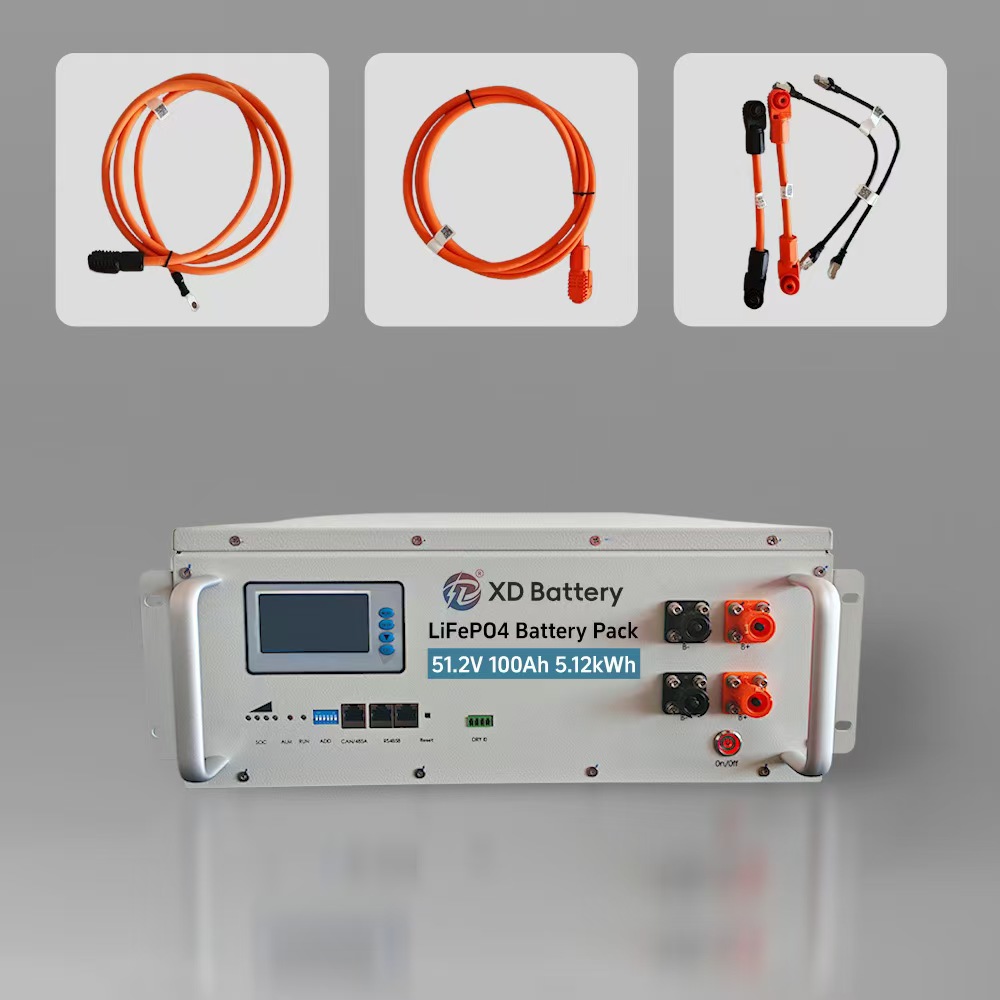

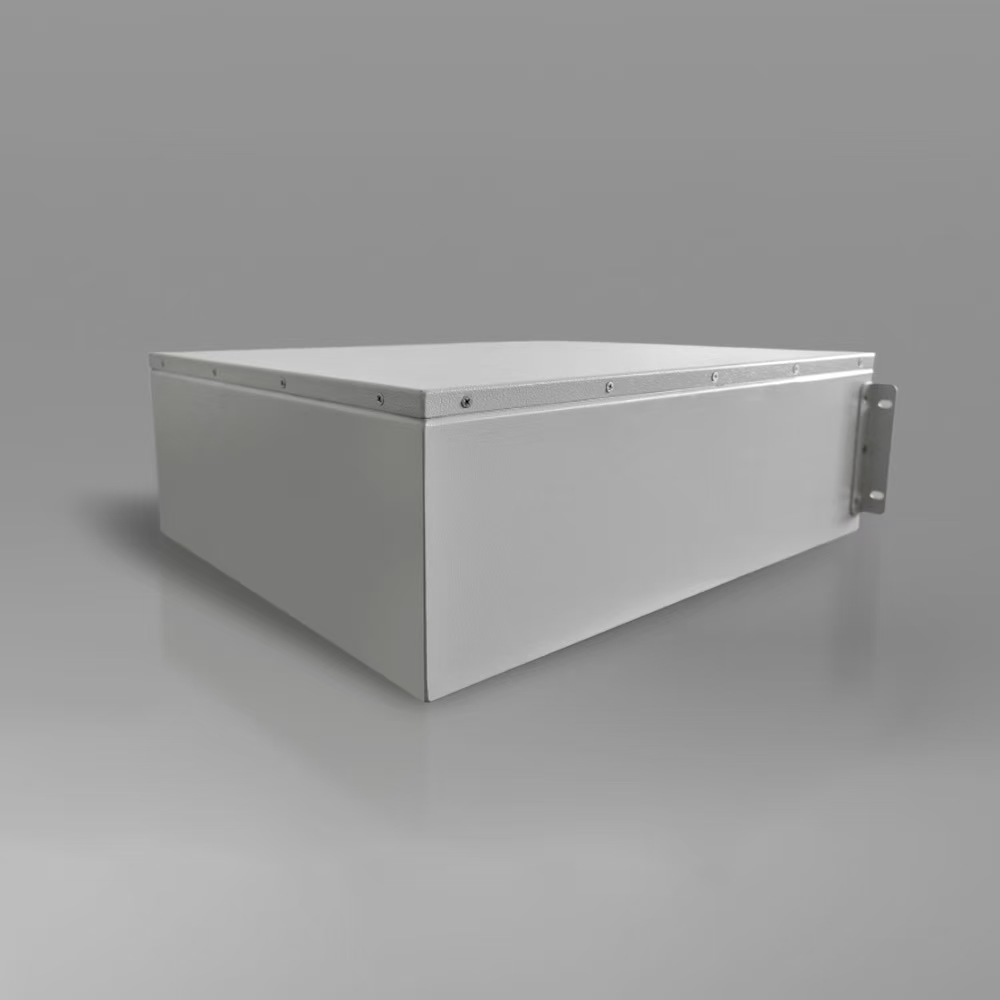

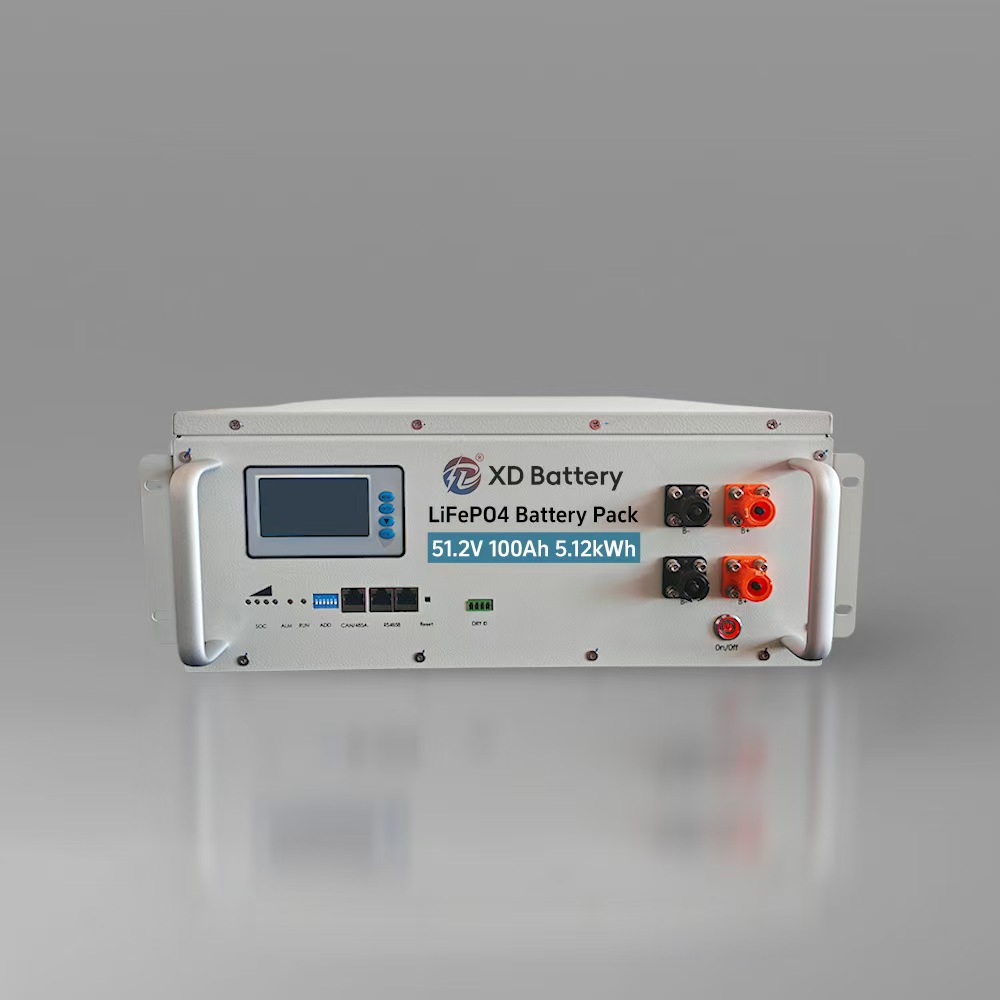

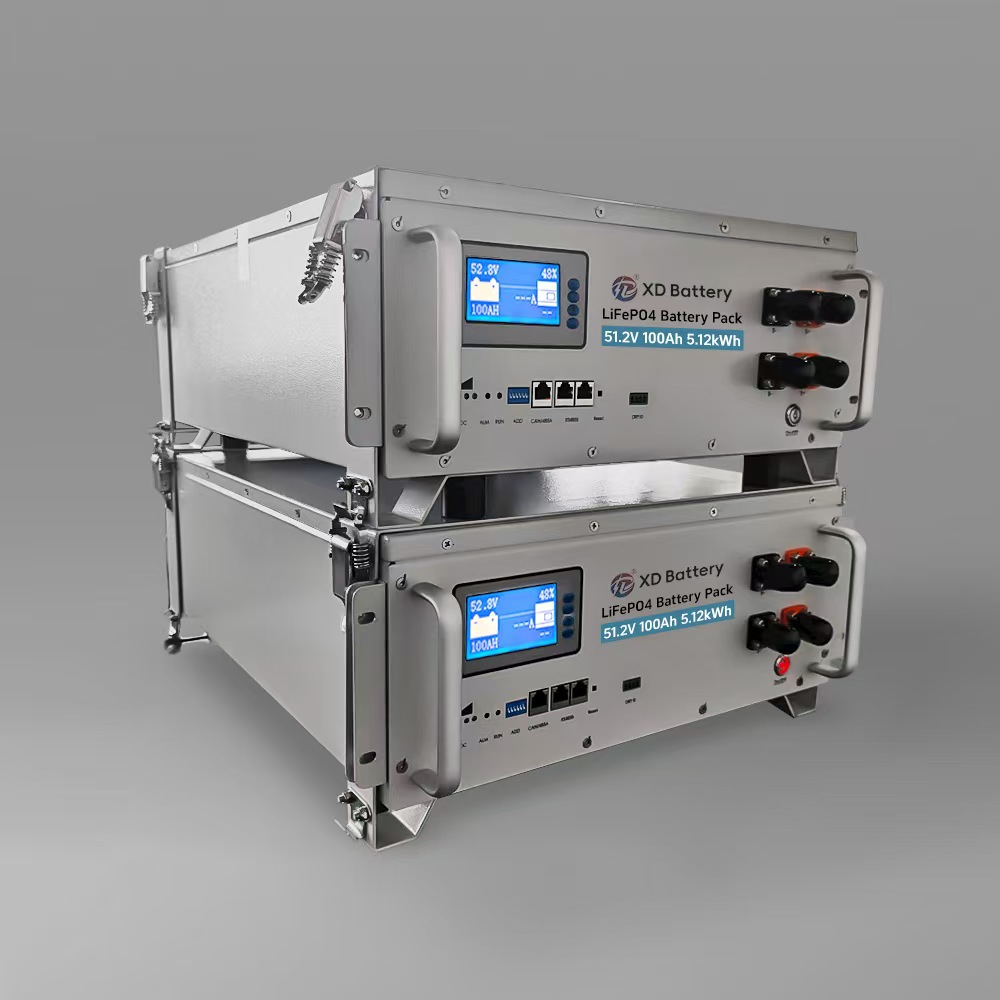

The Hybrid Solar Rack Generators 48v 51.2V Lifepo4 100Ah Gel 10Kwh Lithium-ion Battery Pack Power Set Up Home Energy Storage System boasts a high efficiency energy storage system that utilizes Grade A 3.2V 100Ah LiFePO4 Cells, providing an impressive 8000 cycles.
The product is equipped with a smart BMS (Battery Management System) that monitors and manages the battery pack effectively, ensuring optimal battery performance and extending its lifespan.
The system supports various grid connection options, including off-grid and hybrid grid, allowing users to seamlessly integrate it into their existing power infrastructure.
The device features enhanced communication capabilities, with supporting CAN, rs232, and rs485 communication ports, providing convenient connectivity and control over the power system.
The Hybrid Solar Rack Generators are built to last, with an IP43 protection rating, ensuring they can withstand various environmental conditions. Backed by a 5-year warranty, this lithium-ion battery system guarantees optimal performance and peace of mind for the buyer.
As a key participant in the renewable energy storage solution industry, the manufacturer is a distinguished National-level High and New Technology Enterprise, featured on Government procurement platforms. The enterprise boasts three strategic representative offices in Beijing, Shanghai, and Shenzhen, accommodating its global reach, with a factory space covering 90,000 square meters and a yearly battery production capacity of 1.2 million units.
Established in 2006, the enterprise is a leading provider of lithium-ion batteries for various applications, including RVs, marine, solar energy storage, low-speed vehicles, and telecommunications. The products are TUV, UL, CE, CSA, CEC, and JET certified and have reached over 120 countries worldwide, providing exceptional OEM/ODM services.
Driven by its commitment to excellence, the team consistently strives for top-tier technology, premium quality, and outstanding service to contribute to a more sustainable and prosperous global energy landscape. Join us in the mission to transform energy worldwide.
The system is built with Grade A 3.2V 100Ah LiFePO4 cells, designed to deliver excellent energy storage efficiency and an outstanding lifecycle of up to 8000 cycles.
The smart BMS continuously monitors performance metrics, balancing the cells and actively protecting the battery pack from conditions such as overcharge, over-discharge, overheating, and short circuits.
To ensure smooth integration and control, the system features robust communication interface support, including CAN, RS232, and RS485 communication ports.
Yes, the system is designed with multiple grid connection options, supporting off-grid as well as hybrid grid infrastructures for maximum flexibility.
Standard configurations include various options such as the 12V, 24V, 36V, and 48V LiFePO4 battery series with capacities ranging from 100Ah up to 460Ah, as well as customized high-voltage options.
The products are certified to top international standards including TUV, UL, CE, CSA, CEC, and JET, ensuring compliance across major global markets.
