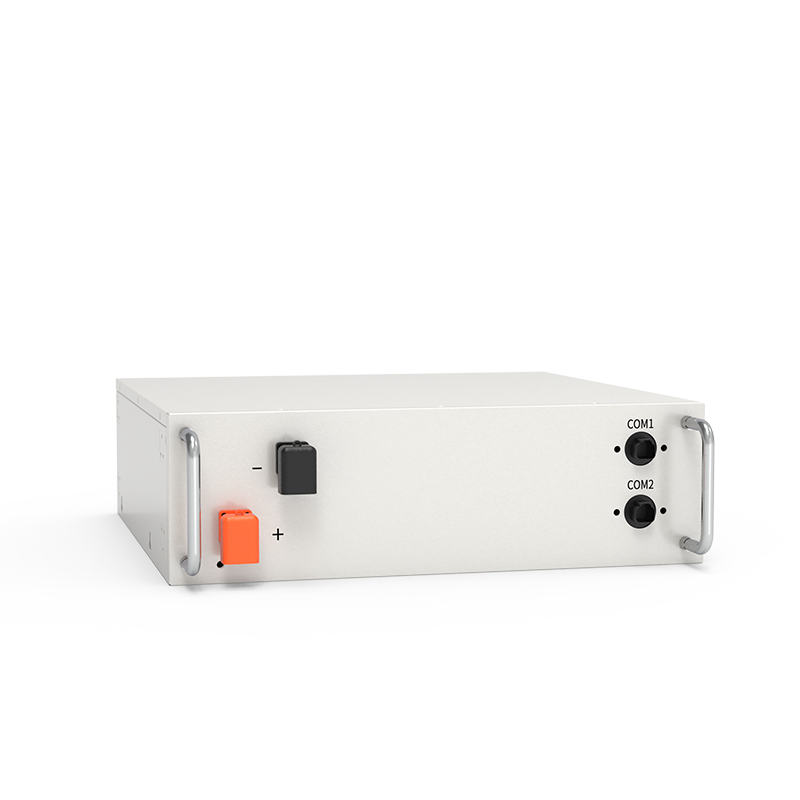

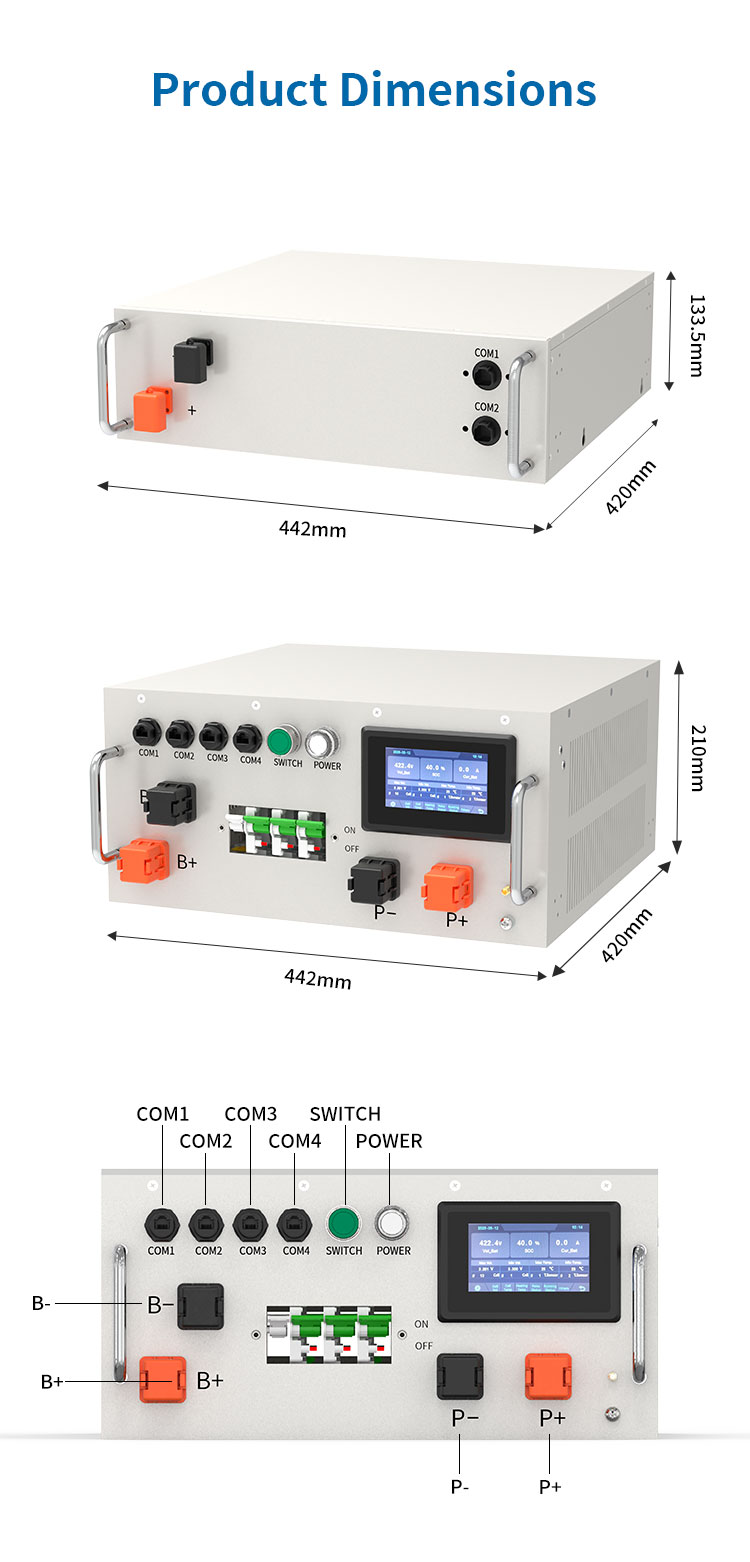

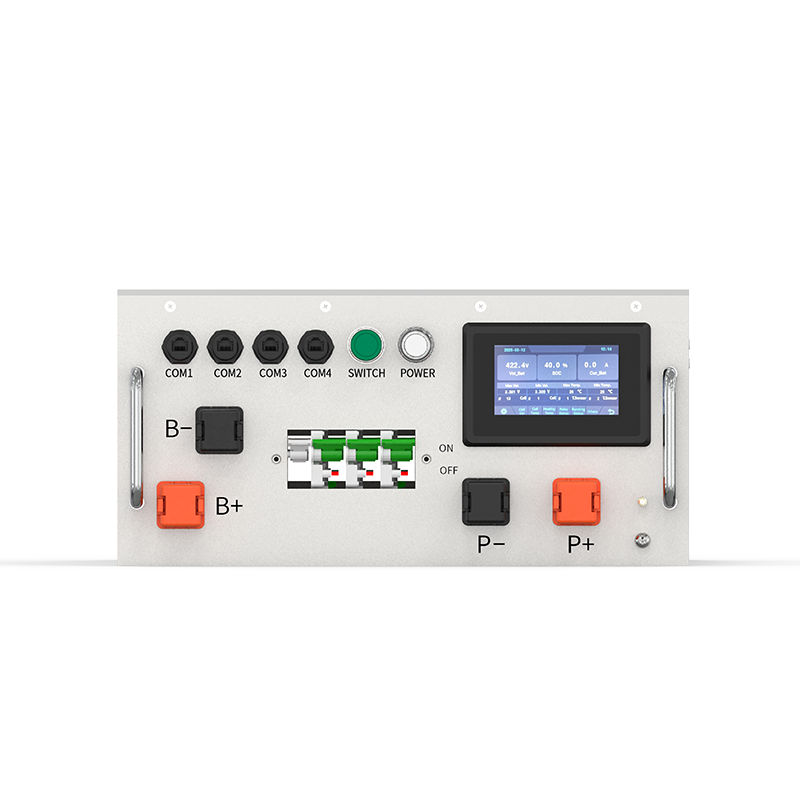

Quick installation, standard of 19-inch embedded designed module is comfortable for installation and maintenance.
Cathode material is made from LiFePO4 with safety performance and long cycle life. The module has less self-discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge.
It has protection functions including over-discharge, over-charge, over-current and over-high or low temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell.
The whole module is non-toxic, non-polluting and environmentally friendly.

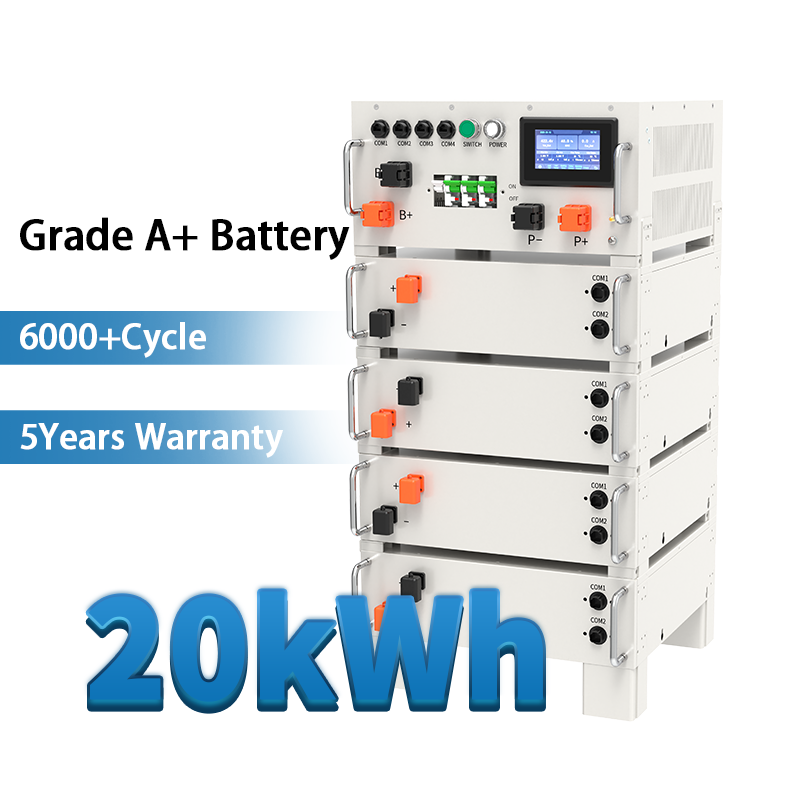

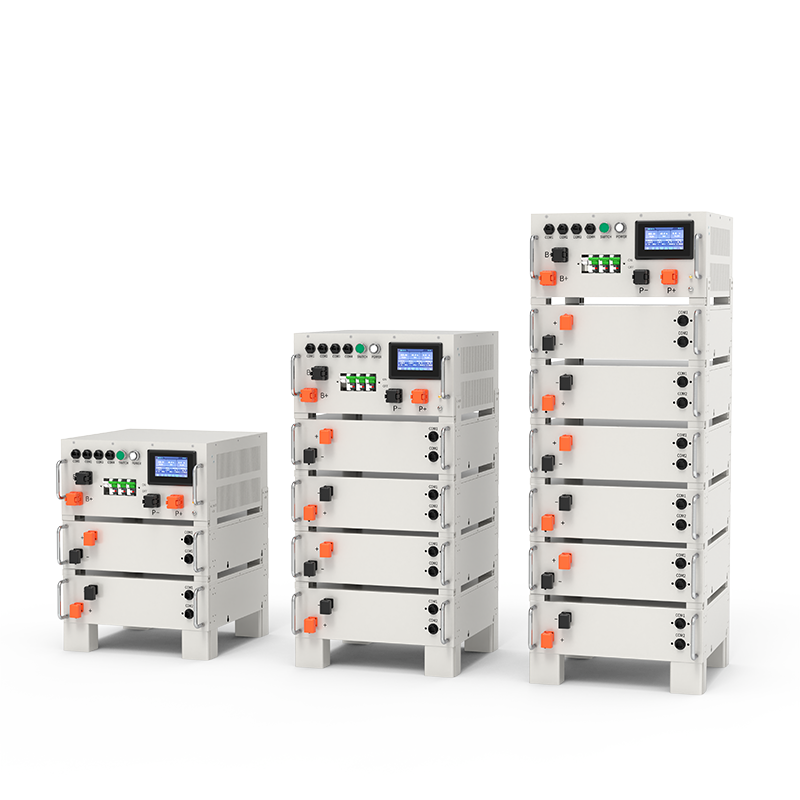

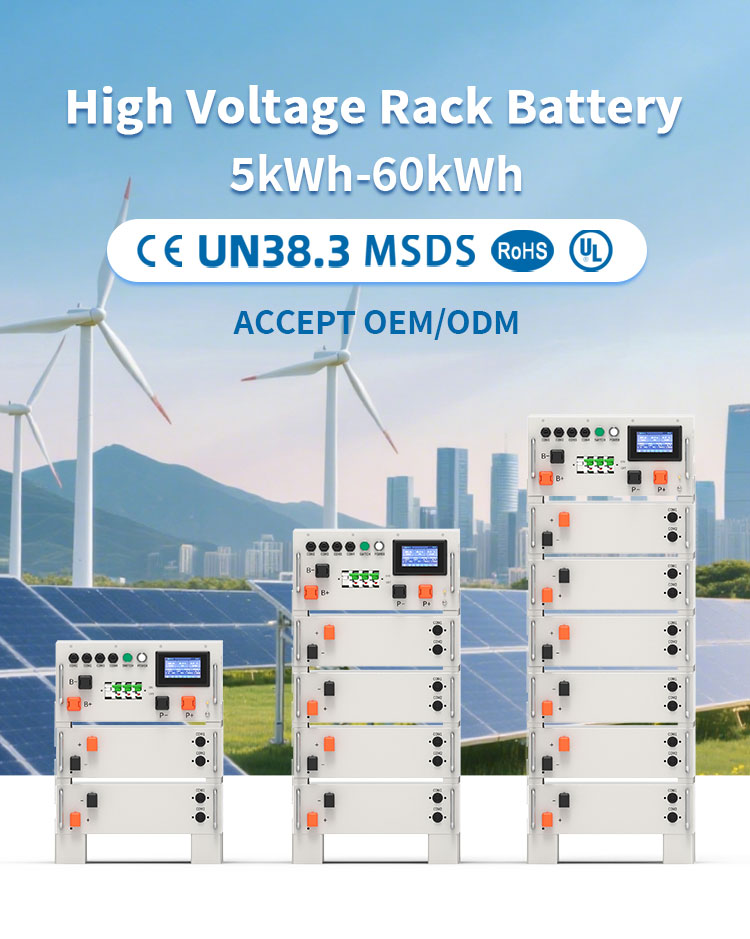

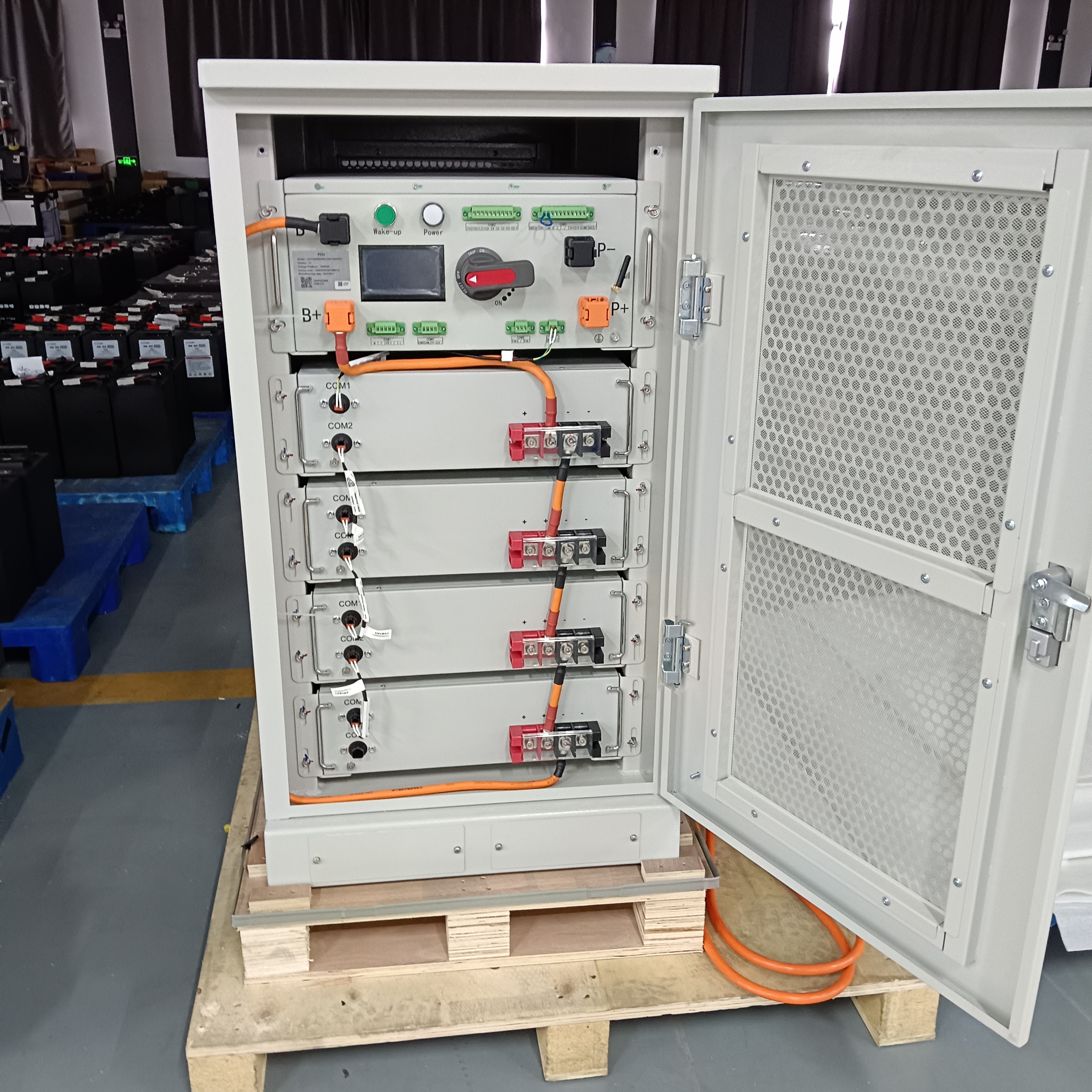

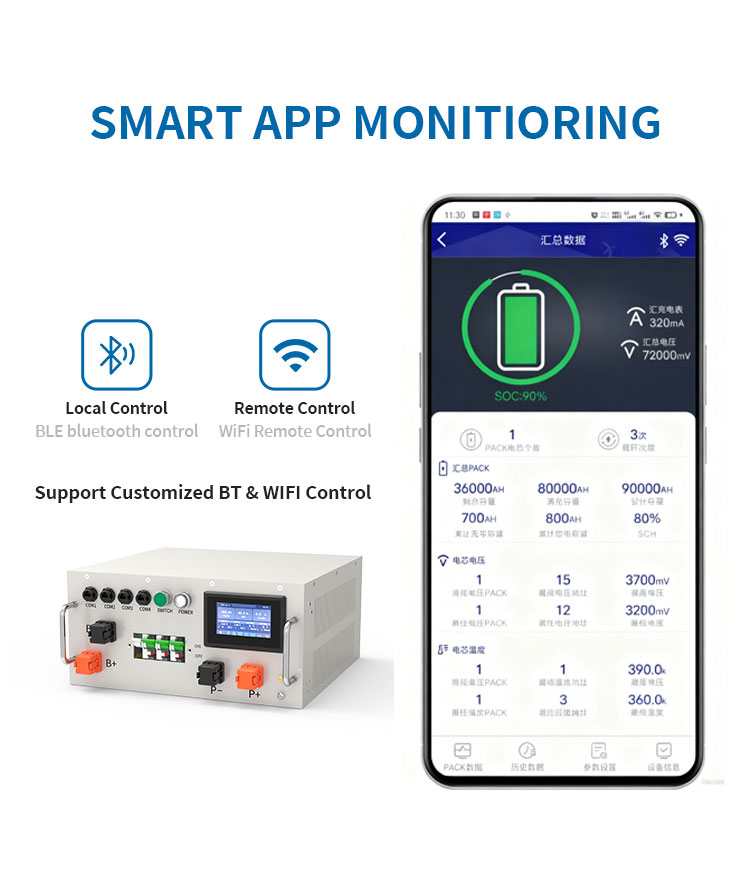

Multiple battery modules can be in parallel for expanding capacity and power. Support USB upgrade, wifi upgrade (optional), remote upgrade (Compatible with Deye inverter).
Working temperature range is from -20°C to 55°C, with excellent discharge performance and cycle life.
| Nominal Capacity | 100Ah | |||||
|---|---|---|---|---|---|---|
| Nominal Voltage | 102.4V | 204.8V | 307.2V | 409.6V | 512V | 614.4V |
| Energy | 10.24kwh | 20.48kwh | 30.72kwh | 40.96kwh | 51.2kwh | 61.44kwh |
| Modules Connection | Maximum 16 in series | |||||

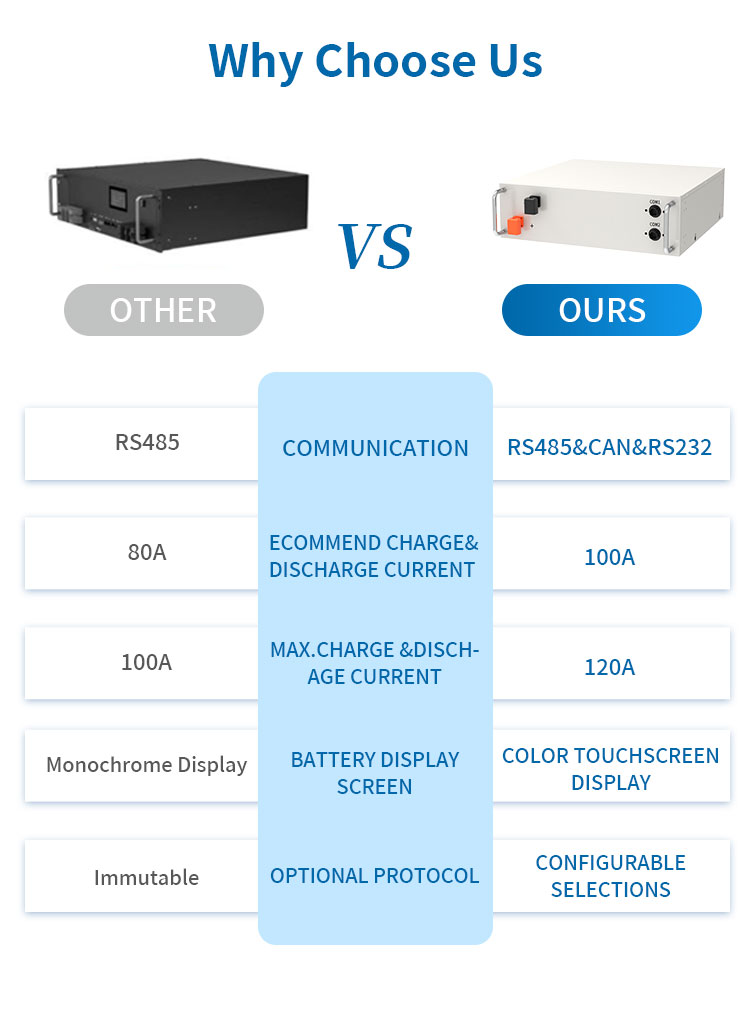

| BMS Communication | Rs485, CAN | |||||
| Design Life | 15 years | |||||
| Charging Efficiency | ≥98% | |||||
| Life Cycles (80% DOD, 25°C) | 6000 cycles | |||||
| Operating Temperature | Charging: 0~55°C | Discharge: -10~55°C | |||||
| Storage Temperature | -20~60°C | |||||
