Cobalt Free Lithium Iron Phosphate (LFP) Battery: Safety and long Lifespan, high efficiency and high power density. Intelligent BMS, providing complete protection.
Support high discharge power. IP20, natural cooling, wide temperature range: -20°C to 55°C.

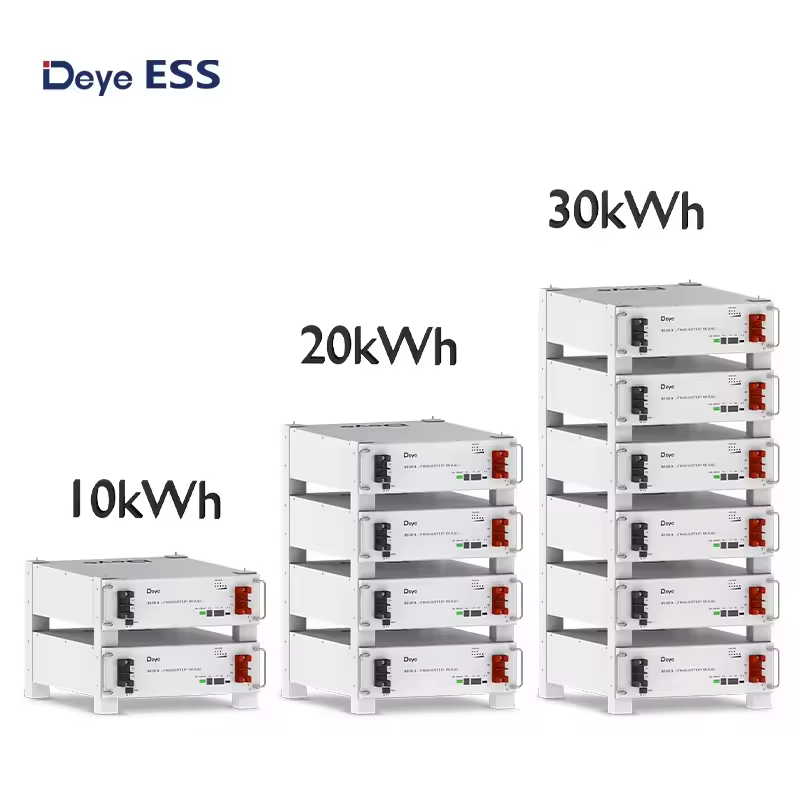

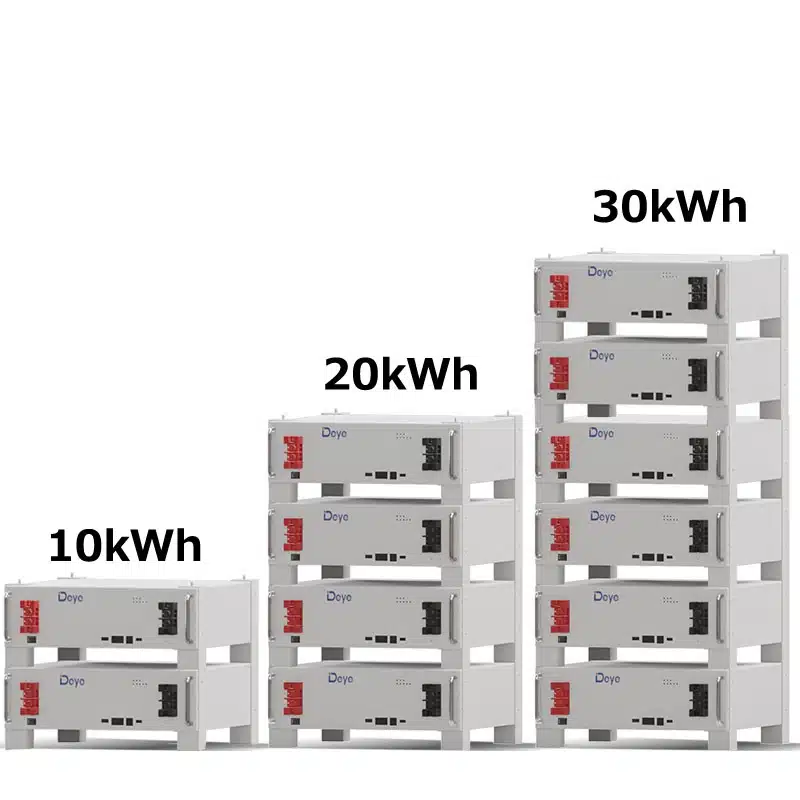

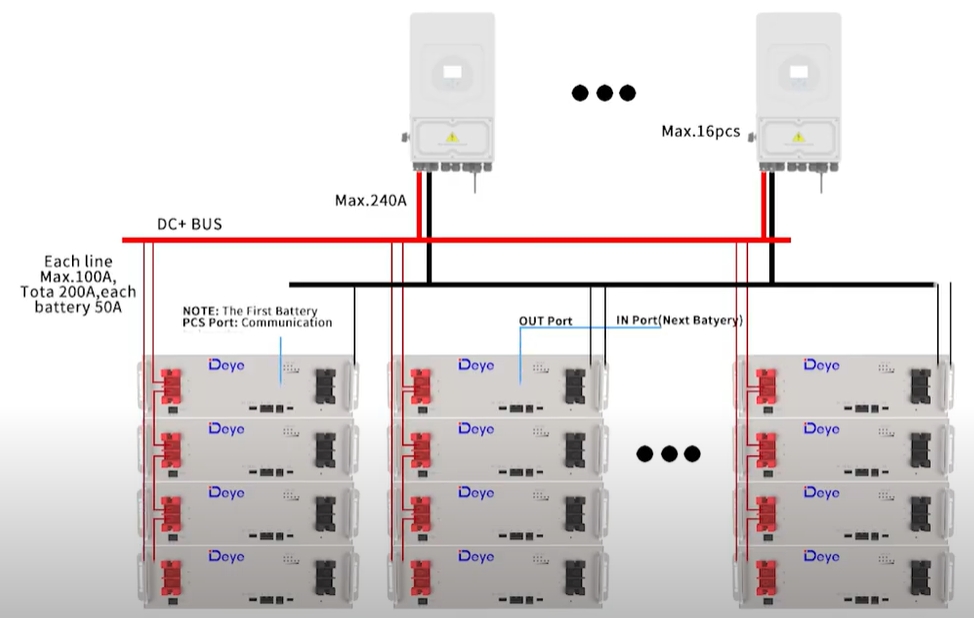

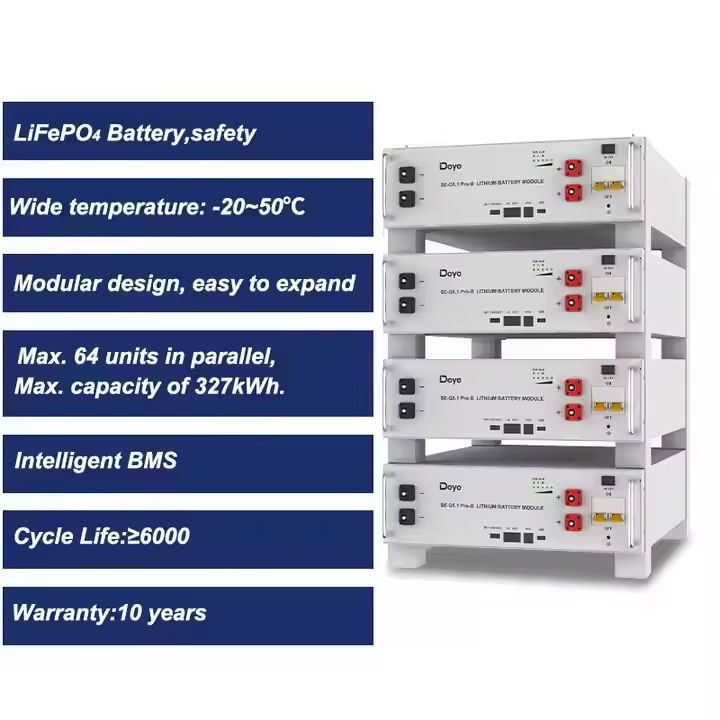

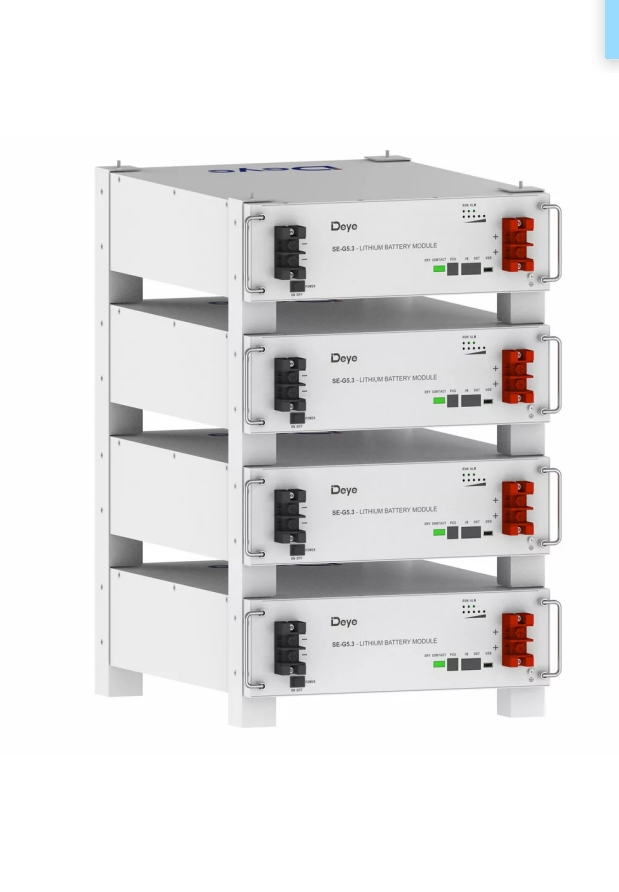

Modular design, easy to expand, Max. 64 units in parallel, Max. capacity of 327kWh. Suited to residential and commercial applications.
Battery module auto networking, easy maintenance, support remotely monitoring and upgrade, support USB drive upgrade the firmware.
Use environmental protection materials, the whole module non-toxic, pollution-free.
| Feature | Value |
|---|---|

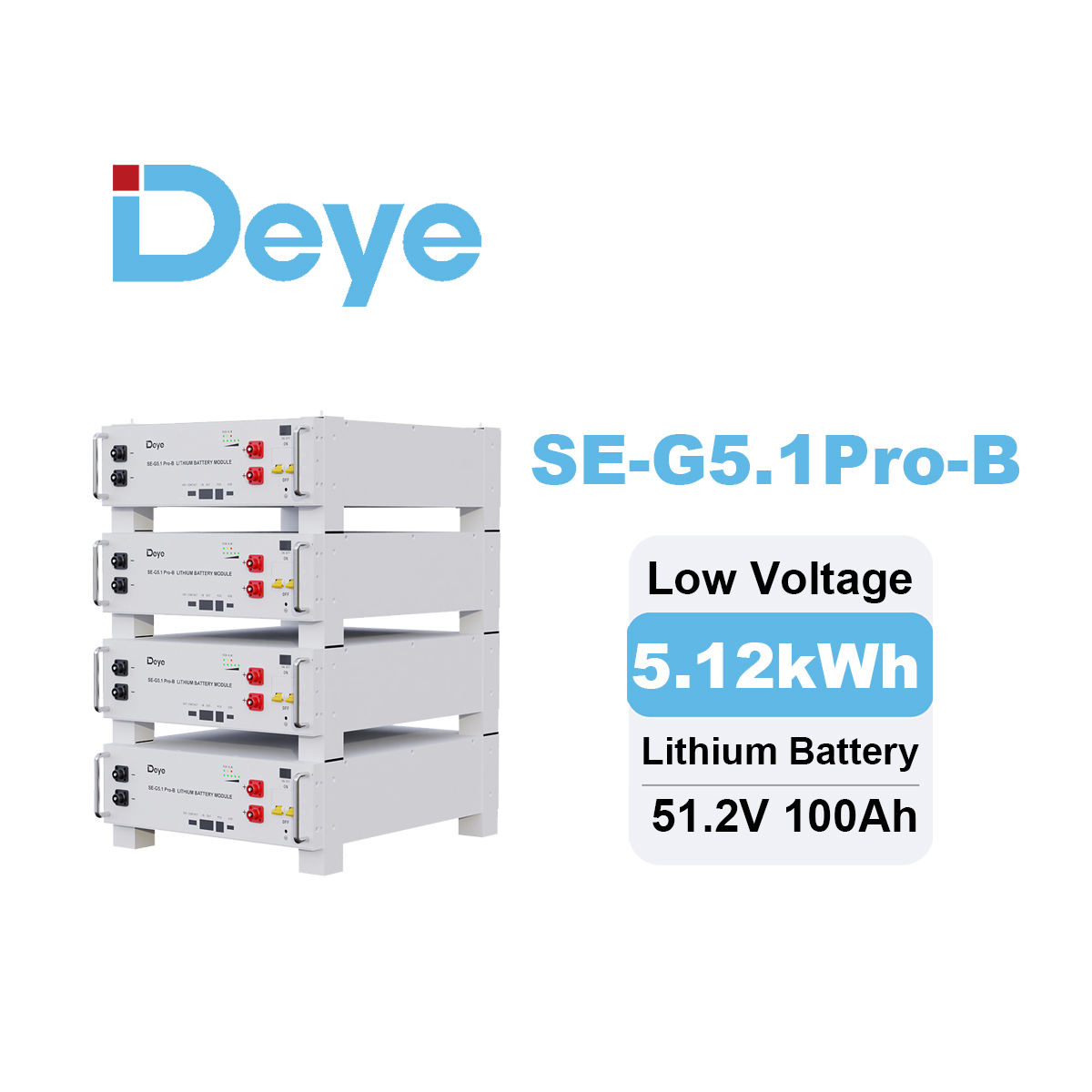

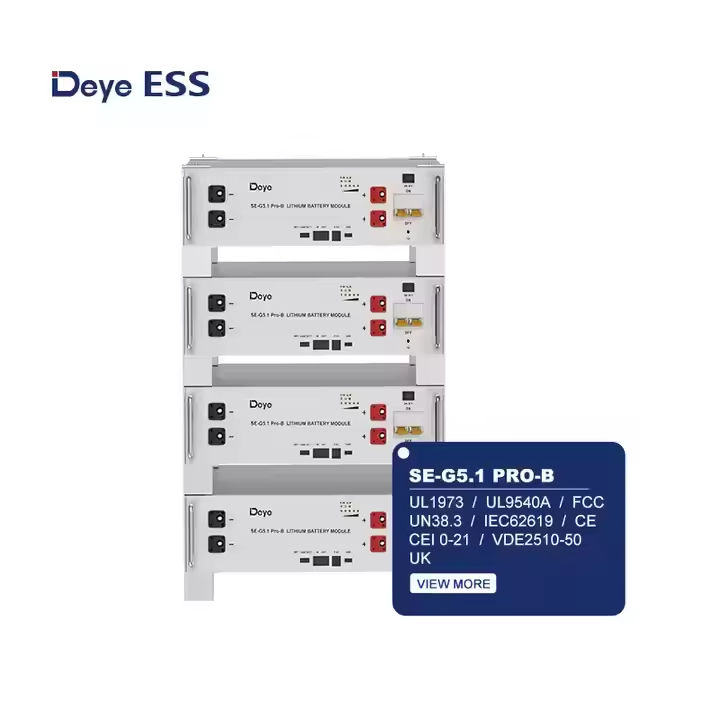

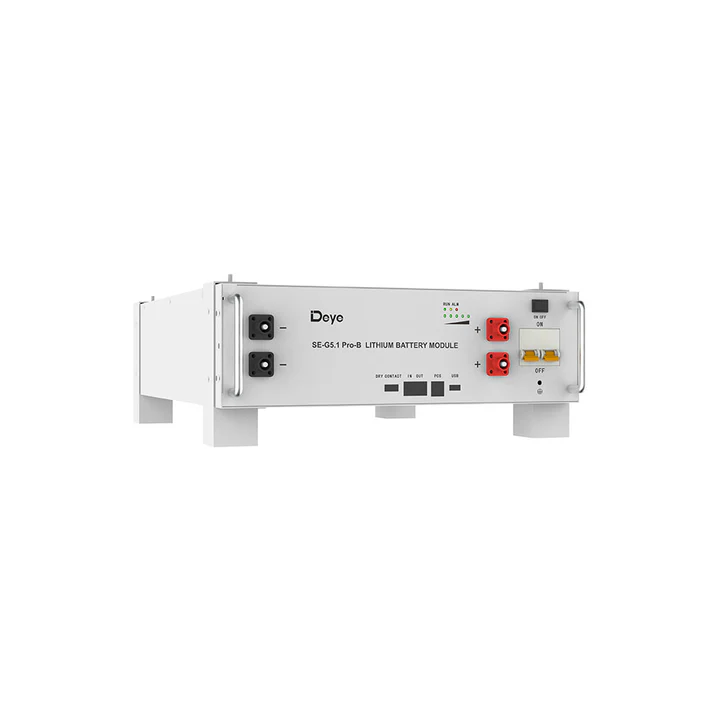

| Model | SE-G5.1 Pro-B |
| Battery Chemistry | LiFePO4 |
| Capacity (Ah) | 100 |
| Scalability | Max. 64 pcs pack (327kWh) in parallel |
| Nominal Voltage (V) | 51.2 |
| Nominal Energy (kWh) | 5.12 |

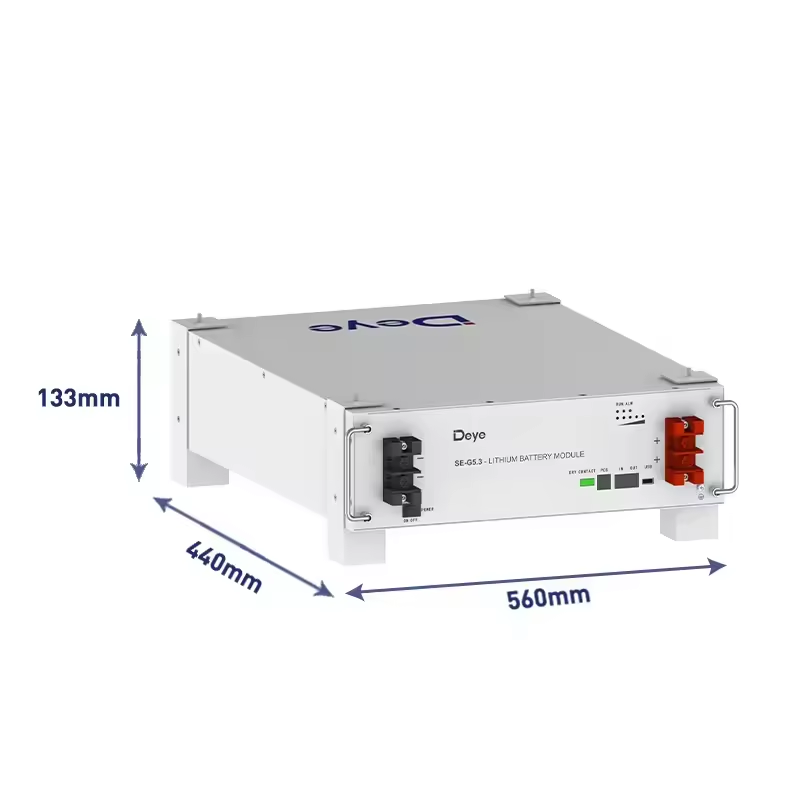

| Dimension (W/H/D, mm) | 440*133*540 |
| Weight Approximate(kg) | 45 |
| IP Rating | IP20 |
| Cycle Life | ≥6000 (25°C±2°C, 0.5C/0.5C, 90%DOD, 70%EOL) |
| Warranty Period | 10 years |
| Energy Throughput | 16MWh@70%EOL |
