| No. | Specification Parameter | Details |
|---|---|---|
| 1 | Nominal Voltage | 51.2V |
| 2 | Nominal Capacity | 100Ah |
| 3 | Nominal Energy | 5.12KWH |
| 4 | Battery Type | LiFePO4(LFP) |
| 5 | BMS | Built-in BMS |
| 6 | Operating Temp Range | Charge: 0 ~ 55°C (Optional heating: -20°C ~ 55°C), Discharge: -20°C ~ 55°C |
| 7 | Operating Voltage Range | 43.2 ~ 57.6V |

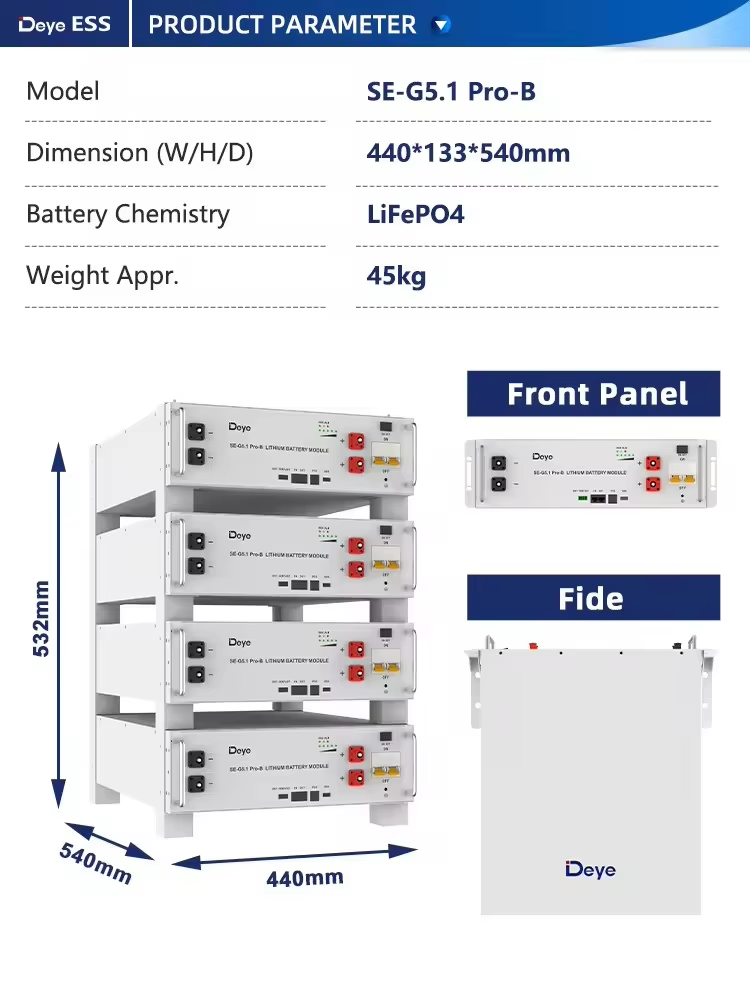

| 8 | Dimension (W/H/D, mm) | 440*133*540 |
| 9 | Weight | 45kg |
| 10 | Master LED Indicator | 5LED (SOC: 20% ~ SOC100%), 3LED (working, alarming, protecting) |
| 11 | Mounting Methods | Rack-mounted, Wall-mounted, Floor-mounted |
| 12 | Cycle Life | ≥6000 (25°C ± 2°C, 0.5C/0.5C, 90%DOD, 70%EOL) |
| 13 | Communication | CAN2.0, RS485 |

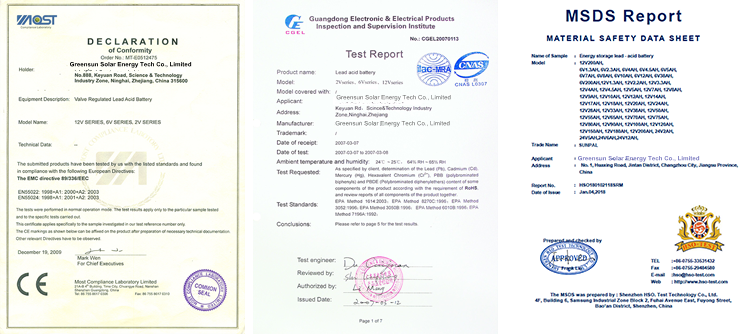

| 14 | Certification | UN38.3, IEC62619, CE, UK, VDE2510-50, CEI 0-21, FCC, UL1973, UL9540A |

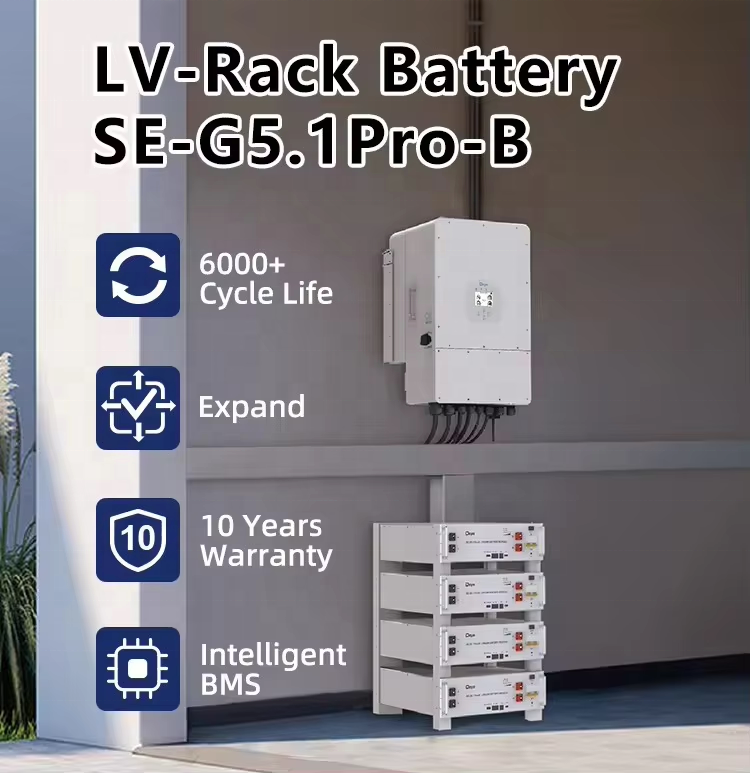

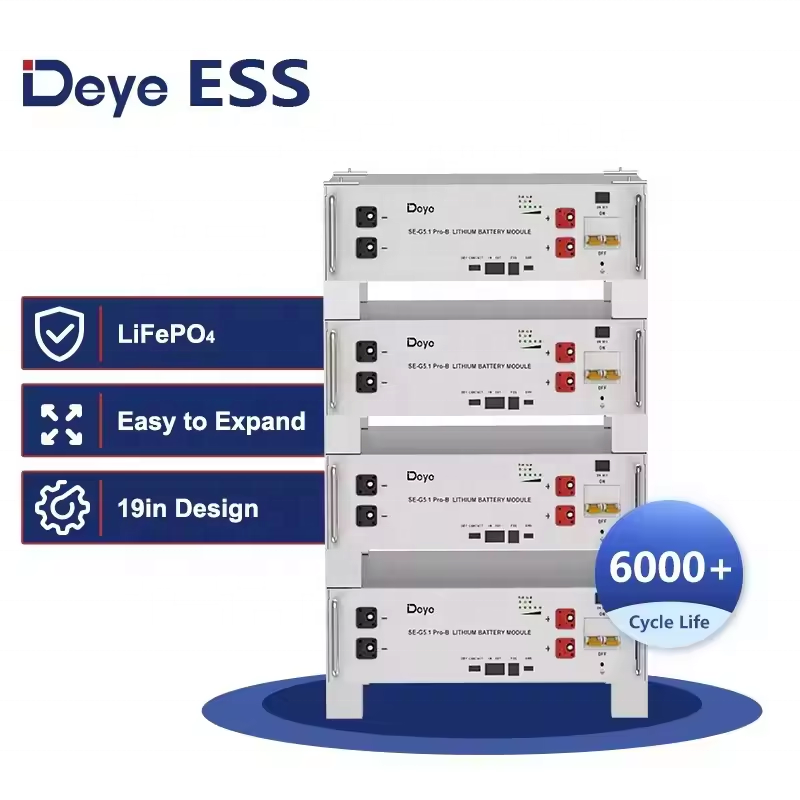

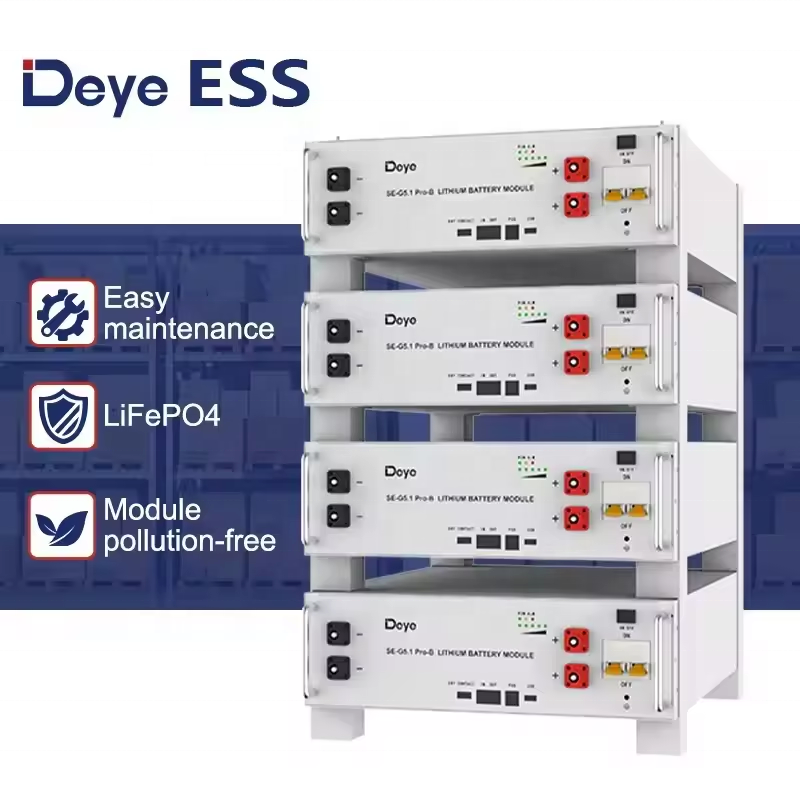

Cobalt Free Lithium Iron Phosphate (LFP) Battery: Safety and long Lifespan, high efficiency and high power density. Intelligent BMS, providing complete protection.
Support high discharge power. IP20, natural cooling, wide temperature range: -20°C to 55°C.
Modular design, easy to expand, Max. 64 units in parallel, Max. capacity of 327kWh. Suited to residential and commercial applications for increasing the self-consumption ratio.
Battery module auto networking, easy maintenance, support remotely monitoring and upgrade, support USB drive upgrade the firmware.
Use environmental protection materials, the whole module non-toxic, pollution-free.

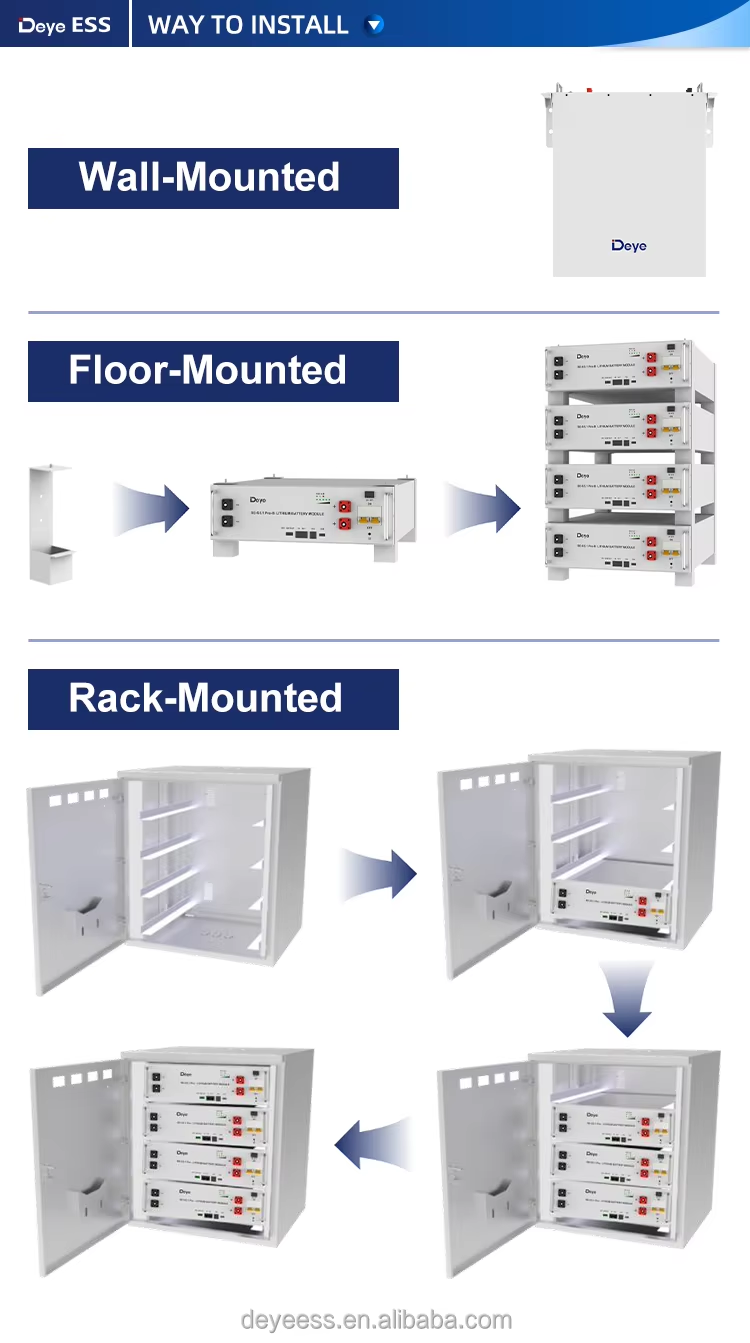

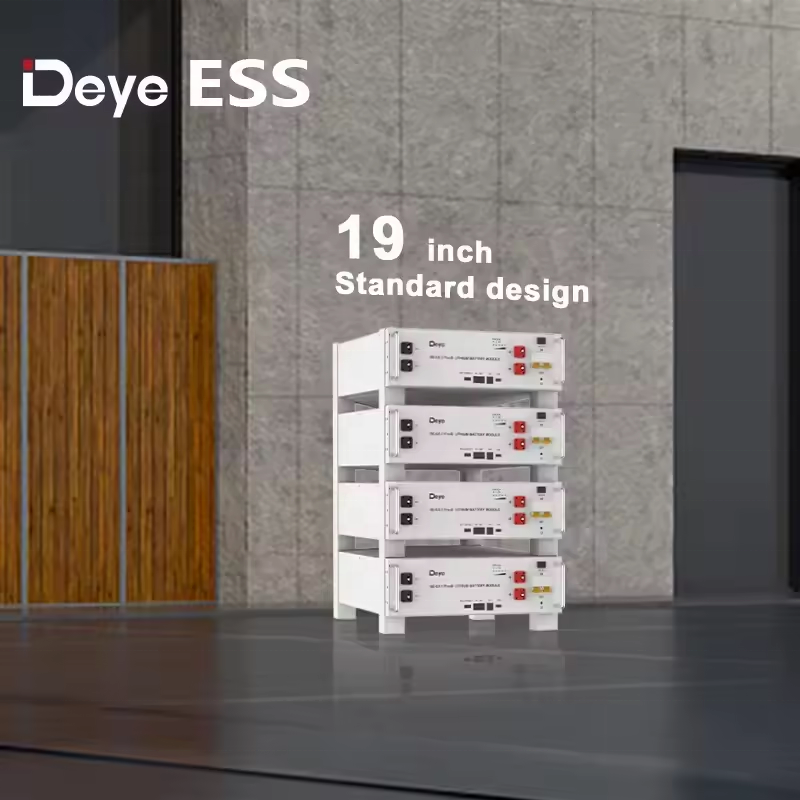

19 inches Standard design, support rack-mounted, wall-mounted, and floor-mounted, saving installation space.
The battery utilizes Cobalt-Free Lithium Iron Phosphate (LiFePO4/LFP) chemistry, which is renowned for its high safety standards, long cycle life, and high thermal stability. Additionally, it features an intelligent built-in Battery Management System (BMS) that provides comprehensive protection against overcharging, over-discharging, temperature anomalies, and other electrical issues.
Yes, this battery system is highly modular and flexible. You can connect up to 64 units in parallel, allowing for easy expansion up to a maximum total capacity of 327kWh. This setup makes it ideal for residential, commercial, and industrial scalability.

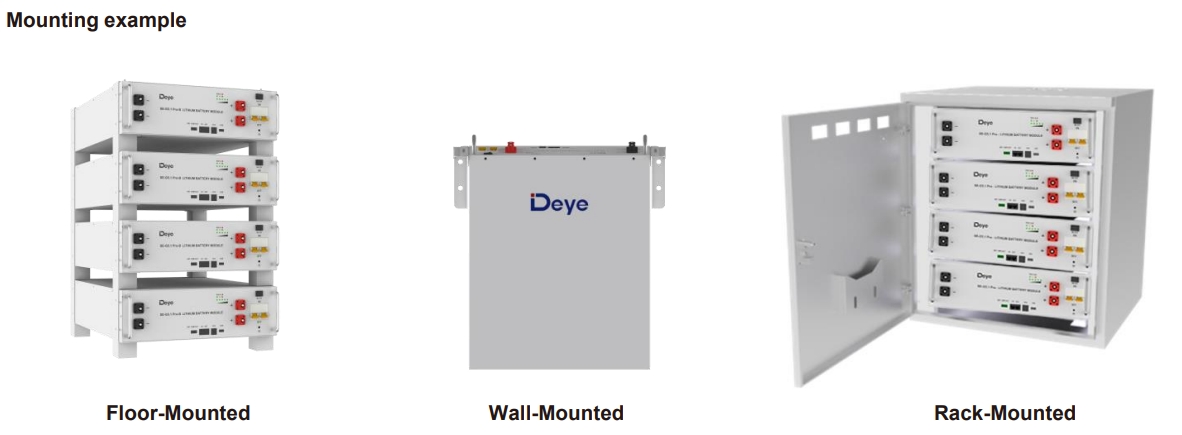

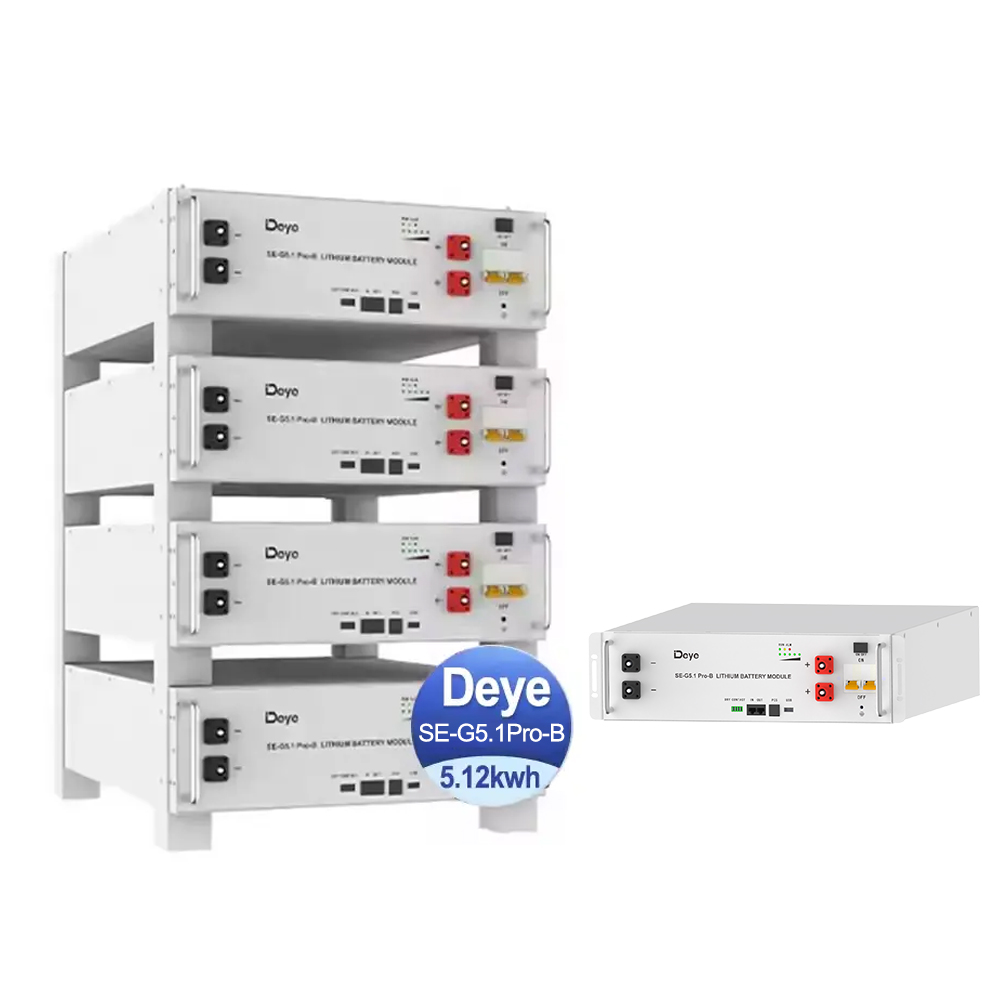

The Deye SE-G5.1Pro-B is designed with a standard 19-inch width configuration, allowing you to select from three space-saving mounting styles: rack-mounted, wall-mounted, or floor-mounted, depending on your spatial requirements.
The battery offers a cycle life of 6000 cycles or more under test conditions of 25°C ± 2°C, 0.5C charging/discharging, 90% Depth of Discharge (DOD), and ending at 70% End of Life (EOL).
It supports standard CAN2.0 and RS485 communication protocols for easy networking and monitoring. It is certified globally under UN38.3, IEC62619, CE, UK, VDE2510-50, CEI 0-21, FCC, UL1973, and UL9540A.
The battery features module auto-networking for easy operation. It also supports remote monitoring and upgrade capabilities, along with direct firmware updates via a USB drive for ultimate maintenance convenience.
