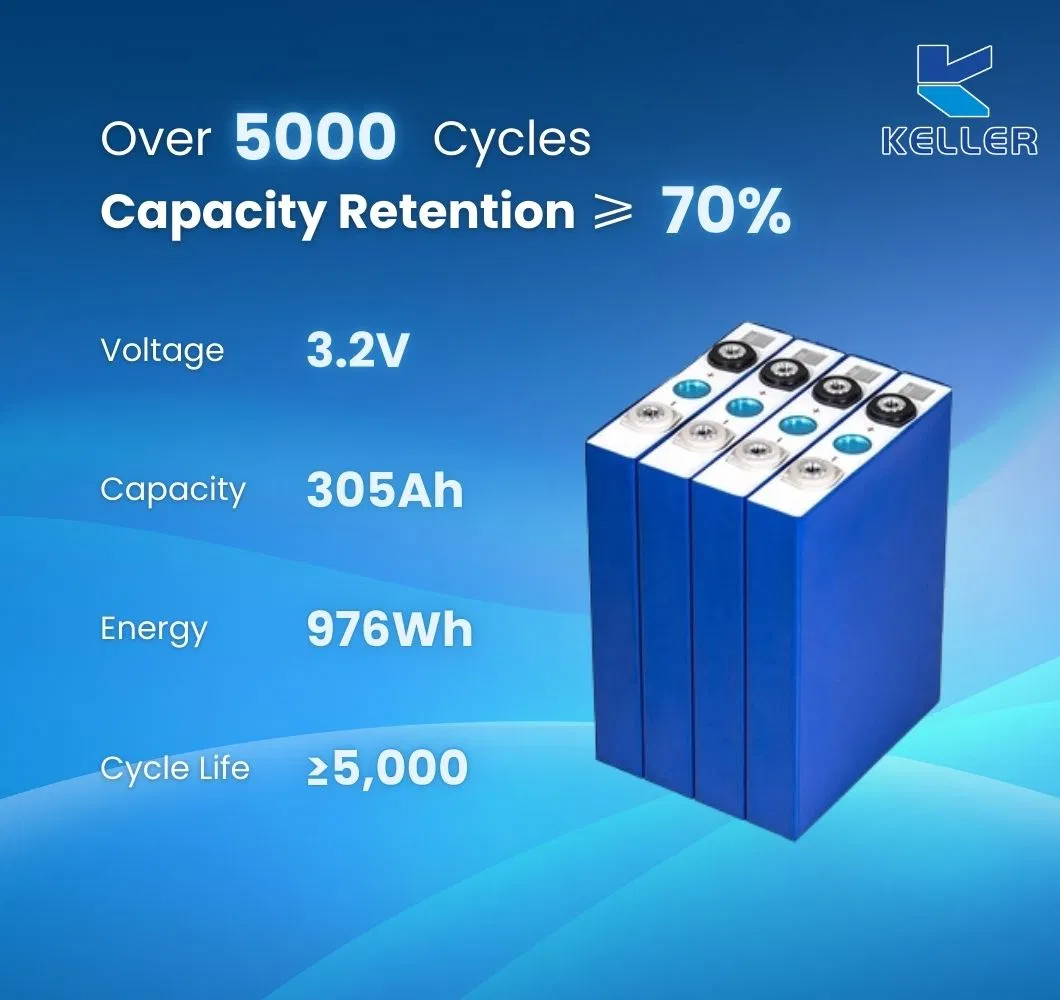

| Parameter | Specification |
|---|---|
| Product Name | Cell |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 305Ah |
| Nominal Energy | 976Wh |
| Max Continuous Charge Current | 153A |
| Max Continuous Discharge Current | 305A |
| Max Pulse Discharge Current | 610A (30s) |
| Cycle Life | ≥5000 cycles (70% capacity retention) |
| Operating Temperature (Charge) | 0ºC ~ +60ºC |
| Operating Temperature (Discharge) | -30ºC ~ +60ºC |
| Storage Temperature | -30ºC ~ +60ºC |
| Weight | 5.55kg |
| Applications | Energy storage system, Electric vehicles, Solar storage, UPS, Grid balancing |

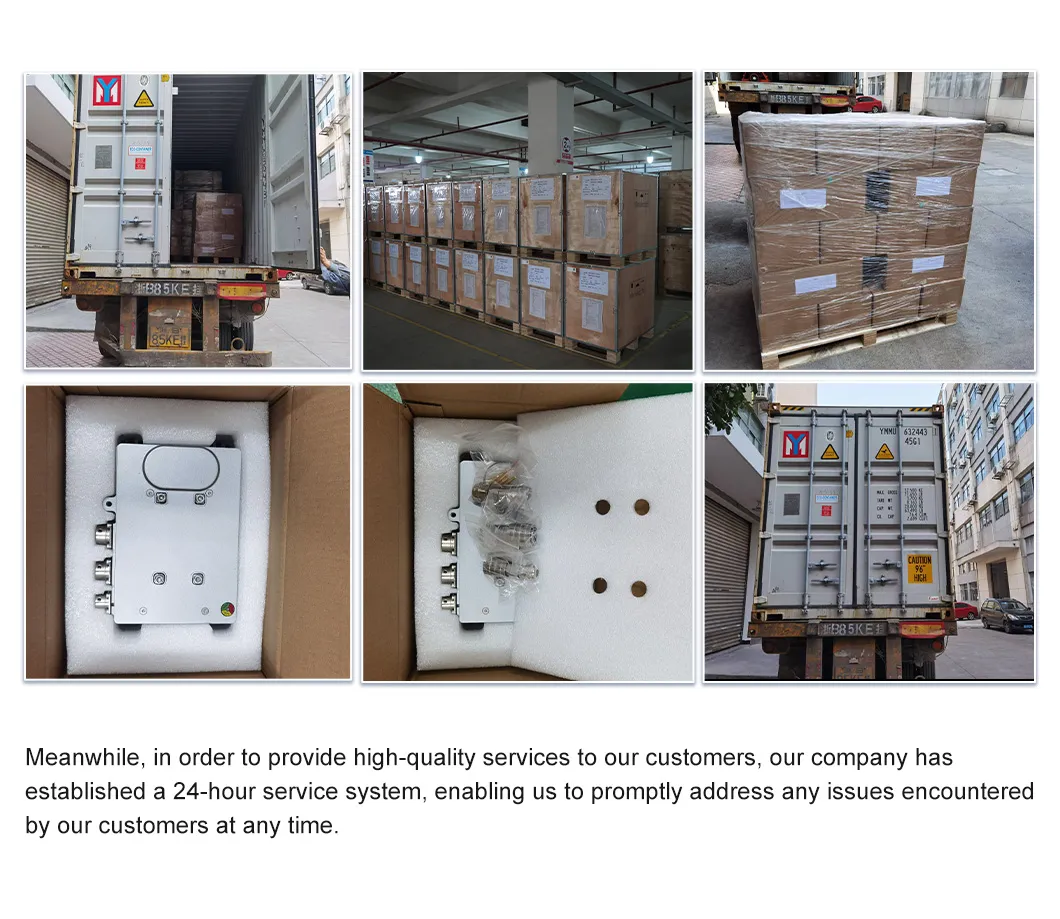

| Packing Method | Delivery Method |
|---|---|
|
1. Foam + Box + Carton + Wooden frame. 2. Foam + Color box + Carton. 3. Custom packaging as per client requirements. |
By air, sea, or land transport according to customer preference. |
| Shipping Time | Loading Port |
|
- Small quantity: About 15-30 days. - Large quantity: About 45-60 days. |
Shanghai port or other specified ports. |
| Guarantee | |
| 1 Year Warranty. | |
Standard charging: 0.5C (153A)
Maximum continuous charging current: 153A (0.5C)
Charging current limits at different temperatures:
- 0~10°C: Max 0.1C (30.5A)
- 10~20°C: Max 0.2C (61A)
- 20~45°C: Max 0.5C (153A)
- Below 0°C or above 60°C: Charging prohibited
Maximum continuous discharge current: 305A (1C)
Maximum pulse discharge current: 610A (for 30 seconds)
Low-temperature performance:
- At -20°C: Discharge capacity ≥70% (153A discharge to 2.0V)
- Below -30°C: Not recommended as it may affect performance and lifespan
Passed multiple safety tests, including:
- Overcharge (1.5x voltage), over-discharge (0V), short circuit (<5mΩ for 10 minutes) - No fire, no explosion.
- Crush test (30% deformation or 13KN pressure), drop test (1.5m height) - Passed safely.
- Thermal runaway test (heated to 130°C) - No fire, no explosion.
Short-term storage (<1 month): -30°C to +55°C, humidity ≤90%RH
Long-term storage (>3 months): -10°C to +45°C, humidity ≤90%RH
SOC state: For long-term storage, maintain 30%~50% SOC and recharge every 6 months.
- If electrolyte contacts skin/eyes: Immediately rinse with plenty of water for 15 minutes and seek medical attention.
- If the battery overheats, deforms, or emits odor: Stop use immediately, keep away from flammable materials, and place in a well-ventilated area.
- Never short-circuit, disassemble, or incinerate the battery to avoid secondary hazards.
- The battery offers a high cycle life of ≥5000 cycles with at least 70% capacity retention under standard operating conditions.
