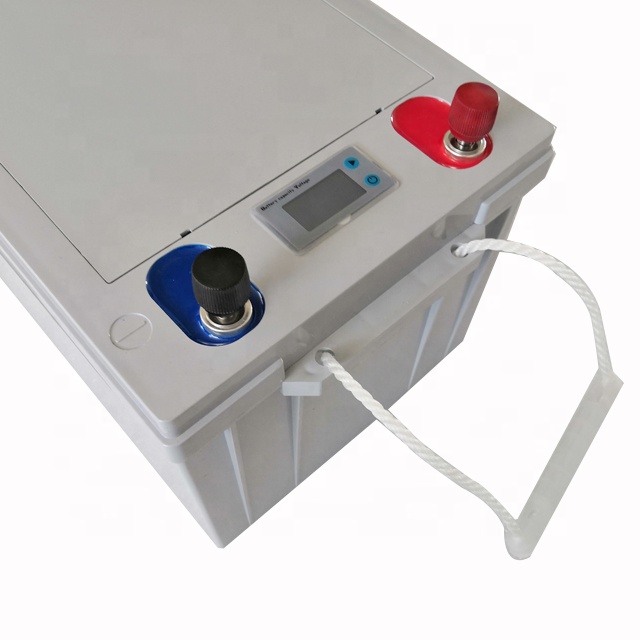

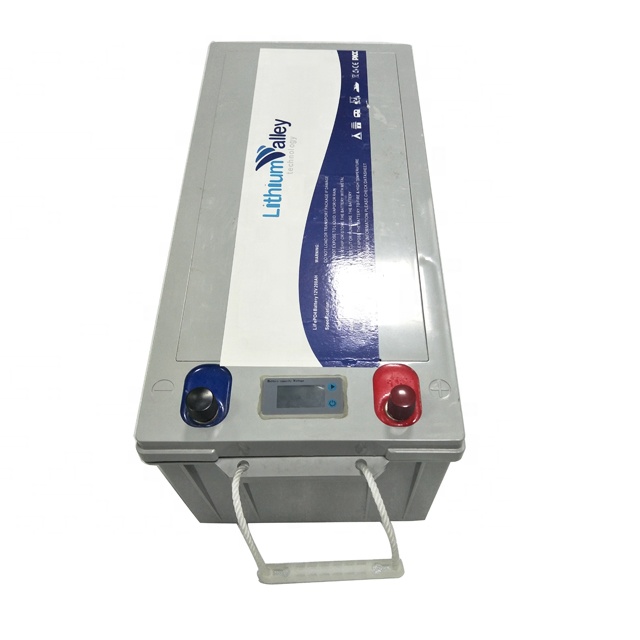

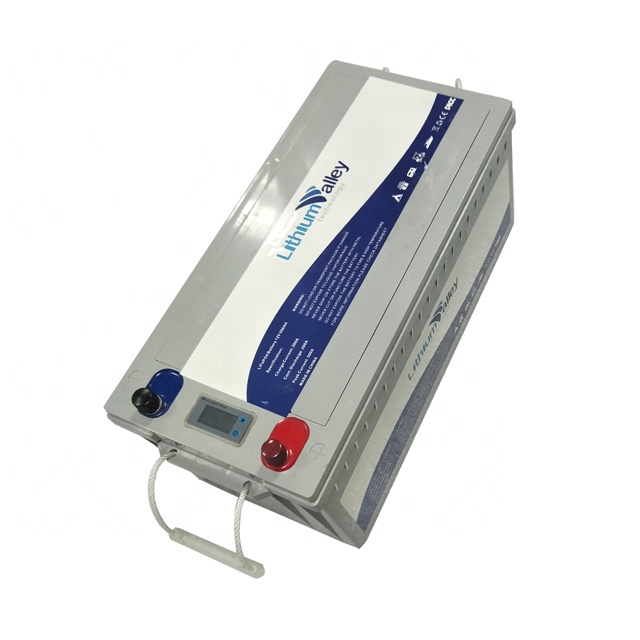

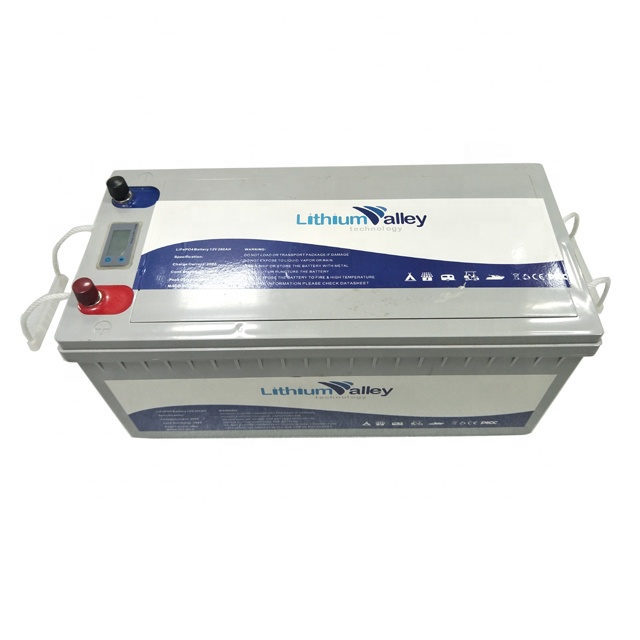

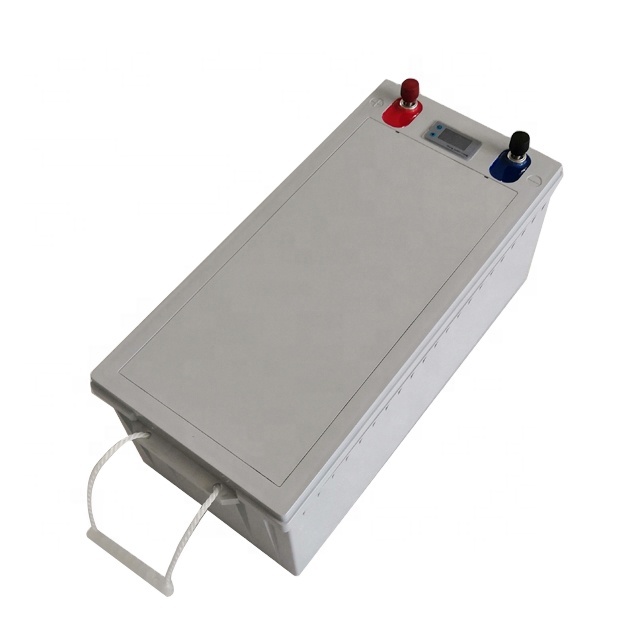

12V 200Ah Lithium LiFePO4 Deep Cycle Rechargeable Battery |2000+Cycles&6+Years Lifetime |Built-in BMS| Perfect for Solar, Marine

Product Description

Deep cycle Rechargeable 12V 200Ah LiFePO4 Battery with BMS

Products Description

Electric Characteristics
Nominal Voltage: 12.8V Energy: 2560Wh
Rated Capacity: 200Ah Specific Energy: 102.4Wh/kg
Internal Resistance: ≤50mΩ Cycle Life: 2000+
Charging and Discharging Parameters
Charge cut-off volt: 14.6V Discharge cut-off volt: 10V
Maximum Charge current: 200A Maximum Discharge current: 200A
Peak Discharge current: 400A Suggested charge Volt: 14.4V
Temperature Parameters
Charge Operation: 0~45°C Storage (Less than a year): 0~25°C
Discharge Operation: -20~60°C Storage (Less than 3 months): -10~35°C
Recommended Temp: 18~28°C Storage State: -
Mechanical Properties
Dimension Length: 485mm (190.95 inch) Housing materials: ABS
Dimension Width: 175mm (68.89 inch) Terminal size: M8
Dimension Height: 240mm (94.49 inch) Cell model: 3.2v 100ah
Weight: 32kg (55.1 lbs) Configuration: 4S4P

BMS Function

Protects battery from overcharge, overdischarge, overcurrent, and short circuits.

Advantages

  • High safety (no fire, no explosion)
  • Light weight & high energy density
  • Long lifespan & easy maintenance
  • Environmentally friendly & waterproof
  • No memory effect

Why Choose Us

  • High qualified: ISO9001, CE, BIS, MSDS, UL, UN38.3
  • Strict inspection: Every step from incoming to shipping
  • Fast lead time: 10-12 days for samples
  • Quality assurance: 2 years warranty

Application

Our products are widely used in solar energy storage system, UPS, communication base energy storage station, low-speed electric vehicles (like electric tricycles, electric motorcycles, electric bicycles, golf carts), yachts, fishing boats, outdoor camping power supply, camping car/car auxiliary power supply.

Application

Factory

We are a professional manufacturer specializing in the development of lithium-ion rechargeable batteries for 8 years. Our main founders have over 13 years of experience in the battery industry, focusing on lithium-ion (Li-ion), ferric phosphate Lithium (LiFePO4), and lithium titanate (Li-Titanate) battery applications, providing global technical support.

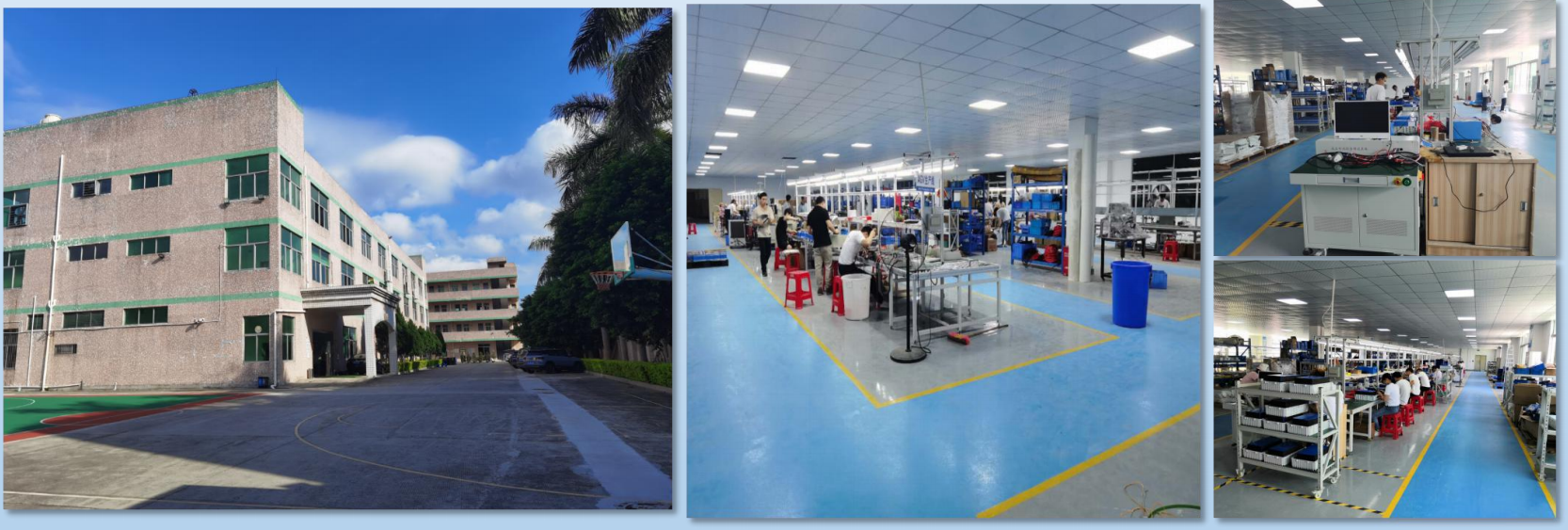

Factory layout
Factory floor

Certifications

Certifications

Product Packaging

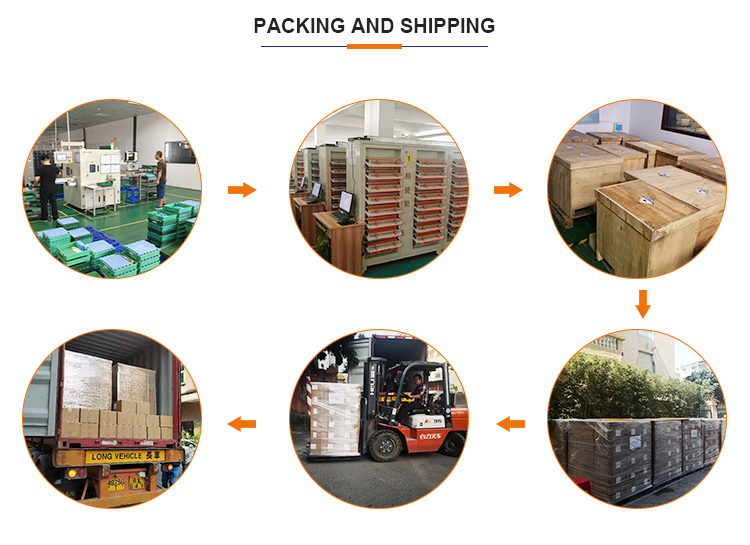

Packaging Box

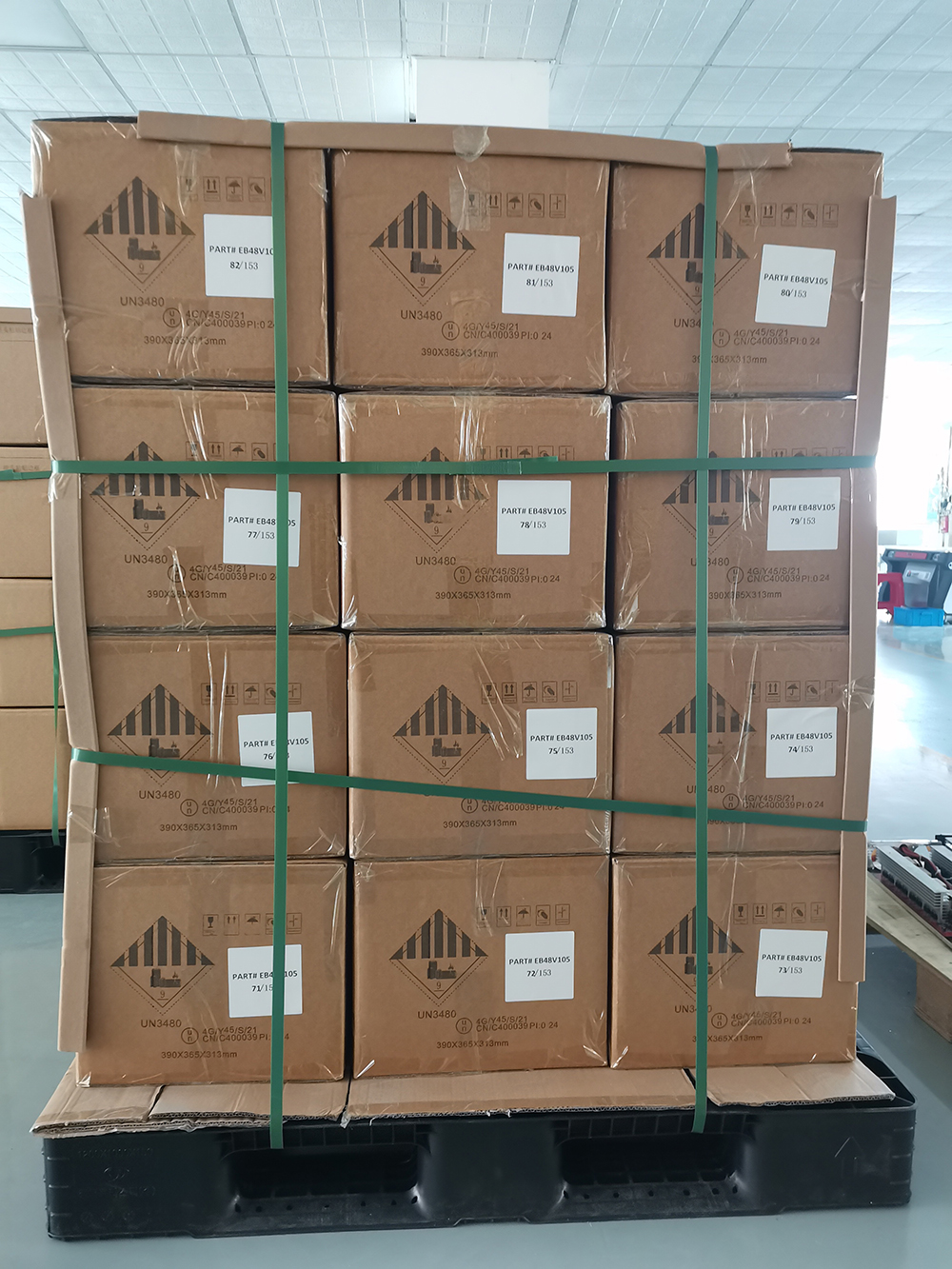

Packaging Inner

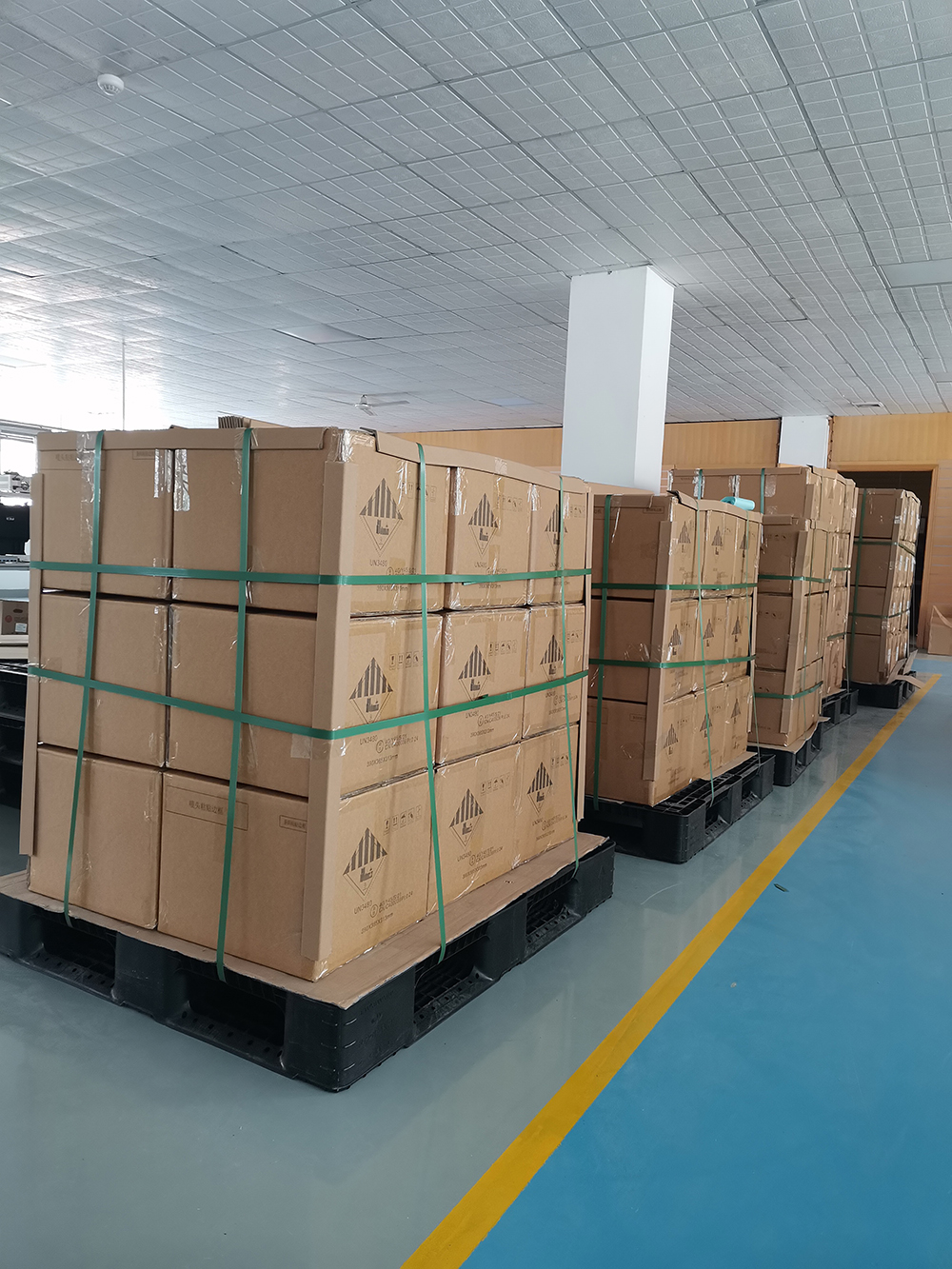

Packaging Process

Production Process

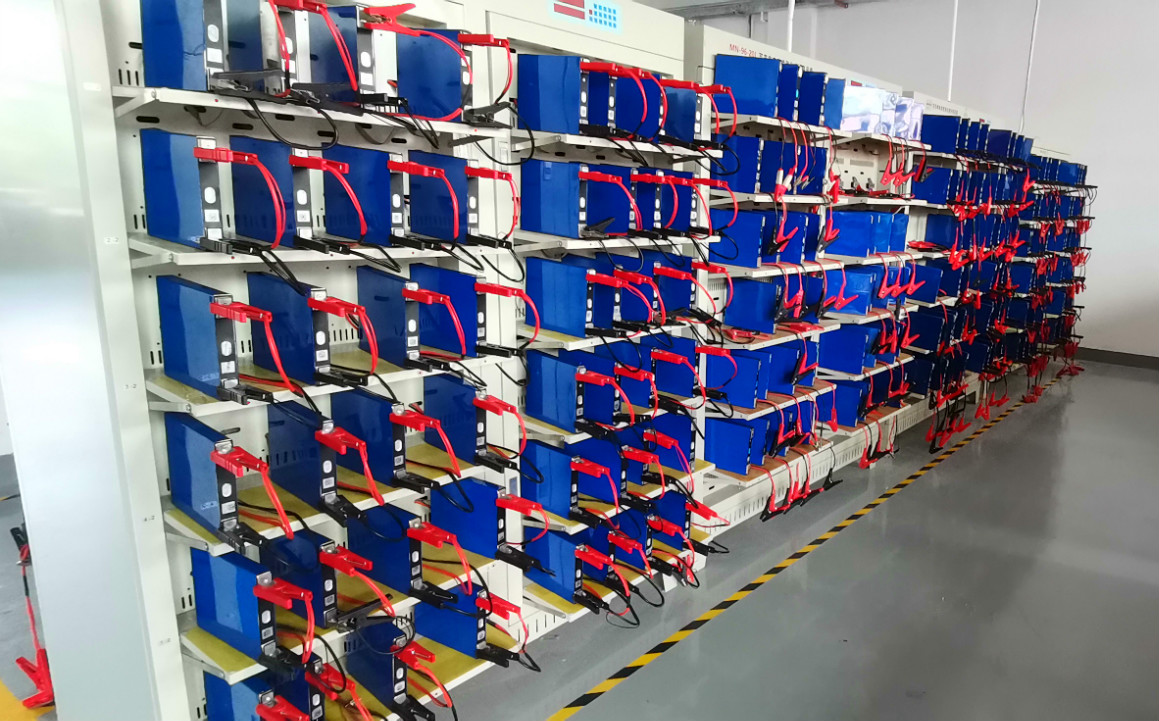

Production Process 1

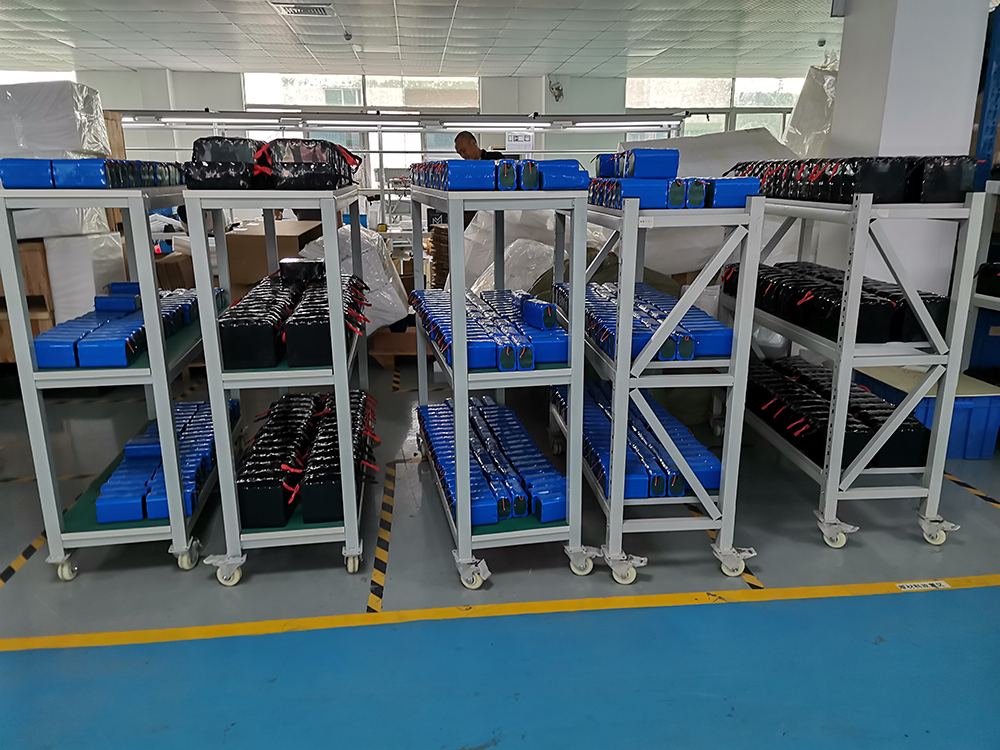

Production Process 2

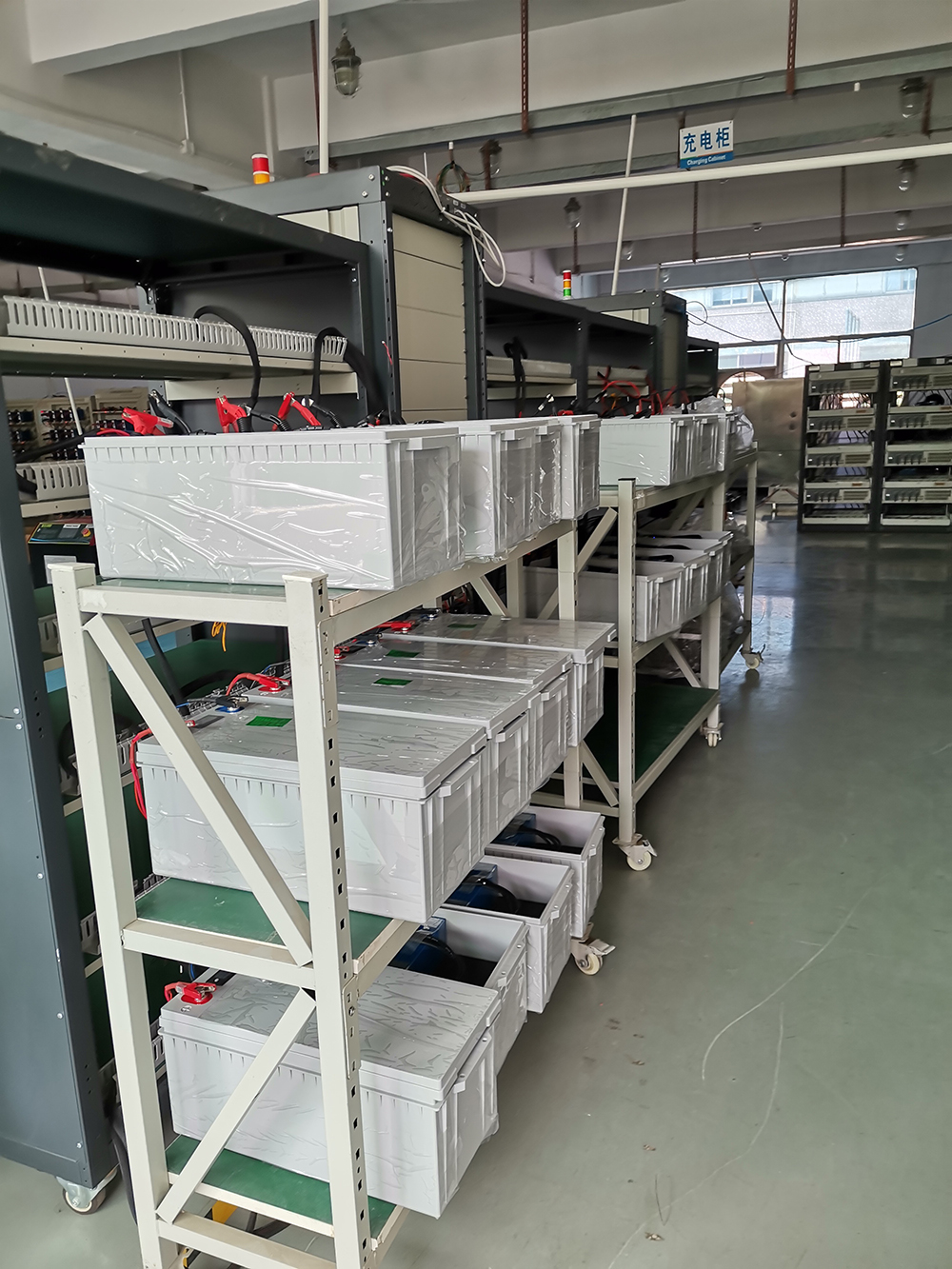

Production Process 3

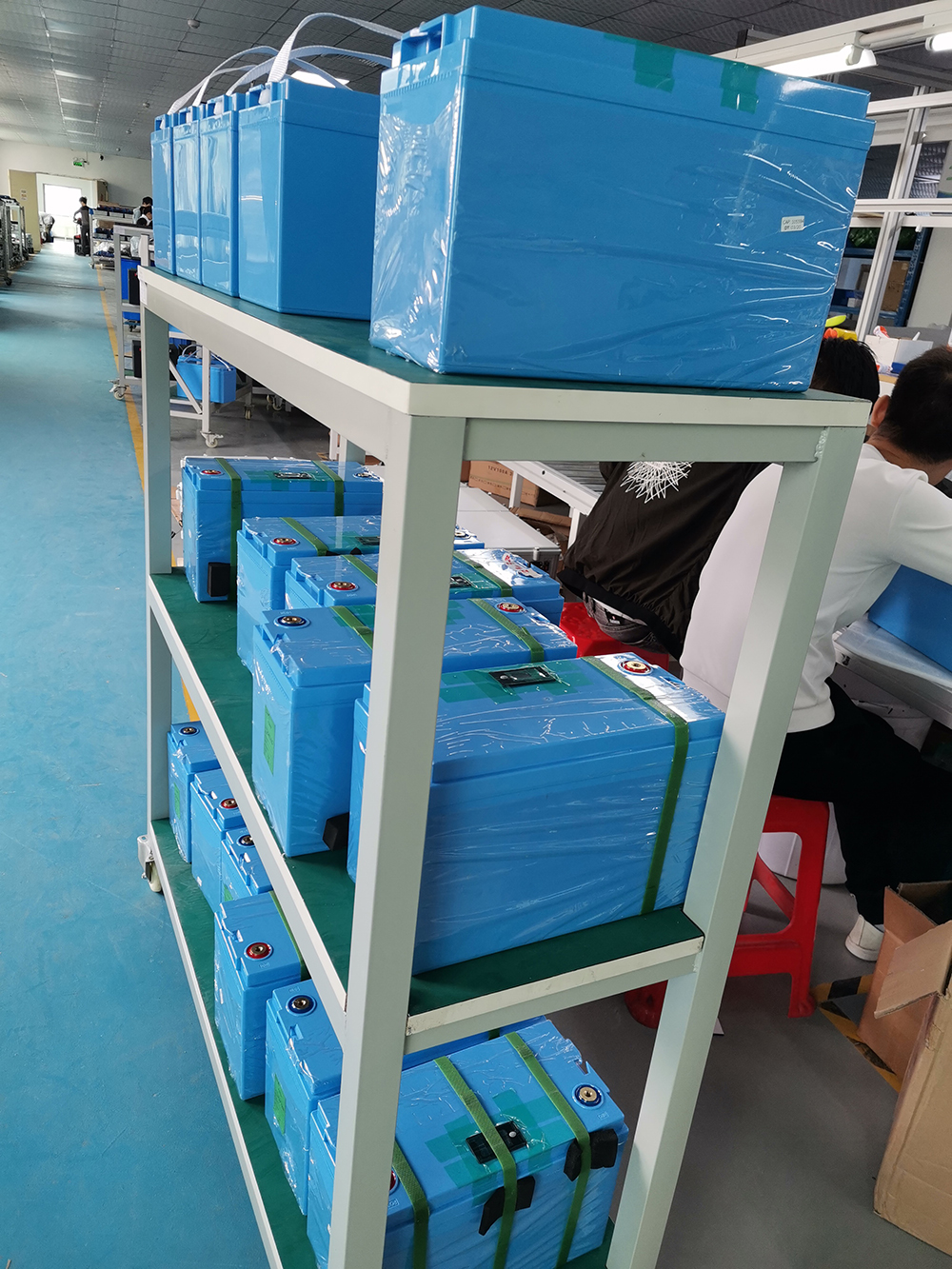

Production Process 4

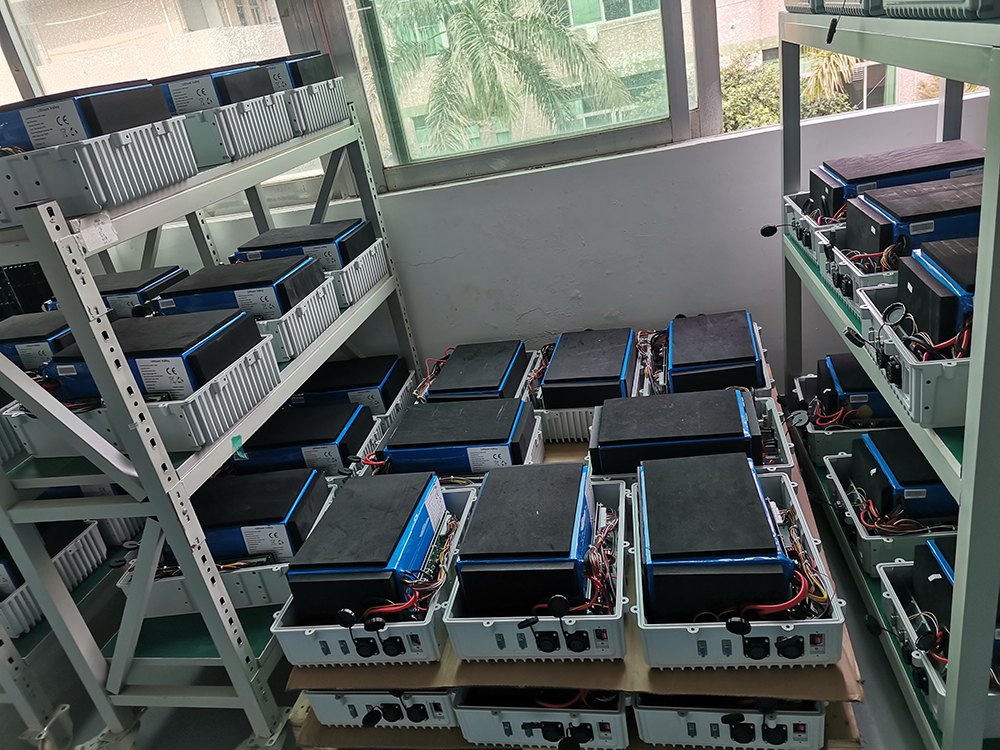

Production Process 5

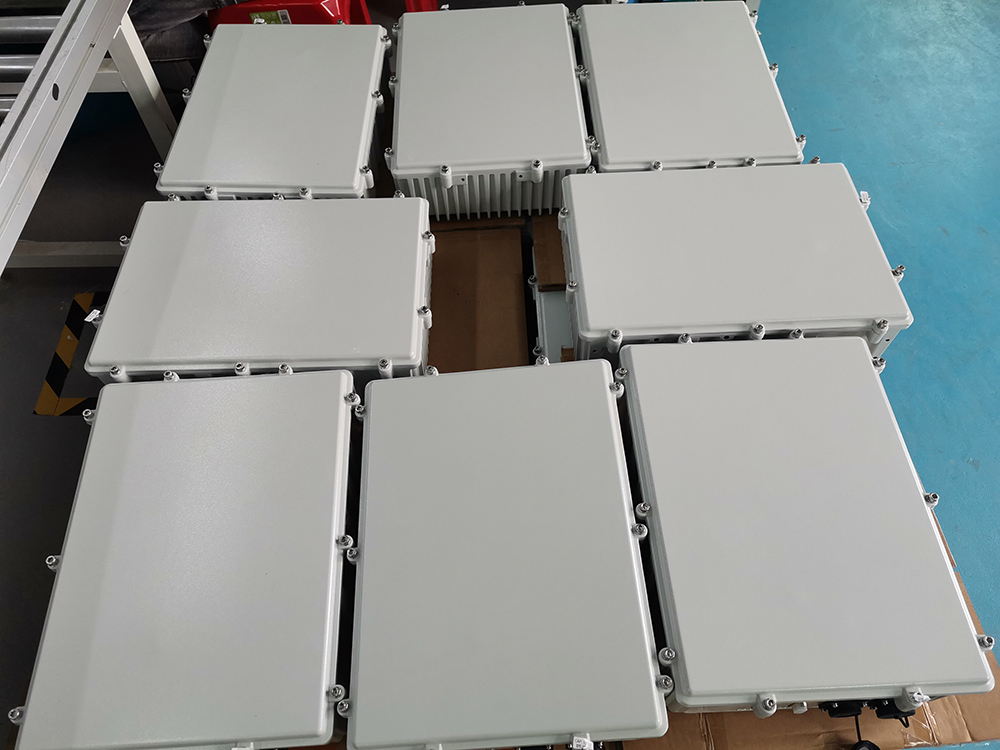

Production Process 6

FAQ

Can we put different LiFePO4 battery packs in parallel or series by ourselves?
Yes. The battery can be put in parallel or series by customers. However, please pay attention to these points:
1. Make sure the voltage/capacity of each battery are the same before placing in parallel. If they are not, charge them to the same rate.
2. Do not put used batteries and new batteries in parallel. This may reduce the capacity of the whole battery pack.
3. Advise us of the target capacity of the whole pack if you would like to put them in series, so we can choose the suitable BMS for each battery.
4. If you are not professional with parallel and series batteries, please do not handle the battery by yourself to prevent danger and maintain the cycle life.
Does the battery pack include a BMS? Can we use it for a car?
Yes, our battery pack includes a BMS. You can use it for low-speed cars only, or as auxiliary power for standard cars. Do not use it for standard cars directly as starting power, as that requires a more complex BMS design.
What is your warranty for the battery packs?
We offer a 2-year warranty for all our battery packs. We ensure at least 2,000 cycle life for the LiFePO4 battery pack (at 80% DOD), meaning there will still be around 60% capacity left. You can use it for at least 5 years under normal daily charge and discharge usage.
Are the battery cells you use brand new and Grade A?
Yes, all of our battery packs use brand new battery cells, and the grade is A.
What functions does your battery support?
Our battery can support customized Bluetooth monitoring functions, RS485, or CAN-bus communication functions.
Can I buy a few batteries as samples? What is the minimum order quantity?
Of course, we support customers in purchasing 1-2 samples as the beginning of our business cooperation.

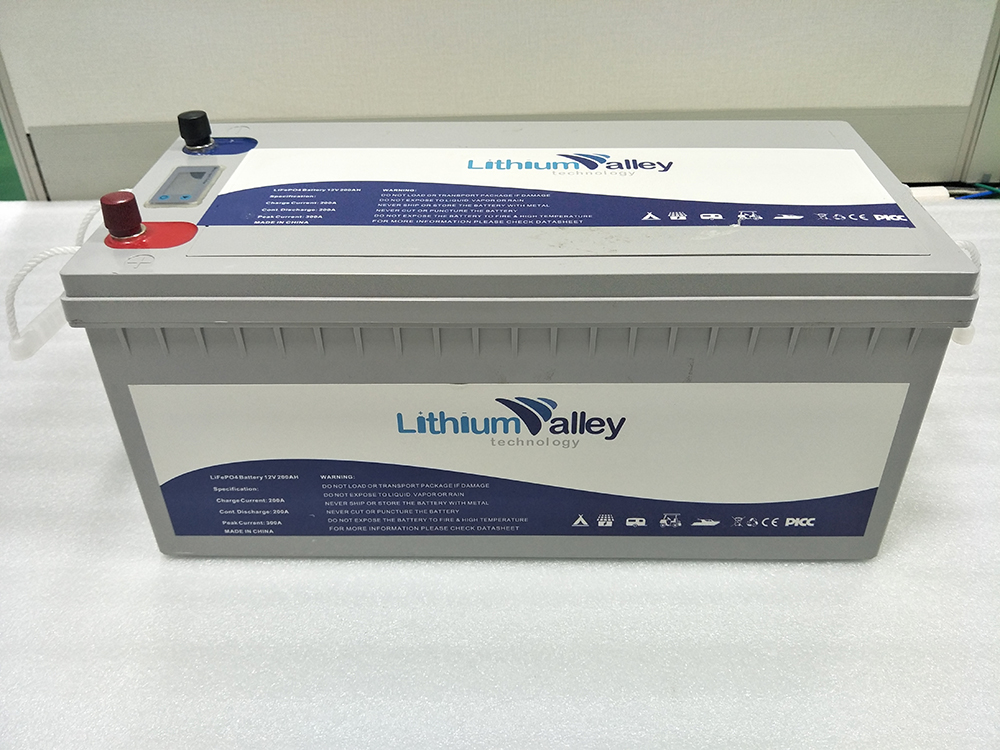

Production Facility 7

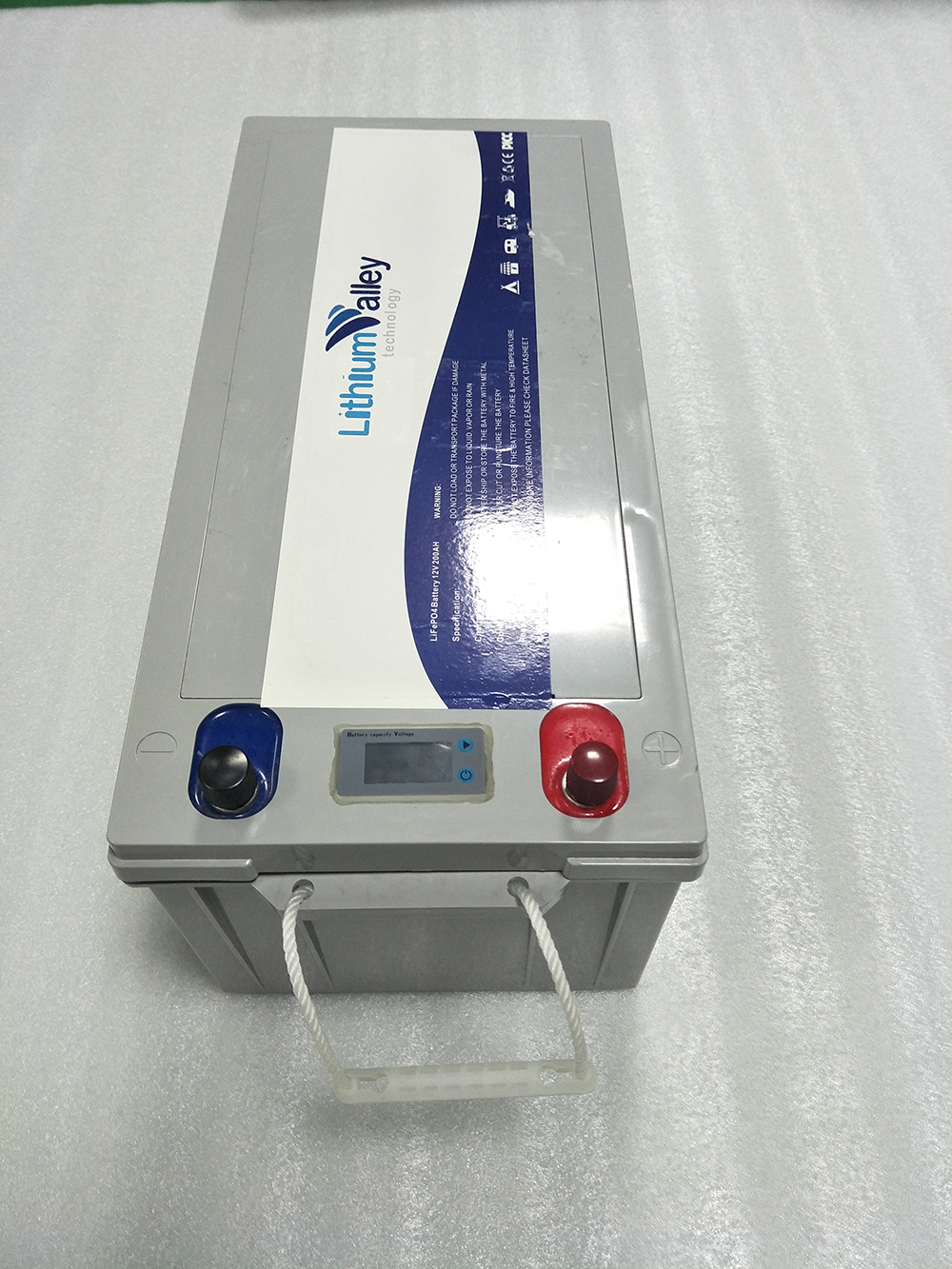

Production Facility 8
