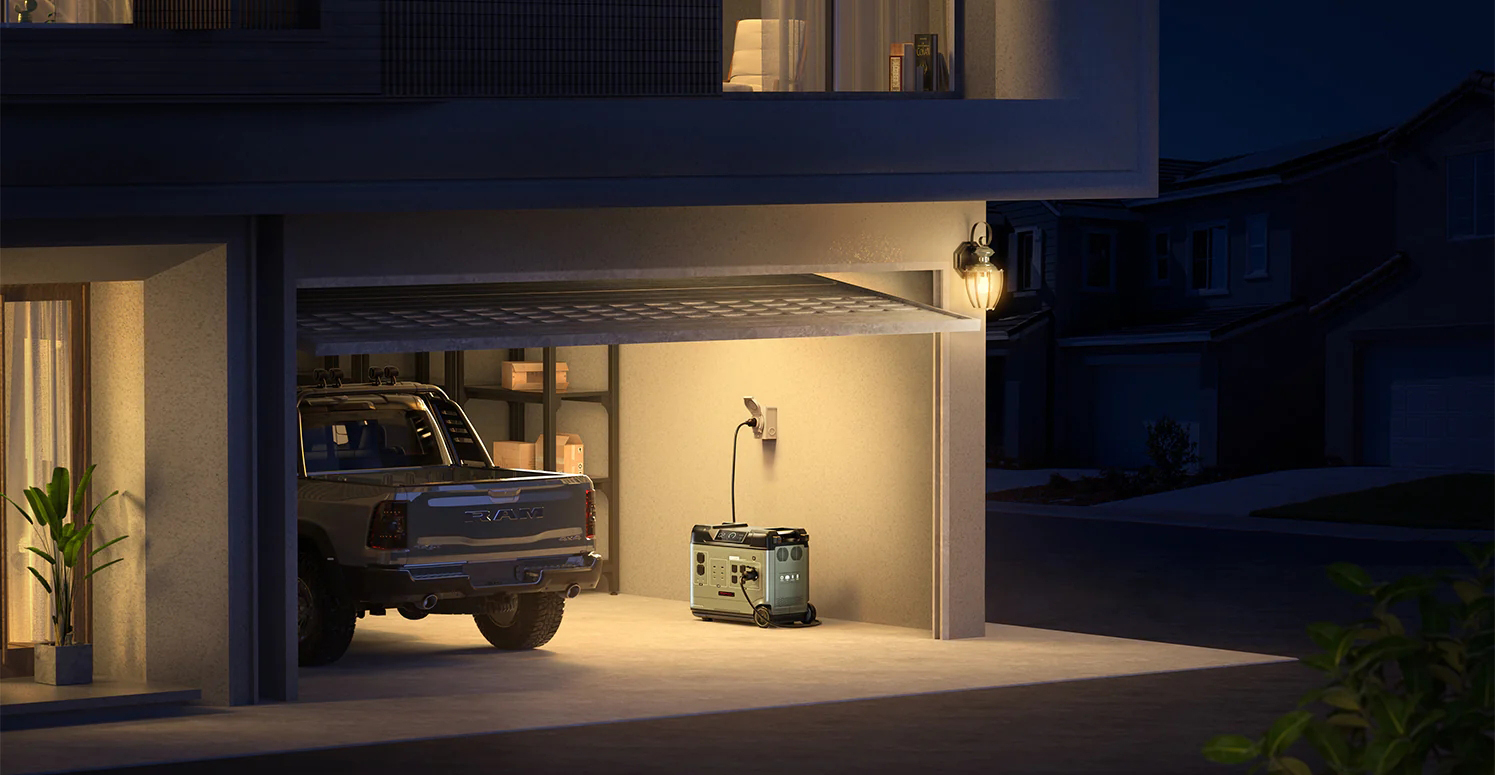

VP5000 PRO adopts a premium EV-grade LiFePO4 (LFP) battery with 5000 cycles, which means you can use it for years and years. The smart battery management system offers multiple protections, including voltage, current, charge, and temperature protection.

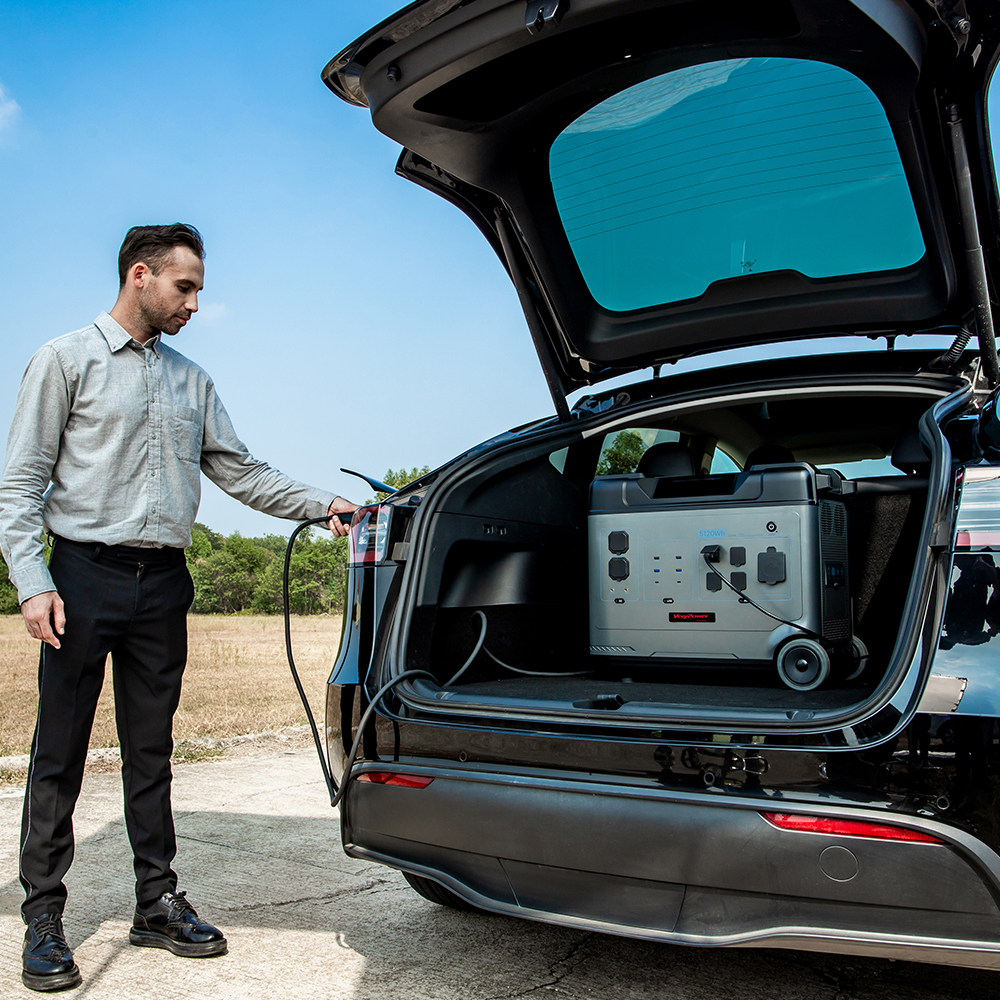

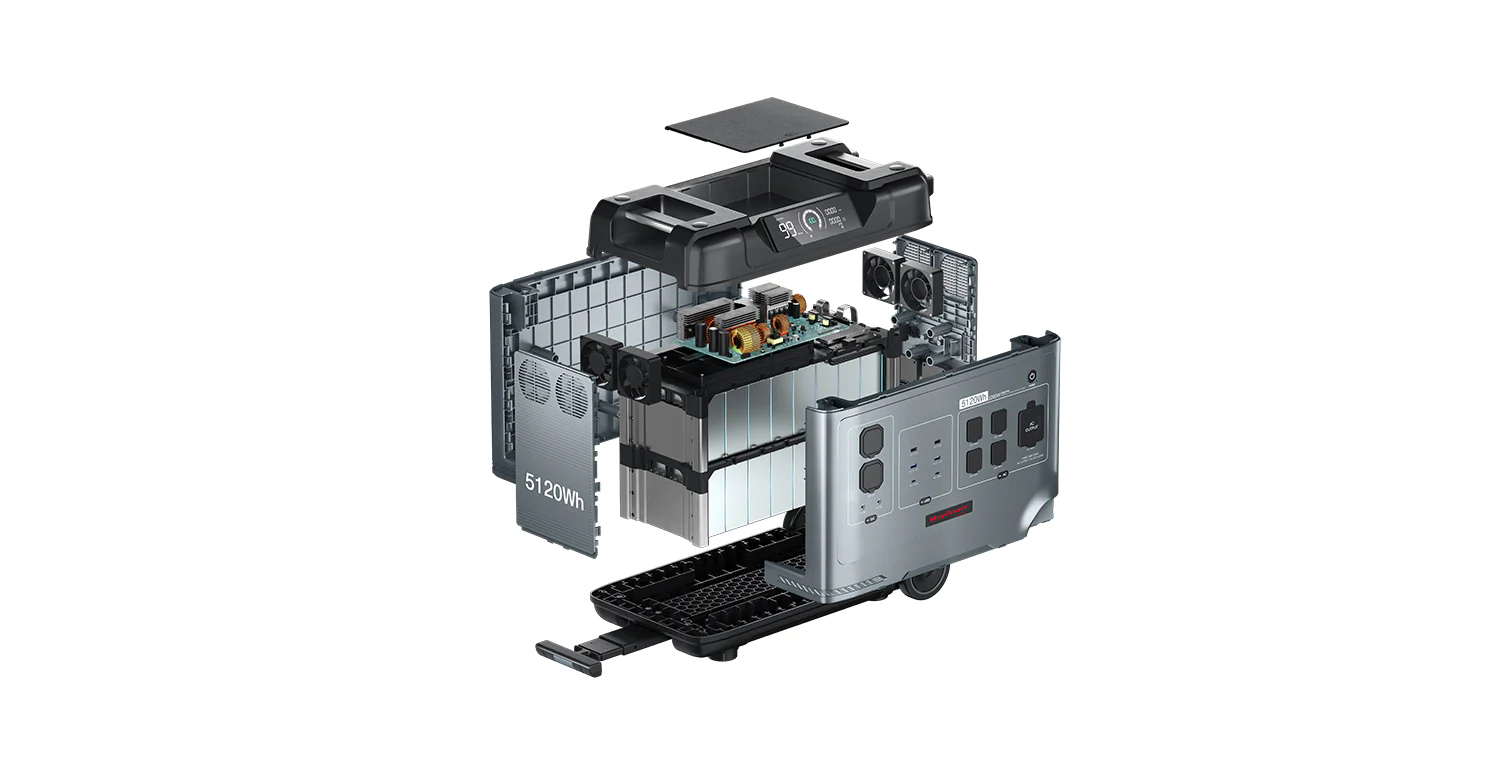

With the huge 2200W output, VP5000 PRO can power almost everything, from essential home appliances to medical devices to power tools and electric vehicles.

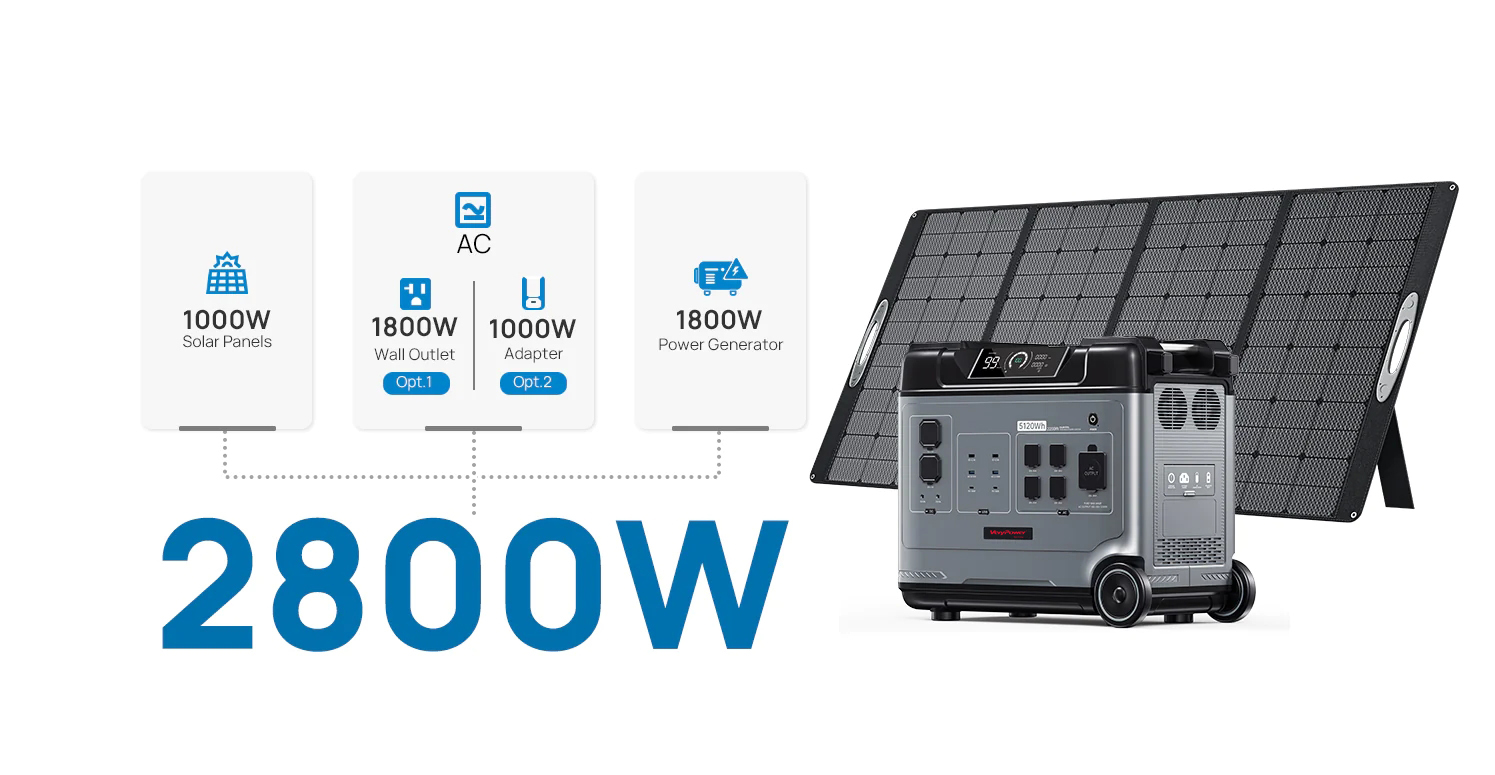

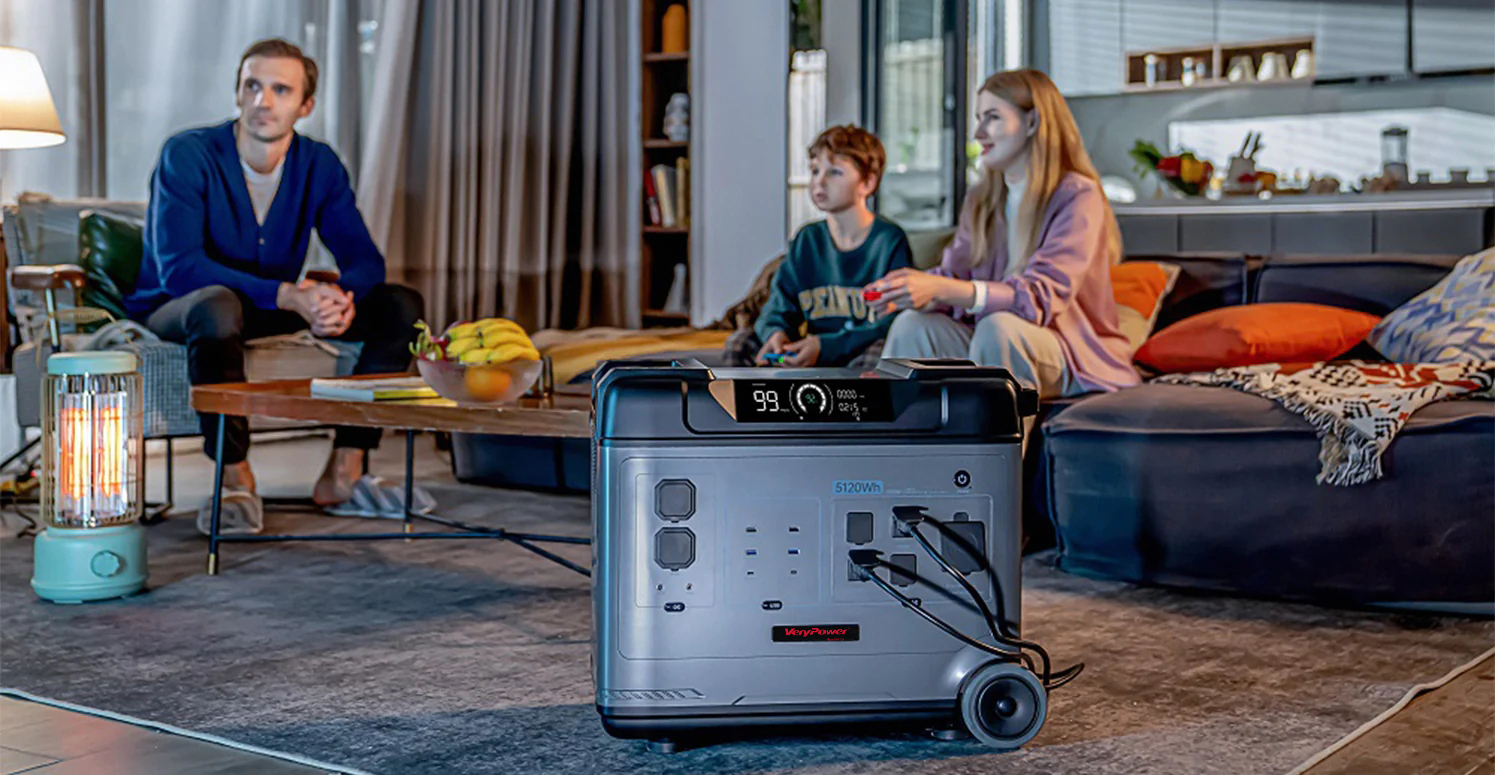

With the industry-leading super fast 1800W AC charging, VP5000 PRO can be fully charged in less than 3 hours. With dual input from AC outlets and solar panels, it can be fully charged in 1.8 hours.
In case of blackouts, VP5000 PRO works as a 2000W Uninterruptible Power Supply (UPS). It switches to battery power in 10 ms and keeps connected devices up and running, giving you enough time to save work and protecting against voltage fluctuations.

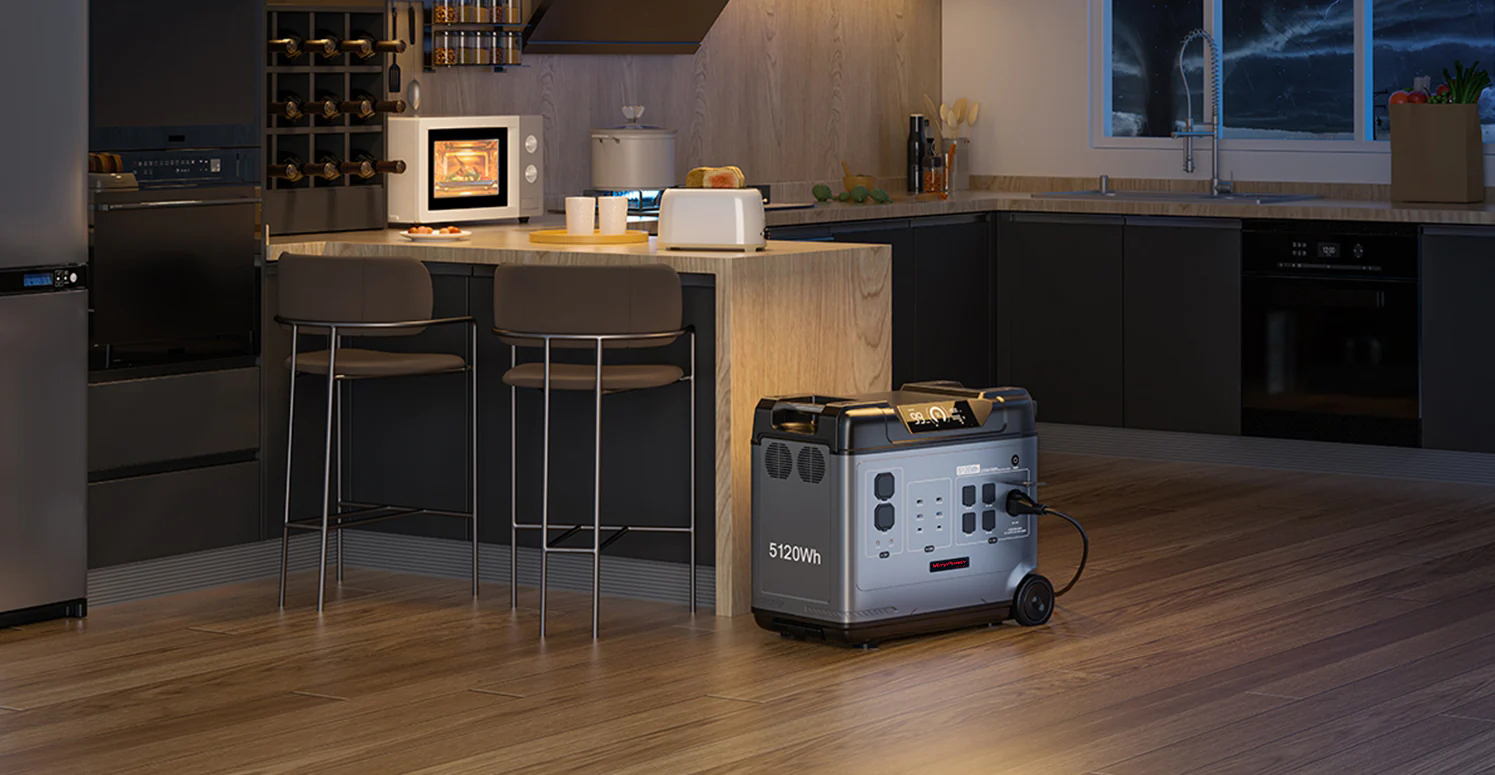

Connect VP5000 PRO to your home's existing main electrical panel or transfer switch when a blackout hits and it can deliver power to the house from its built-in battery or connected solar panels without complicated rewiring.

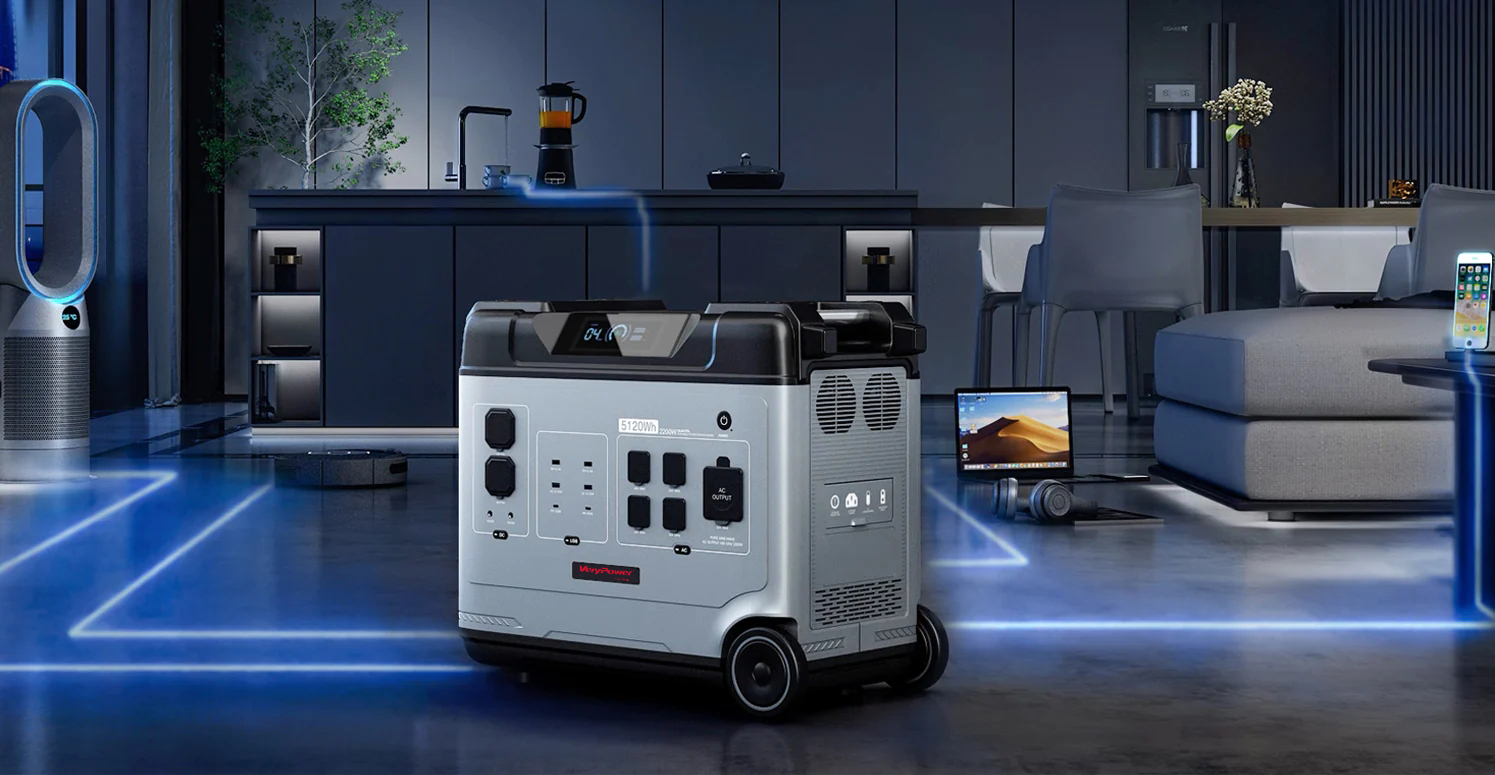

The built-in MPPT controller offers 99% conversion efficiency, maximizing solar power. With a maximum solar input of 1000W, you can get VP5000 PRO fully recharged in around 5 hours. It works great with compatible solar panels and third-party 12-120V solar panels.

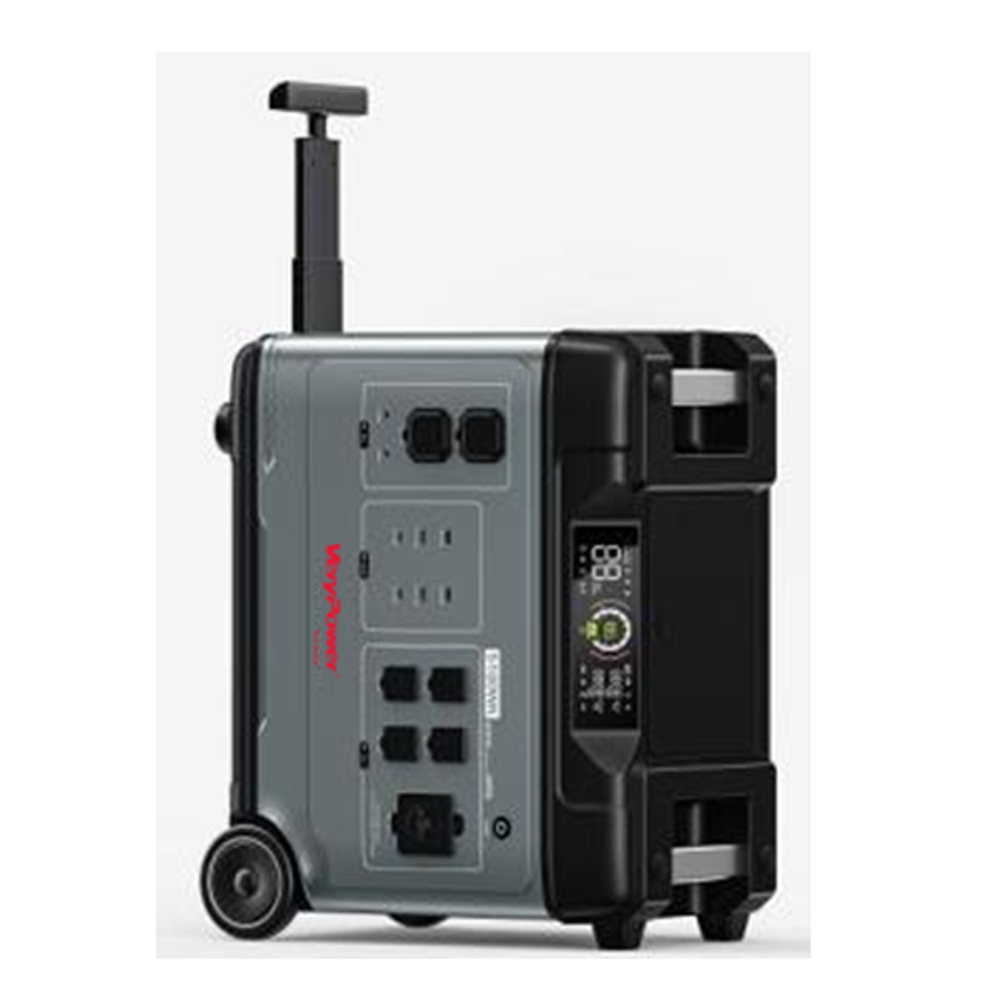

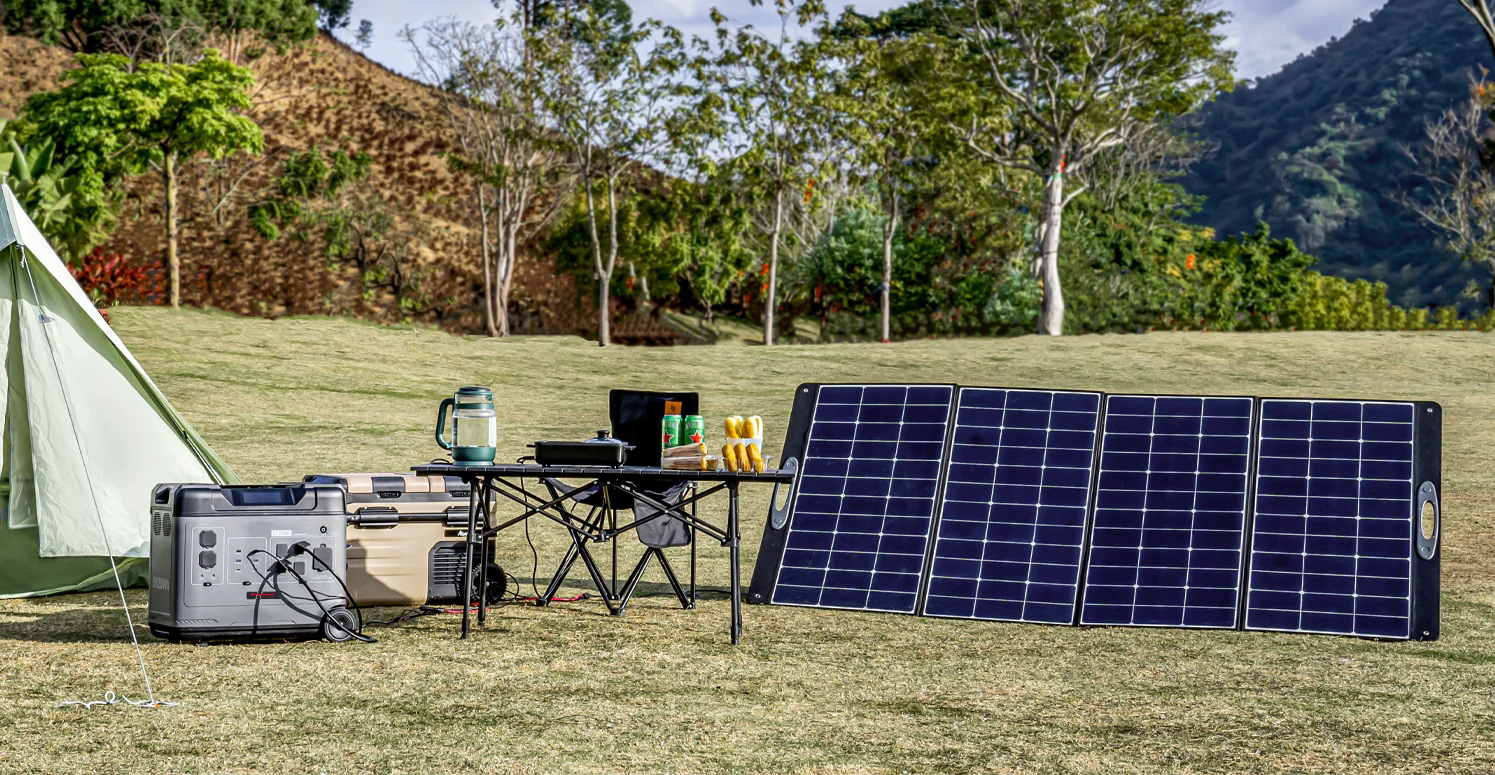

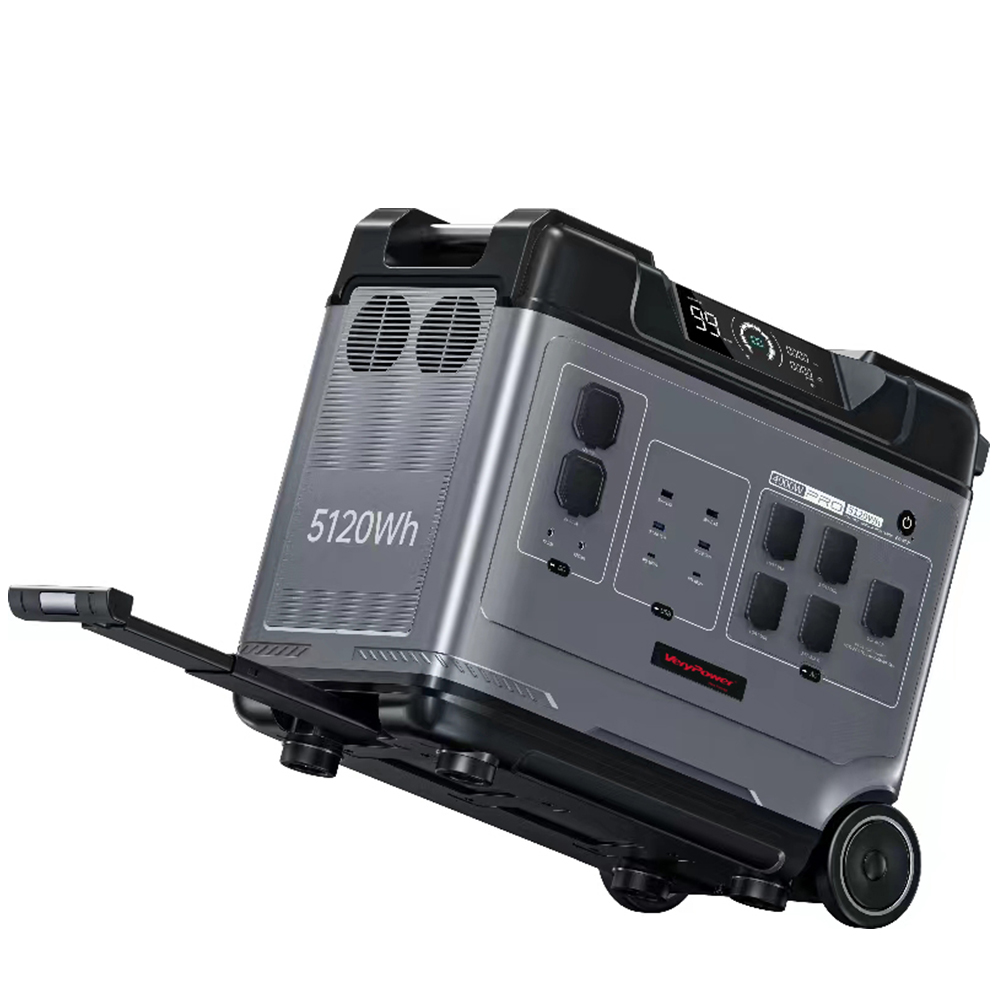

Holding a massive capacity of 5120Wh, the VP5000 PRO only weighs 114.6 lbs, 63% lighter compared to other portable power stations of the same capacity. Rugged wheels and a suitcase-style telescopic pull handle make it easy to transport.

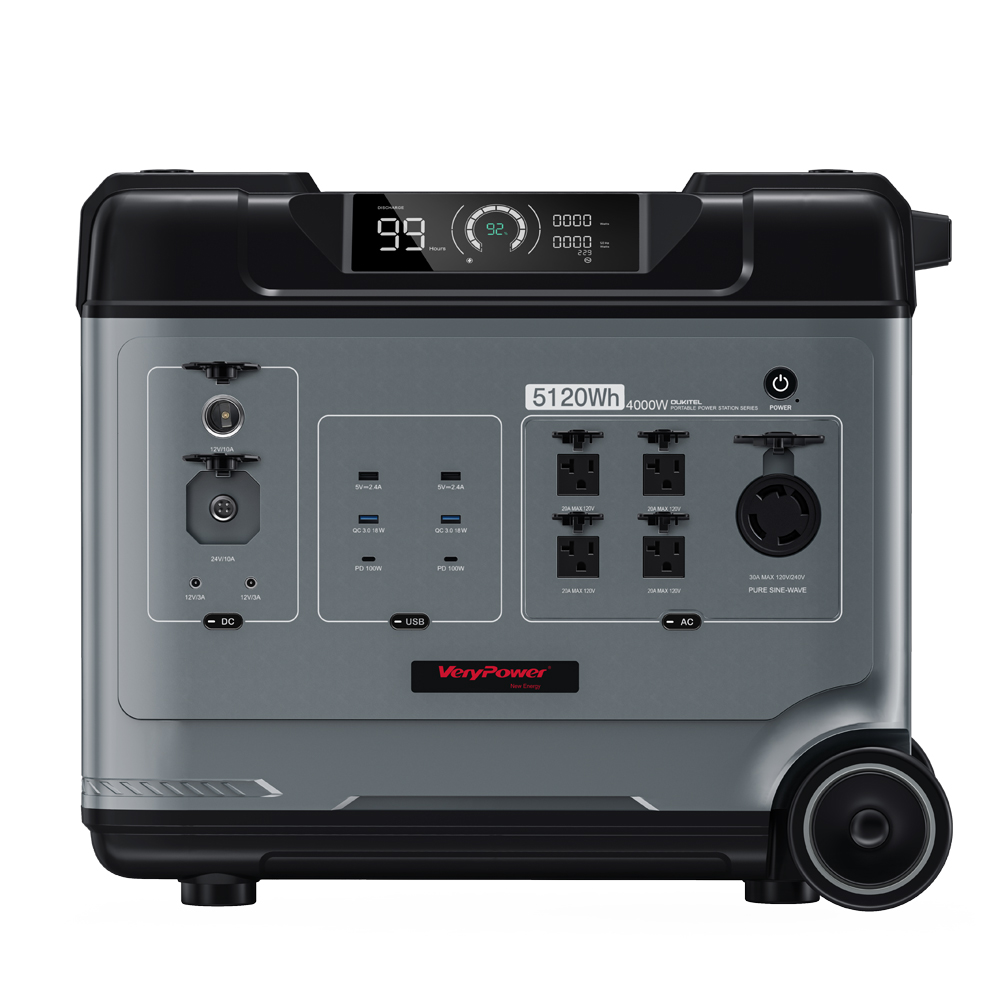

| Model: VP5000 PRO | |
|---|---|
| Battery Specifications | |
| Battery Type | LiFePO4 Battery |
| Capacity | 5120Wh 51.2V 1600000mAh |
| AC / DC Output Specs | |
| AC Rated Power | 100V/3300W | 110V-120V/3600W |
| Surge Power | 7000W |
| Over Load Mode | 3300W ≤ Load < 4000W Constant power mode @ 1s |
| Output Voltage | 100-120Vac |
| Rated Frequency | 60Hz/50Hz |
| Inverter Efficiency | Maximum working efficiency η = 92% |
| Depth of Discharge (DOD) | DOD = 90% |
| Output Waveform | Pure Sine Wave |
| Output Type | 100-120Vac * 5 |
| USB_A Output | 5V/2.4A*2 | 12W QC3.0*2 (5V/3A, 9V/2A, 12V/1.5A) |
| Type C Output | PD100W*2 (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A) |
| DC Output (24V) | 12V3A socket * 2 |
| DC Output (12V) | 12V/3A socket * 2 |
| Cigar Lighter Output | 12V/10A socket * 1 |
| Input Specs | |
| Super-Charge | AC 100V-120V/50Hz, Max 15A, Max 1800W |
| Solar Charging | 12V-120V/15A, Max 1000W |
| AC Adapter | 12V-120V/15A, Max 1000W |
| Car & Battery Charging | 12V/8A & 24V/10A |
| Wireless Connection | Supports Bluetooth connection APP |
| Operating Conditions & Dimensions | |
| Operating Temp. | 0 - 40 ℃ / 32 - 104 ℉ |
| Storage Temp. | -10 - 40 ℃ / -4 - 104 ℉ |
| Humidity | 10% - 90% |
| Cooling Strategy | Fan * 6 |
| Weight | About 53kg |
| Dimensions | L550 * W299 * H487 mm |
| Authentication | FCC CE PSE RoHS UN38.3 MSDS |
