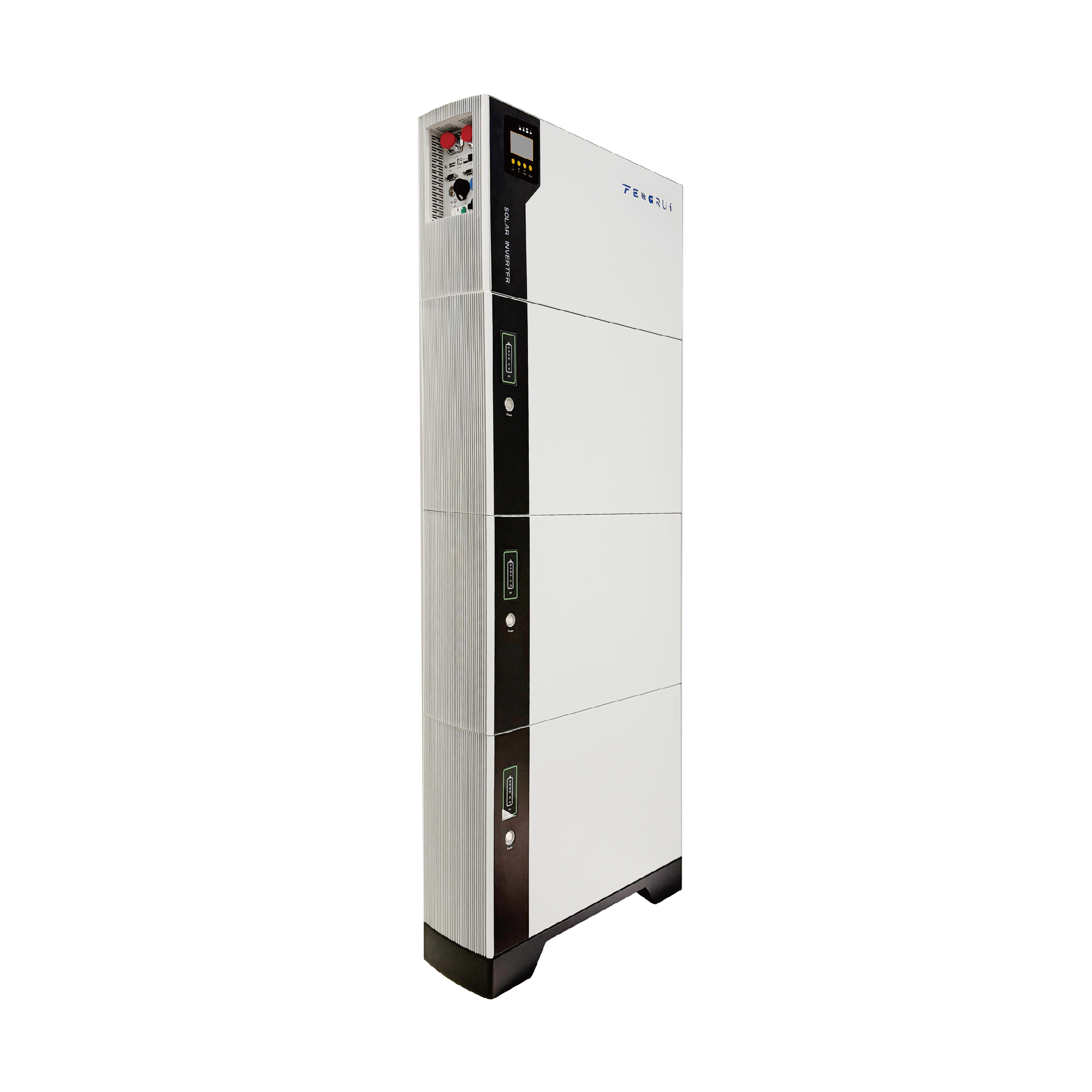

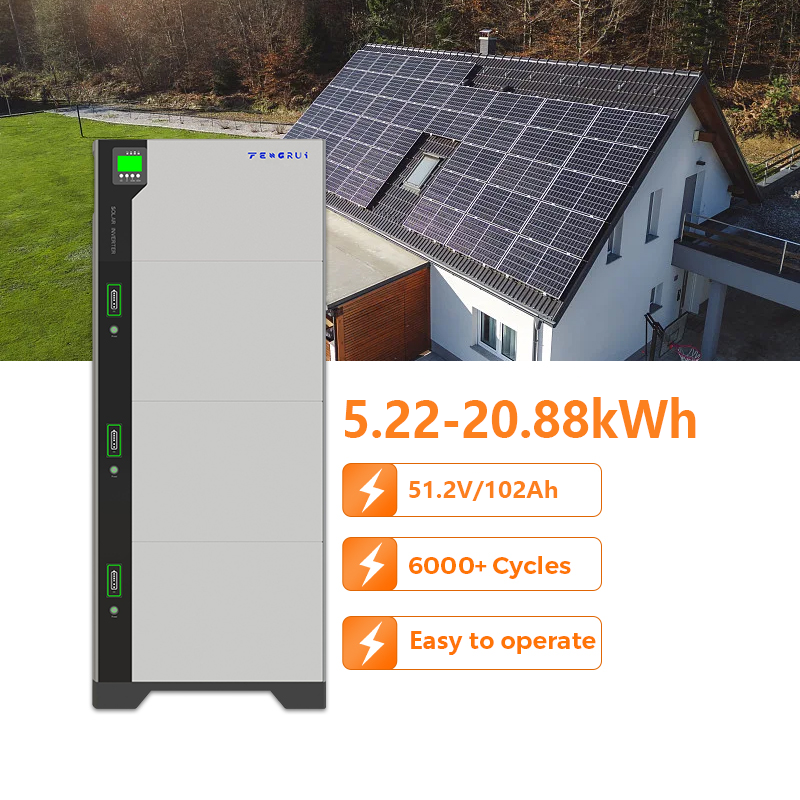

ESS Deep Cycle 6000 51.2V 102Ah Battery Power Station 5000W Home Energy Storage With Hybrid Grid Connection Stackable System

1 / 5

ESS Deep Cycle 6000 51.2V 102Ah Battery Power Station 5000W Home Energy Storage With Hybrid Grid Connection Stackable System

Send Inquiry

Product Description

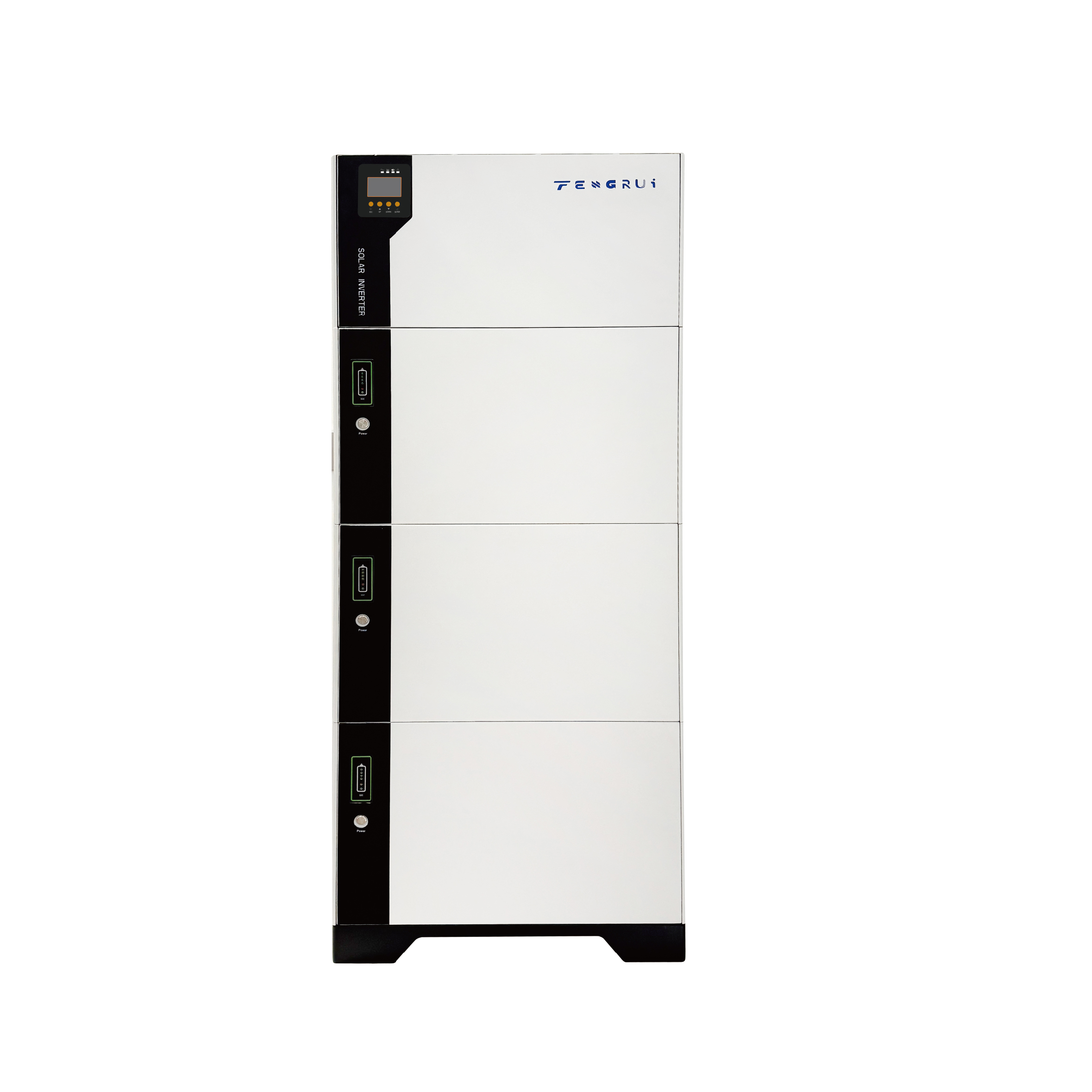

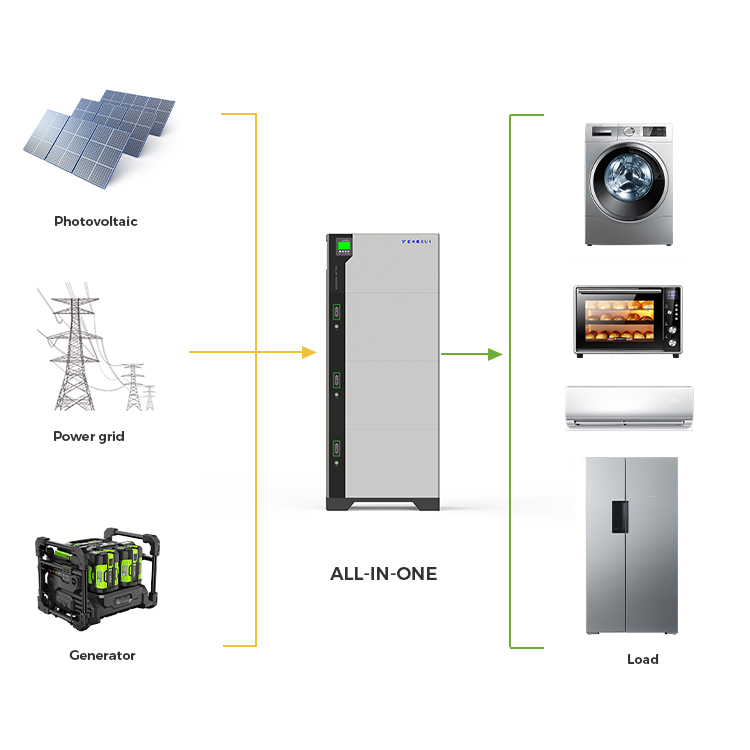

Low-Voltage Floor-mounted All-In-One Stackable ESS, built with LFP battery cells and inverter, supports flexible configurations from 5.22kWh to 20.88kWh, single-phase grid-charging, solar energy storage suitable for home and small commercial energy storage.

Product Features

⚡

Efficient & Safe

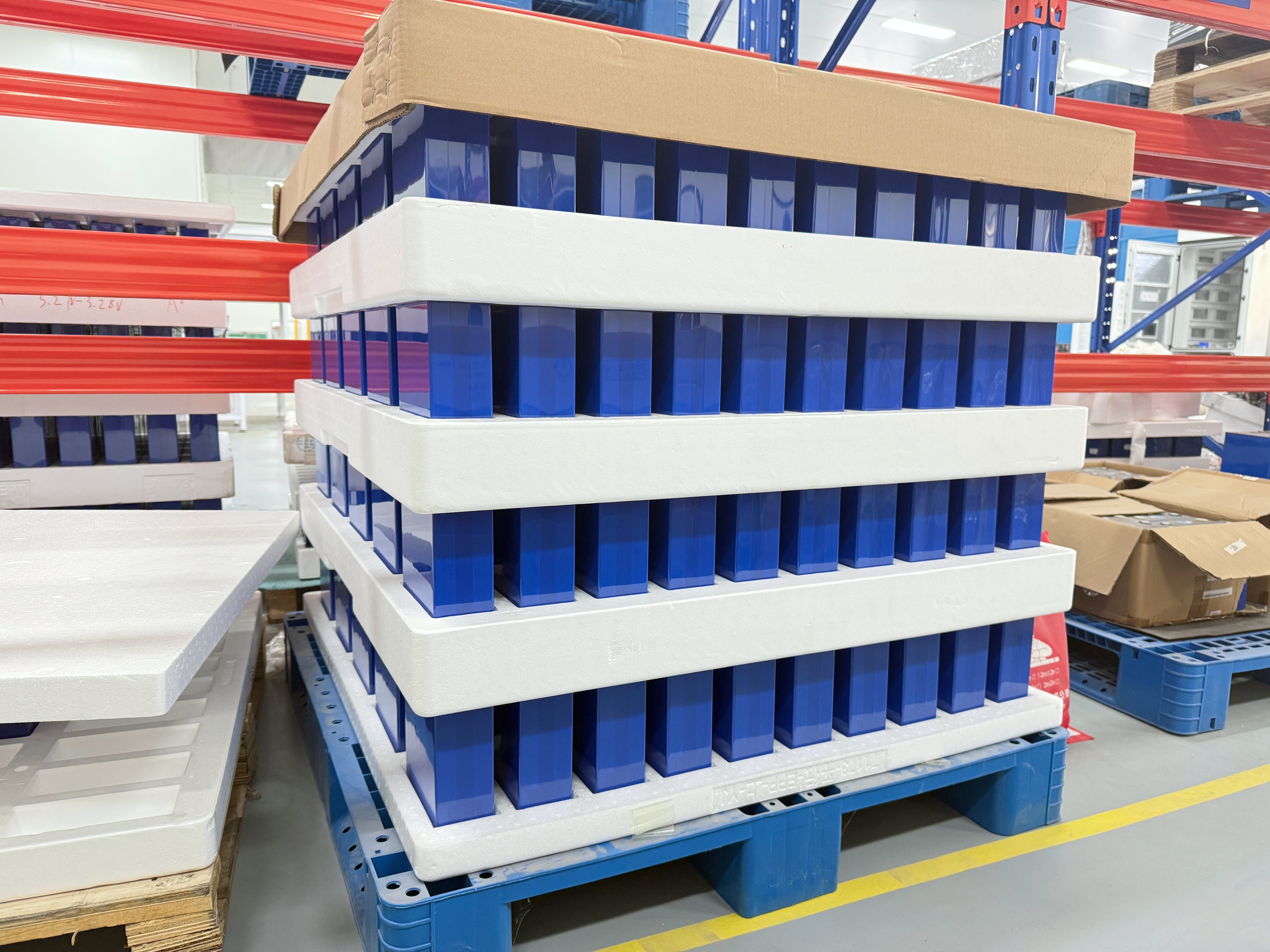

Utilizes LiFePO4/102Ah cells cover 95% DoD, ensuring safety, stability, and long-term reliability.

⚙️

Modular Design

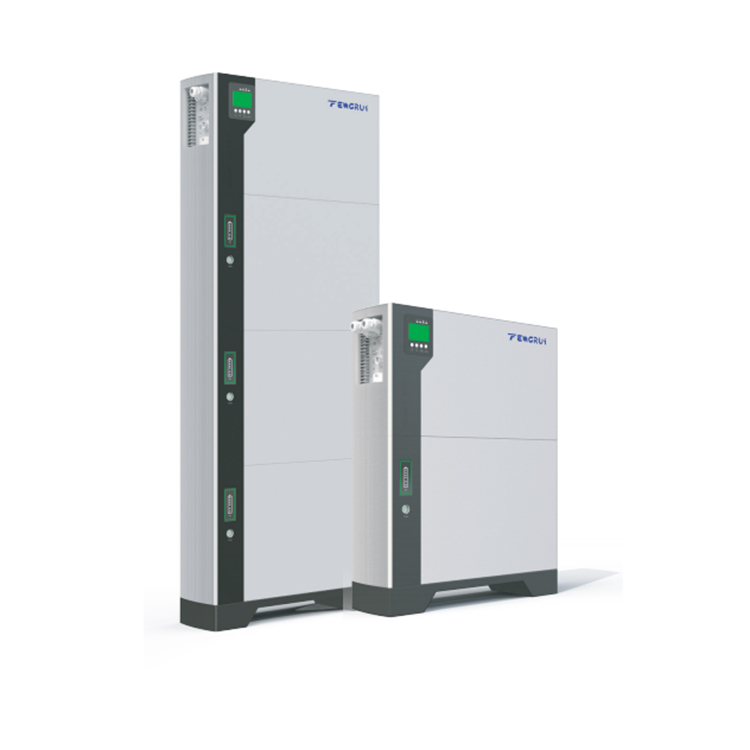

Supports 1 to 4 layers of battery modules, allowing flexible energy expansion from 5.22kWh to 20.88kWh.

⏳

Long Lifespan

Cycle life up to 6000 cycles, reducing long-term operational costs.

☀️

PV Input

Supports up to 5kW PV input, MPPT range 150-500V, compatible with most PV modules.

🧠

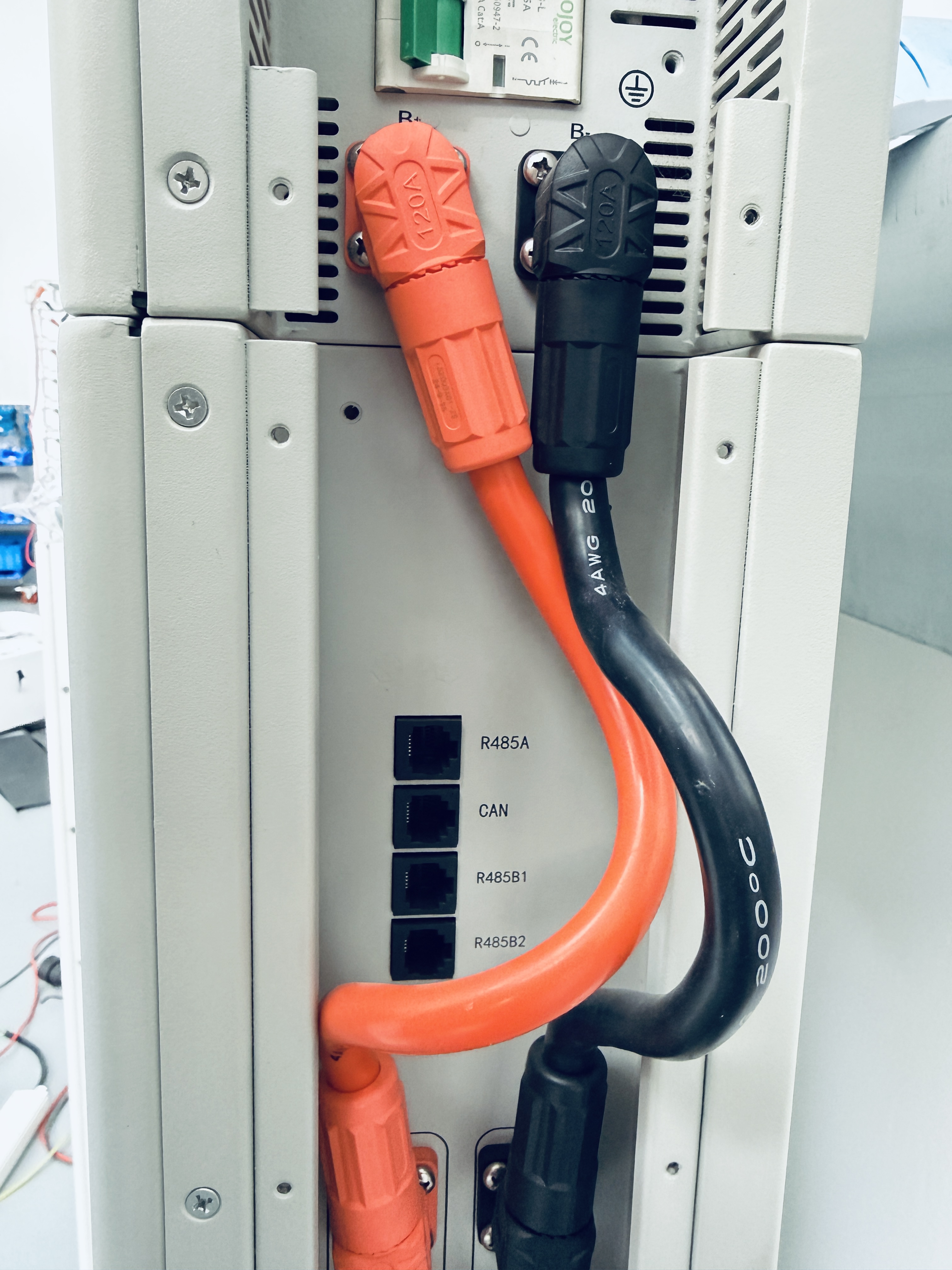

Smart Communication

Support CAN/RS485 communication for integration with energy management systems.

🔄

Fast Grid Transfer

Grid transfer time 20ms, ensuring uninterrupted operation of important appliances.

Product Parameter

Parameter	Specification
Model	F5-5K / F5-10K / F5-15K / F5-20K
Cell Chemistry	LFP/102Ah
Rated Energy	5.22kWh - 20.88kWh
Rated Voltage	51.2V
Max PV Input Power	5000W
Grid Transfer Time	20ms
Cycle Life	6000 Cycles
Operating Temp	-15-60°C

Quality Assurance

Frequently Asked Questions

Q1: What is the cycle life of this LFP battery?

A: This battery supports over 6000 cycles at 80% DOD.

Q2: Can the battery modules be combined freely?

A: Yes, it supports 1~4 battery pack combinations, allowing for 5.22kWh to 20.88kWh capacities.

Q3: Does it support remote monitoring?

A: Yes, you can perform real-time monitoring of machine operation through the APP.

Q4: Does the system include an inverter?

A: Yes, the system features an all-in-one design with an integrated inverter for convenient installation.

Q5: What communication protocols are supported?

A: The system supports RS485 and CAN communication protocols, along with Wi-Fi and Bluetooth capabilities.

Q6: What is the installation method?

A: This product is designed as a floor-standing unit for stable and easy installation.
