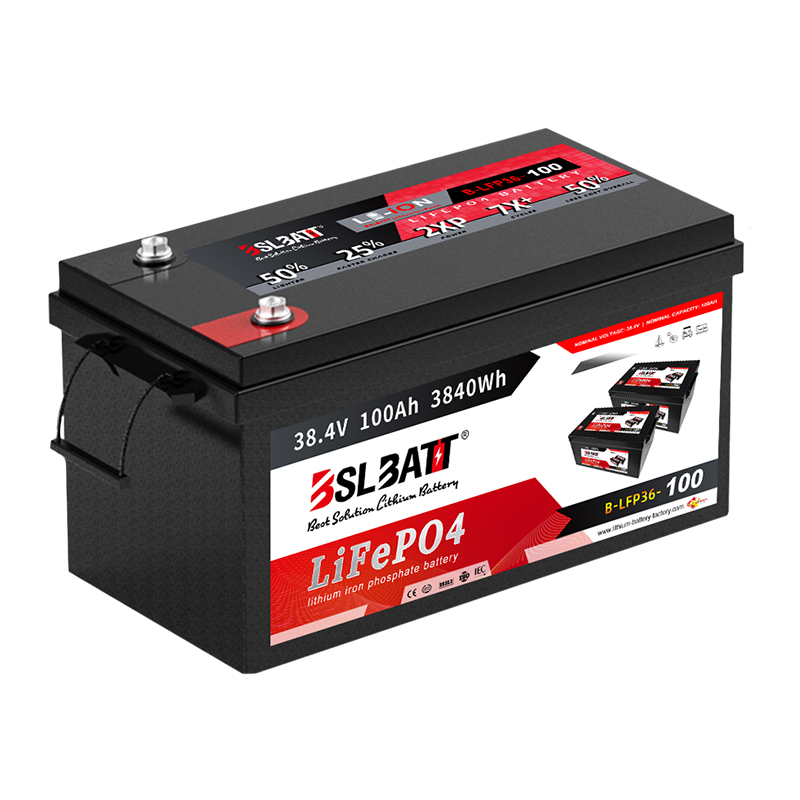

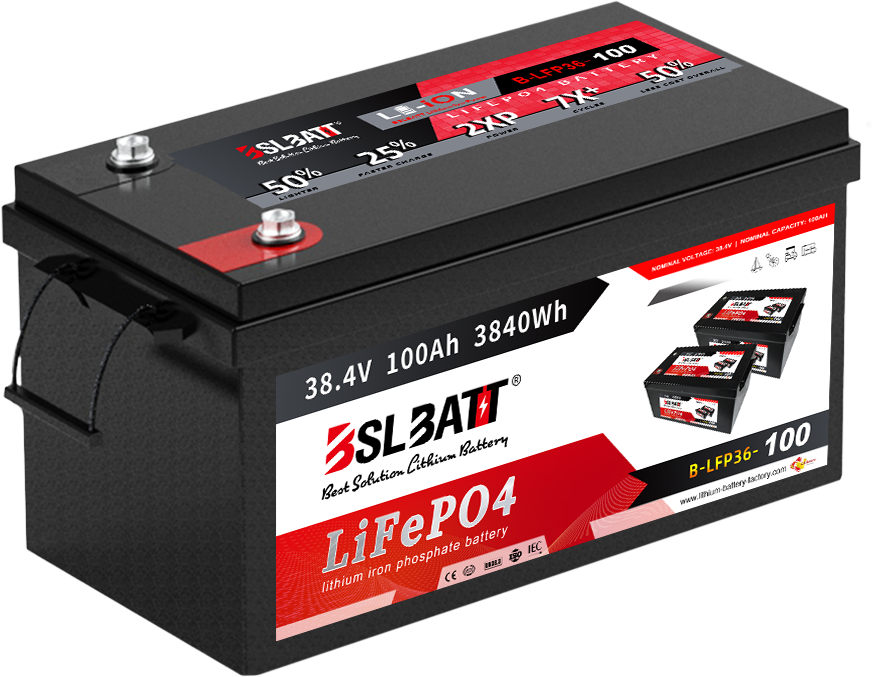

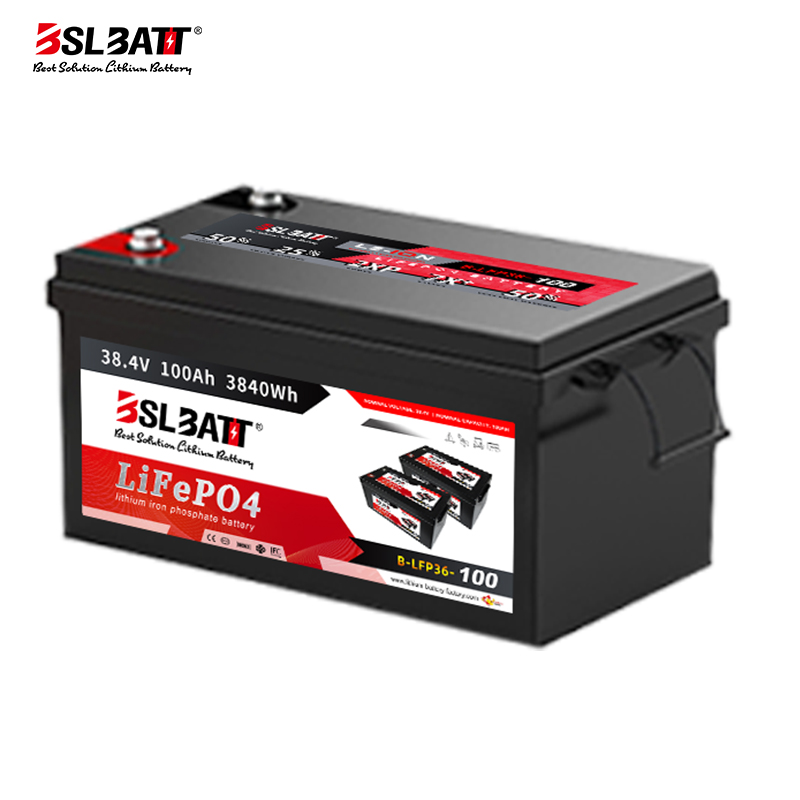

| 36V Series | B-LFP36-50 | B-LFP36-100 |
| Nominal Voltage | 38.4V | |
| Typical Capacity (At 0.2c Discharge Rate) | 67±1Ah | 100Ah |
| Energy | 2572.8Wh | 3840Wh |
| Charging Cutoff Current | About 0.35A | About 5A |
| Discharging Inner Resistance | ≤ 60mΩ | |
| Weight | About 17.8Kg | About 28.5Kg |

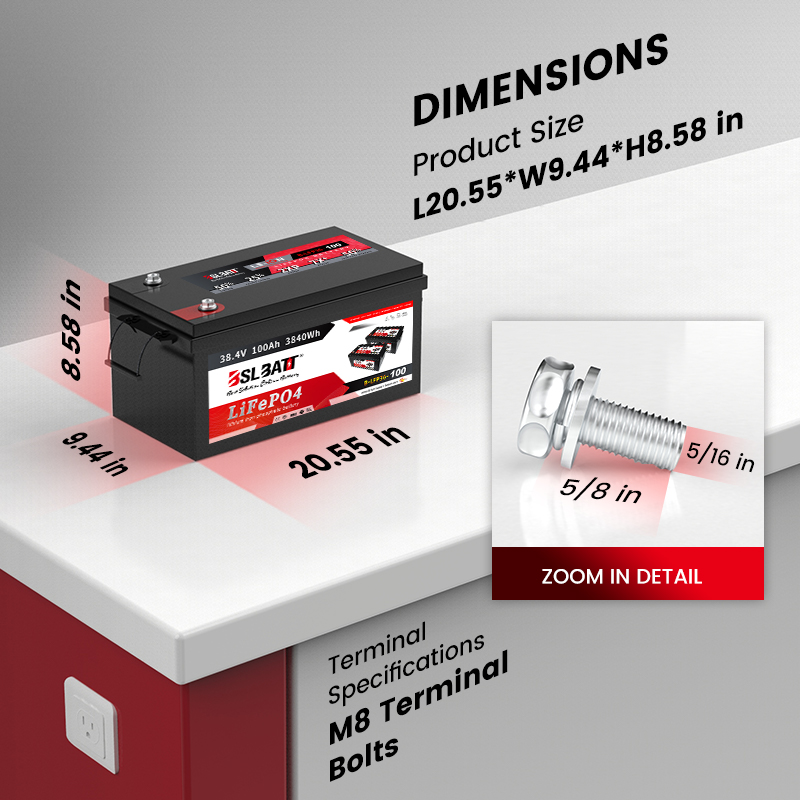

| Dimension(L*W*H)±2mm | 483*170*240 | 522*240*218 |
| Cycle | ≥3500,80%DOD (0.2C,25℃) | |
| Output Mode | M8 Terminal | |
| Pack Configuration | 4P2S | |
| Storage Temperature | 20℃~45℃ | |

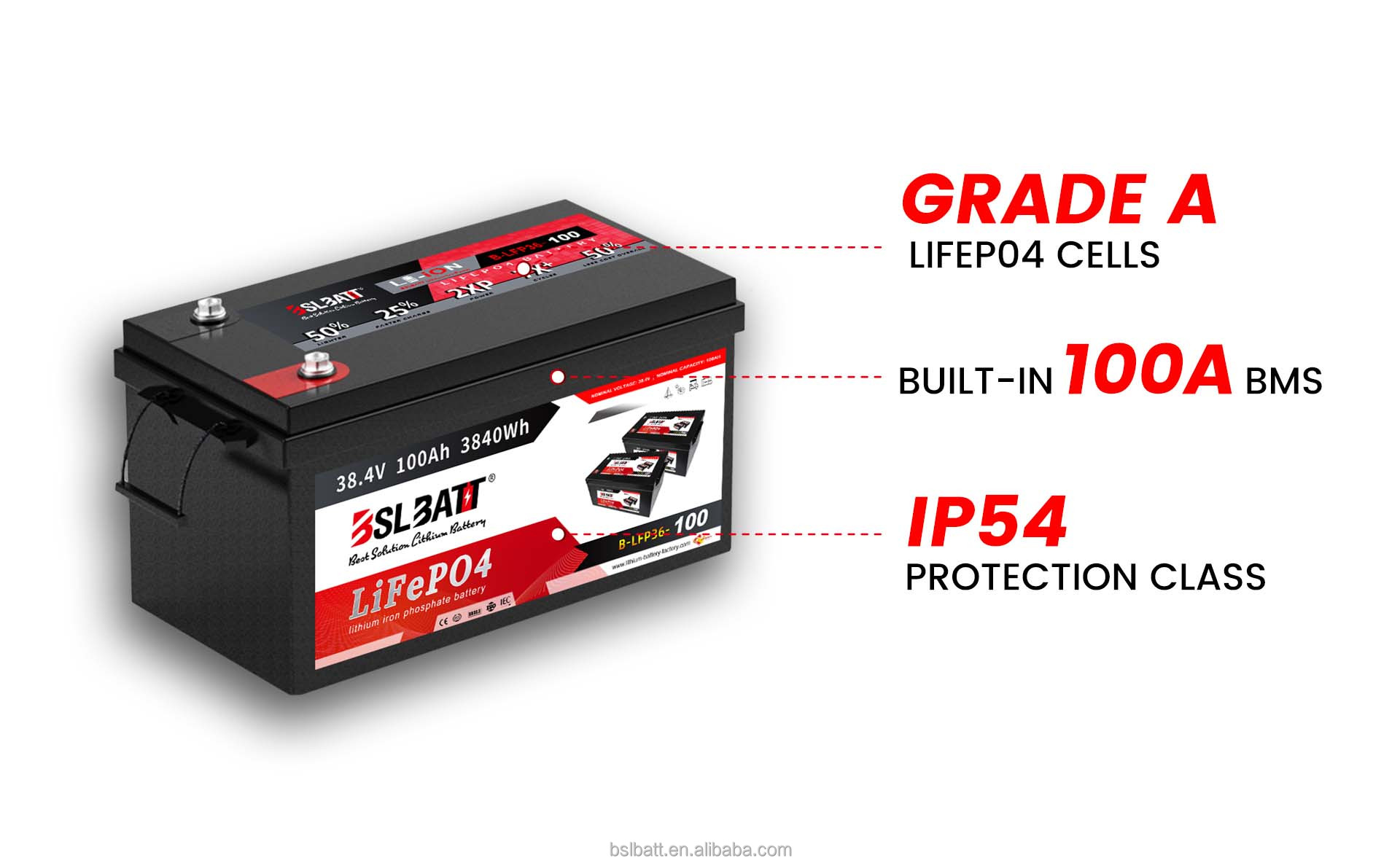

| Protection Function | Overcharge, over-discharge, over-current, short circuit and other protection functions | |
| Shell Material | ABS | |
