| Item | General Parameter |
|---|---|

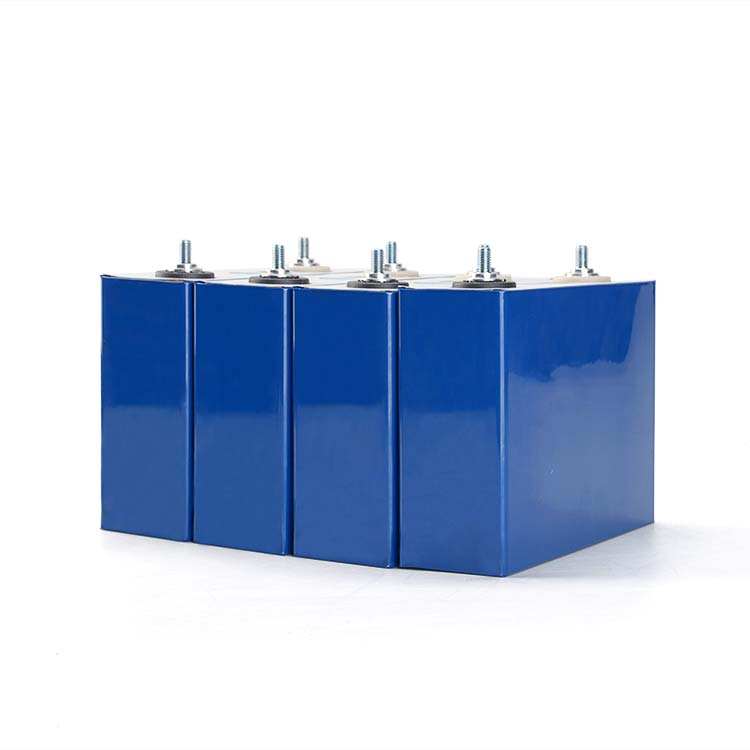

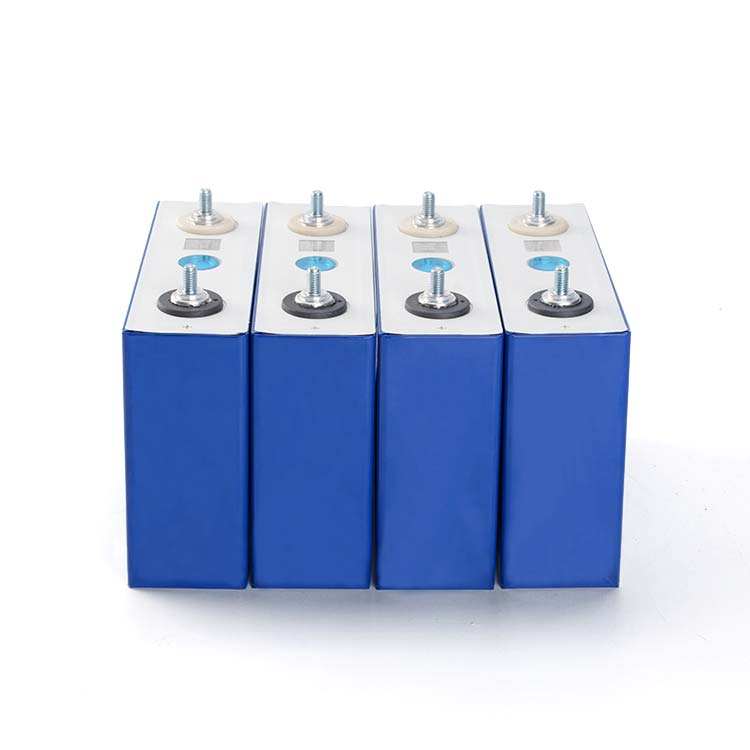

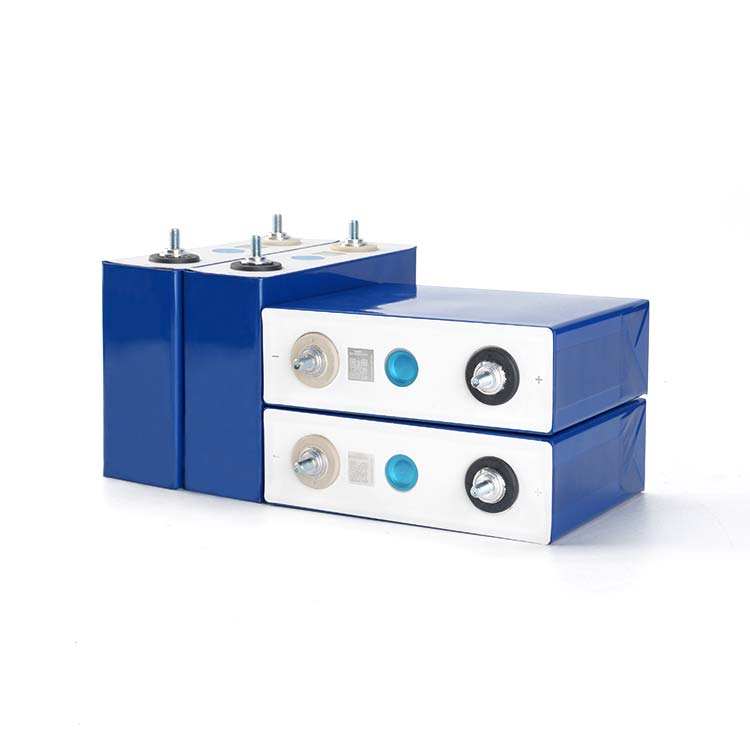

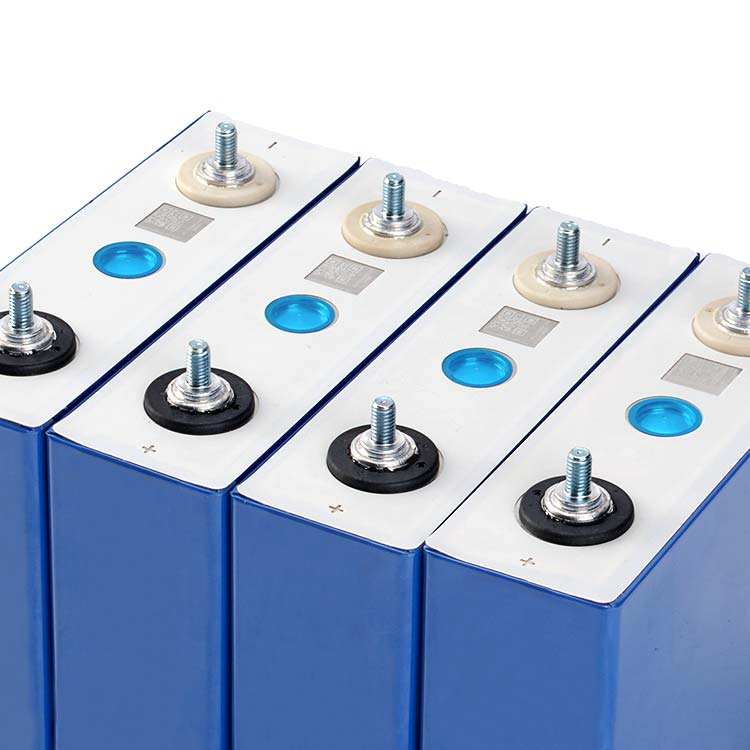

| Type | 3.2V LFP (LiFePO4 Battery) |
| Standard capacity (0.2C5A) | 100AH |
| Rated voltage | 3.2V |
| Max.charge voltage | 3.65V |
| Cut-off voltage | 2.0V / 2.5V |
| Standard charge current | 100A, 1C |
| Max continuous discharge current | 100A, 1C |

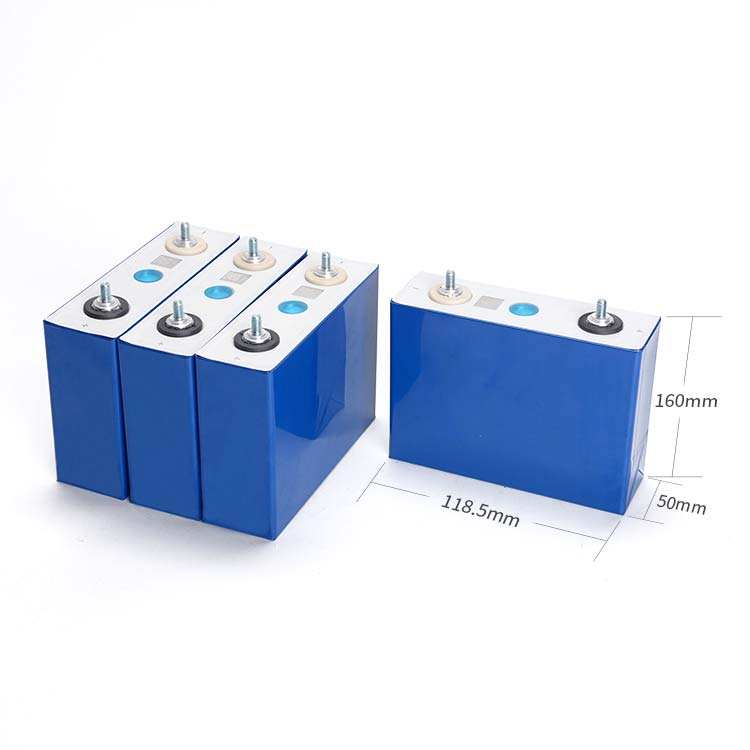

| Battery dimension | 50*160*116mm |
| Total weight (Approx.) | 2kg |
| Standard charging temperature | 0℃ ~ 45℃ |
| Discharge temperature | -20℃ ~ 60℃ |
| Storage temperature | -20℃ ~ 45℃ |
| Cycle life | >6000 times |
| Free accessories | Included M6 the busbars and bolts |

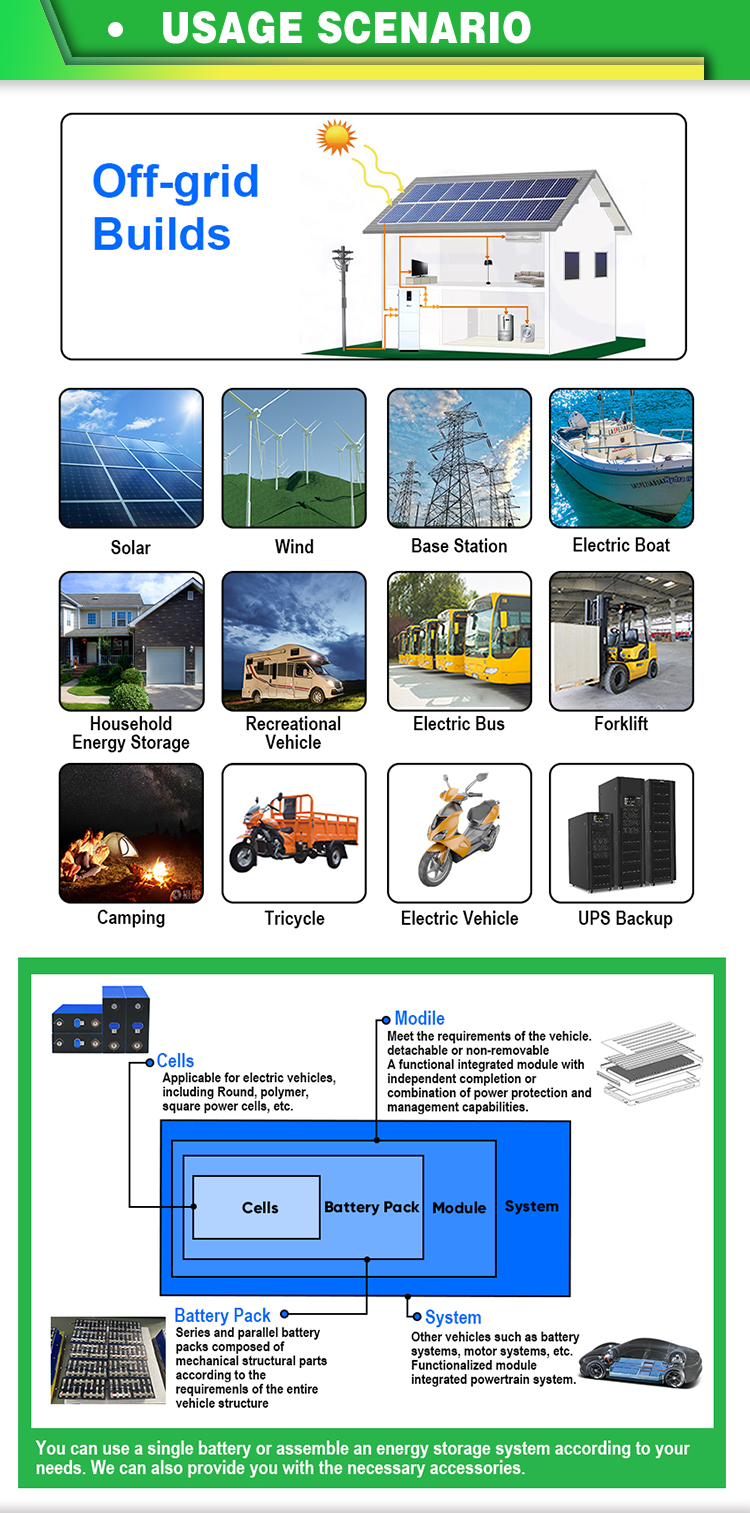

| Suitable for | Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley/carts, power tools...Solar and wind power system, RV, caravan |

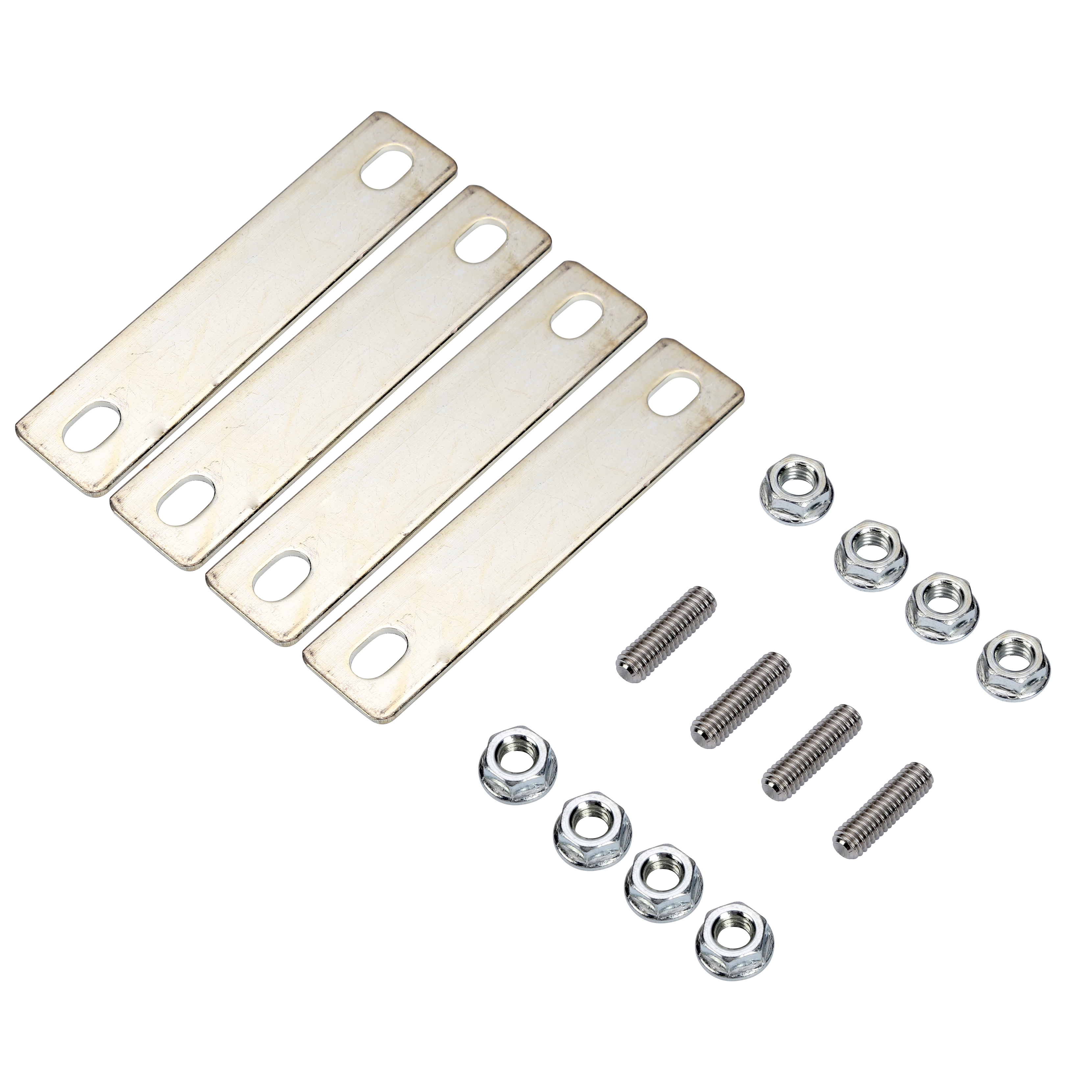

Each cell comes with one busbar and two nuts for free.
Size: 90 * 20 * 2 mm (copper plated with nickel)

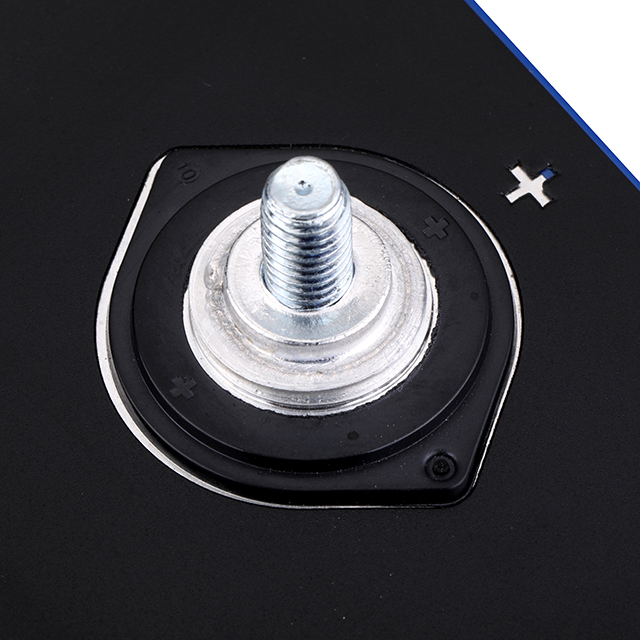

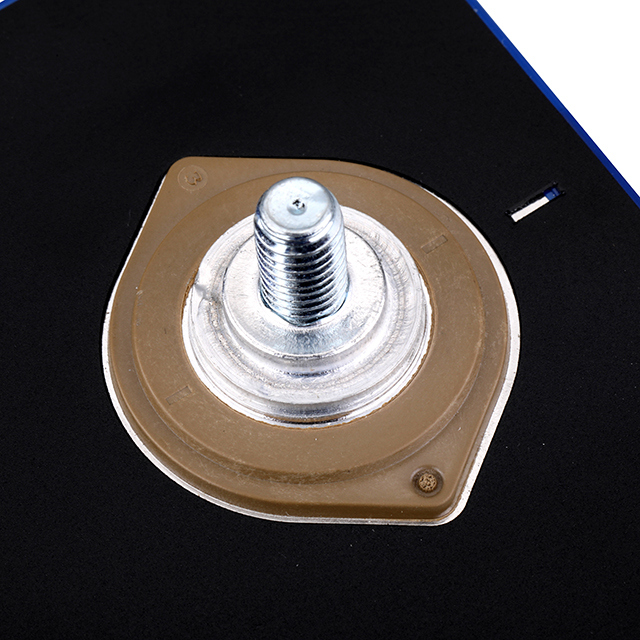

Screw size: M6

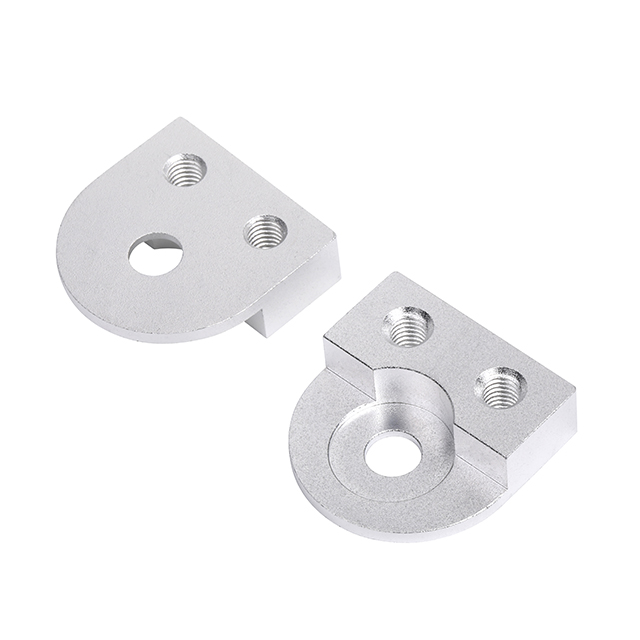

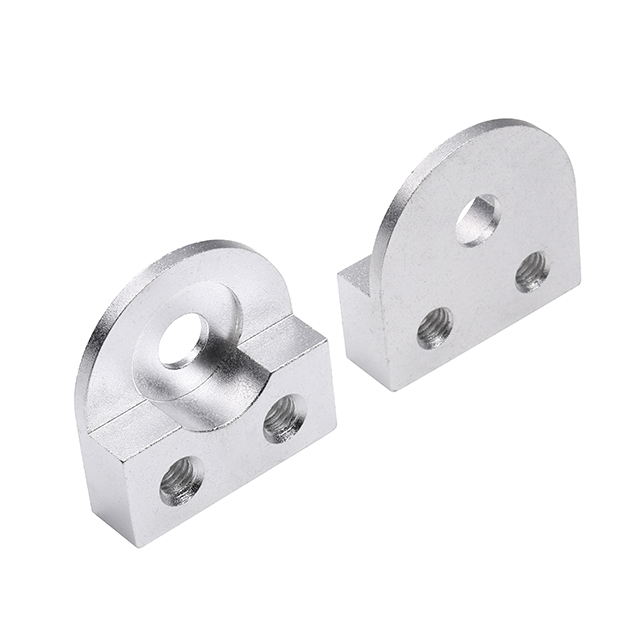

Double hole wall terminals can be welded upon request. Please contact for options.

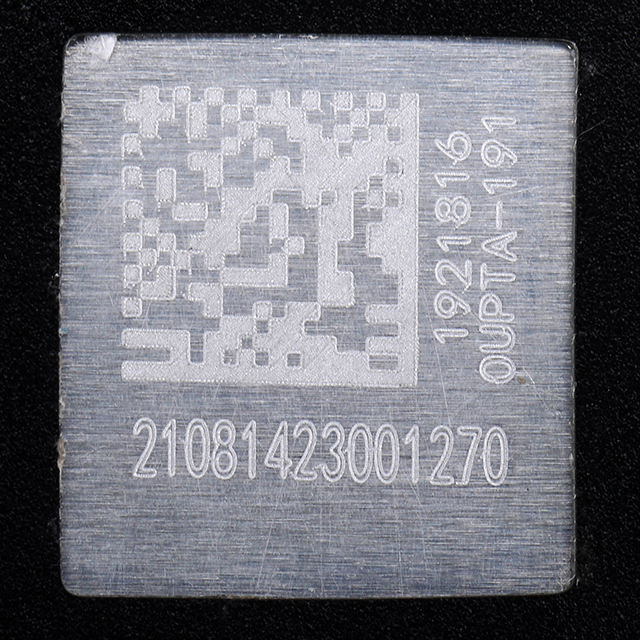

Before leaving the factory, the voltage and internal resistance of all cells are professionally tested twice. This ensures that you receive top quality, brand new original QR code battery cells.
