| Controller |
Inbor, SME or China Local Brand |
| Motor |
4KW/5KW/ AC motor |
| Battery |
48V/60V/72V120AH Battery |
| Passenger Capacity |
4 |
| Range (Loaded) * |
90-100kms |
| Max. Speed |
36-45km/h |
| Min. Turning Radius |
3.7m |
| Max. Gradeability |
20%-30% |
| Max. Loading Weight |
280kgs |
| Net Weight |
450kgs |
| Overall Dimensions |
2980*1250*1900mm |
| Frame (Chassis) |
Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating |
| Body and Roof |
PP plastic front body and rear body; PP vacuum form roof |
| Windshield |
Organic plastic windshield, split tinted |
| Roof supports |
Carbon Steel, powder coated |
| Backrest and Seat |
Reborn Sponge, artificial leather + plastic armrest |
| Floor |
Galvanized Steel plate and anti-slip rubber floor mat |
| Dashboard |
Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key |
| Side trim |
Plastic |
| Side mirror |
2pcs, foldable |

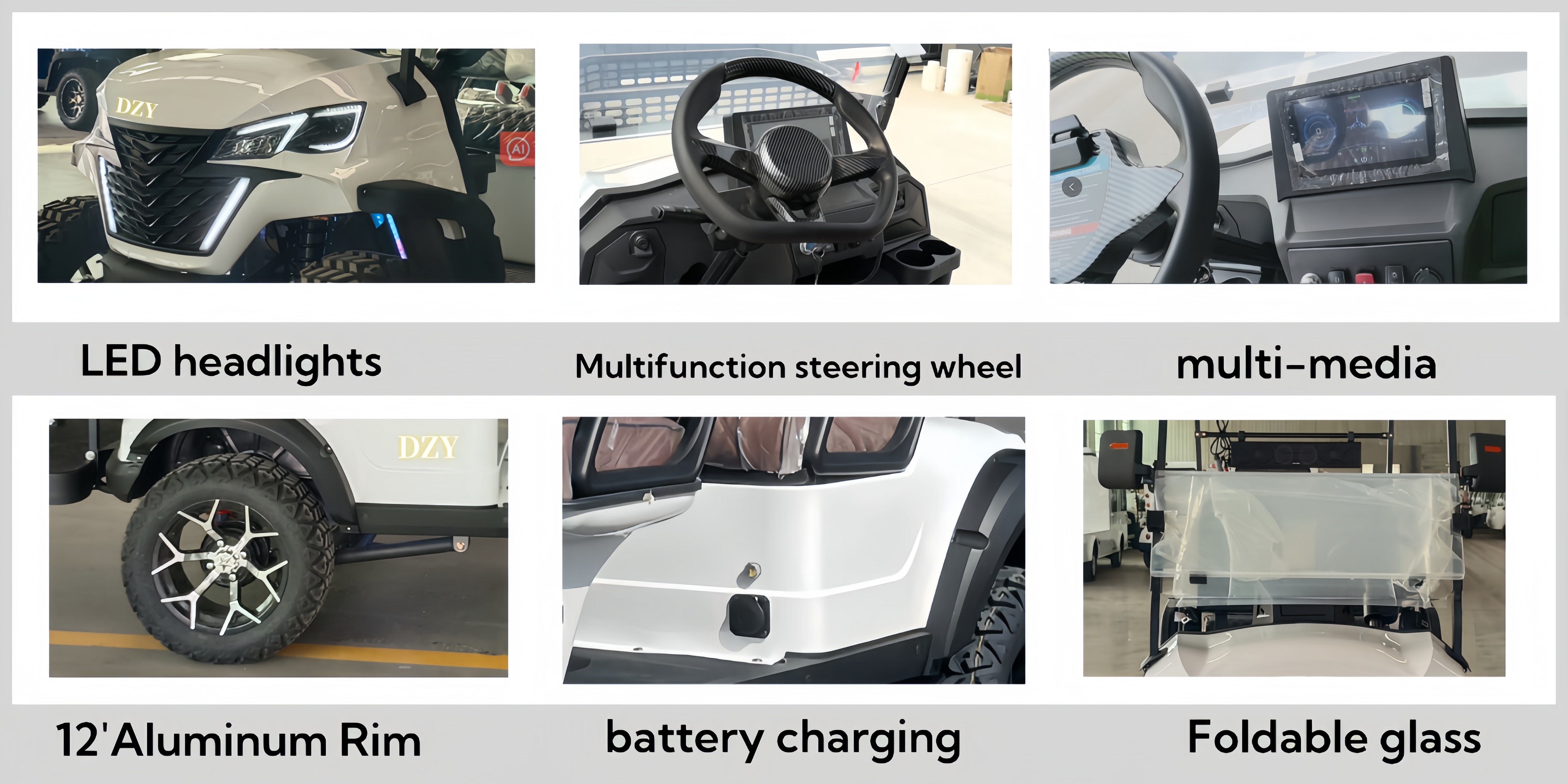

| Lighting system & horn |
All LED lights, 2 headlights, 2 front turn signals, 2 taillights, electric horn. |
| Backup Buzzer |
12V |
| Digital Meter |
LCD screen, with speedometer, odometer, battery power meter and various indicators |
| Charger |
Smart charger |
| Steering system |
Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system |
Four-wheel hydraulic brake + pedal parking brake |
| Accelerator |
Stepless speed change |
| Suspension system |
Cylinder hydraulic shock absorption + integral rear axle + leaf spring |
| Driving mode |
Rear axle secondary reduction, AC motor |
| Rear axle |
Integrated, variable speed gear |
| Wheel & Tyre |
205-50-12, Aluminium wheel hub, vacuum tire |
