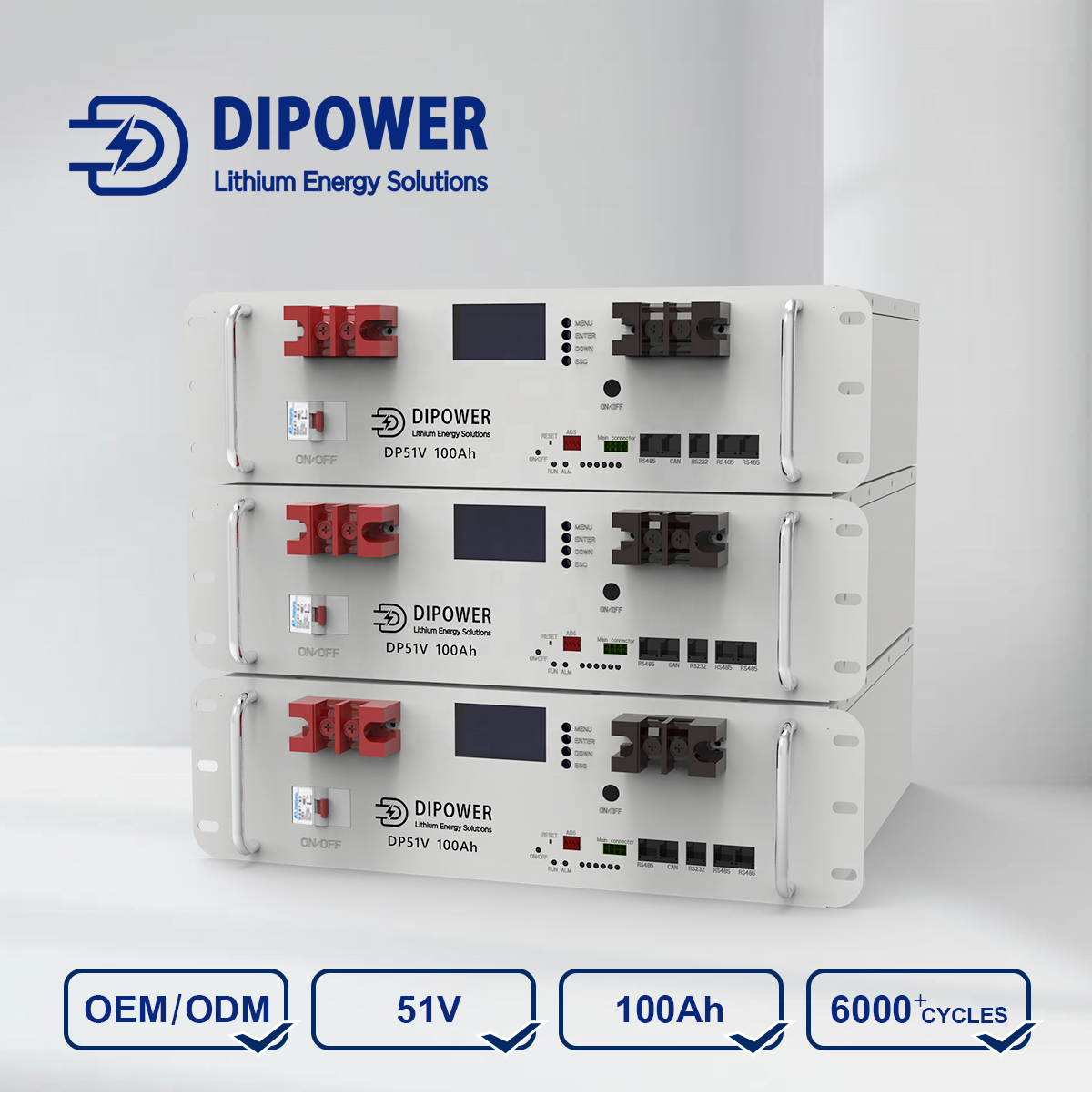

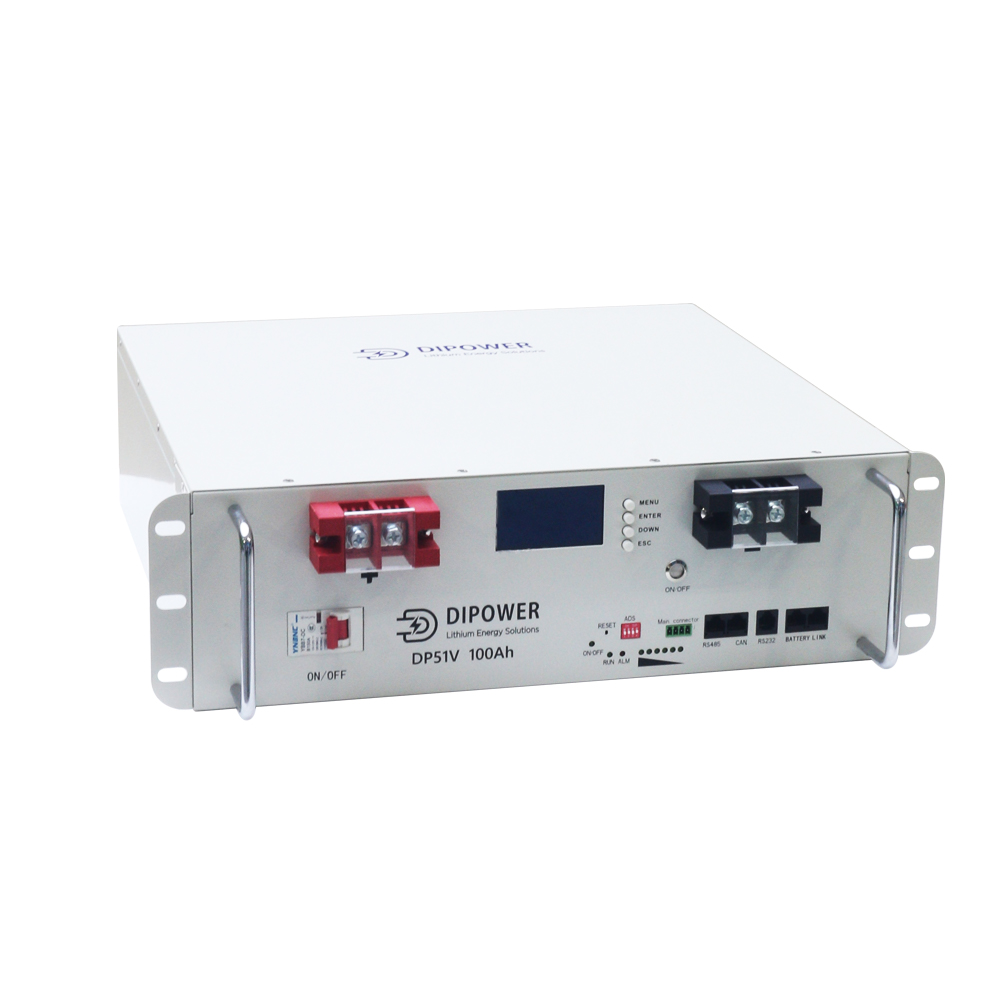

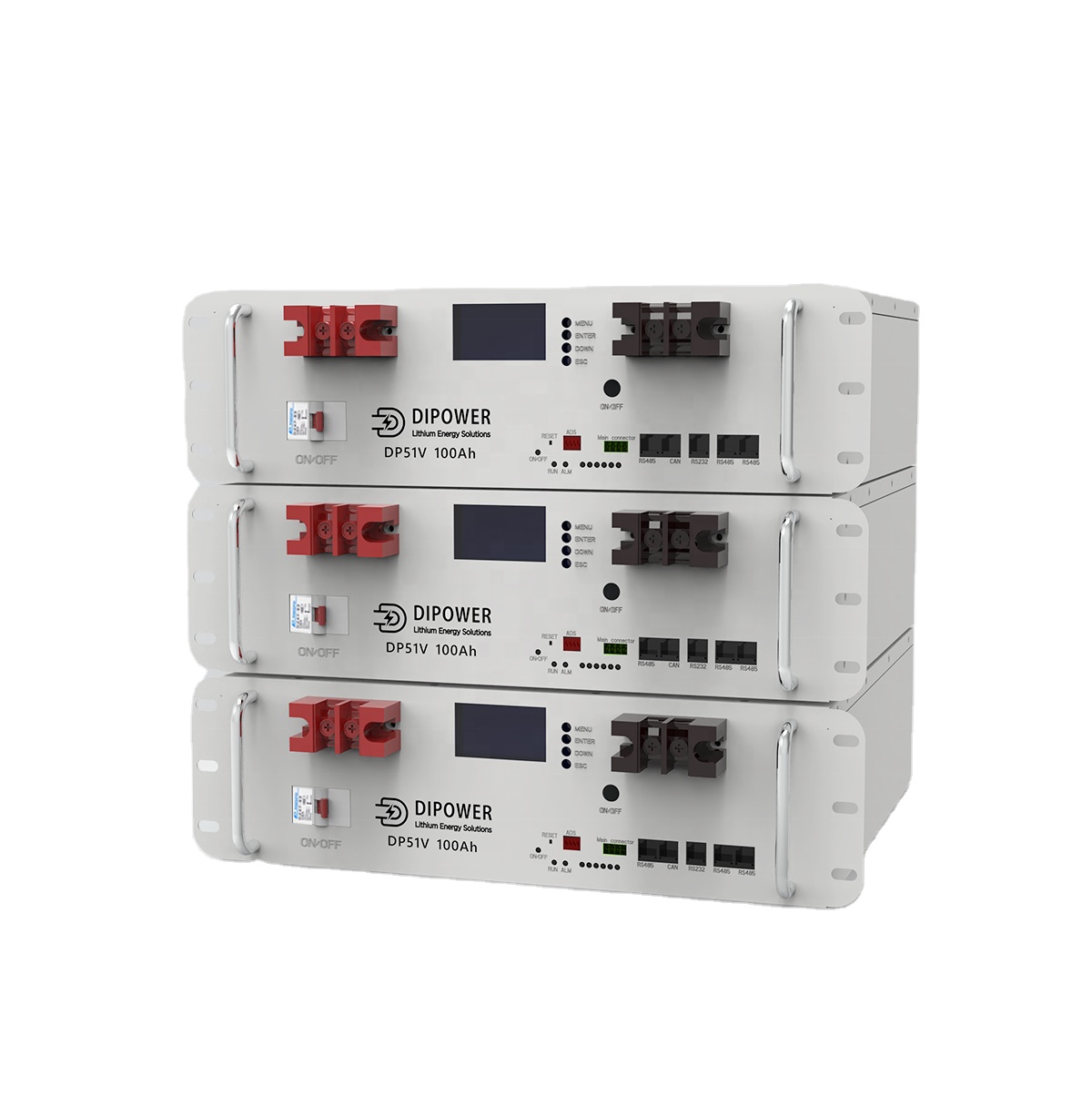

3U Rack Mount Lithium Iron Phosphate Battery 51.2V 100Ah Stackable UPS ESS 5.12kWh 10.24kWh Solar Lifepo4 Battery
3U Rack Mount Lithium Iron Phosphate Battery 51.2V 100Ah Stackable UPS ESS 5.12kWh 10.24kWh Solar Lifepo4 Battery
3U Rack Mount Lithium Iron Phosphate Battery 51.2V 100Ah Stackable UPS ESS 5.12kWh 10.24kWh Solar Lifepo4 Battery
3U Rack Mount Lithium Iron Phosphate Battery 51.2V 100Ah Stackable UPS ESS 5.12kWh 10.24kWh Solar Lifepo4 Battery
3U Rack Mount Lithium Iron Phosphate Battery 51.2V 100Ah Stackable UPS ESS 5.12kWh 10.24kWh Solar Lifepo4 Battery
1 / 5
3U Rack Mount Lithium Iron Phosphate Battery 51.2V 100Ah Stackable UPS ESS 5.12kWh 10.24kWh Solar Lifepo4 Battery
3U Rack Mount Lithium Iron Phosphate Battery 51.2V 100Ah Stackable UPS ESS 5.12kWh 10.24kWh Solar Lifepo4 Battery
3U Rack Mount Lithium Iron Phosphate Battery 51.2V 100Ah Stackable UPS ESS 5.12kWh 10.24kWh Solar Lifepo4 Battery
3U Rack Mount Lithium Iron Phosphate Battery 51.2V 100Ah Stackable UPS ESS 5.12kWh 10.24kWh Solar Lifepo4 Battery
3U Rack Mount Lithium Iron Phosphate Battery 51.2V 100Ah Stackable UPS ESS 5.12kWh 10.24kWh Solar Lifepo4 Battery

3U Rack Mount Lithium Iron Phosphate Battery 51.2V 100Ah Stackable UPS ESS 5.12kWh 10.24kWh Solar Lifepo4 Battery

Send Inquiry

Product Description

Our Production Technics and Process
⚙️

This is a professional factory of lithium batteries established in 2008. We strictly follow ISO production standards. Our factory features a massive production space with strong production capacity, advanced production equipment, and highly experienced technical personnel.

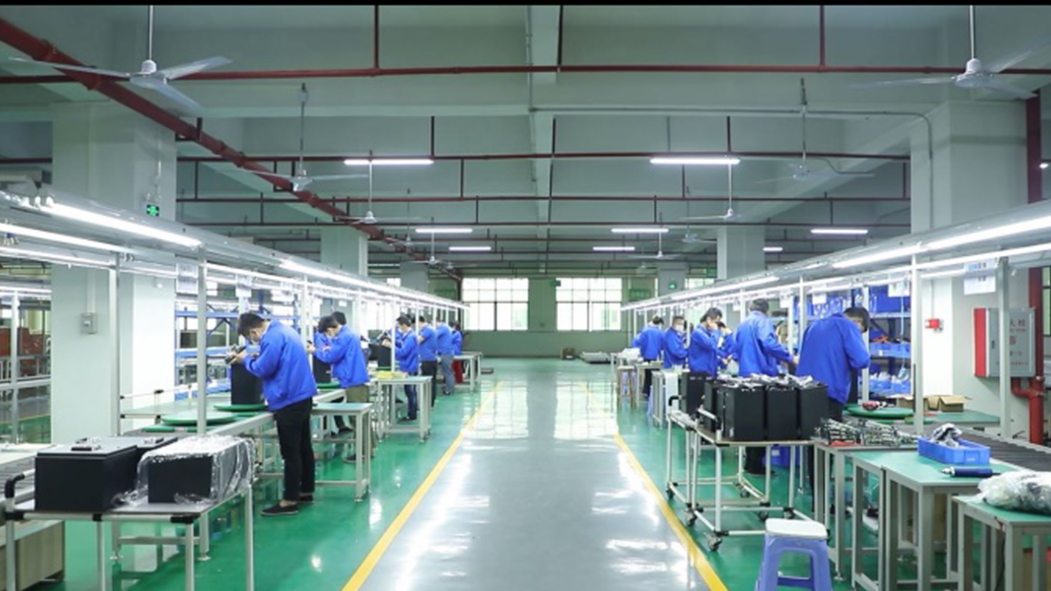

VR Factory
Product Specification
Category Parameter Detail
Basic Parameters Voltage 51V
Basic Parameters Capacity 100Ah (Standard)
Basic Parameters Energy 5000Wh
Size and weight Dimensions 482mm x 451mm x 266mm
Size and weight Weight 42kg
Electrical Parameters Communication CAN/RS485
Electrical Parameters Compatible Inverters Growatt, Goodwe, Deye, Srne, Voltronic, etc.
Features
  • Advanced BMS with current limiting function
  • Long cycle life and service life
  • Compatible with most inverters and chargers
  • High energy intensity and conversion efficiency
  • Easy rack-mounted installation
  • Overcharge, over-discharge, and over-temperature protection
Application
App 1
App 2
App 3
Detailed Gallery

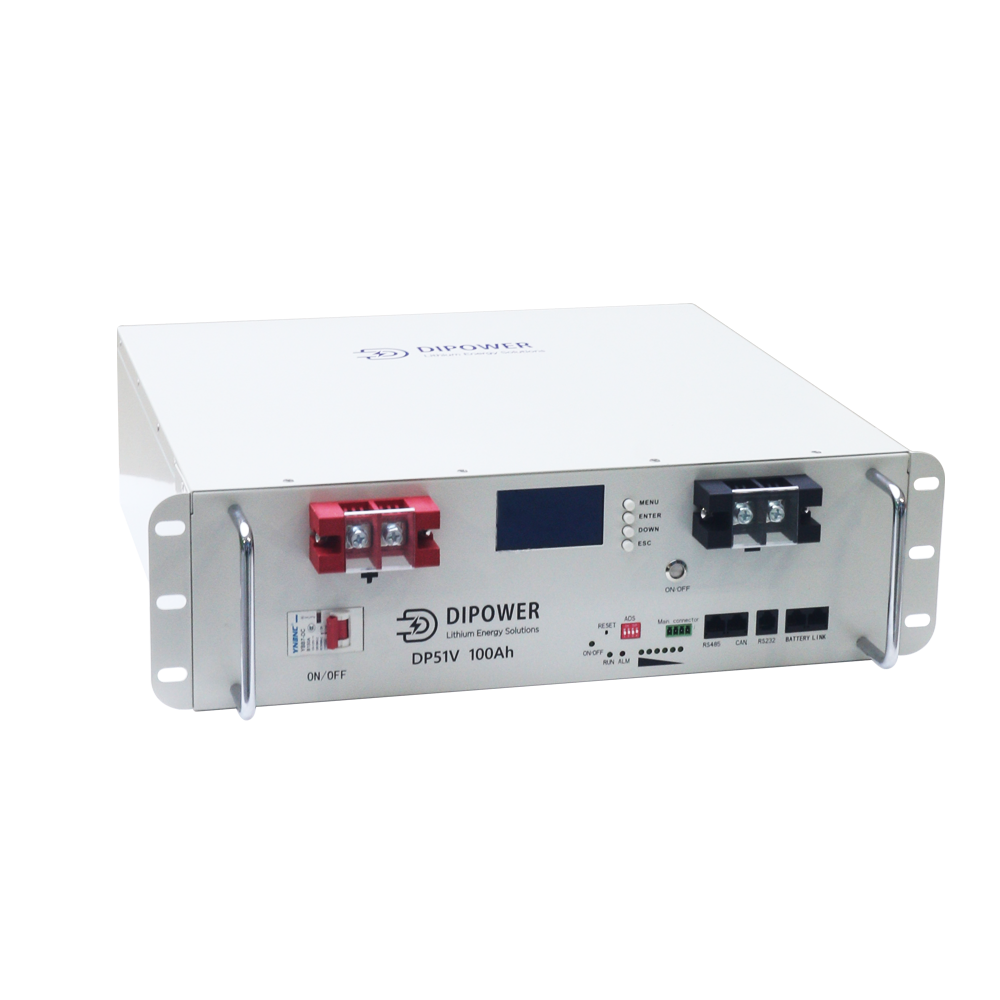

Detail 1

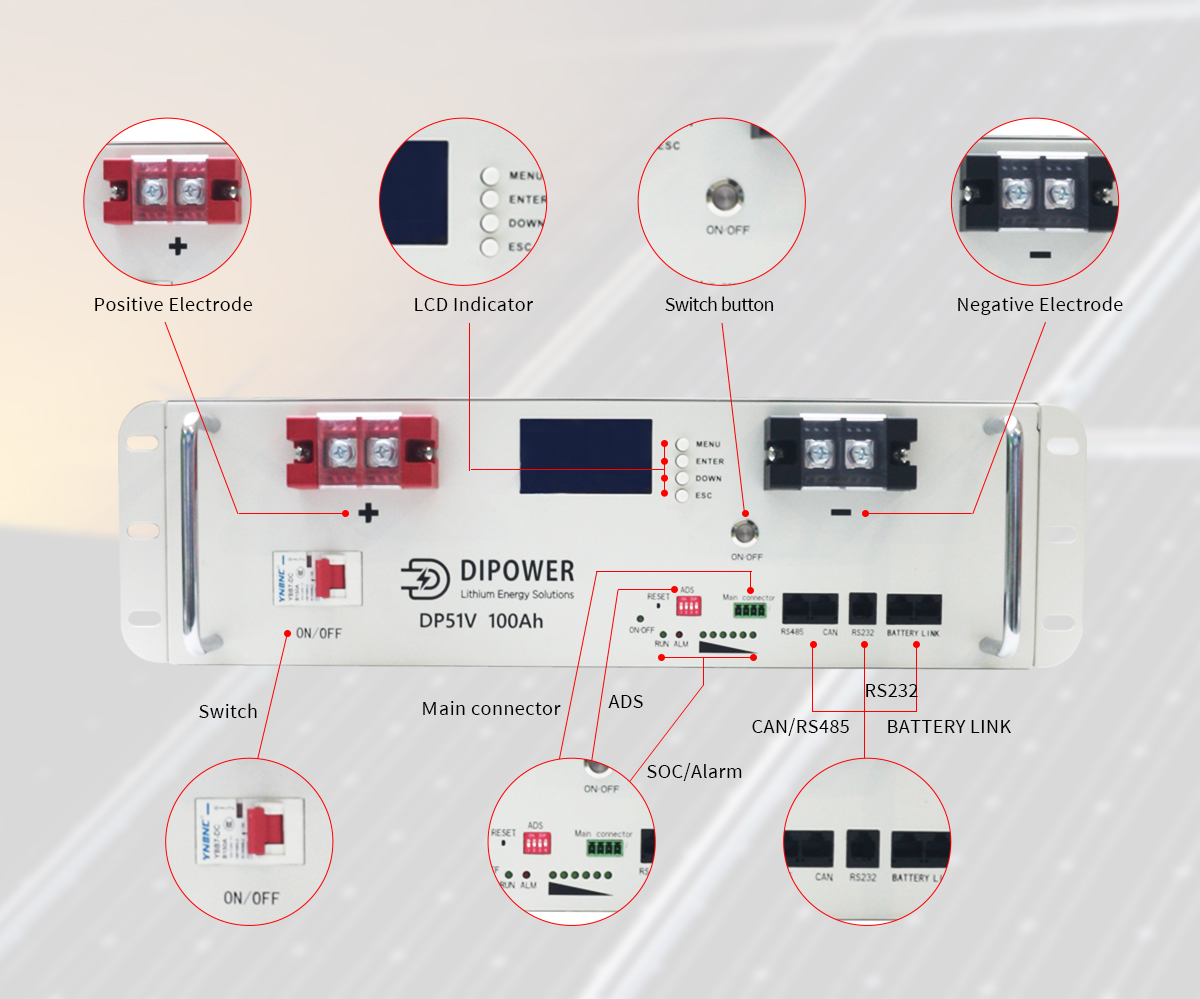

Detail 2
Detail 3
Product Packaging
Pack 1
Pack 2
Exhibition
Exhibition
Frequently Asked Questions
1. What is the expected lifespan of the battery?
The battery supports ≥6000 cycles at 0.5C with 80% DOD at 25°C, ensuring a long and reliable service life.
2. Is the battery compatible with my inverter?
Our batteries are compatible with major inverter brands including Growatt, Goodwe, Deye, Srne, and Voltronic.
3. What communication protocols are supported?
The battery supports both CAN and RS485 communication protocols.
4. What is the recommended storage condition?
Store in a dry environment with a temperature range of -10°C to +45°C, keeping the SOC between 20% and 60% for long-term storage.
5. Does this battery support fast charging?
The standard charging current is 0.2C, with a maximum constant current support of 1C at 25°C.
6. Is a warranty provided?
Yes, we provide a 5-year standard warranty, with options for longer warranties depending on specific customer requirements.
